IGF

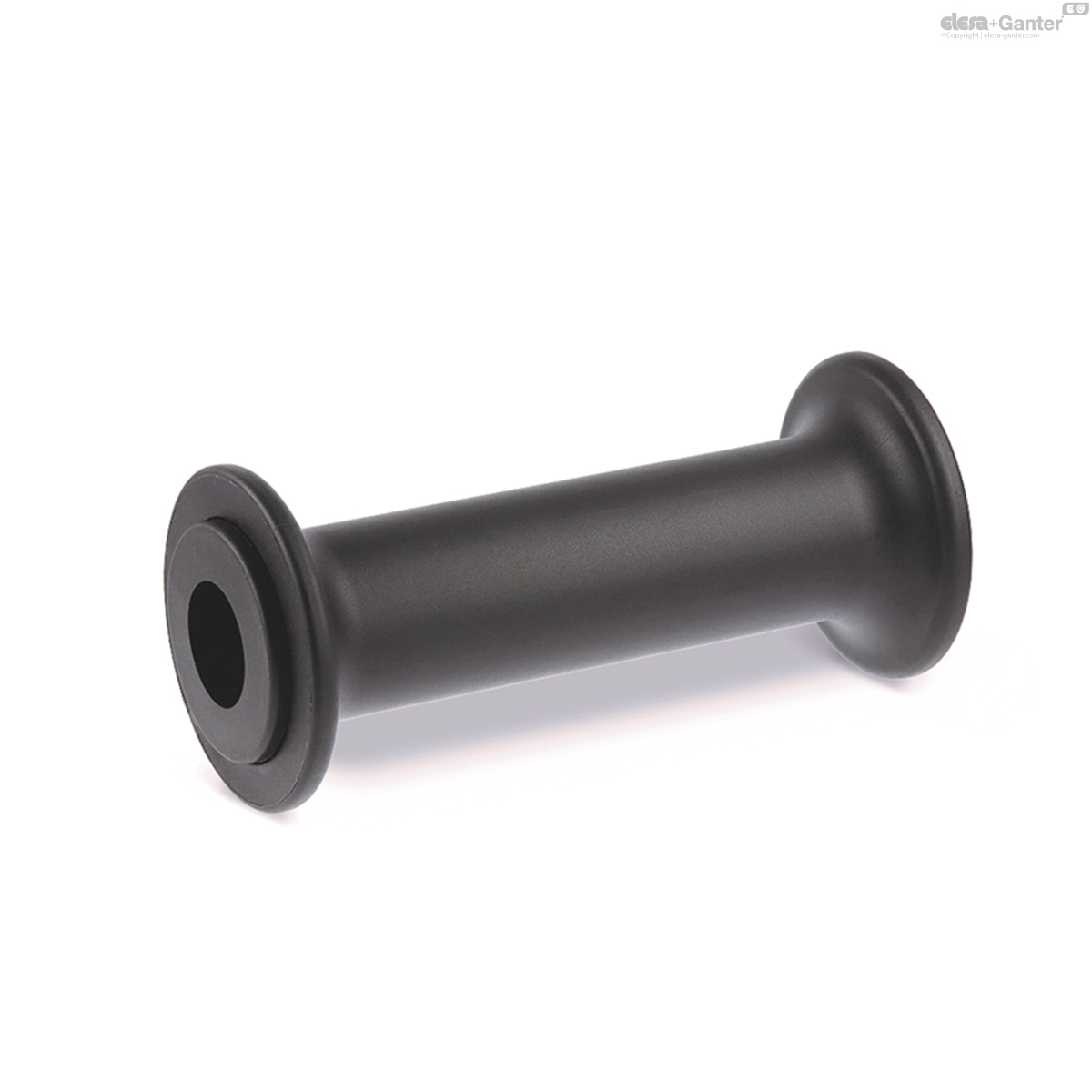

Cylindrical revolving handles
with double protection, technopolymer, resistant to high temperatures
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, resistant to high temperatures, black colour, matte finish.
Mounting
Plain pass-through hole for shafts with diameter d +/- 0.2 mm.
Maximum continuous working temperature
200°C.
General information
Ergonomy and design

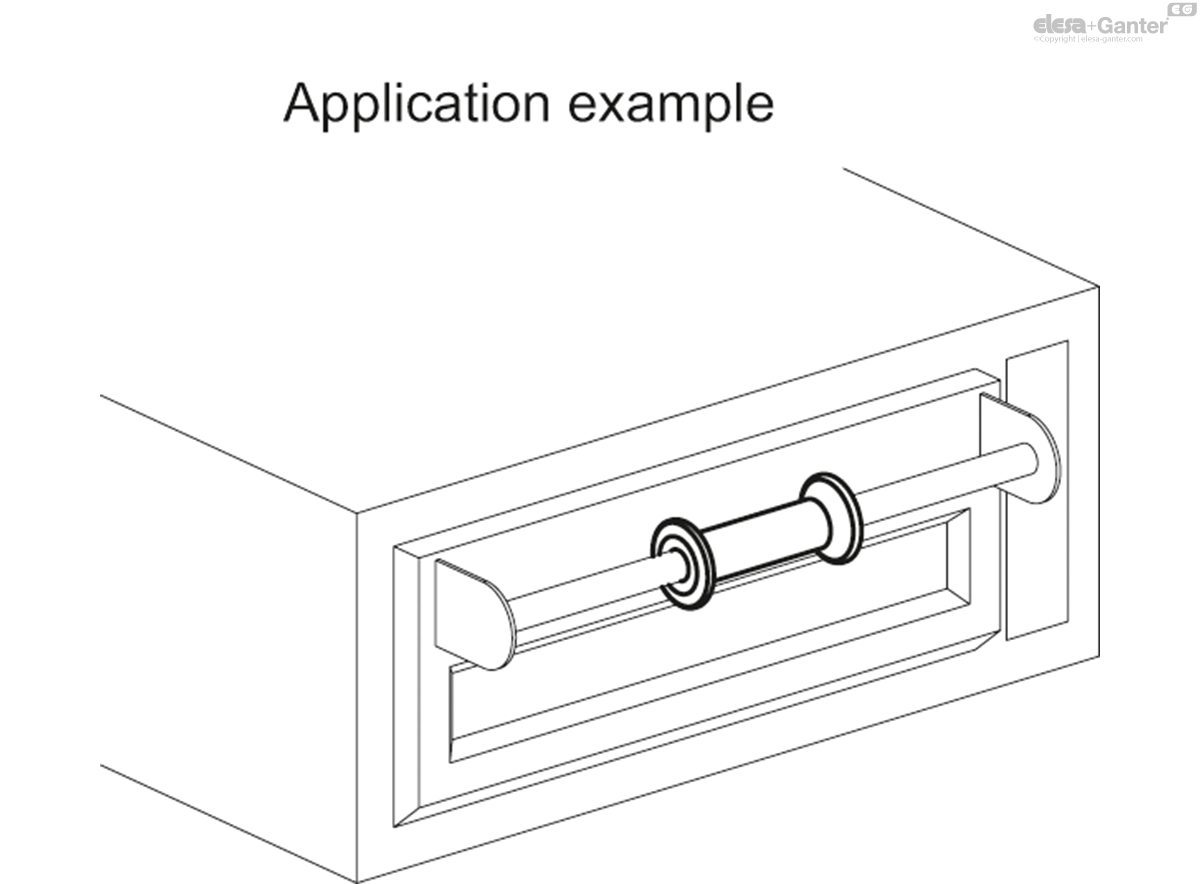

The ergonomic profile and the wide flanges of the handle offer a comfortable and secure grip, protecting the hand laterally from direct contact with any high-temperature parts of the machine such as oven handles, etc.
The plain pass-through hole allows the handle to rotate and translate freely on the shaft.
 IGF

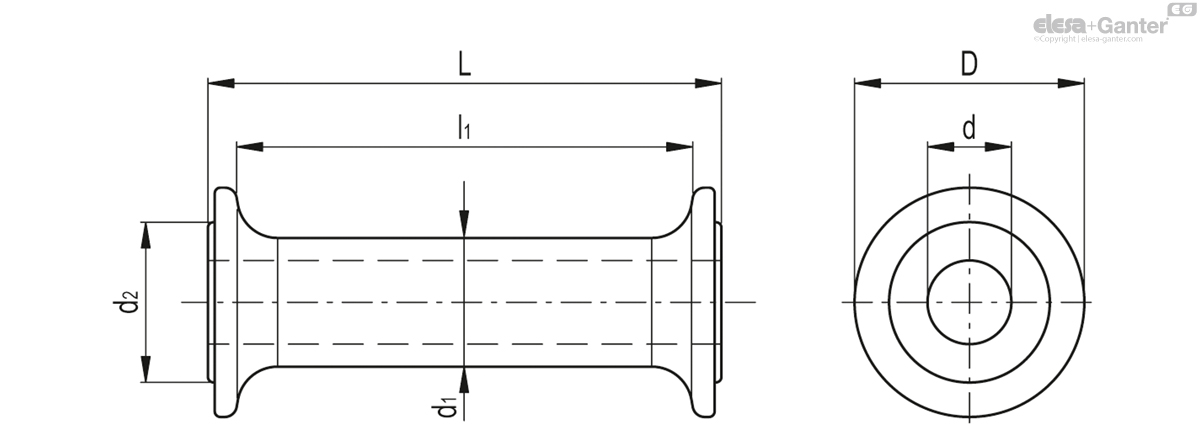

| D | L | d | d1 | d2 | l1 |  |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 26757 | IGF.127-12 | 57 | 127.5 | 12 | 32 | 40 | 112 | 135 |
|
| 26759 | IGF.127-16 | 57 | 127.5 | 16 | 32 | 40 | 112 | 133 |
|
| 26761 | IGF.127-20 | 57 | 127.5 | 20 | 32 | 40 | 112 | 130 |
|
