Home Fixed and Revolving Handles Fixed handles IFF

IFF

Cylindrical handles

with double protection, technopolymer

__logo__ELE_OD__

__logo__RoHS__

__logo__PA__

__logo__g13030__

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

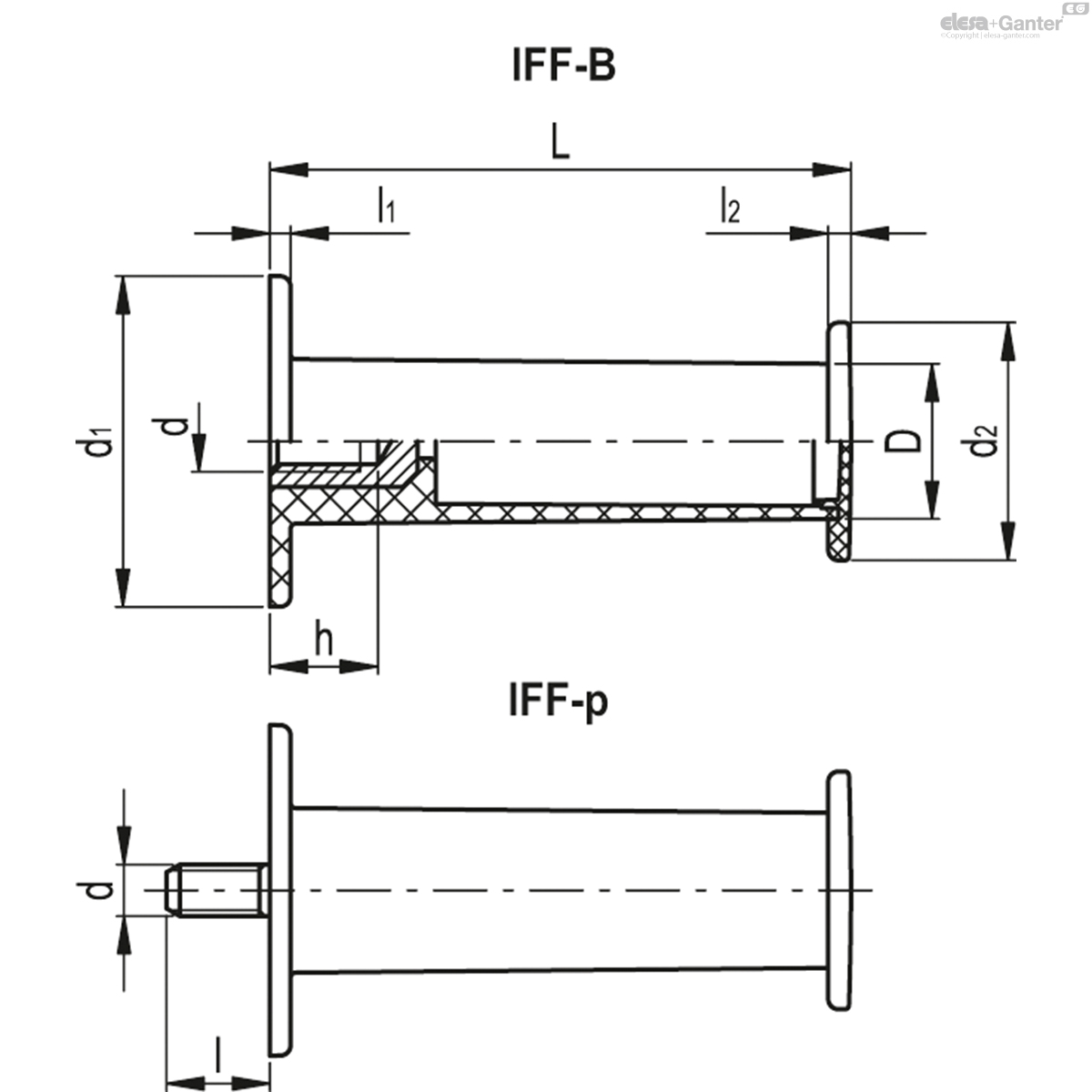

Standard executions

IFF-B: brass boss, threaded blind hole.

IFF-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947: ISO 4753 (see Technical data).

IFF-B

		D	L	d_6H	d₁	d₂	h	l₁	l₂
Code	Description										Actions
26901	IFF.112 B-M8	30	112	M8	64	46	20	4	4	89
26902	IFF.112 B-M10	30	112	M10	64	46	18	4	4	92

IFF-p

		D	L	d_6g	d₁	d₂	l	l₁	l₂
Code	Description										Actions
26924	IFF.112 p-M8x20	30	112	M8	64	46	20	4	4	92
26934	IFF.112 p-M10x20	30	112	M10	64	46	20	4	4	101
