IEL+x SOFT

Mushroom revolving handles

'Soft-touch' technopolymer

Enquire Now

Description

Main specifications

Material

High resilience polypropylene based (PP) technopolymer, coated with 'soft-touch' thermoplastic elastomer (TPE) chemically bonded, hardness 70 Shore A, black colour, matte finish.

Raw material coating suitable for contact with food (FDA CFR.21 and EU 10/2011).

Standard executions

Zinc-plated steel shank, hexagon socket at threaded end.

IEL+x: without ring.

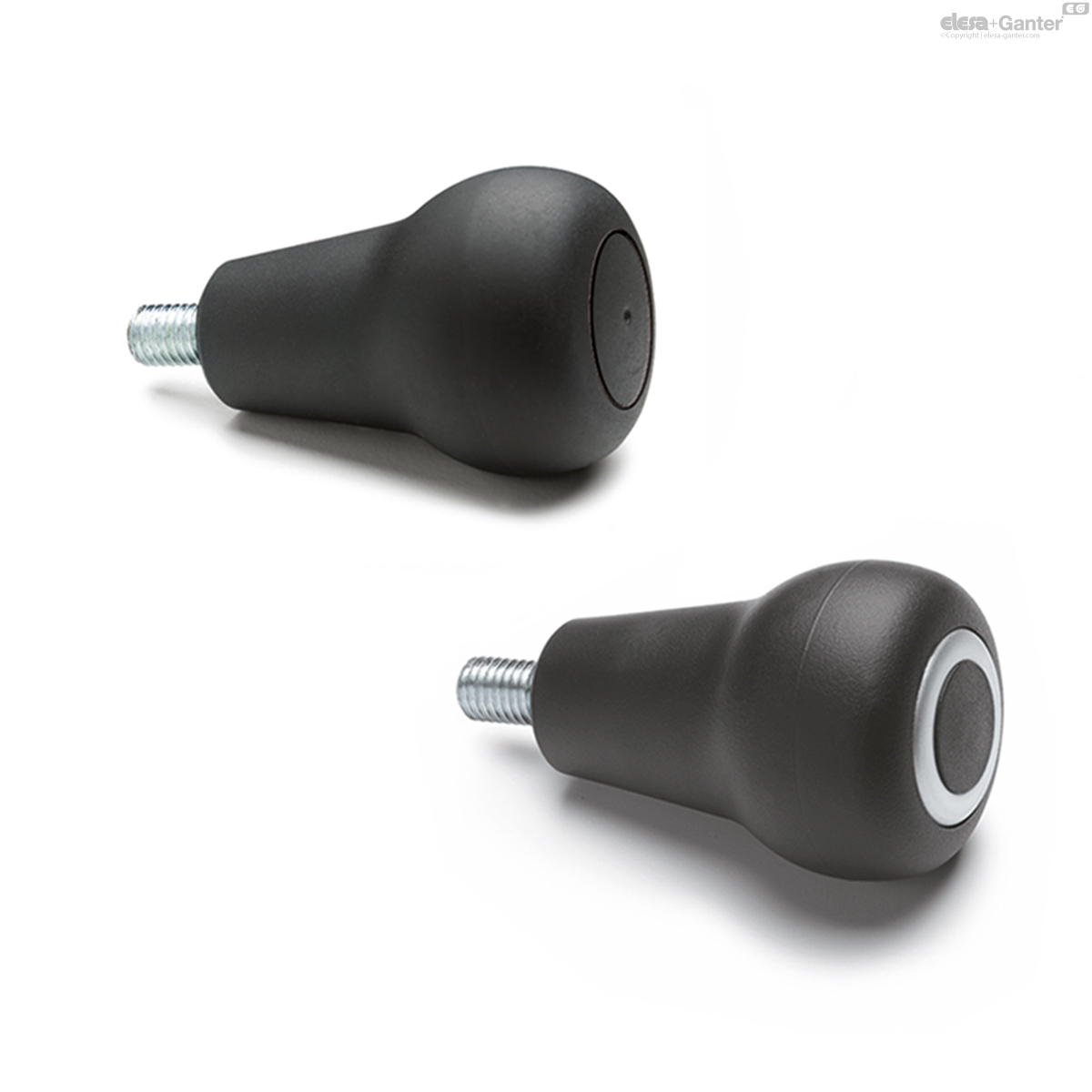

IEL+x-A: with matte anodised aluminium ring (ELESA original design).

General information

Features and applications

The coating, with 'soft-touch' elastomer, improves the grip even in the presence of oils, greases and sweat from the hand. For this reason it is suitable for fitness machines, tools and machines for gardening and goods transport, high-precision instruments and disability aids.

Special executions on request

IEL+x-H: with magnifying lens for labels with marks and symbols.

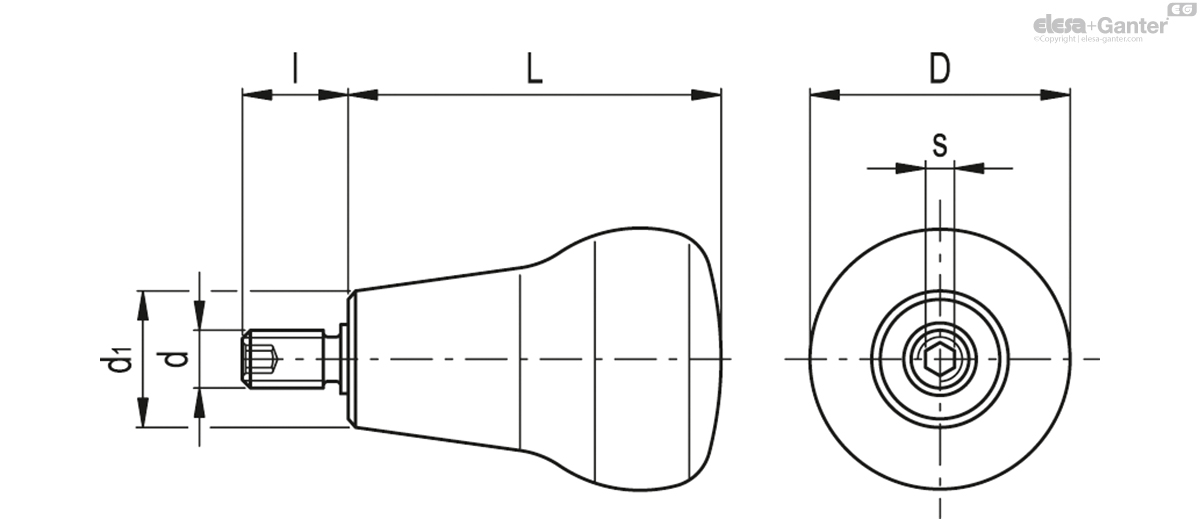

		D	L	d_6g	d₁	l	s
Code	Description								Actions
26651	IEL.47+x-M10 SOFT	45	47	M10	28	17	5	83
26679	IEL.65+x-M8 SOFT	45	65	M8	23	17	5	99
26681	IEL.65+x-M10 SOFT	45	65	M10	23	17	5	105
26691	IEL.65+x-M10-A SOFT	45	65	M10	23	17	5	105
