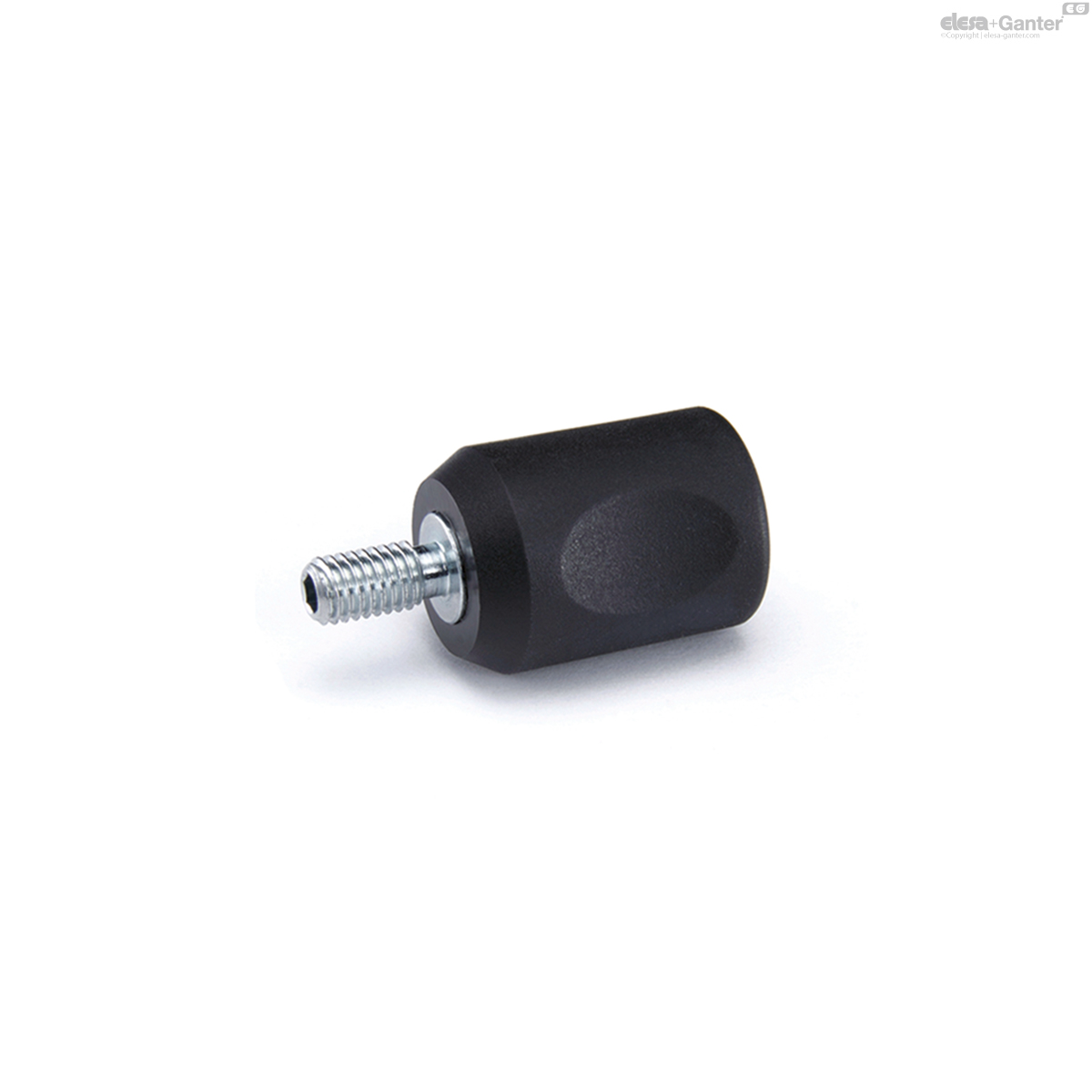

I.731+x
Revolving handles
Technopolymer
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Standard execution
Zinc-plated steel shank, hexagon socket at threaded end.
General information
Ergonomy
The grooves cut into the cylindrical surface allow the optimization of the grip with the tips of the fingers, due to the small size of the handle.

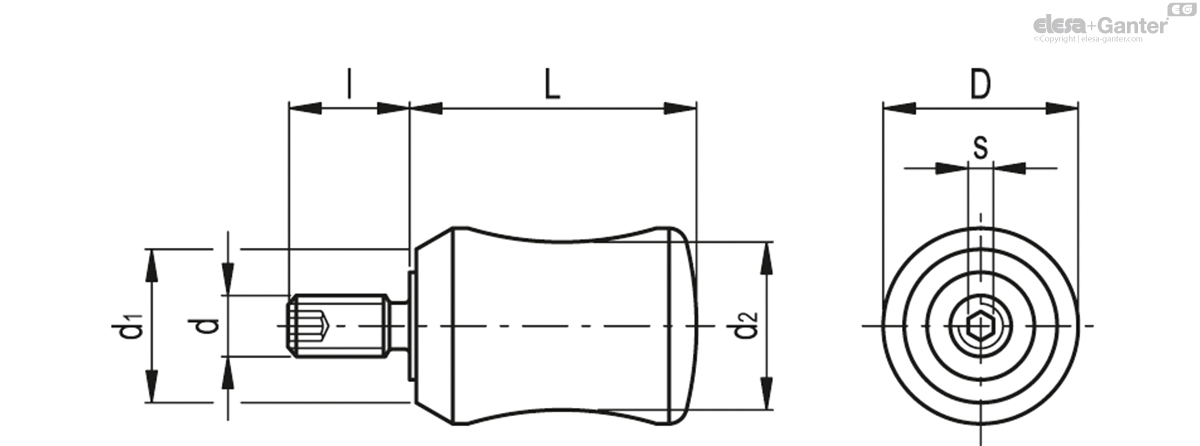

| D | L | d6g | d1 | d2 | l | s |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 24990 | I.731/20+x-M4 | 13.5 | 20 | M4 | 11 | 11 | 8 | 2 | 10 |
|
| 24991 | I.731/20+x-M5 | 13.5 | 20 | M5 | 11 | 11 | 10 | 2.5 | 10 |
|
| 24995 | I.731/23+x-M5 | 16 | 23 | M5 | 12.5 | 13 | 10 | 2.5 | 12 |
|
