I.701+x

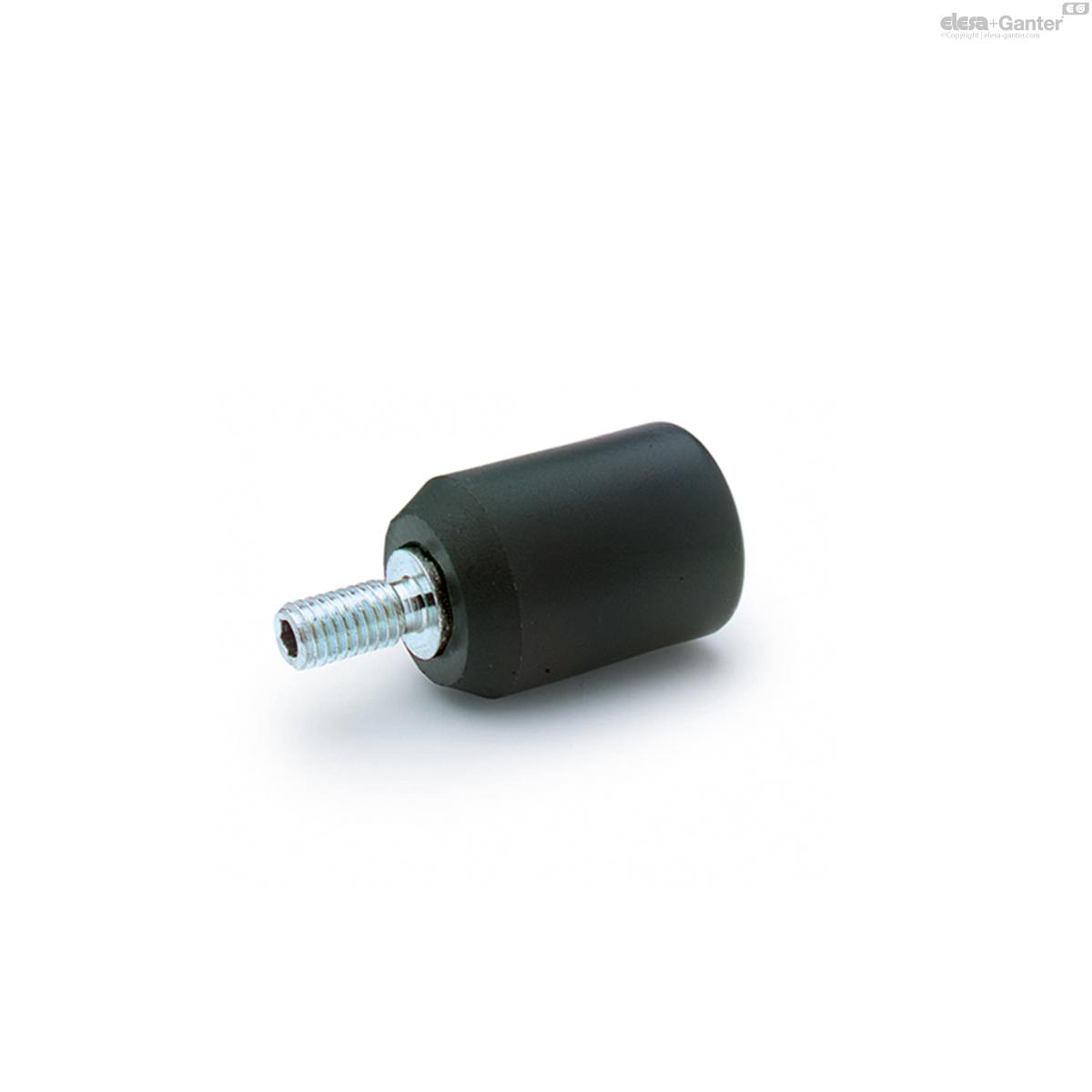

Revolving handles
Technopolymer
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Standard execution
Zinc-plated steel shank, hexagon socket at threaded end.

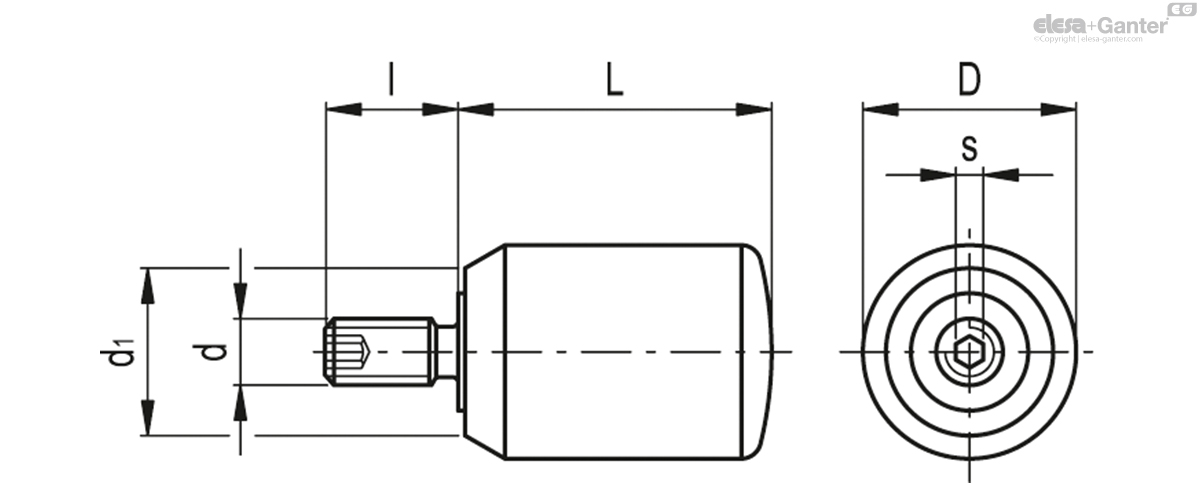

| D | L | d6g | d1 | l | s |  |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 24974 | I.701/20+x-M4 | 13.5 | 20 | M4 | 11 | 8 | 2 | 10 |
|
| 24979 | I.701/20+x-M5 | 13.5 | 20 | M5 | 11 | 10 | 2.5 | 12 |
|
| 24980 | I.701/23+x-M5 | 16 | 23 | M5 | 12.5 | 10 | 2.5 | 12 |
|
