I.622 N

Tapered handles

Technopolymer

Enquire Now

Description

Main specifications

Material

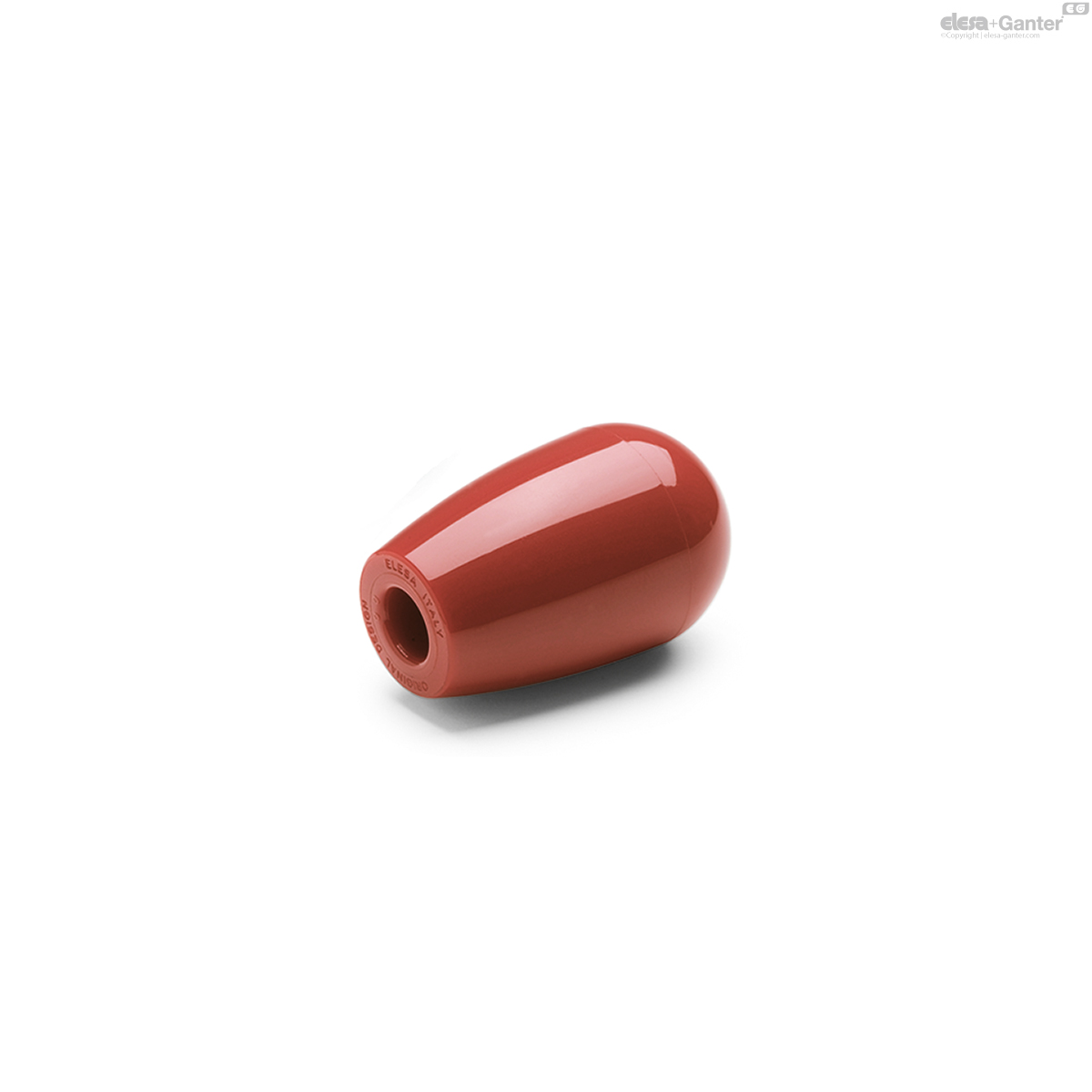

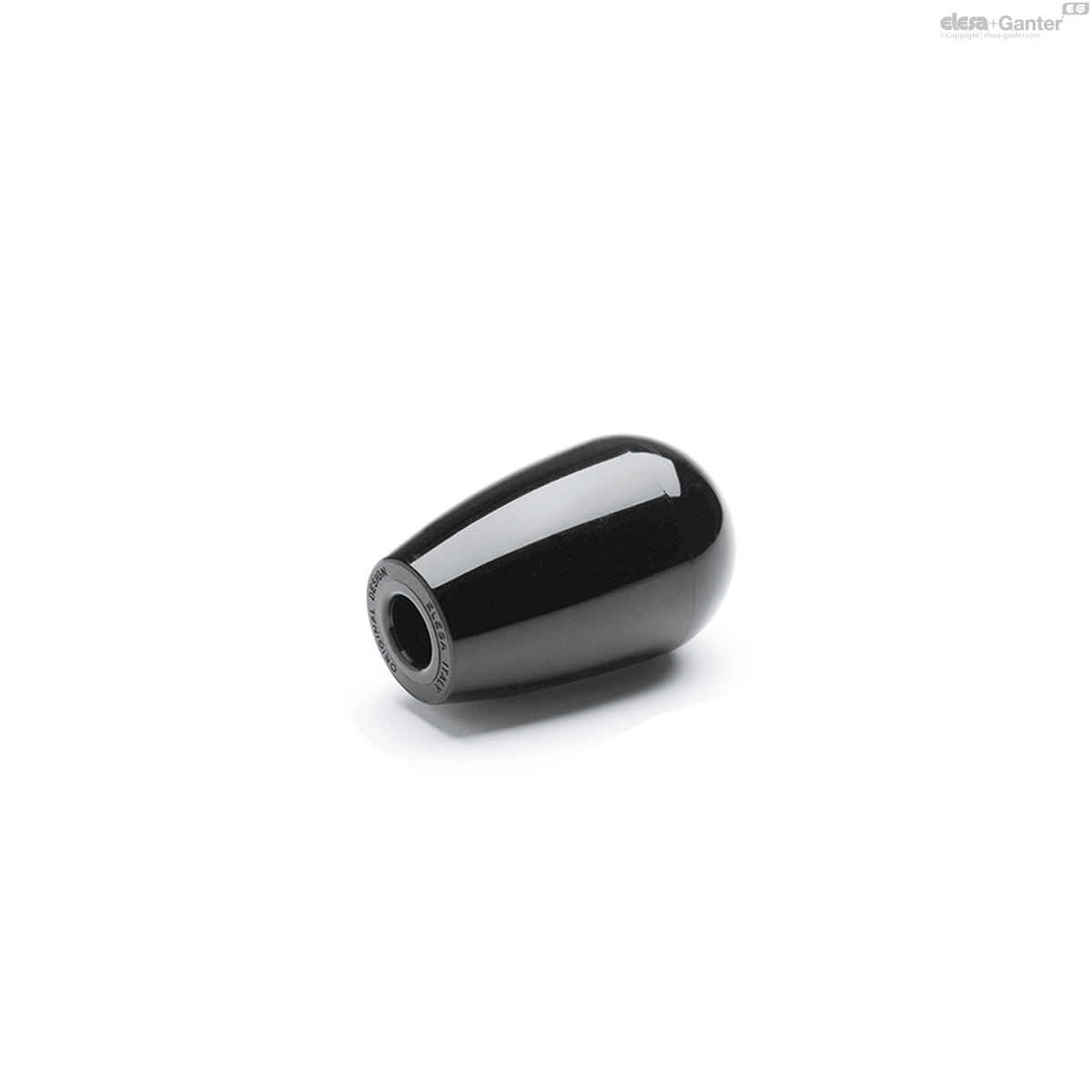

High-resilience polyamide based (PA) technopolymer. Black or red colour, glossy finish.

Standard execution

Plain blind hole.

The elastic coupling, by press-fit assembly on h9 tolerance drawn stock bars, is not affected by vibrations and prevents the handle from slipping off (see Technical data).

General information

Features and applications

Its solid shape without cavities prevents unhealthy residues from depositing.

Other executions

Special executions on request

Different RAL colours.

Instructions of use

Assembly instructions

Fit the handle onto slight chamfered shaft end and push as far as possible by hand or by means of a small press. Alternatively it is possible to tap the handle with a plastic or wooden mallet until firmly in place. In this case we strongly recommend to use a cloth or other suitable soft material over the product to avoid any surface damage.

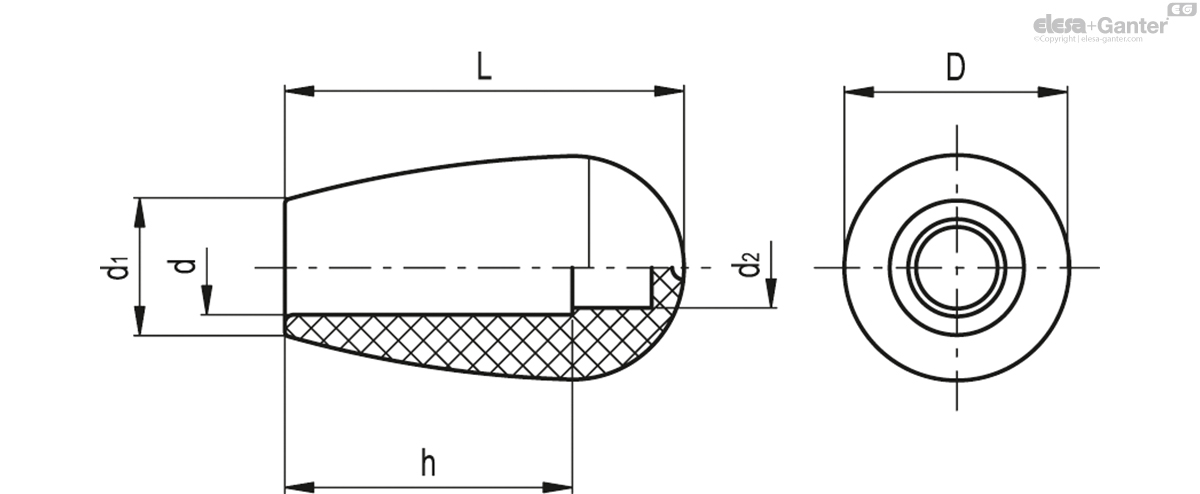

		Color	D	L	d	d₂	d₁	h
Code	Description									Actions
120941	I.622/25 N-6-C9	C9 - RAL 9005	16	25	6	4	12	17	4
120946	I.622/25 N-6-C6	C6 - RAL 3000	16	25	6	4	12	17	4
120971	I.622/30 N-8-C9	C9 - RAL 9005	20	32	8	6	14	21	8
120976	I.622/30 N-8-C6	C6 - RAL 3000	20	32	8	6	14	21	8
121021	I.622/40 N-8-C9	C9 - RAL 9005	26	42	8	6	17	25	17
121026	I.622/40 N-8-C6	C6 - RAL 3000	26	42	8	6	17	25	17
121031	I.622/40 N-10-C9	C9 - RAL 9005	26	42	10	7.5	17	30	16
121036	I.622/40 N-10-C6	C6 - RAL 3000	26	42	10	7.5	17	30	16
121091	I.622/55 N-10-C9	C9 - RAL 9005	34	54.5	10	5.5	21	40	40
121096	I.622/55 N-10-C6	C6 - RAL 3000	34	54.5	10	5.5	21	40	38
121101	I.622/55 N-12-C9	C9 - RAL 9005	34	54.5	12	5.5	21	40	38
121106	I.622/55-N-12-C6	C6 - RAL 3000	34	54.5	12	5.5	21	40	38
