Home Fixed and Revolving Handles Revolving handles I.621+x

I.621+x

Revolving handles

Technopolymer

__logo__ELE_OD__

__logo__INOX__

__logo__RoHS__

__logo__PA__

__logo__g9020__

Enquire Now

i-621x

Revolving handles

Zinc-plated steel bolt pin

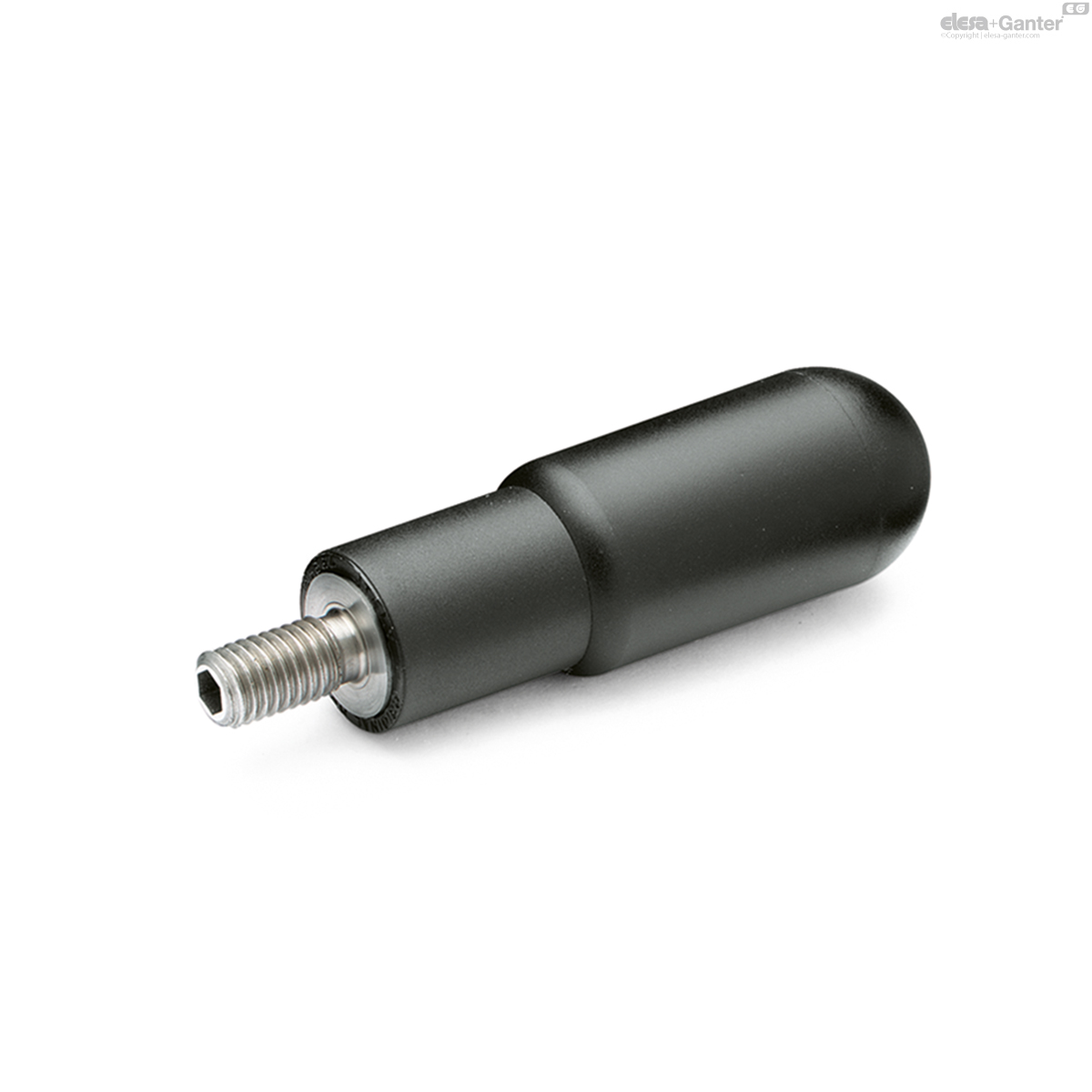

i-621x-sst

Revolving handles

Stainless steel pin

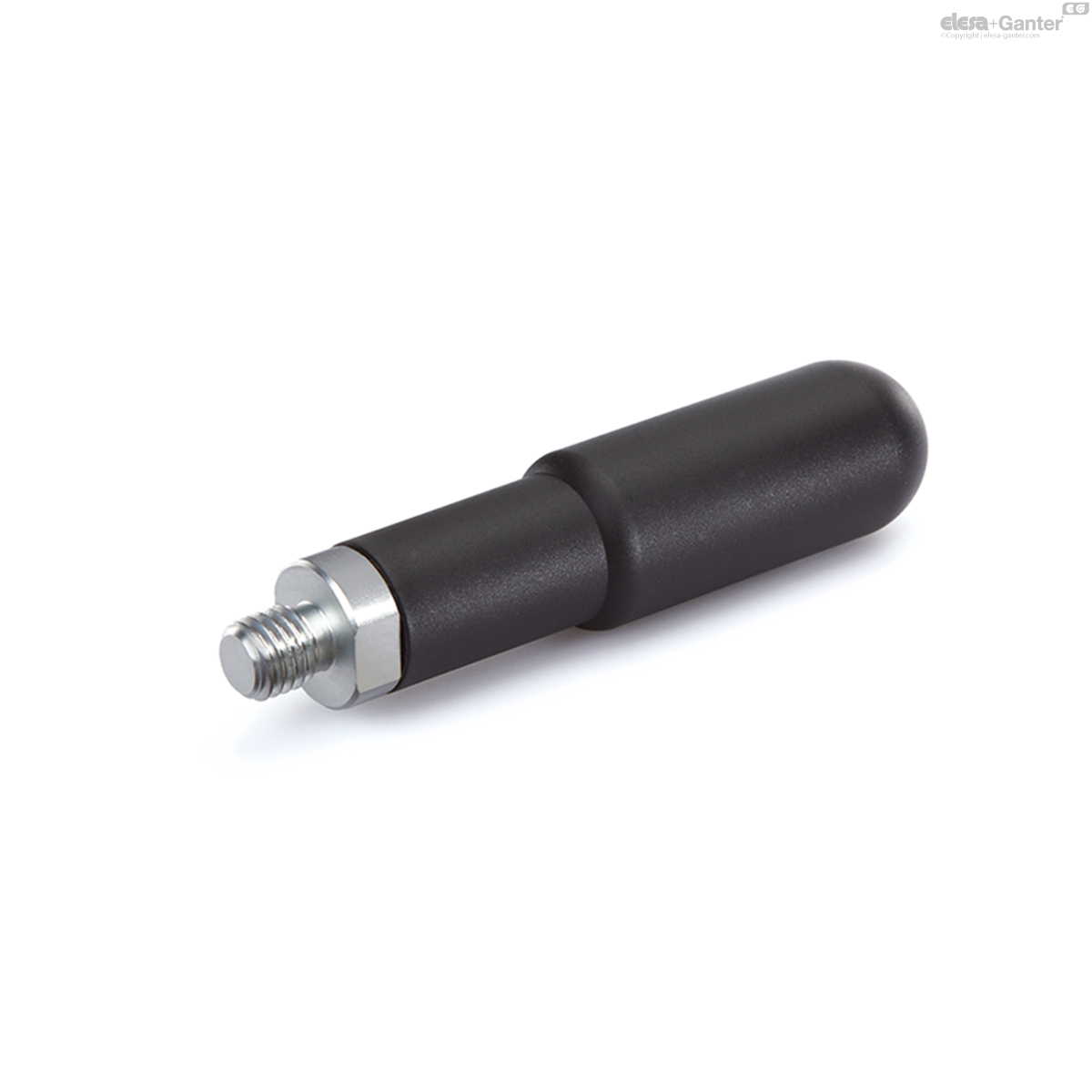

i-621gx

Revolving handles

Zinc-plated pin and locking nut

Description

Main specifications

Material

Polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

I.621+x: zinc-plated steel shank, hexagon socket at threaded end.
I.621+x+SST: AISI 303 stainless steel shank, hexagonal socket at threaded end.
I.621+Gx: zinc-plated steel threaded shank, with two large and flat faces for frontal fastening.

I.621+x

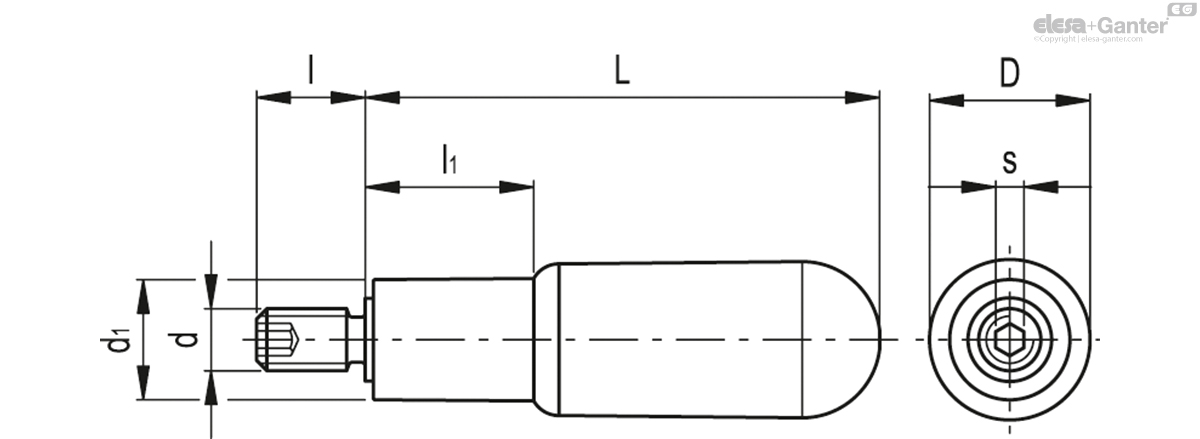

		D	L	d_6g	d₁	l	l₁	s
Code	Description									Actions
120601	I.621/35+x-M5	14	35	M5	11	10	10.5	3	15
120611	I.621/35+x-M6	14	35	M6	11	10	10.5	3	28
120621	I.621/45+x-M6	15.5	45	M6	13	13	15	3	28
120622	I.621/45+x-M8	15.5	45	M8	13	13	15	4	31
120631	I.621/60+x-M6	18	60	M6	14.5	13	19	3	35
120632	I.621/60+x-M8	18	60	M8	14.5	13	19	4	33
120641	I.621/65+x-M8	22	65	M8	18	15	21	4	83
120642	I.621/65+x-M10	22	65	M10	18	15	21	4	86
120646	I.621/73+x-M8	23	73	M8	19	15	24	4	86
120647	I.621/73+x-M10	23	73	M10	19	15	24	4	88
120651	I.621/80+x-M8	24	80	M8	19	15	27	4	90
120652	I.621/80+x-M10	24	80	M10	19	15	27	4	90
120661	I.621/90+x-M10	25	90	M10	19.5	17	30	5	125
120671	I.621/100+x-M10	27	101	M10	22	17	34	5	123
