Home Fixed and Revolving Handles Revolving handles I.601+x

I.601+x

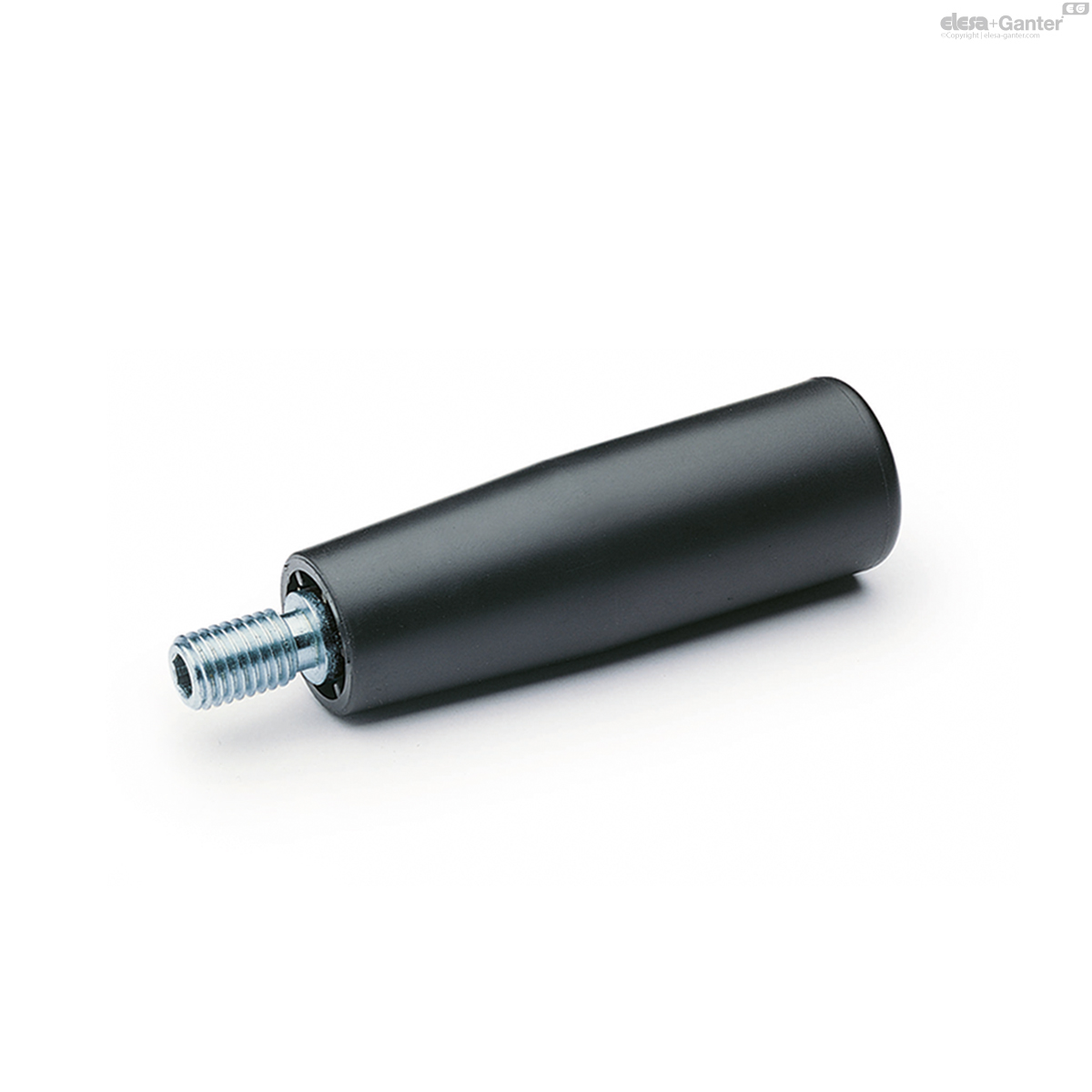

Cylindrical revolving handles

Technopolymer

__logo__INOX__

__logo__RoHS__

__logo__PP__

__logo__g80__

Enquire Now

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Standard executions

I.601+x: zinc-plated steel shank, hexagon socket at threaded end.
I.601+x-SST: AISI 303 stainless steel shank, hexagonal socket at threaded end.

I.601+x

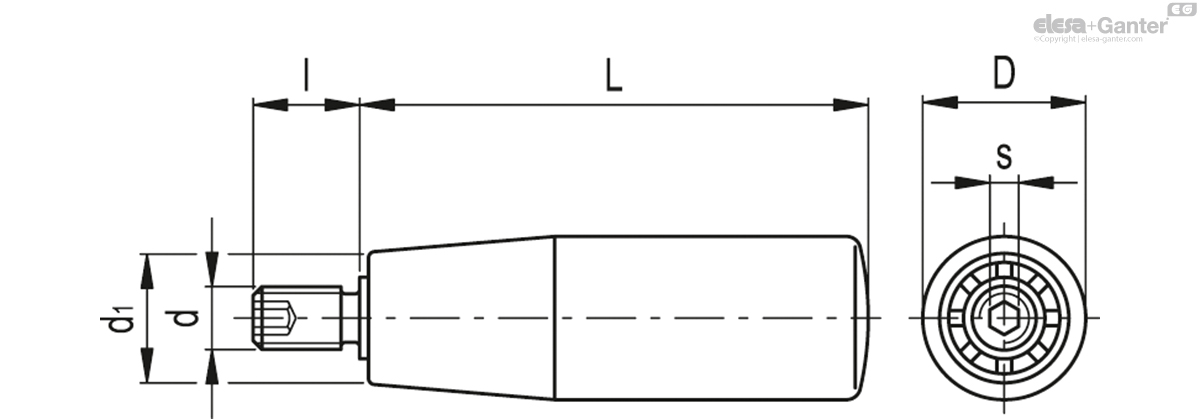

		D	L	d_6g	d₁	l	s
Code	Description								Actions
24921	I.601/40+x-M6	18	40	M6	15	13	3	25
24931	I.601/50+x-M6	21	50	M6	17	13	3	37
24941	I.601/56+x-M6	22	56	M6	18	13	3	39
24951	I.601/65+x-M8	23	65	M8	19	15	4	67
24952	I.601/65+x-M10	23	65	M10	19	17	5	70
24961	I.601/80+x-M8	26	80	M8	21	15	4	76
24962	I.601/80+x-M10	26	80	M10	21	17	5	79
24971	I.601/90+x-M10	28	90	M10	22	17	5	90
24972	I.601/90+x-M12	28	90	M12	22	20	5	105

I.601+x-SST

		D	L	d_6g	d₁	l	s
Code	Description								Actions
24925	I.601/40+x-M6-SST	18	40	M6	15	13	3	25
24935	I.601/50+x-M6-SST	21	50	M6	17	13	3	36
24955	I.601/65+x-M8-SST	23	65	M8	19	15	4	67
24965	I.601/80+x-M10-SST	26	80	M10	21	17	5	81
24975	I.601/90+x-M10-SST	28	90	M10	22	17	5	91
