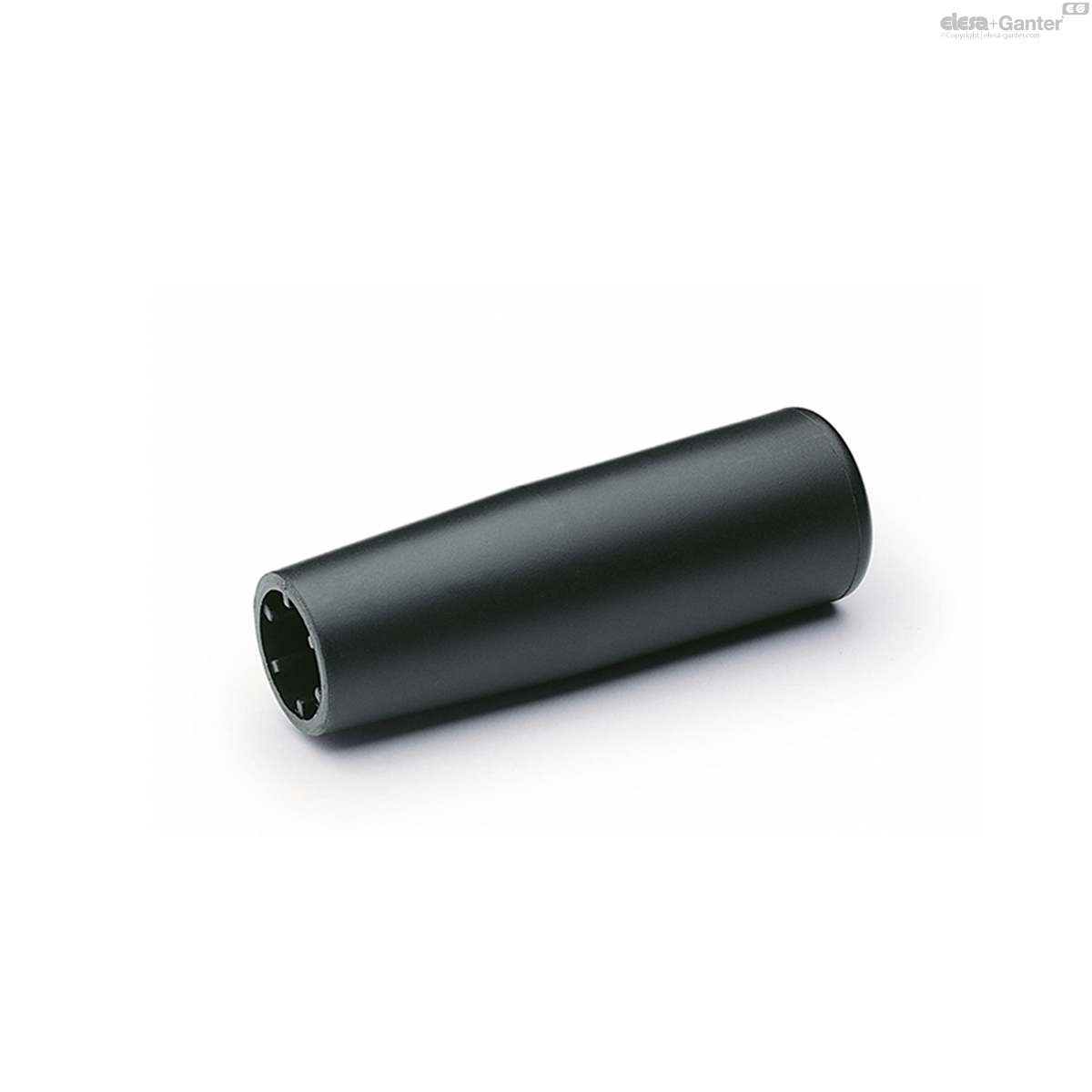

I.580 N

Cylindrical handles

Technopolymer

Enquire Now

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Standard execution

Blind hole.

The elastic coupling, by press-fit assembly on h9 tolerance drawn stock bars, is not affected by vibrations and prevents the handle from slipping off (see Technical Data).

Assembly instructions

Fit the I.580 N handle onto slight chamfered shaft end and push as far as possible by hand or by means of a small press. Alternatively it is possible to tap the handle with a plastic or wooden mallet until firmly in place. In this case we strongly recommend to use a cloth or other suitable soft material over the product to avoid any surface damage.

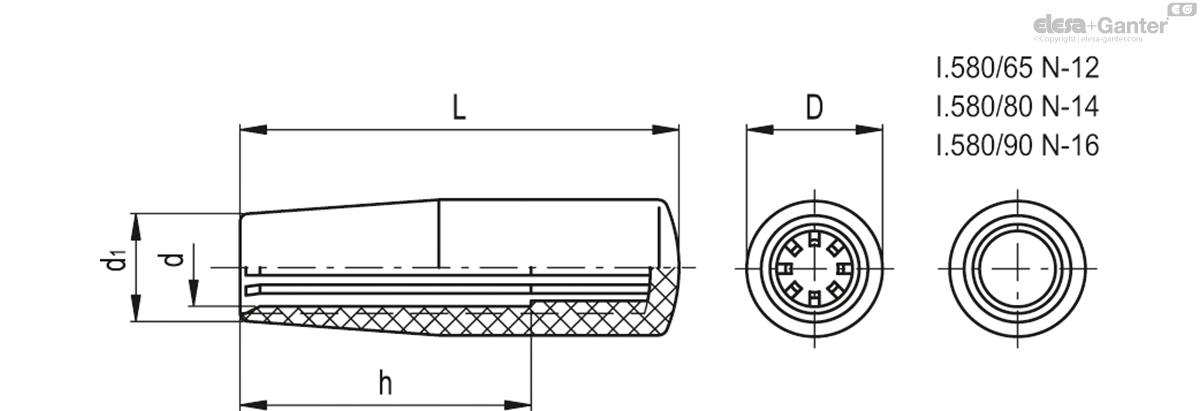

		D	L	d	d₁	h
Code	Description							Actions
24821	I.580/40 N-8	18	40	8	15	28	8
24831	I.580/50 N-10	21	50	10	17	35	13
24846	I.580/65 N-10	23	65	10	19	45	19
24848	I.580/65 N-12	23	65	12	19	45	21
24861	I.580/80 N-12	26	80	12	21	50	29
24863	I.580/80 N-14	26	80	14	21	50	32
24875	I.580/90 N-15	28	90	15	22	60	40
24876	I.580/90 N-16	28	90	16	22	60	40
