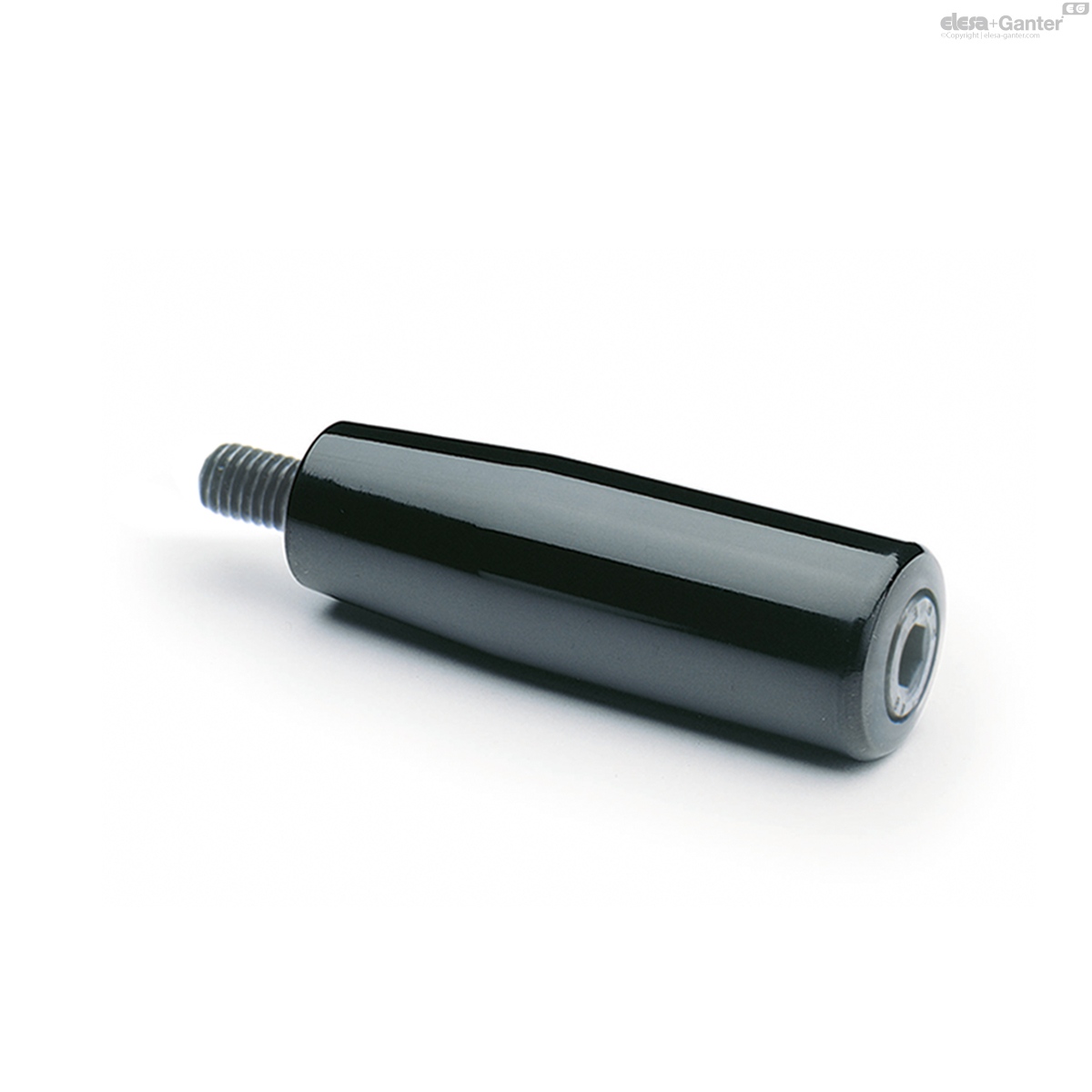

I.481+x
Cylindrical revolving handles
Duroplast
Description
Main specifications
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
Standard execution
Black-oxide steel shoulder screw, cylindrical-head with hexagon socket.
A knurling acts as obstruction when the handle is fully screwed into its hole which must be slightly chamfered.

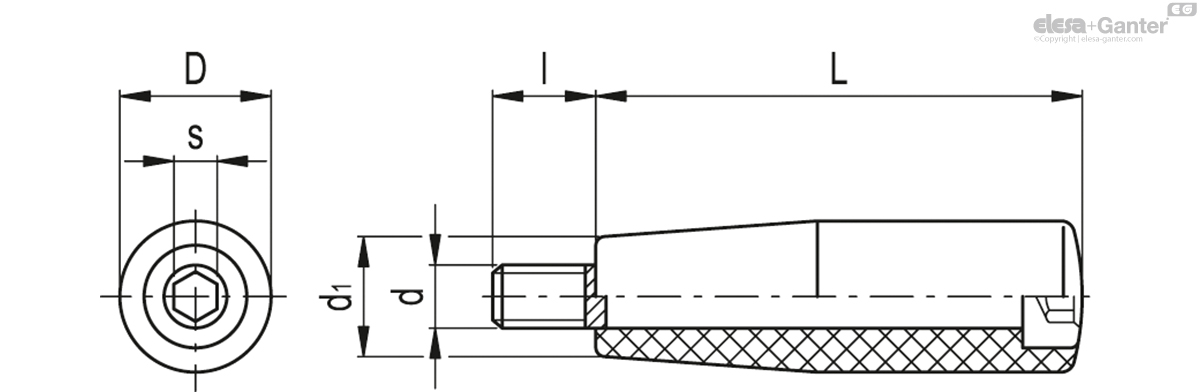

| D | L | d6g | d1 | l | s |  |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 24551 | I.481/40+x-M6 | 18 | 40 | M6 | 15 | 13 | 5 | 23 |
|
| 24601 | I.481/50+x-M6 | 21 | 50 | M6 | 17 | 13 | 5 | 34 |
|
| 24651 | I.481/65+x-M8 | 23 | 65 | M8 | 19 | 15 | 6 | 61 |
|
| 24701 | I.481/80+x-M8 | 26 | 80 | M8 | 21 | 15 | 6 | 87 |
|
