I.280

Cylindrical handles

Duroplast

__logo__RoHS__

__logo__PF__

__logo__g11020__

Enquire Now

product image

Cylindrical handles

product image

Cylindrical handles

Description

Main specifications

Material

Phenolic based (PF) Duroplast, black colour, glossy finish.

Standard executions

I.280: threaded blind hole.
I.280-p: zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical Data).

I.280-p

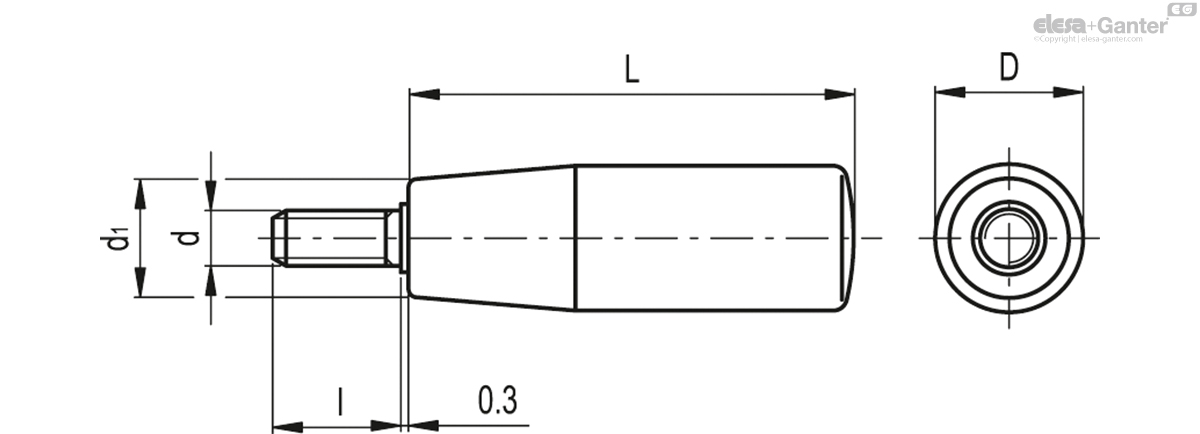

		D	L	d_6g	d₁	l
Code	Description							Actions
21611	I.280/40 p-M6x16	18	40	M6	15	16	20
21711	I.280/50 p-M8x16	21	50	M8	17	16	46
21712	I.280/50 p-M8x25	21	50	M8	17	25	41
21806	I.280/65 p-M8x16	23	65	M8	19	16	53
21811	I.280/65 p-M10x16	23	65	M10	19	16	64
21812	I.280/65 p-M10x30	23	65	M10	19	30	70
21906	I.280/80 p-M8x16	26	80	M8	21	16	80
21911	I.280/80 p-M10x16	26	80	M10	21	16	86
21912	I.280/80 p-M10x30	26	80	M10	21	30	91
22006	I.280/90 p-M10x16	28	90	M10	22	16	110
22011	I.280/90 p-M12x16	28	90	M12	22	16	116
22012	I.280/90 p-M12x30	28	90	M12	22	30	126
22106	I.280/100 p-M10x16	31	102	M10	25	16	124
22111	I.280/100 p-M12x16	31	102	M12	25	16	153
22112	I.280/100 p-M12x30	31	102	M12	25	30	150
