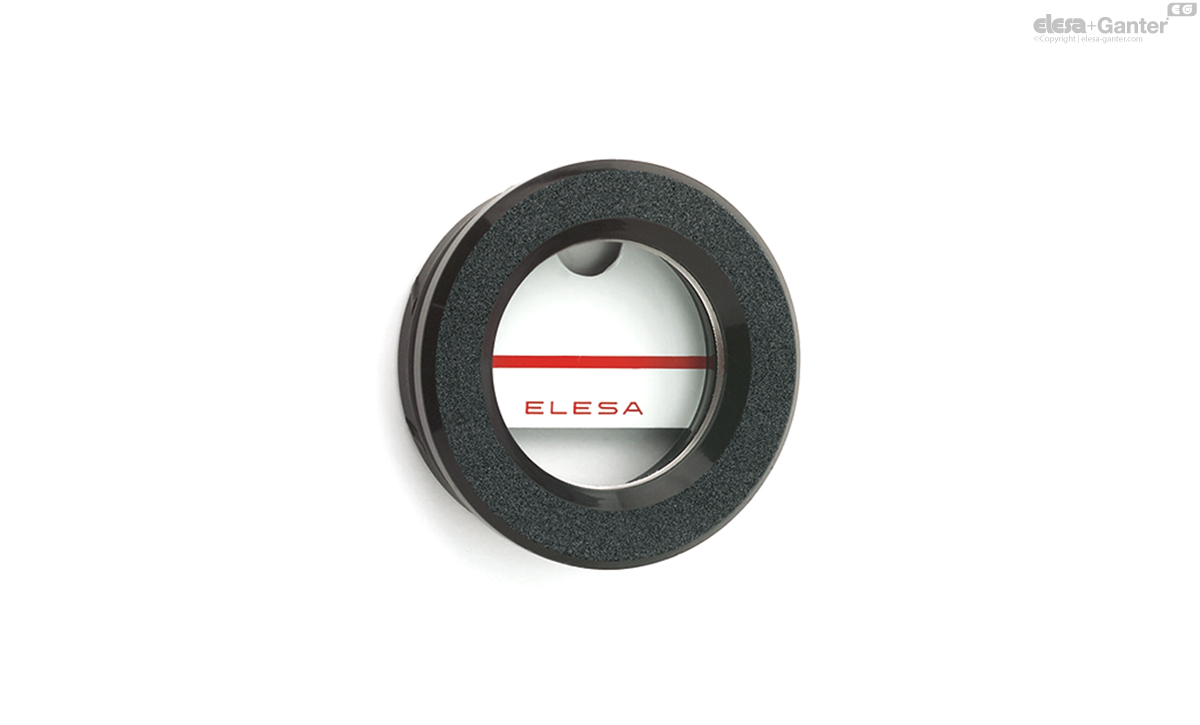

HRT.

Oil level indicators

push-fit, technopolymer up to 100°C

Enquire Now

Description

Main specifications

Polyamide based (PA) technopolymer, black colour, matte finish.

Transparent polyamide based (PA-T/AR) technopolymer.

White lacquered aluminium with red level line.

NBR synthetic rubber O-Ring.

100°C.

General information

The push-fit assembly is guaranteed by optimised ribbings.

Sealing is guaranteed by the O-ring.

HRT. oil level indicators push-fit are particularly suitable for assembly on reservoirs with limited pressure.

For use with other fluids with special additives, please contact ELESA Sales Department.

Assembly instructions

Chamfer hole 1x45° and grease slightly the outside surface of the O-ring to make assembly easier.

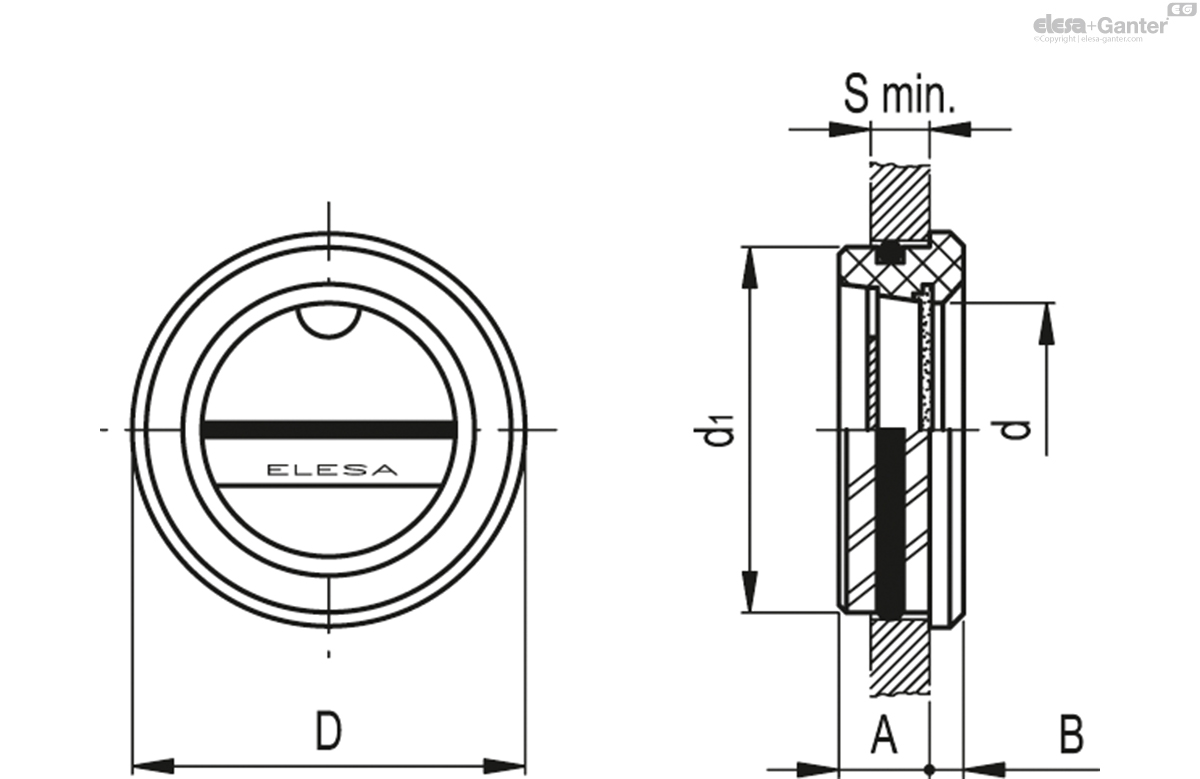

		d₁	A	B	D	d	S_min	Mounting hole d_{1 H11}
Code	Description									Actions
10751	HRT.15-26	26	9	4.5	28	14.5	6	26	6
10756	HRT.20-32	32	10.5	4.5	36	18	8	32	10
10761	HRT.25-38	38	11	5	42	23	8	38	15
10766	HRT.40-60	60	11	5.5	64	40	9	60	30
