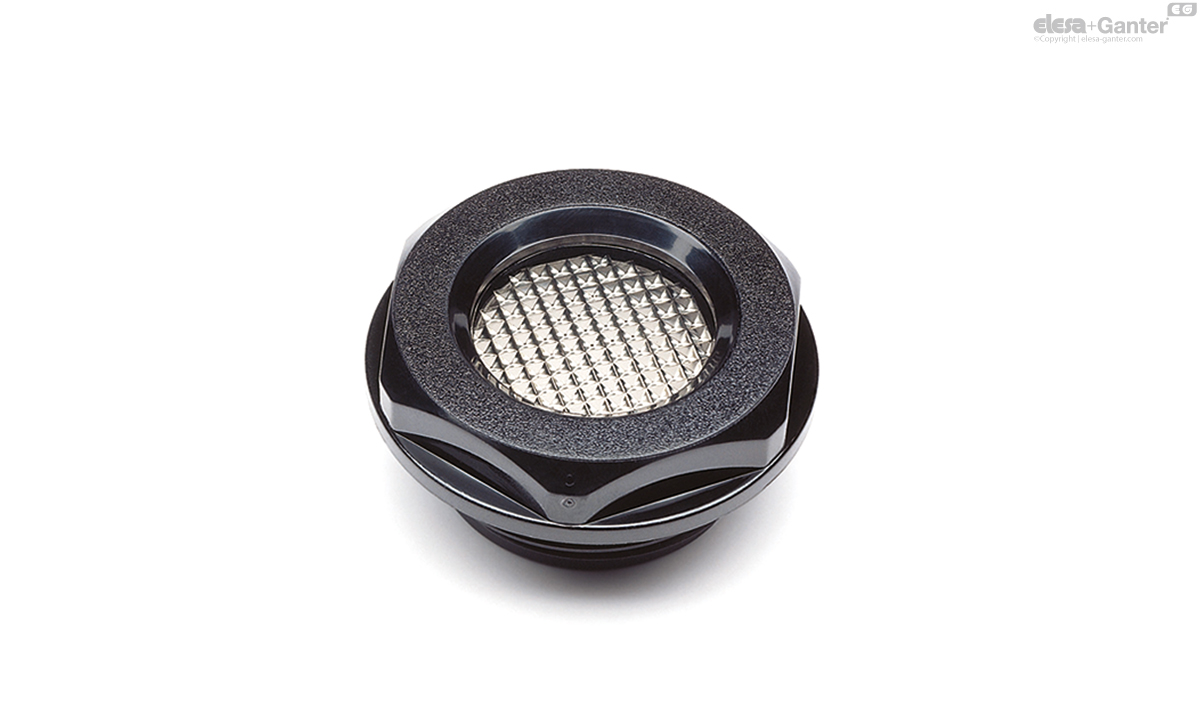

HGFT-PR
Oil level indicators
with prismatic window, technopolymer up to 100°C
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black colour, glossy finish.
Prismatic window
Transparent polyamide based (PA-T/AR) technopolymer. The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.
Packing ring
NBR synthetic rubber.
Maximum continuous working temperature
100°C at 3 bar pressure.
General information
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories
Accessories on request
Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.

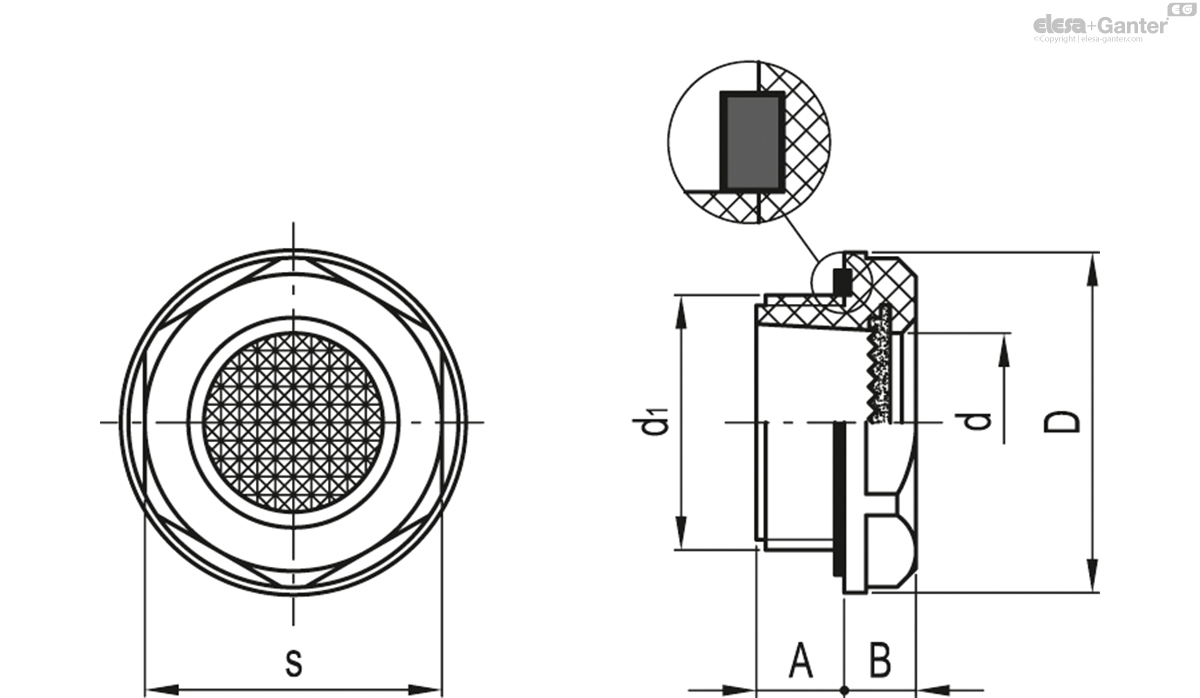

| d1 | A | B | D | d | s | Tightening torque [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 14462 | HGFT.13/PR-1/2-C9 | G 1/2 | 10 | 8.5 | 28 | 14.5 | 24 | 6÷8 | 6 |
|
| 14482 | HGFT.16/PR-3/4-C9 | G 3/4 | 9.5 | 8.5 | 35 | 18 | 32 | 8÷10 | 10 |
|
| 14522 | HGFT.21/PR-1-C9 | G 1 | 11 | 9.5 | 42.5 | 23 | 38 | 10÷12 | 15 |
|
| 14542 | HGFT.25/PR-1¼-C9 | G1 1/4 | 11 | 9 | 50 | 30 | 46 | 12÷15 | 21 |
|
