Oil level indicators

Technopolymer up to 100°C

Enquire Now

Description

Main specifications

Polyamide based (PA) technopolymer, black or red colour, glossy finish (HGFT/SL only black colour).

Transparent polyamide based (PA-T/AR) technopolymer.

NBR synthetic rubber.

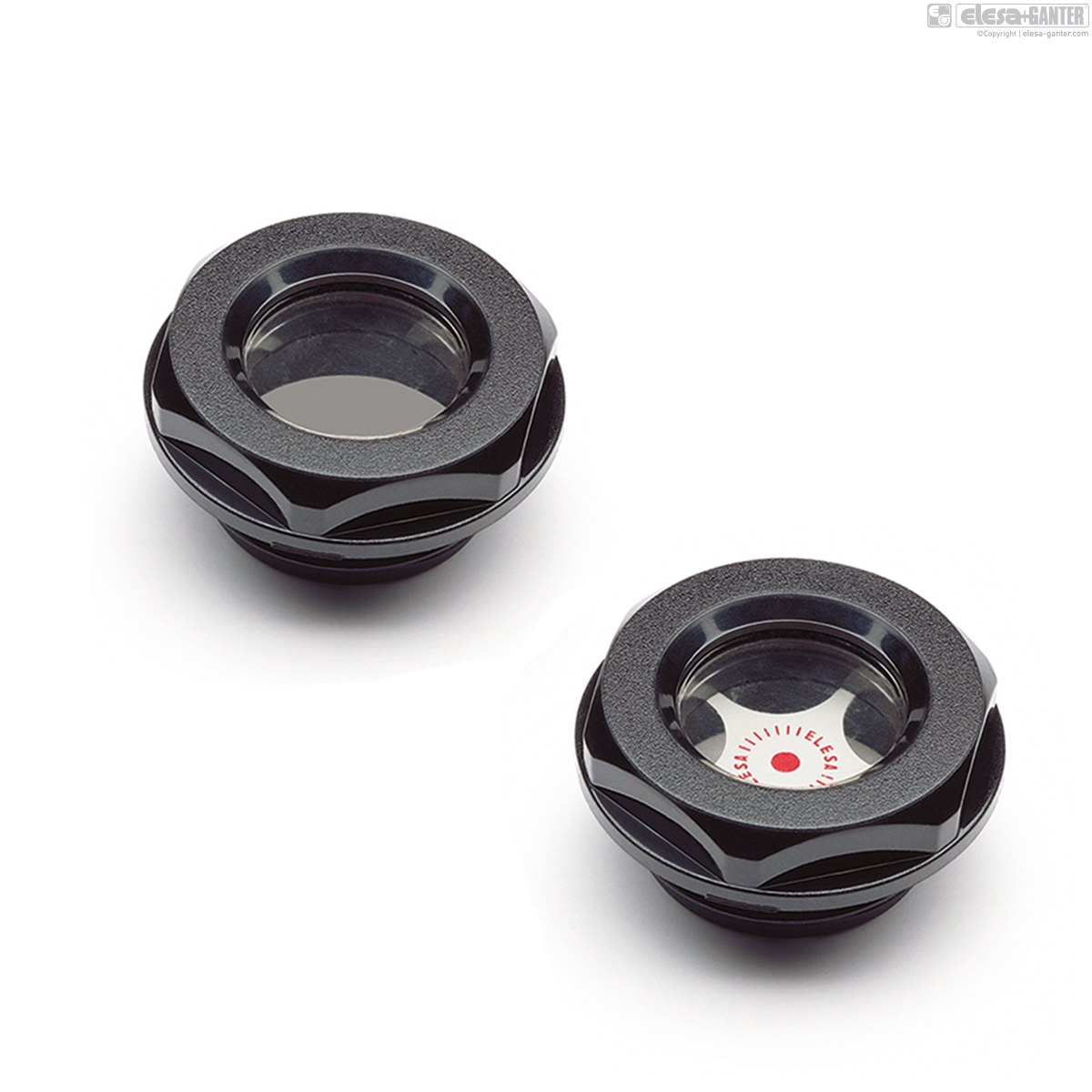

HGFT.: with matte anodised aluminium star-shaped contrast screen with red central level point.
HGFT/SL: without contrast screen.

100°C at 3 bar pressure.

General information

For use with other fluids with special additives, please contact ELESA Sales Department.

Accessories

Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.

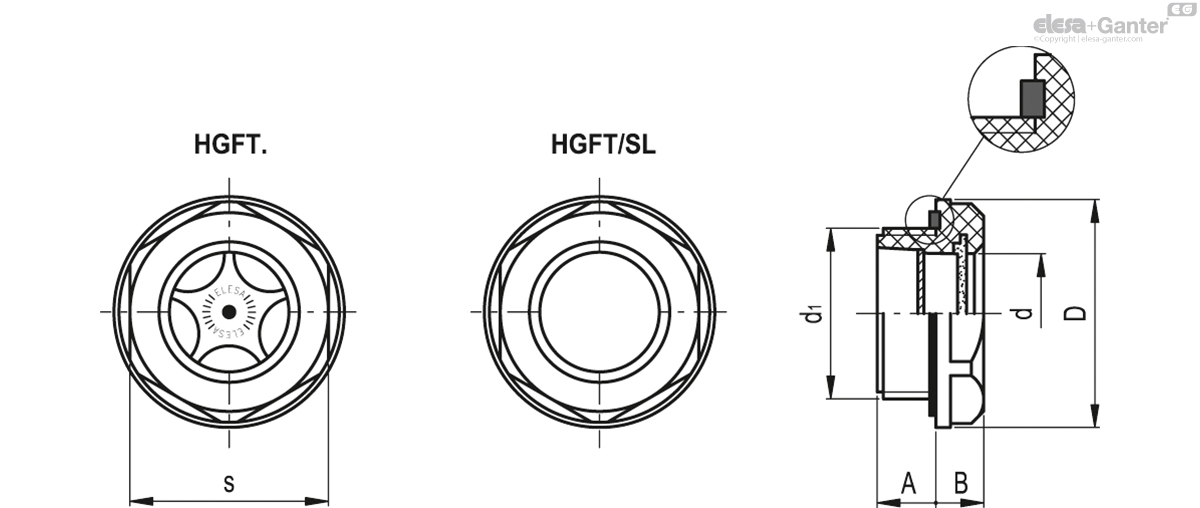

		Color	d₁	A	B	D	d	s	Tightening torque [Nm]
Code	Description										Actions
14441	HGFT.10-3/8 C9	C9 - RAL 9005	G 3/8	8	7	24	11	22	4÷8	4
14444	HGFT.10-3/8 C6	C6 - RAL 3000	G 3/8	8	7	24	11	22	4÷8	4
14461	HGFT.13-1/2 C9	C9 - RAL 9005	G 1/2	10	8.5	28	14.5	24	6÷8	6
14464	HGFT.13-1/2 C6	C6 - RAL 3000	G 1/2	10	8.5	28	14.5	24	6÷8	6
14481	HGFT.16-3/4 C9	C9 - RAL 9005	G 3/4	9.5	8.5	35	18	32	8÷10	10
14484	HGFT.16-3/4 C6	C6 - RAL 3000	G 3/4	9.5	8.5	35	18	32	8÷10	9
14521	HGFT.21-1 C9	C9 - RAL 9005	G 1	11	9.5	42.5	23	38	10÷12	15
14524	HGFT.21-1 C6	C6 - RAL 3000	G 1	11	9.5	42.5	23	38	10÷12	15
14541	HGFT.25-1¼ C9	C9 - RAL 9005	G1 1/4	11	9	50	30	46	12÷15	20
14544	HGFT.25-1¼ C6	C6 - RAL 3000	G1 1/4	11	9	50	30	46	12÷15	21
14561	HGFT.40-2 C9	C9 - RAL 9005	G 2	12	11	66	40	60	12÷15	46
14564	HGFT.40-2 C6	C6 - RAL 3000	G 2	12	11	66	40	60	12÷15	46

		d₁	A	B	D	d	s	Tightening torque [Nm]
Code	Description									Actions
14446	HGFT.10/SL-3/8	G 3/8	8	7	24	11	22	4÷8	5
14466	HGFT.13/SL-1/2	G 1/2	10	8.5	28	14.5	24	6÷8	6
14486	HGFT.16/SL-3/4	G 3/4	9.5	8.5	35	18	32	8÷10	9
14526	HGFT.21/SL-1	G 1	11	9.5	42.5	23	38	10÷12	14
14546	HGFT.25/SL-1¼	G1 1/4	11	9	50	30	46	12÷15	20
14566	HGFT.40/SL-2	G 2	12	11	66	40	60	12÷15	44
