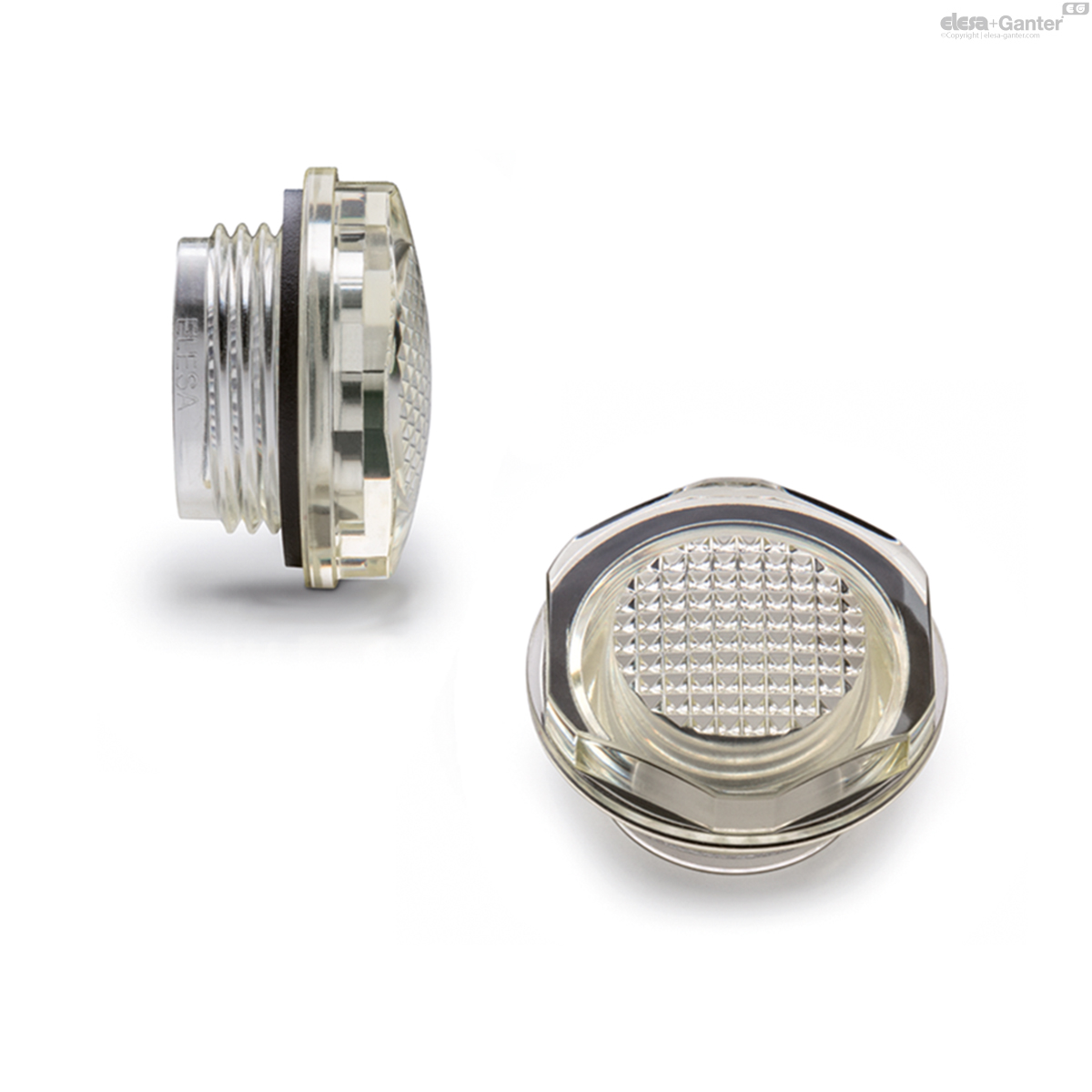

HFTR-PR
Oil level indicators
with prismatic window, technopolymer up to 100°C
Description
Main specifications
Material
Transparent polyamide based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.
Packing ring
NBR synthetic rubber
The positioning of the packing ring in its housing guarantees a high tightening torque.
Maximum continuous working temperature
100°C.
General information
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories
Accessories on request
Brass nut GH. for fitting to reservoirs with wall thickness smaller than 5 mm.

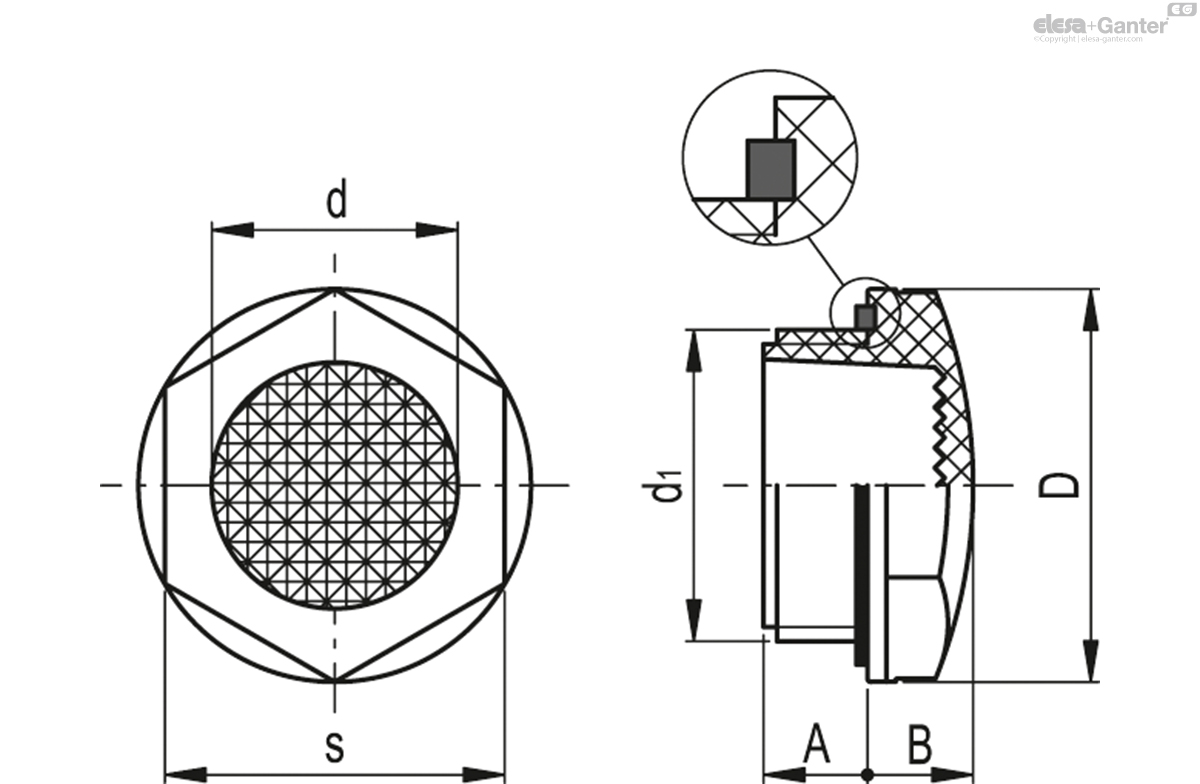

| d1 | A | B | D | d | s | Tightening torque [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 14692 | HFTR.15/PR-1/2 | G 1/2 | 10.5 | 9 | 28 | 15 | 24 | 8÷10 | 5 |
|
| 14722 | HFTR.20/PR-3/4 | G 3/4 | 10.5 | 10.5 | 35 | 20 | 32 | 10÷12 | 6 |
|
| 14742 | HFTR.24/PR-1 | G 1 | 11 | 13.5 | 42.5 | 24 | 38 | 10÷12 | 12 |
|
| 14762 | HFTR.30/PR-1¼ | G1 1/4 | 19 | 16 | 52 | 30.5 | 41 | 12÷14 | 23 |
|
