HCFE.

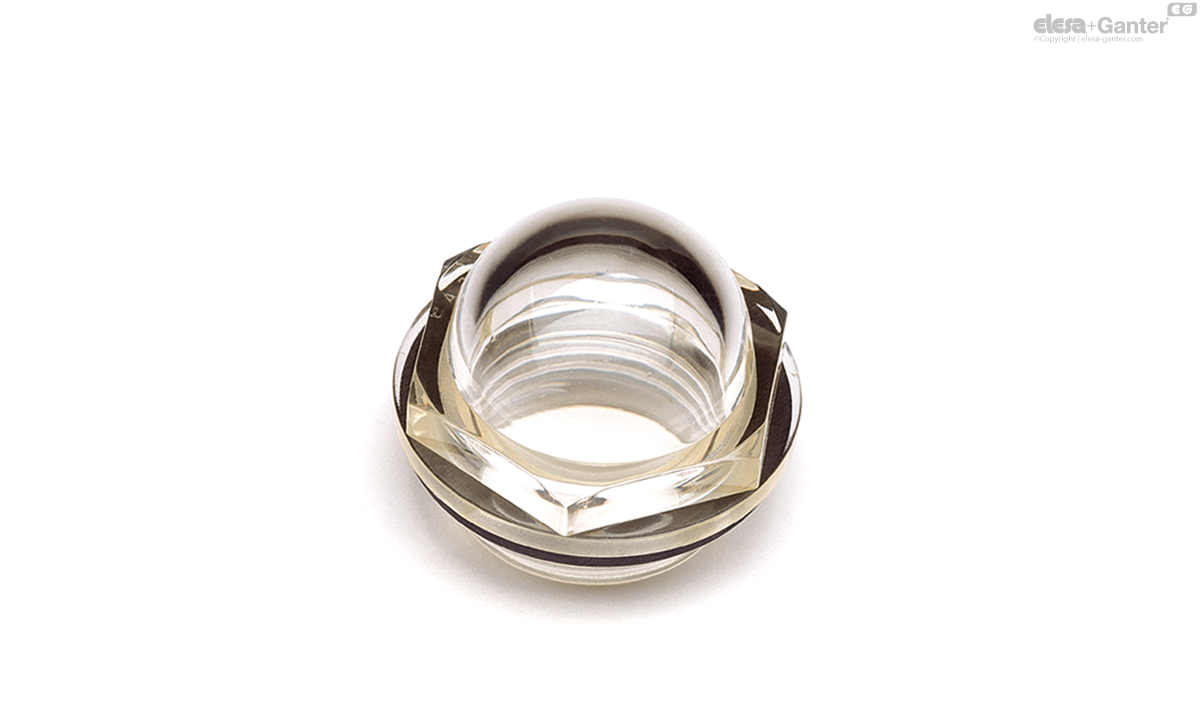

Oil circulation sights

Technopolymer up to 100°C

Enquire Now

Description

Main specifications

Transparent polyamide based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.

NBR synthetic rubber.

100°C.

General information

The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.

For use with other fluids with special additives, please contact ELESA Sales Department.

Accessories

Brass nut type GH.- for fitting to reservoirs with wall thickness smaller than 5 mm.

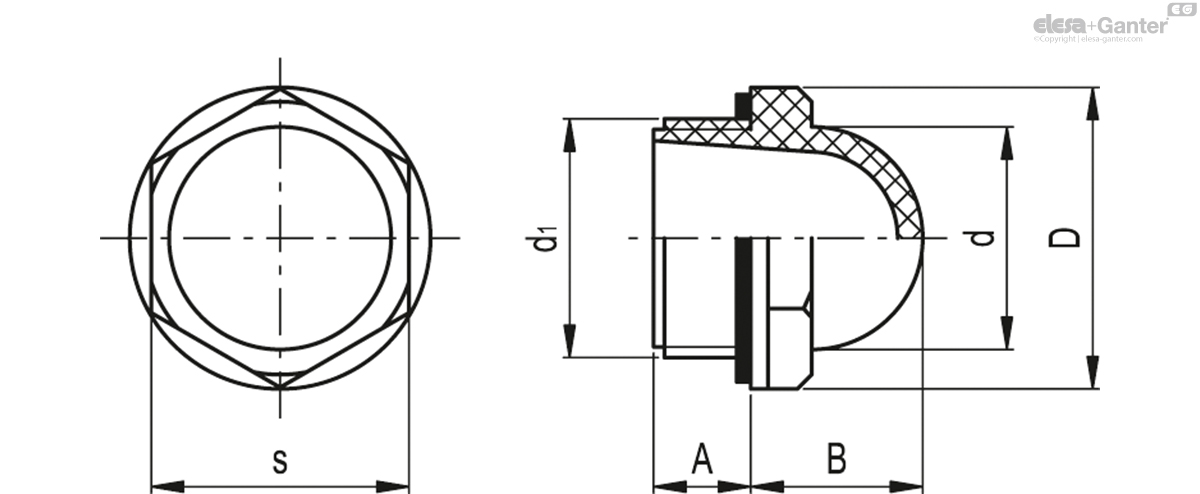

		d₁	A	B	D	d	s	Tightening torque [Nm]
Code	Description									Actions
10841	HCFE.11-M16x1,5	M16x1.5	7.5	13.5	22	15	19	2÷3	4
10851	HCFE.12-3/8	G 3/8	7.5	13	22.5	15	19	3÷5	4
10891	HCFE.14-M20x1,5	M20x1.5	9.5	15.5	26	19	22	4÷6	6
10901	HCFE.15-1/2	G 1/2	10.5	16	26	19	22	4÷6	6
10981	HCFE.18-M25x1,5	M25x1.5	8.5	19.5	31	25	27	6÷8	8
10991	HCFE.19-M27x1,5	M27x1.5	9	19.5	31	25	26.5	6÷8	8
11001	HCFE.20-3/4	G 3/4	10.5	19.5	31.5	25	27	6÷8	8
11011	HCFE.21-M26x1,5	M26x1.5	13	19.5	31	25	26.5	6÷8	8
11101	HCFE.24-1	G 1	11	24	42	31	36	8÷10	18
11108	HCFE.26-M35x1,5	M35x1.5	11	24	41.5	31	36	8÷10	19
11110	HCFE.31-M40x1,5	M40x1.5	11.5	26.5	46.5	38	40.5	8÷10	20
11111	HCFE.30-1¼	G 1 1/4	11.5	26.5	46.5	38	40.5	8÷10	21
