Guide rail Part 146
Extruded profiles
Description
Description
Movex® provides a new generation of high-performance profiles developed and produced with the most up to date technology.
Experienced engineers work around the clock on more than 50 extrusion machines, perfecting almost 2.000 high-quality products of different types and sizes.
Movex ® profiles are produced from top-quality UHMW-PE, with the possibility of enhanced performance with the use of our super-performing materials BluLub ®, Titanium White ® and AS.
Standard 3 m (10 ft) or 6 m (20 ft) profiles are typically shipped by common carrier. Selected items can be coiled into cartons for more convenient shipping.
Basic features
| Series: | Guide rail |
|---|---|
| Material: | Assembled plastic / metal profile |
| Unit of measure: | Meter |
| Box: | - |

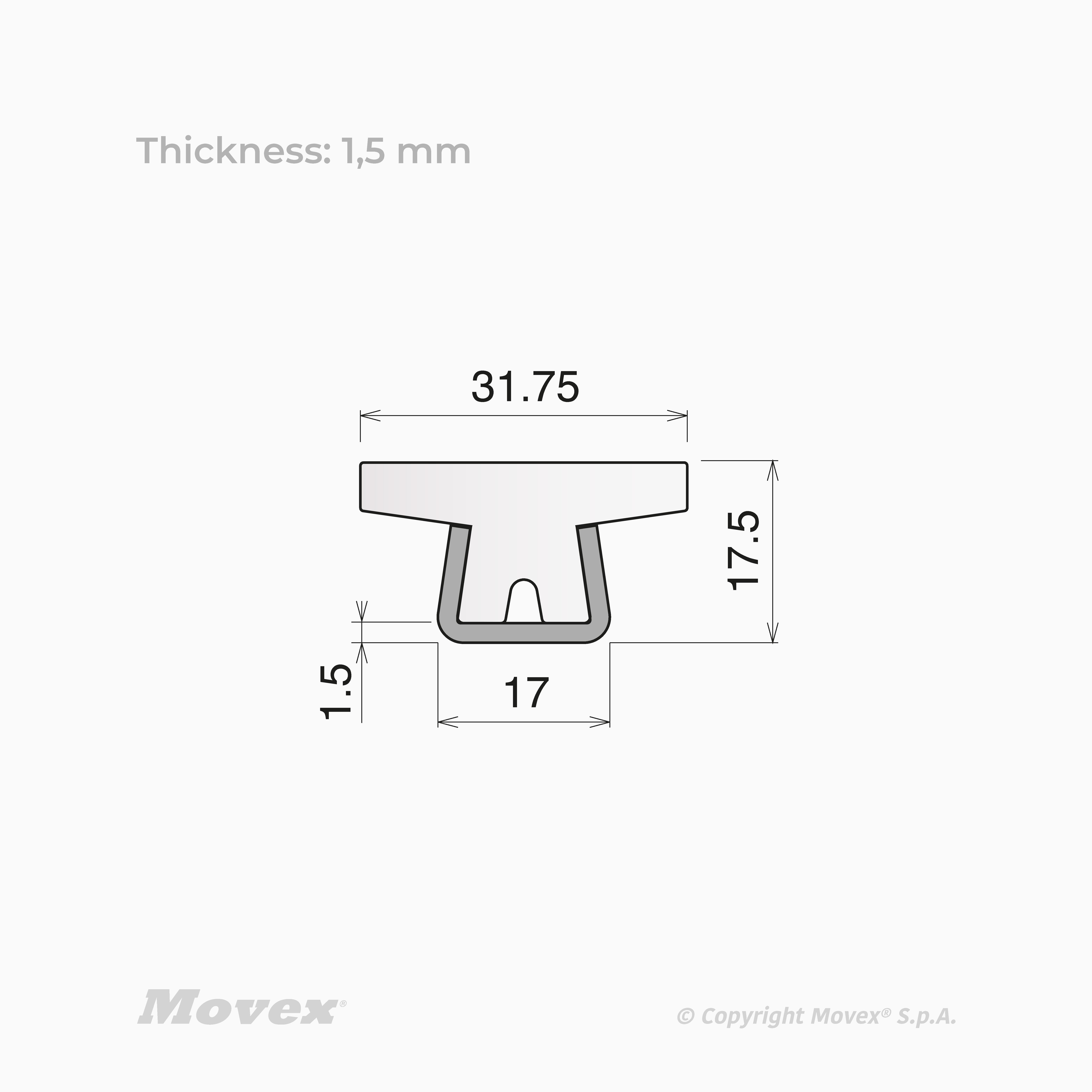

Guide rail Part 146
| Version | Part | Material & color | Supply length | Metal profile | Metal Thickness | Operating Temperature °C | ||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| P14600BC | Standard | P146 | BluLub | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P14601C | Standard | P146 | Ti-White | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P14605C | Standard | P146 | UHMW-PE Blue | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P14660BC | Standard | P146 | BluLub | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P14663 | Standard | P146 | Ti-White | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P14663BLC | Standard | P146 | UHMW-PE Blue | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
