Guide rail Part 121
Extruded profiles
Description
Description
Movex® provides a new generation of high-performance profiles developed and produced with the most up to date technology.
Experienced engineers work around the clock on more than 50 extrusion machines, perfecting almost 2.000 high-quality products of different types and sizes.
Movex ® profiles are produced from top-quality UHMW-PE, with the possibility of enhanced performance with the use of our super-performing materials BluLub ®, Titanium White ® and AS.
Standard 3 m (10 ft) or 6 m (20 ft) profiles are typically shipped by common carrier. Selected items can be coiled into cartons for more convenient shipping.
Basic features
| Series: | Guide rail |
|---|---|
| Material: | Assembled plastic / metal profile |
| Unit of measure: | Meter |
| Box: | - |

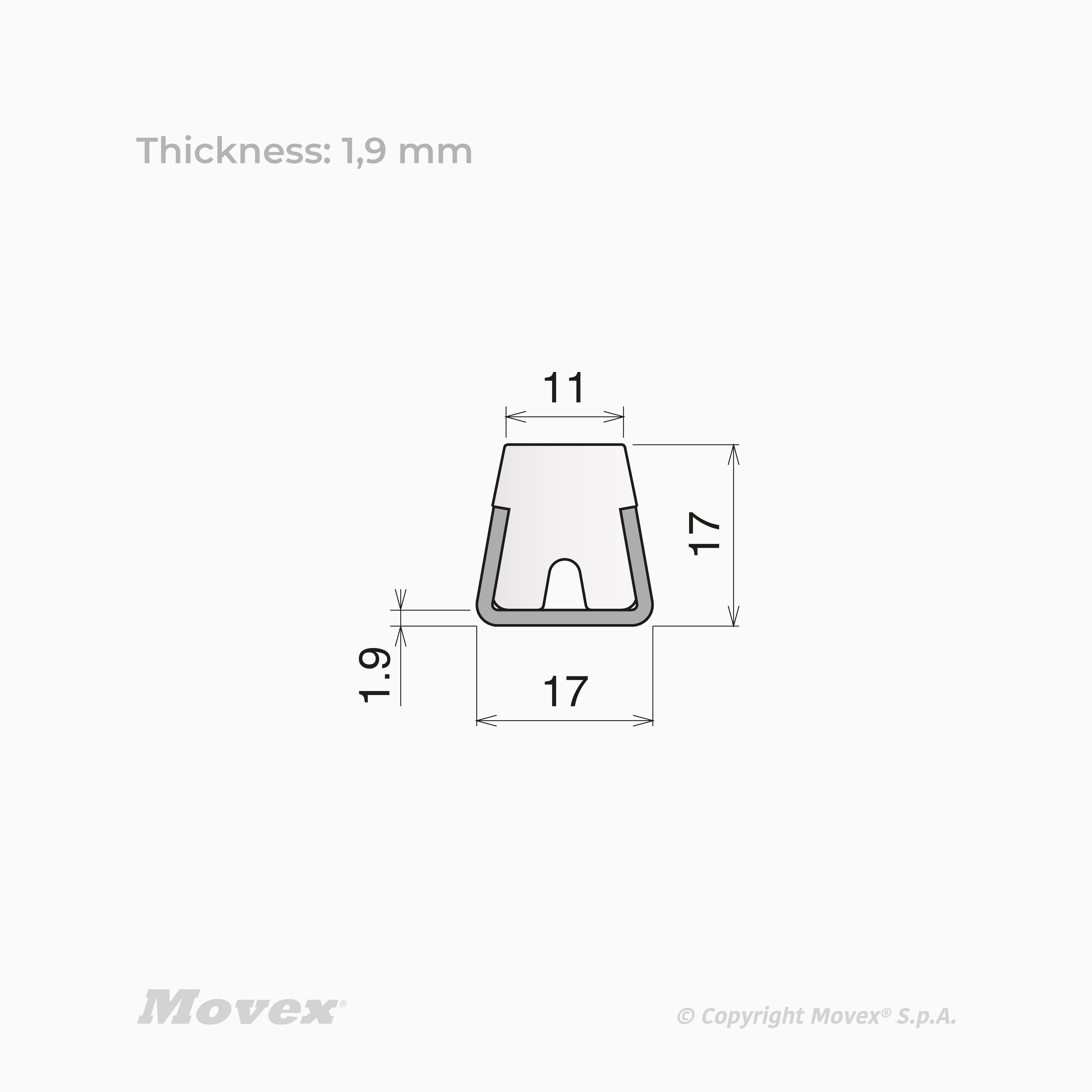

Guide rail Part 121
| Version | Part | Material & color | Supply length | Metal profile | Metal Thickness | Operating Temperature °C | ||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| P12101 | Standard | P121 | Ti-White | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P12101B | Standard | P121 | BluLub | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P12101BC | Standard | P121 | BluLub | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P12101C | Standard | P121 | Ti-White | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P12105 | Standard | P121 | UHMW-PE Blue | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P12105C | Standard | P121 | UHMW-PE Blue | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.5 mm | -40÷80 °C |
|
| P12153 | Hygienic | P121 | Ti-White | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12153B | Hygienic | P121 | BluLub | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12157 | Hygienic | P121 | Ti-White | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12157B | Hygienic | P121 | BluLub | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12163 | Standard | P121 | Ti-White | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12163B | Standard | P121 | BluLub | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12167 | Standard | P121 | Ti-White | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12167B | Standard | P121 | BluLub | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12173 | Standard | P121 | UHMW-PE Blue | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12177 | Standard | P121 | UHMW-PE Blue | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12183 | Hygienic | P121 | UHMW-PE Blue | 3 m / 10 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
| P12187 | Hygienic | P121 | UHMW-PE Blue | 6 m / 20 ft bars | Stainless Steel - AISI 304 | 1.9 mm | -40÷80 °C |
|
