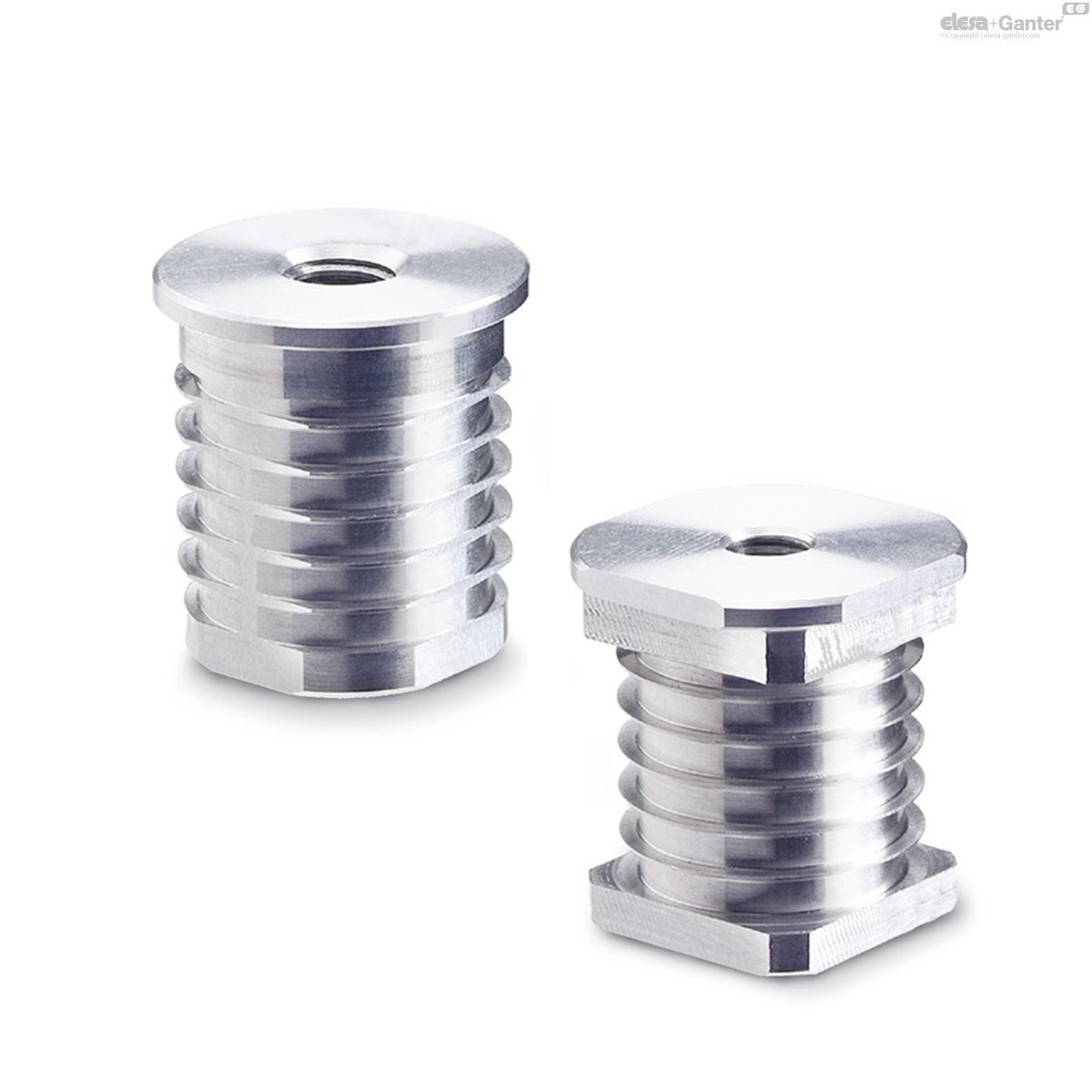

Stainless Steel-Insert bushings

for round tube and square tube

Enquire Now

Description

Specification

Stainless Steel AISI 303

Information

Drive the Stainless Steel-Insert bushings GN 992.5 in by using a soft-head mallet. Their lamellas bridge a production tolerance of the internal diameter or of the internal square of ±0.5 mm, allowing screws to be mounted in tubes.

The dimensions match those of the construction tubes GN 990 , but checking the tolerance position of the tube is recommended.

Technical information

Stainless Steel characteristics

GN 992.5

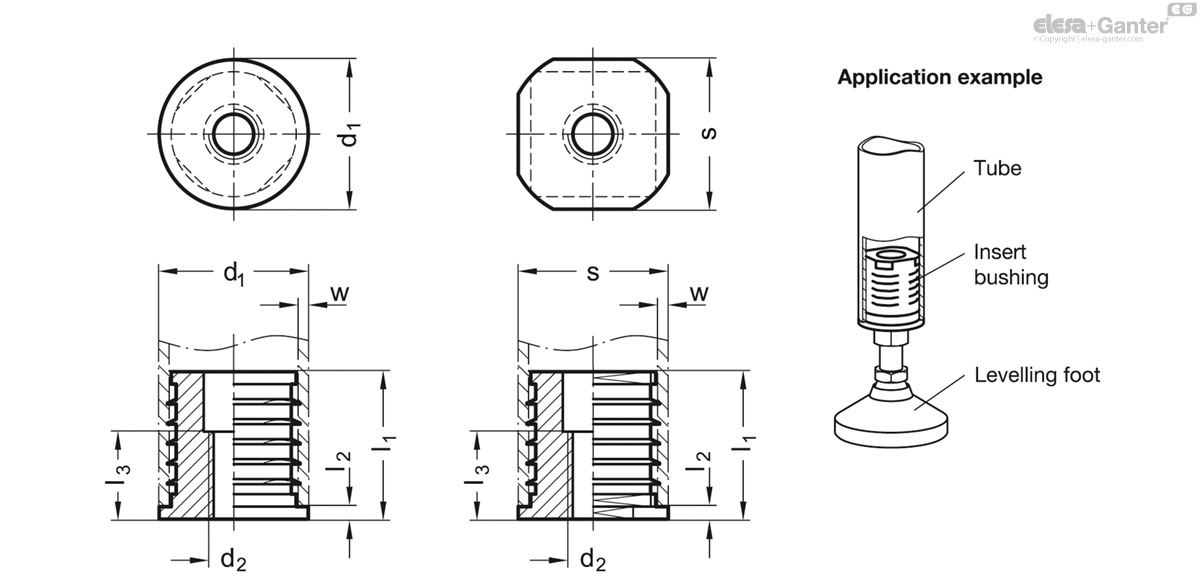

	d₁	s	d₂	d₃	l₁	l₂	l₃ +0.5	w	For tubes GN 990
Code											Actions
GN 992.5-D20-M8	D 20	-	M 8	16	29.5	2.5	16	2	D 20	29
GN 992.5-D25-M8	D 25	-	M 8	21	29.5	2.5	16	2	D 25	53
GN 992.5-D25-M10	D 25	-	M 10	21	29.5	2.5	16	2	D 25	51
GN 992.5-D30-M8	D 30	-	M 8	26	29.5	2.5	18	2	D 30	94
GN 992.5-D30-M10	D 30	-	M 10	26	29.5	2.5	18	2	D 30	90
GN 992.5-D40-M10	D 40	-	M 10	34	33.5	2.5	24	3	D 40	186
GN 992.5-D40-M12	D 40	-	M 12	34	33.5	2.5	24	3	D 40	180
GN 992.5-D50-M12	D 50	-	M 12	44	37.5	2.5	30	3	D 50	350
GN 992.5-D50-M16	D 50	-	M 16	44	37.5	2.5	30	3	D 50	330
GN 992.5-V20-M8	-	V 20	M 8	-	29.5	2.5	16	2	V 20	32
GN 992.5-V25-M8	-	V 25	M 8	-	29.5	2.5	16	2	V 25	61
GN 992.5-V25-M10	-	V 25	M 10	-	29.5	2.5	16	2	V 25	58
GN 992.5-V30-M8	-	V 30	M 8	-	29.5	2.5	18	2	V 30	106
GN 992.5-V30-M10	-	V 30	M 10	-	29.5	2.5	18	2	V 30	103
GN 992.5-V40-M10	-	V 40	M 10	-	33.5	2.5	24	3	V 40	216
GN 992.5-V40-M12	-	V 40	M 12	-	33.5	2.5	24	3	V 40	211
GN 992.5-V50-M12	-	V 50	M 12	-	37.5	2.5	30	3	V 50	420
GN 992.5-V50-M16	-	V 50	M 16	-	37.5	2.5	30	3	V 50	390
