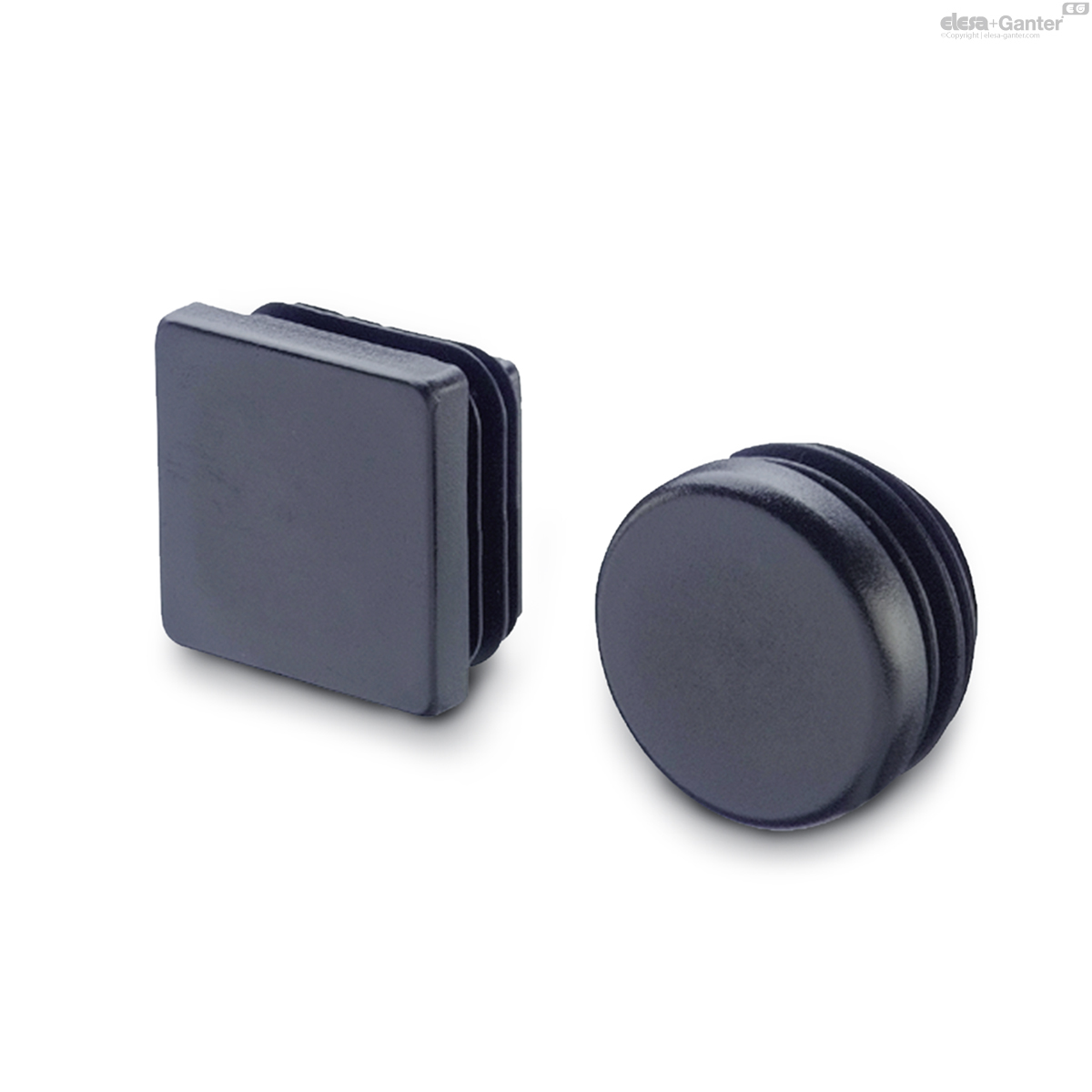

GN 991
Tube end plugs
for construction tubes GN 990
Description
Specification
Plastic (Polyethylen PE)
black
Information
Tube end plugs GN 991 have been designed for sealing tube ends for safety or optical reasons.
They are pressed into the tube end either by hand or with a mallet.
Technical information
- Plastic characteristicsÂ
GN 991

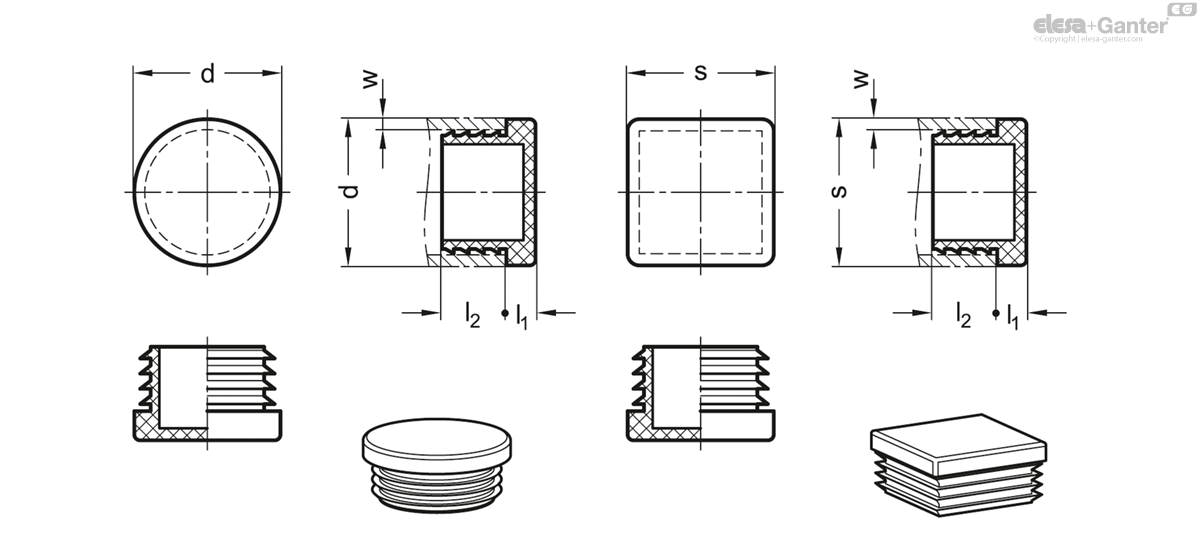

| d | s | w | l1 | l2 | For tubes GN 990 |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 991-D10-SW | D 10 | - | 1 ... 2 | 3.5 | 11 | D 10 | 1 |
|
| GN 991-D12-SW | D 12 | - | 1 ... 2 | 3.5 | 11 | D 12 | 1 |
|
| GN 991-D14-SW | D 14 | - | 1 ... 2 | 4 | 11.5 | D 14 | 1 |
|
| GN 991-D15-SW | D 15 | - | 1 ... 2 | 5 | 11.5 | D 15 | 2 |
|
| GN 991-D16-SW | D 16 | - | 1 ... 2 | 3 | 11 | D 16 | 2 |
|
| GN 991-D18-SW | D 18 | - | 1 ... 2 | 5 | 11.5 | D 18 | 2 |
|
| GN 991-D20-SW | D 20 | - | 1 ... 2.5 | 5 | 11.5 | D 20 | 2 |
|
| GN 991-D25-SW | D 25 | - | 1 … 3 | 5 | 11.5 | D 25 | 4 |
|
| GN 991-D30-SW | D 30 | - | 1 … 2.5 | 5 | 11.5 | D 30 | 4 |
|
| GN 991-D32-SW | D 32 | - | 1 ... 3 | 5 | 12 | D 32 | 4 |
|
| GN 991-D35-SW | D 35 | - | 1 ... 3 | 5 | 11.5 | D 35 | 6 |
|
| GN 991-D40-SW | D 40 | - | 1 ... 3 | 5 | 11.5 | D 40 | 7 |
|
| GN 991-D42-SW | D 42 | - | 1 ... 3 | 5 | 11.5 | D 42 | 7 |
|
| GN 991-D45-SW | D 45 | - | 1 ... 3 | 5 | 11 | D 45 | 8 |
|
| GN 991-D48-SW | D 48 | - | 1.2 … 3.6 | 5 | 11.5 | D 48 | 8 |
|
| GN 991-D50-SW | D 50 | - | 2.5 … 3.6 | 5 | 11.5 | D 50 | 9 |
|
| GN 991-D55-SW | D 55 | - | 3 … 5 | 5 | 14.5 | D 55 | 10 |
|
| GN 991-D60-SW | D 60 | - | 3 … 5 | 5 | 17.5 | D 60 | 15 |
|
| GN 991-V10-SW | - | V 10 | 0.8 … 2.5 | 4 | 8 | V 10 | 1 |
|
| GN 991-V12-SW | - | V 12 | 1 ... 2 | 4 | 8 | V 12 | 2 |
|
| GN 991-V16-SW | - | V 16 | 1 ... 2.5 | 5 | 6.5 | V 16 | 4 |
|
| GN 991-V20-SW | - | V 20 | 1 ... 3 | 5 | 6.5 | V 20 | 5 |
|
| GN 991-V25-SW | - | V 25 | 1 ... 3 | 5 | 6.5 | V 25 | 7 |
|
| GN 991-V30-SW | - | V 30 | 1 ... 3 | 5 | 6.5 | V 30 | 7 |
|
| GN 991-V35-SW | - | V 35 | 1 ... 3 | 5 | 9.5 | V 35 | 8 |
|
| GN 991-V40-SW | - | V 40 | 1 ... 3 | 5 | 9.5 | V 40 | 9 |
|
| GN 991-V45-SW | - | V 45 | 1 ... 3 | 5 | 9.5 | V 45 | 10 |
|
| GN 991-V50-SW | - | V 50 | 2.6 … 4 | 5 | 9.5 | V 50 | 18 |
|
