GN 970
Installation brackets
equal / unequal sides
Description
Specification

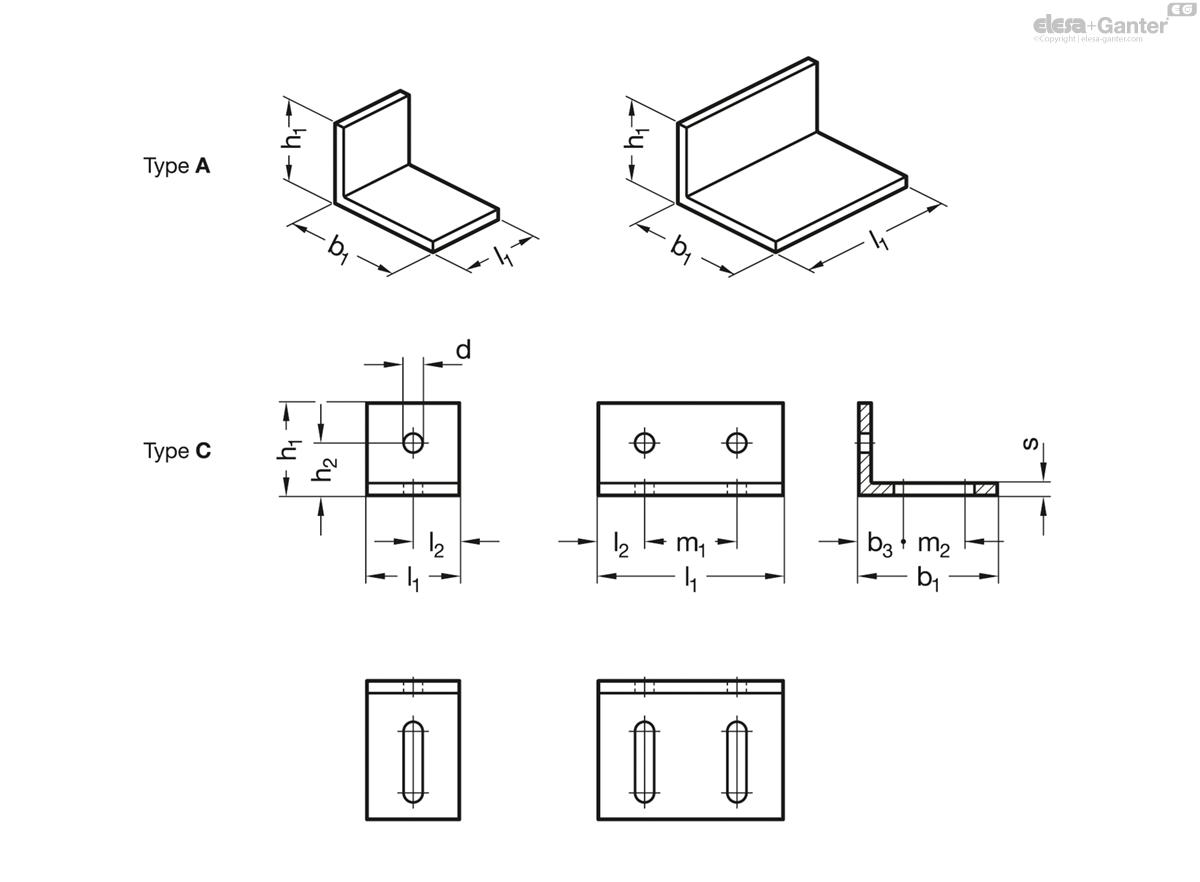

Version with equal sides
Types
- Type A: without bores
- Type B: with bores
Version with unequal sides
Types
- Type A: without bores
- Type C: with bores and slotted holes
Structural Steel STB
drawn, with sharp edges
blackened
Aluminium ALM
pressed
matt, ground
Information
GN 970 installation brackets are used universally for right-angle connecting and fastening of, e.g. base plates or covers.
Type A allows for the use of drilling templates specific to the application as well as fastening by welding.
Type B installation brackets have 2 or 4 holes depending on the length l1.
Type C installation brackets have one or two combinations of a hole and an elongated hole depending on the length l1.
GN-970
| h1 | b1 | l1 | b3 | d | h2 | l2 | m1 | m2 | s |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 970-ALM-30-45-30-A | 30 | 45 | 30 | - | 6.2 | 18 | 15 | - | 20 | 4 | 23 |
|
| GN 970-ALM-30-45-30-C | 30 | 45 | 30 | 18 | 6.2 | 18 | 15 | - | 20 | 4 | 21 |
|
| GN 970-ALM-30-45-60-A | 30 | 45 | 60 | - | 6.2 | 18 | 15 | 30 | 20 | 4 | 45 |
|
| GN 970-ALM-30-45-60-C | 30 | 45 | 60 | 18 | 6.2 | 18 | 15 | 30 | 20 | 4 | 41 |
|
| GN 970-ALM-40-60-40-A | 40 | 60 | 40 | - | 8.2 | 24 | 20 | - | 25 | 5 | 50 |
|
| GN 970-ALM-40-60-40-C | 40 | 60 | 40 | 24 | 8.2 | 24 | 20 | - | 25 | 5 | 46 |
|
| GN 970-ALM-40-60-80-A | 40 | 60 | 80 | - | 8.2 | 24 | 20 | 40 | 25 | 5 | 100 |
|
| GN 970-ALM-40-60-80-C | 40 | 60 | 80 | 24 | 8.2 | 24 | 20 | 40 | 25 | 5 | 92 |
|
| GN 970-ALM-50-75-50-A | 50 | 75 | 50 | - | 10.2 | 30 | 25 | - | 30 | 6 | 94 |
|
| GN 970-ALM-50-75-50-C | 50 | 75 | 50 | 30 | 10.2 | 30 | 25 | - | 30 | 6 | 87 |
|
| GN 970-ALM-50-75-100-A | 50 | 75 | 100 | - | 10.2 | 30 | 25 | 50 | 30 | 6 | 188 |
|
| GN 970-ALM-50-75-100-C | 50 | 75 | 100 | 30 | 10.2 | 30 | 25 | 50 | 30 | 6 | 174 |
|
| GN 970-STB-30-45-30-A | 30 | 45 | 30 | - | 6.2 | 18 | 15 | - | 20 | 4 | 68 |
|
| GN 970-STB-30-45-30-C | 30 | 45 | 30 | 18 | 6.2 | 18 | 15 | - | 20 | 4 | 62 |
|
| GN 970-STB-30-45-60-A | 30 | 45 | 60 | - | 6.2 | 18 | 15 | 30 | 20 | 4 | 135 |
|
| GN 970-STB-30-45-60-C | 30 | 45 | 60 | 18 | 6.2 | 18 | 15 | 30 | 20 | 4 | 123 |
|
| GN 970-STB-40-60-40-A | 40 | 60 | 40 | - | 8.2 | 24 | 20 | - | 25 | 5 | 152 |
|
| GN 970-STB-40-60-40-C | 40 | 60 | 40 | 24 | 8.2 | 24 | 20 | - | 25 | 5 | 139 |
|
| GN 970-STB-40-60-80-A | 40 | 60 | 80 | - | 8.2 | 24 | 20 | 40 | 25 | 5 | 303 |
|
| GN 970-STB-40-60-80-C | 40 | 60 | 80 | 24 | 8.2 | 24 | 20 | 40 | 25 | 5 | 278 |
|
