GN 957

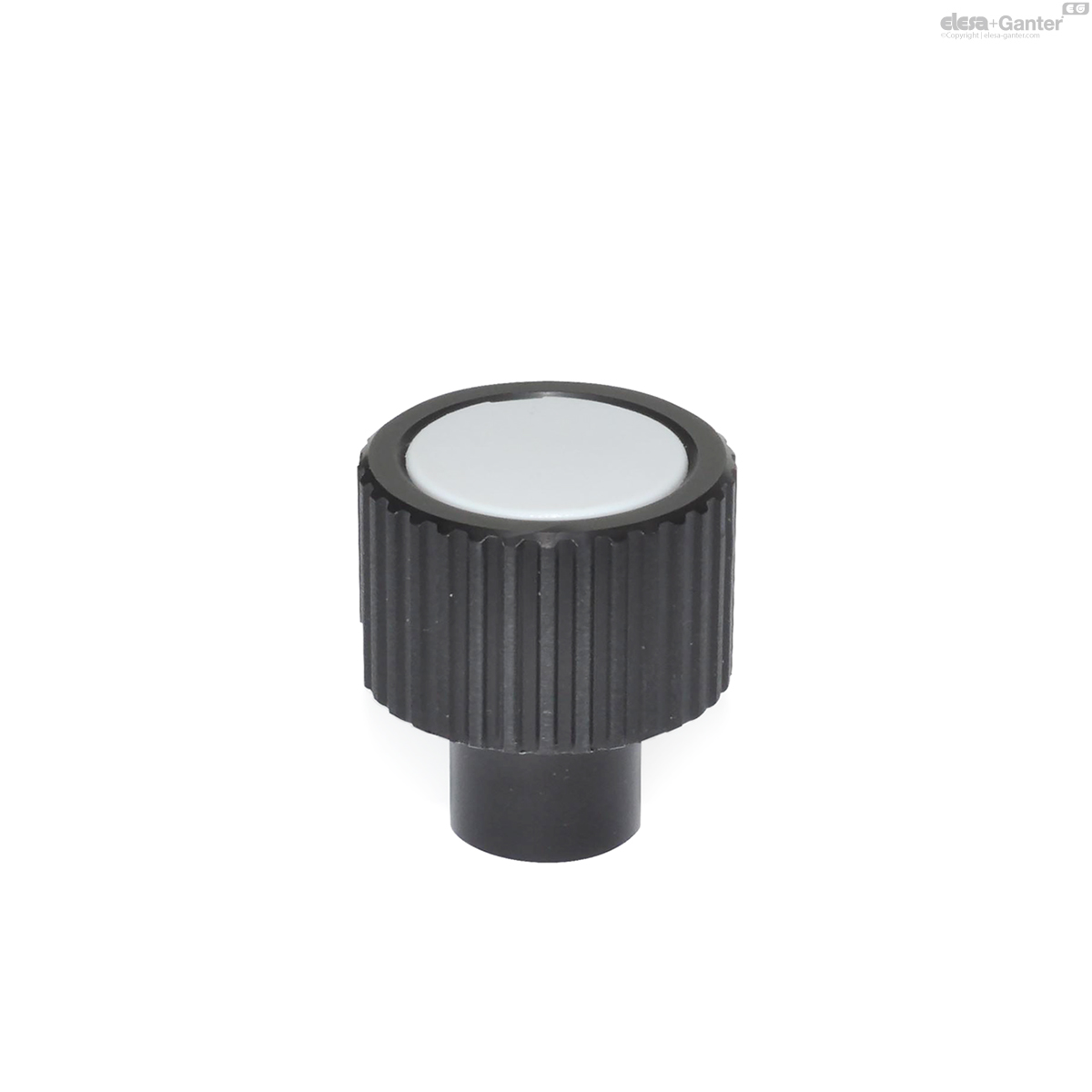

Control knobs

for position indicators

Enquire Now

Description

Specification

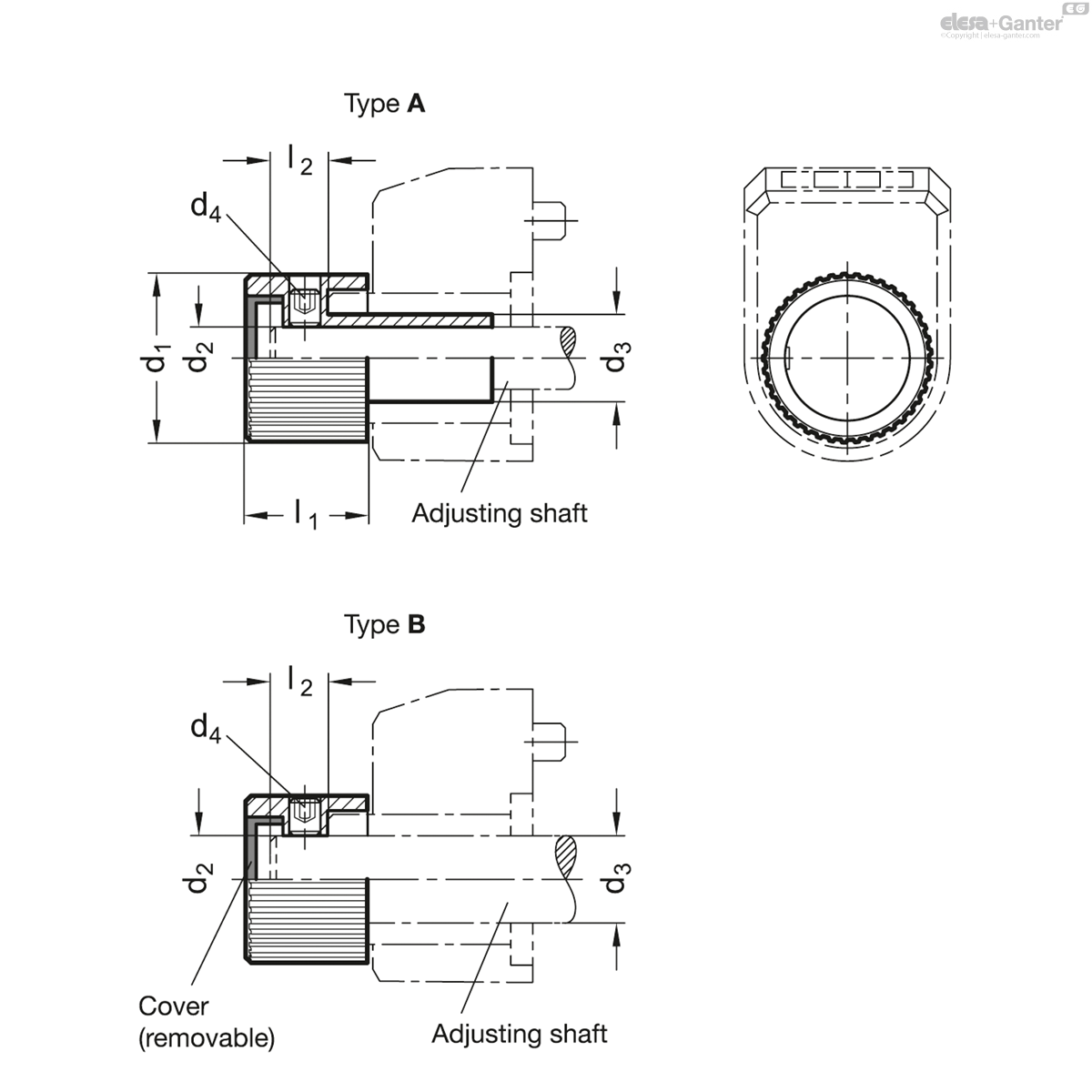

Types

Type A: Shaft-Ød₂ < Bore-Ø d₃

Type B: Shaft-Ød₂ = Bore-Ø d₃

Aluminium

anodized, black

Stainless Steel-Socket set screw DIN 916

with internal hexagon and serrated point

Hub cover cap

Plastic, light grey

Information

Control knobs GN 957 are used in connection with position indicators. These control knobs offer a simple solution when the assembly requires manual fine adjustment for the application for which it has been designed.

The design of this knob adapts it to the diameter of the adjustment shaft, so that no adapter bushes RB51 are needed.

Technical information

ISO-Fundamental Tolerances -

GN 957

	d₁	d₂ H8	d₂ H9	d₃	d₄	l₁	l₂ min.	l₂ max.	For position indicator
Code											Actions
GN 957-22-B6-A	22	B 6	B 6	10	M 4	15.5	4.5	9.6	DD50	11
GN 957-22-B8-A	22	B 8	B 8	10	M 4	15.5	4.5	9.6	DD50	10
GN 957-22-B10-B	22	B 10	B 10	10	M 4	15.5	4.5	9.6	DD50	11
GN 957-27-B6-A	27	B 6	B 6	14	M 5	19.5	6	11.3	DD51 \| DD51-E	24
GN 957-27-B8-A	27	B 8	B 8	14	M 5	19.5	6	11.3	DD51 \| DD51-E	22
GN 957-27-B10-A	27	B 10	B 10	14	M 5	19.5	6	11.3	DD51 \| DD51-E	20
GN 957-27-B12-A	27	B 12	B 12	14	M 5	19.5	6	11.3	DD51 \| DD51-E	18
GN 957-27-B14-B	27	B 14	B 14	14	M 5	19.5	6	11.3	DD51 \| DD51-E	15
GN 957-42-B10-A	42	B 10	B 10	20	M 6	24	6.5	15	DD52R \| DD52R-E \| DD52R-E-RF	73
GN 957-42-B12-A	42	B 12	B 12	20	M 6	24	6.5	15	DD52R \| DD52R-E \| DD52R-E-RF	69
GN 957-42-B14-A	42	B 14	B 14	20	M 6	24	6.5	15	DD52R \| DD52R-E \| DD52R-E-RF	60
GN 957-42-B15-A	42	B 15	B 15	20	M 6	24	6.5	15	DD52R \| DD52R-E \| DD52R-E-RF	63
GN 957-42-B16-A	42	B 16	B 16	20	M 6	24	6.5	15	DD52R \| DD52R-E \| DD52R-E-RF	61
GN 957-42-B20-B	42	B 20	B 20	20	M 6	24	6.5	15	DD52R \| DD52R-E \| DD52R-E-RF	51
