GN 951.2

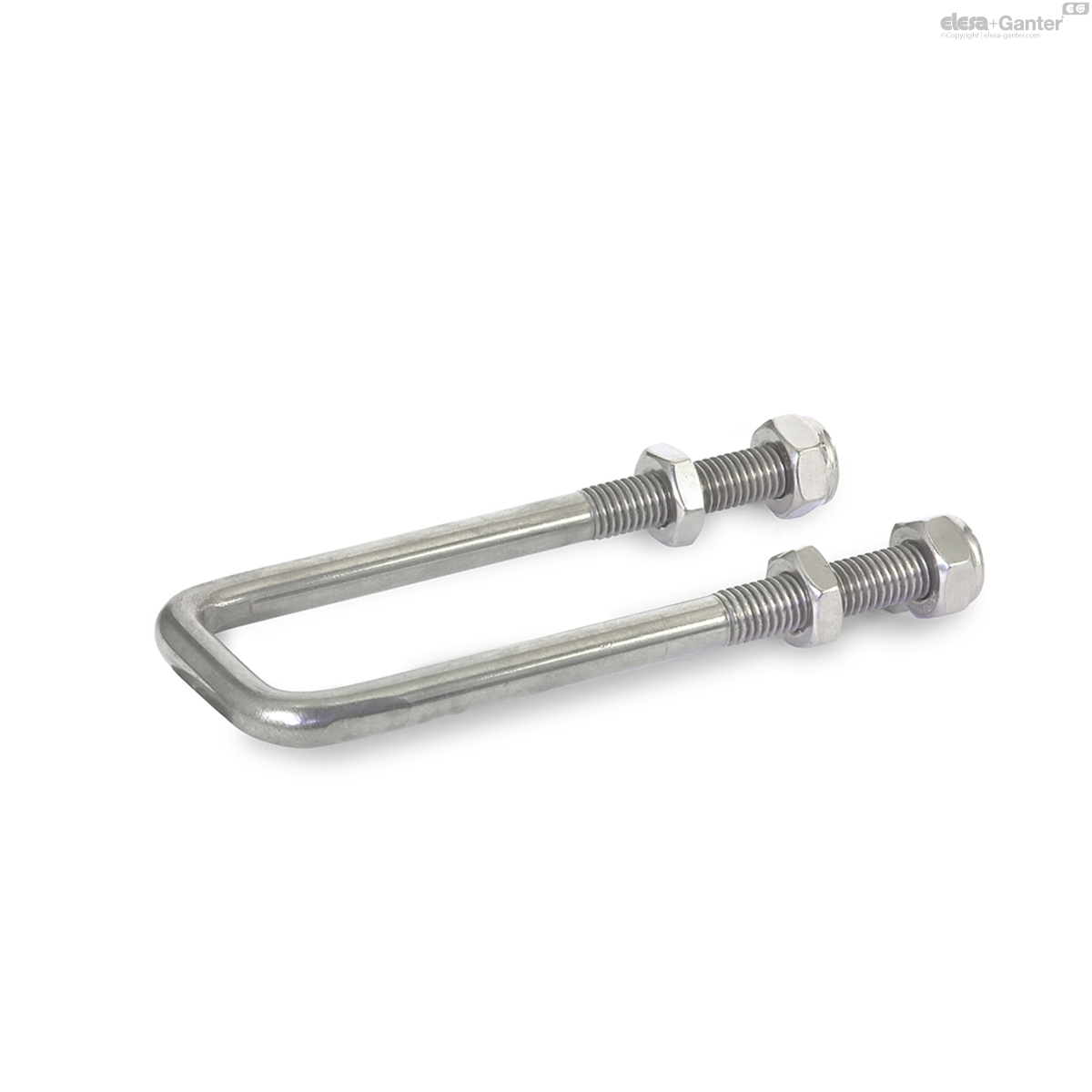

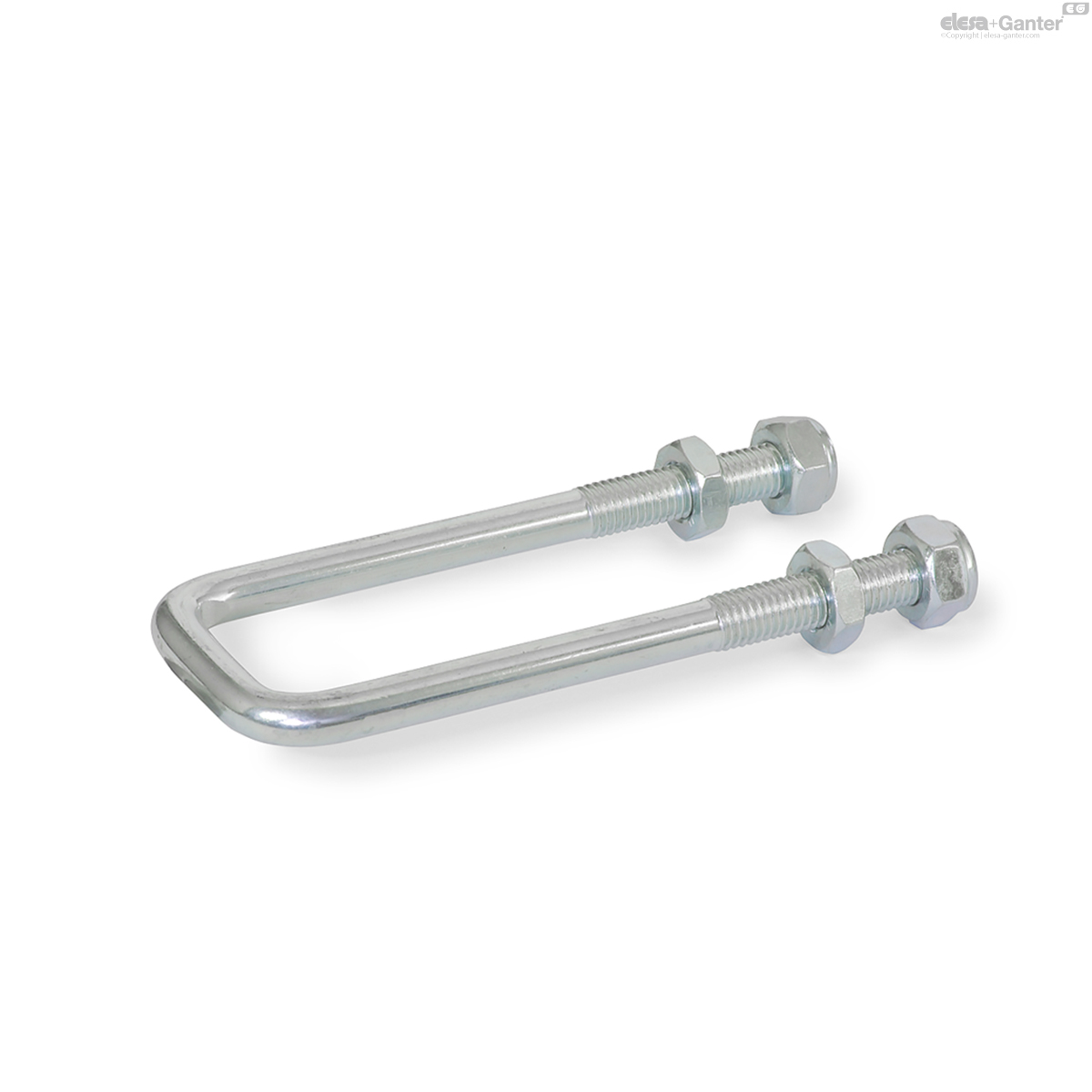

Square U-Bolts

for Latch Type Toggle Clamps GN 852 / GN 852.1 / GN 852.3, Steel / Stainless Steel

Enquire Now

Description

Specification

Steel ST

Zinc plated, blue passivated

Hex nuts (with polyamide insert)

DIN 936 / DIN 985

Steel, zinc plated

Stainless steel AISI 304 NI

Hex nuts (with polyamide insert)

DIN 936 / DIN 985

Stainless steel

Technical Information

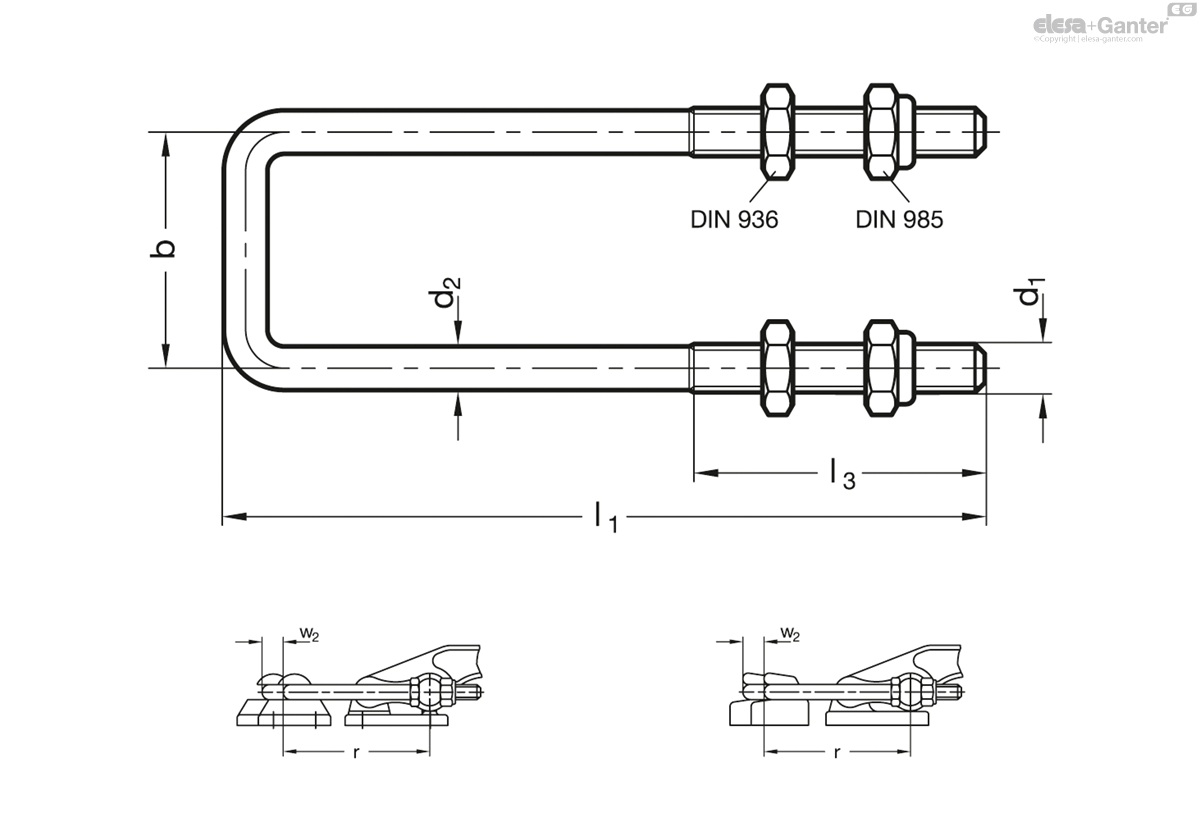

	d₁	b	l₁	d₂	l₃	Size	GN 852 / GN 852.3 r at w₂ =0	w₂	Size	GN 852.1 r at w₂=0	w₂
Code													Actions
GN 951.2-M10-46-129-ST	M 10	46	129*	9	45	1700	96	15	1400	95	15	130
GN 951.2-M10-46-149-ST	M 10	46	149**	9	52	1700	106	22	1400	109	15	173
GN 951.2-M10-46-179-ST	M 10	46	179	9	45	1700	146	15	1400	145	15	220
GN 951.2-M10-46-209-ST	M 10	46	209	9	45	1700	176	15	1400	175	15	250
GN 951.2-M10-46-259-ST	M 10	46	259	9	45	1700	226	15	1400	225	-	300
GN 951.2-M12-55-151-ST	M 12	55	151*	10.8	70	4000	107	25	-	-	-	250
GN 951.2-M12-55-211-ST	M 12	55	211	10.8	70	4000	156	36	-	-	-	360
GN 951.2-M12-55-361-ST	M 12	55	361	10.8	70	4000	306	36	-	-	-	600
GN 951.2-M12-55-421-ST	M 12	55	421	10.8	70	4000	366	36	-	-	-	680
