GN 951.1

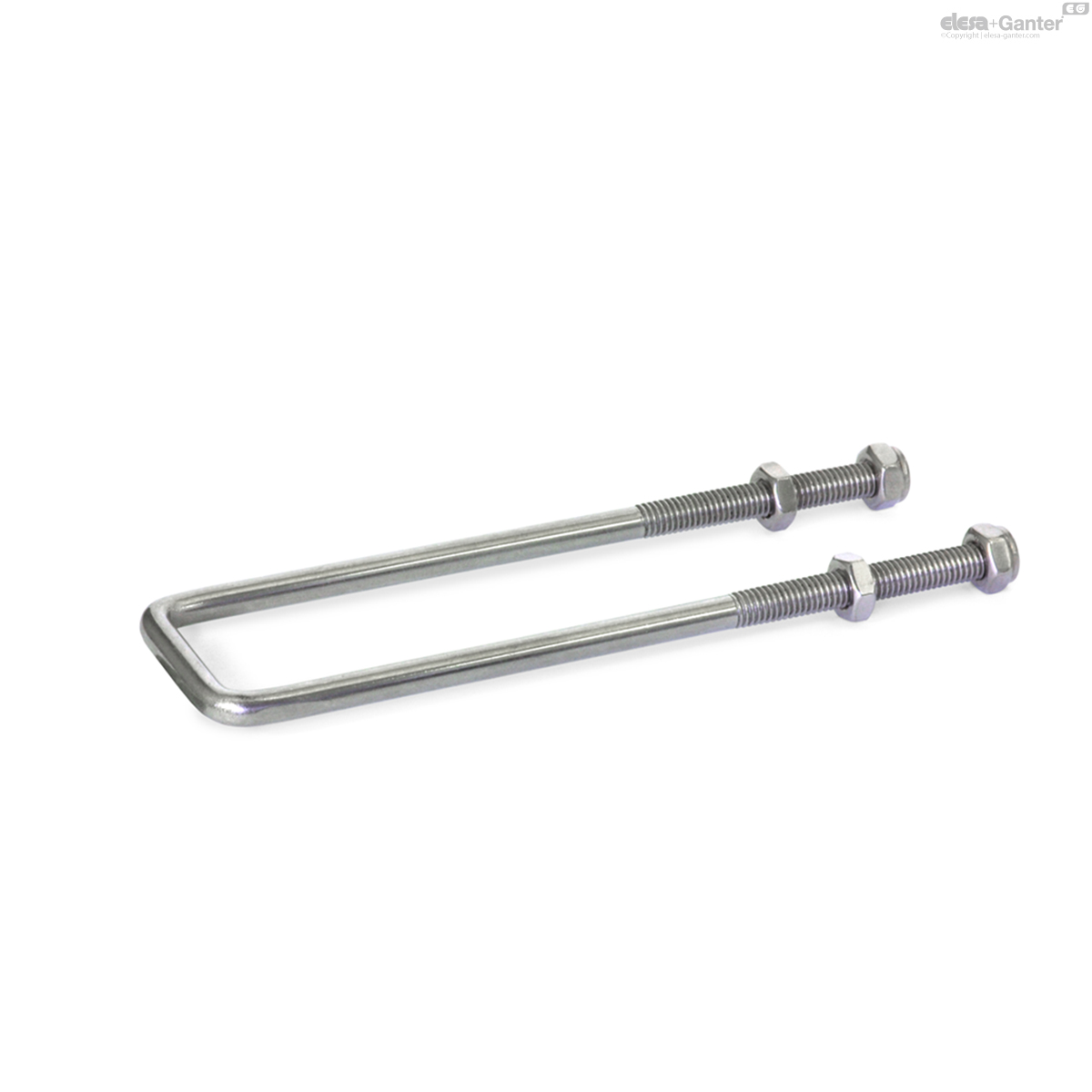

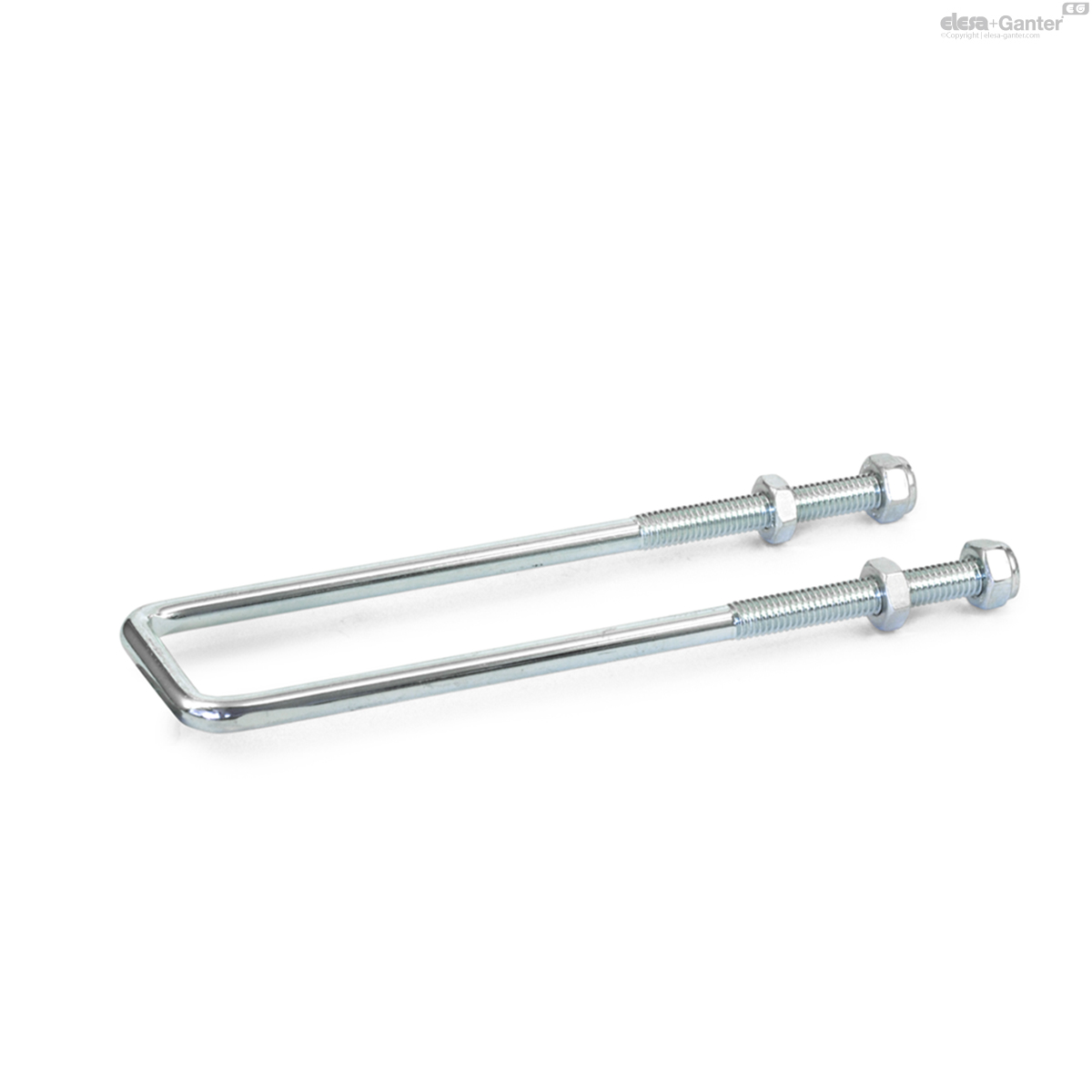

Square U-bolts

Steel / Stainless Steel, for GN 851 / GN 851.1 / GN 851.2 / GN 851.3 latch type toggle clamps

Enquire Now

Description

Specification

zinc plated, blue passivated

Hexagon nuts (with polyamide insert)

M4: DIN 934 / DIN 985

M6 / M8: DIN 936 / DIN 985

Steel, zinc plated, resp. Stainless Steel

Technical Information

On Request

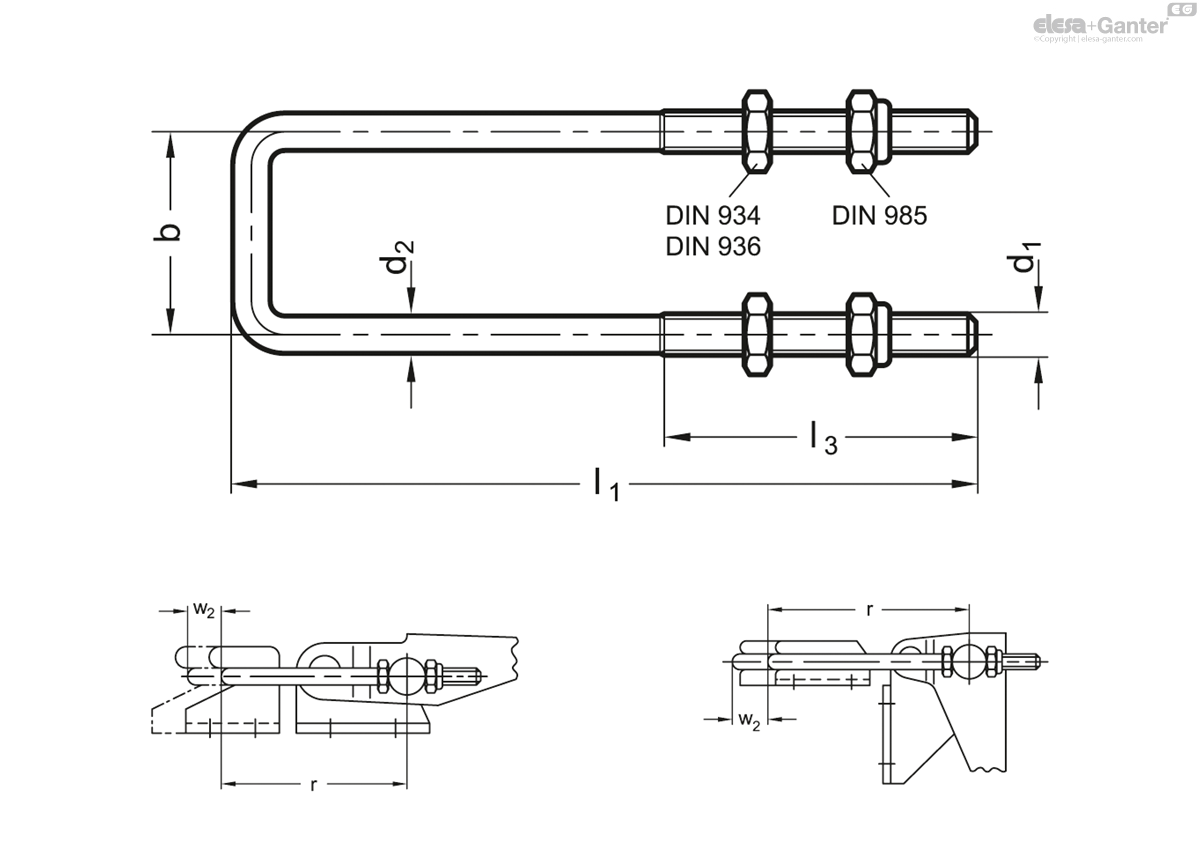

	GN 852 r at w₂ =0	GN 851 w₂	Size GN 851.1 / GN 851.2	Size GN 851.1\|GN 851.2	d₁	b	l₁	d₂	l₃	Size GN 851 / GN 851.3	GN 851 r at w₂ =0	w₂	GN 851.3 r at w₂ =0	GN 851.3 w₂	GN 851.1 / GN 851.2 r at w₂ =0	GN 852.1 r at w₂=0	GN 851.1 / GN 851.2 w₂
Code																			Actions
GN 951.1-M4-21-56-ST	35	11	-	-	M 4	21	56**	3.4	27.5	160	35	11	35	11	-	-	-	11
GN 951.1-M4-21-70-ST	48	12	160	160	M 4	21	70***	3.4	28.5	160	48	12	48	12	50	50	12	12
GN 951.1-M4-21-103-ST	80	14	160	160	M 4	21	103	3.4	30	160	80	14	80	14	82	82	14	20
GN 951.1-M4-21-153-ST	125	19	160	160	M 4	21	153	3.4	35	160	125	19	125	19	127	127	19	40
GN 951.1-M4-21-203-ST	175	19	160	160	M 4	21	203	3.4	35	160	175	19	175	19	177	177	19	51
GN 951.1-M6-32-78-ST	57	10	-	-	M 6	32	78**	5.2	33	320	57	10	54	10	-	-	-	38
GN 951.1-M6-32-110-ST	75	24	320	320	M 6	32	110***	5.2	44	320	75	24	75	24	78	78	21	45
GN 951.1-M6-32-130-ST	94	25	320	320	M 6	32	130	5.2	45	320	94	25	94	25	94	94	25	57
GN 951.1-M6-32-155-ST	119	25	320	320	M 6	32	155	5.2	45	320	119	25	119	25	119	119	25	63
GN 951.1-M6-32-205-ST	169	25	320	320	M 6	32	205	5.2	45	320	169	25	169	25	169	169	25	83
GN 951.1-M8-38-111-ST	74	22	-	-	M 8	38	111**	7.2	52	700	74	22	70	22	-	-	-	92
GN 951.1-M8-38-127-ST	78	34	-	-	M 8	38	127	7.2	60	700	78	34	78	34	-	-	-	100
GN 951.1-M8-38-143-ST	102	30	700	700	M 8	38	143***	7.2	56	700	102	30	98	30	98	98	30	125
GN 951.1-M8-38-157-ST	108	34	700	700	M 8	38	157	7.2	60	700	108	34	108	34	108	108	34	135
GN 951.1-M8-38-207-ST	158	34	700	700	M 8	38	207	7.2	60	700	158	34	158	34	158	158	34	150
