GN 949

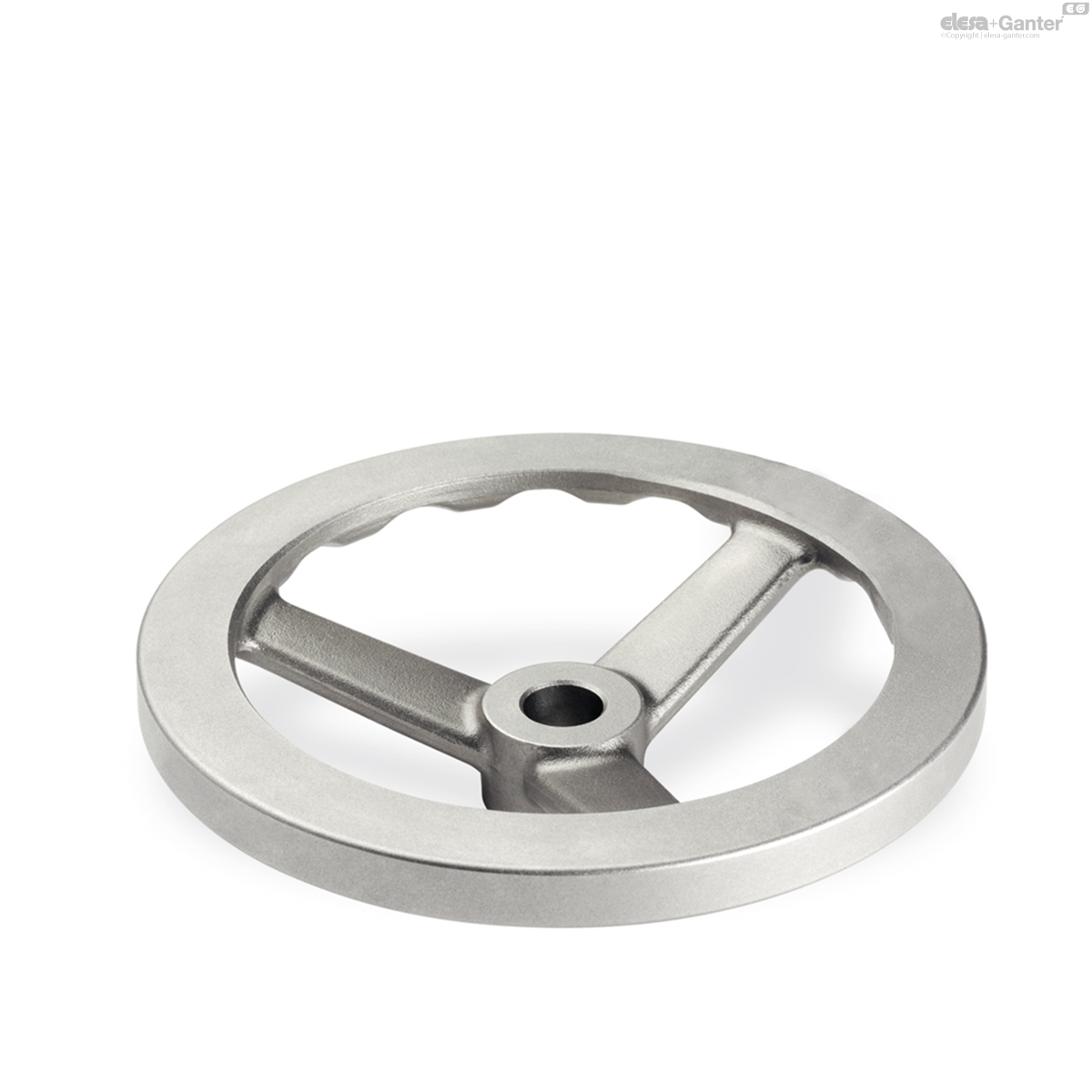

Stainless Steel-Handwheels

Enquire Now

Description

Specification

Stainless Steel precision casting

Revolving handles

Information

The design of Stainless Steel-Handwheels GN 949 complies with the requirements of hygiene standards.

The revolving handles are made of Duroplast which, in general, provides good resistance to the impact of chemical agents.

Technical Information

	d₁	d₂ H8	d₃	b	l₁	l₂ ≈	Spokes no.
Code									Actions
GN 949-100-B10-A	100	10	20	7	15	27.5	3	222
GN 949-100-B12-A	100	12	20	7	15	27.5	3	200
GN 949-100-K10-A	100	10	20	7	15	27.5	3	240
GN 949-100-K12-A	100	12	20	7	15	27.5	3	220
GN 949-125-B12-A	125	12	24	9	16	28.5	3	425
GN 949-125-B14-A	125	14	24	9	16	28.5	3	427
GN 949-125-K12-A	125	12	24	9	16	28.5	3	420
GN 949-125-K14-A	125	14	24	9	16	28.5	3	420
GN 949-140-B14-A	140	14	28	10	18	30.5	3	640
GN 949-140-B16-A	140	16	28	10	18	30.5	3	600
GN 949-140-K14-A	140	14	28	10	18	30.5	3	610
GN 949-140-K16-A	140	16	28	10	18	30.5	3	610
GN 949-160-B14-A	160	14	31	11	20	35.5	3	825
GN 949-160-B16-A	160	16	31	11	20	35.5	3	805
GN 949-160-K14-A	160	14	31	11	20	35.5	3	880
GN 949-160-K16-A	160	16	31	11	20	35.5	3	856
GN 949-200-B18-A	200	18	36	14	23	39	3	1300
GN 949-200-B20-A	200	20	36	14	23	39	3	1200
GN 949-200-K18-A	200	18	36	14	23	39	3	1442
GN 949-200-K20-A	200	20	36	14	23	39	3	1200
