GN 938
Hinges
Zinc Die Casting, for Panels (Door Panes)
Description
Specification
Zinc die casting ZD
Powder coated

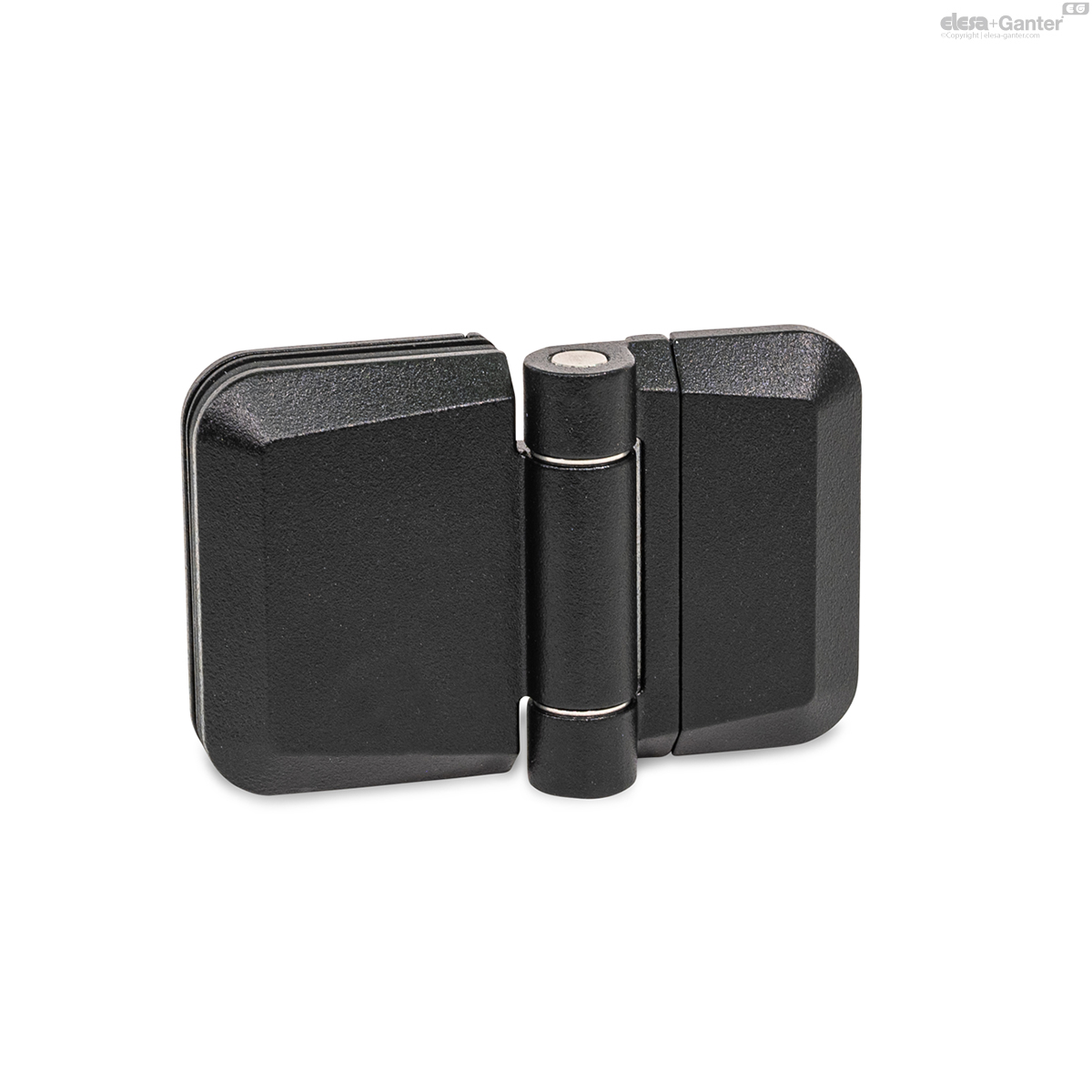

- Black, RAL 9005, textured finish SW

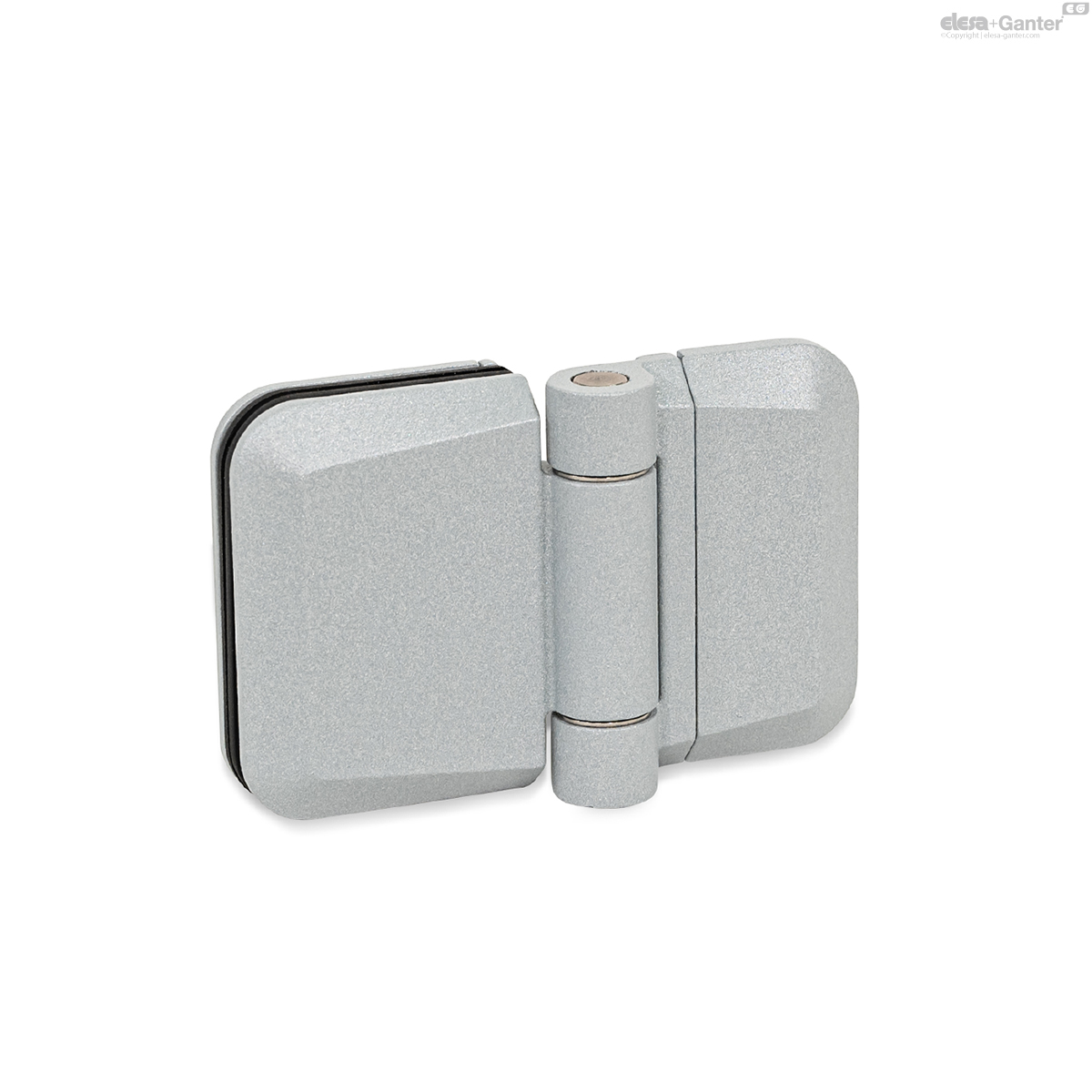

- Silver, RAL 9006, textured finish SR
Hinge pin
Stainless steel AISI 303
Shim washers
Stainless steel AISI 316L
Clamping screws
Stainless steel AISI 304
Spacer sleeves
Plastic (Polyamide PA)
Rubber inserts
Elastomer (TPE)
Information
Hinges GN 938 are used to fasten door panes, e.g. made of glass or plastic, so that they can rotate. They are designed to match the panel support clamp GN 939.
The panels (door panes) are clamped between the rubber inserts and additionally secured with spacer sleeves, forming a positive connection.
If the hinges are used with profile systems with 6, 8 or 10 mm slots, T-nuts GN 938.1 are available as mounting accessories. These make it easy to align the hinges and protect them from twisting.
The covers are supplied loose. They are slid on sideways after assembly and lock into place automatically.
Accessory
- T-Nuts GN 938.1
On request
- Other colors
Technical information
- List of Hinge TypesÂ
- Load Rating InformationÂ
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ

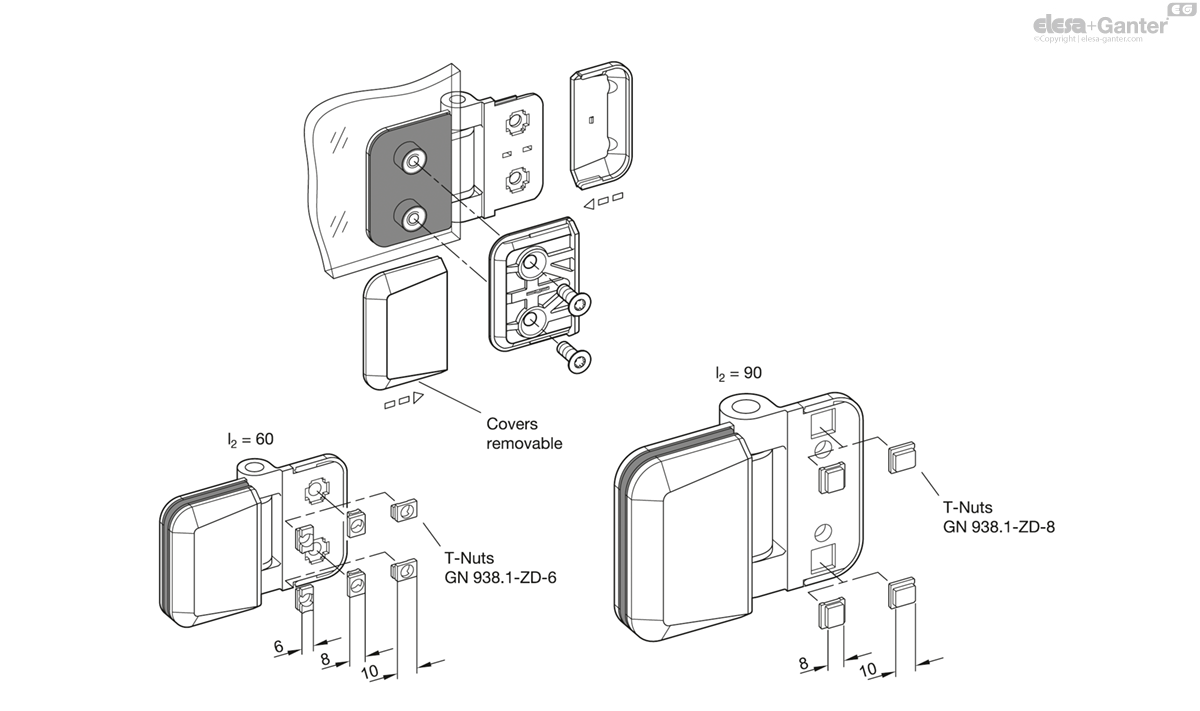

Assembly Instructions

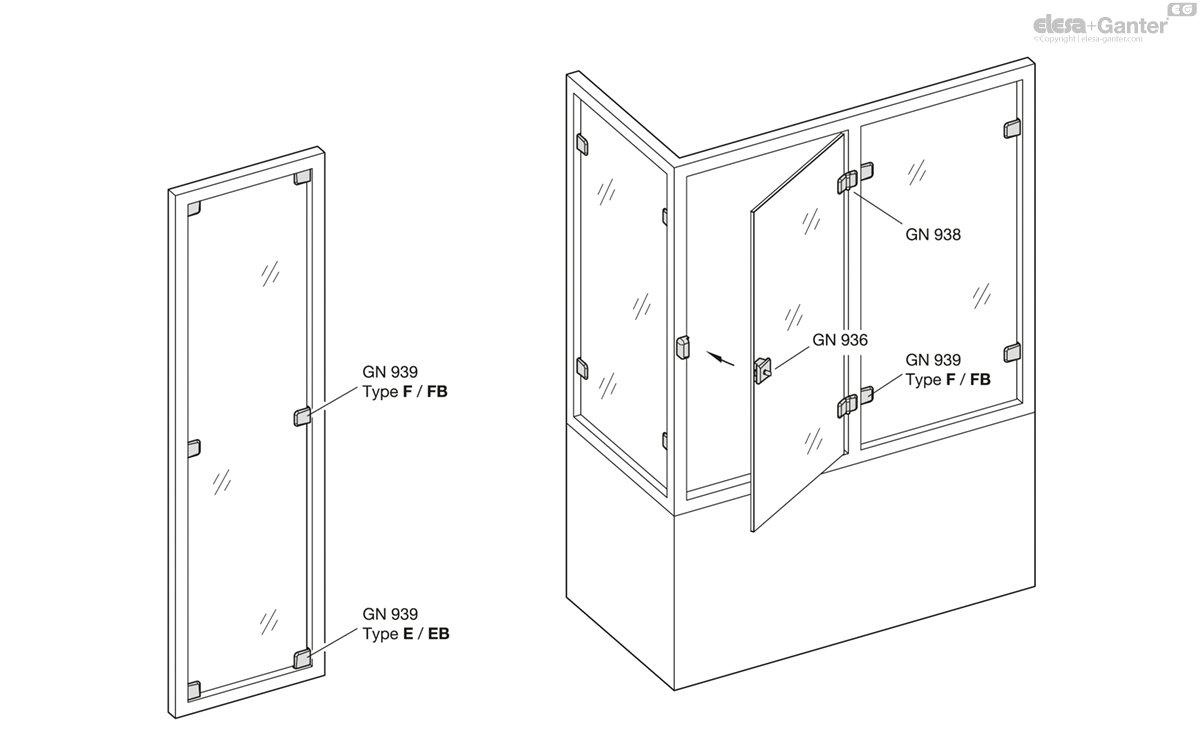

 Application Example

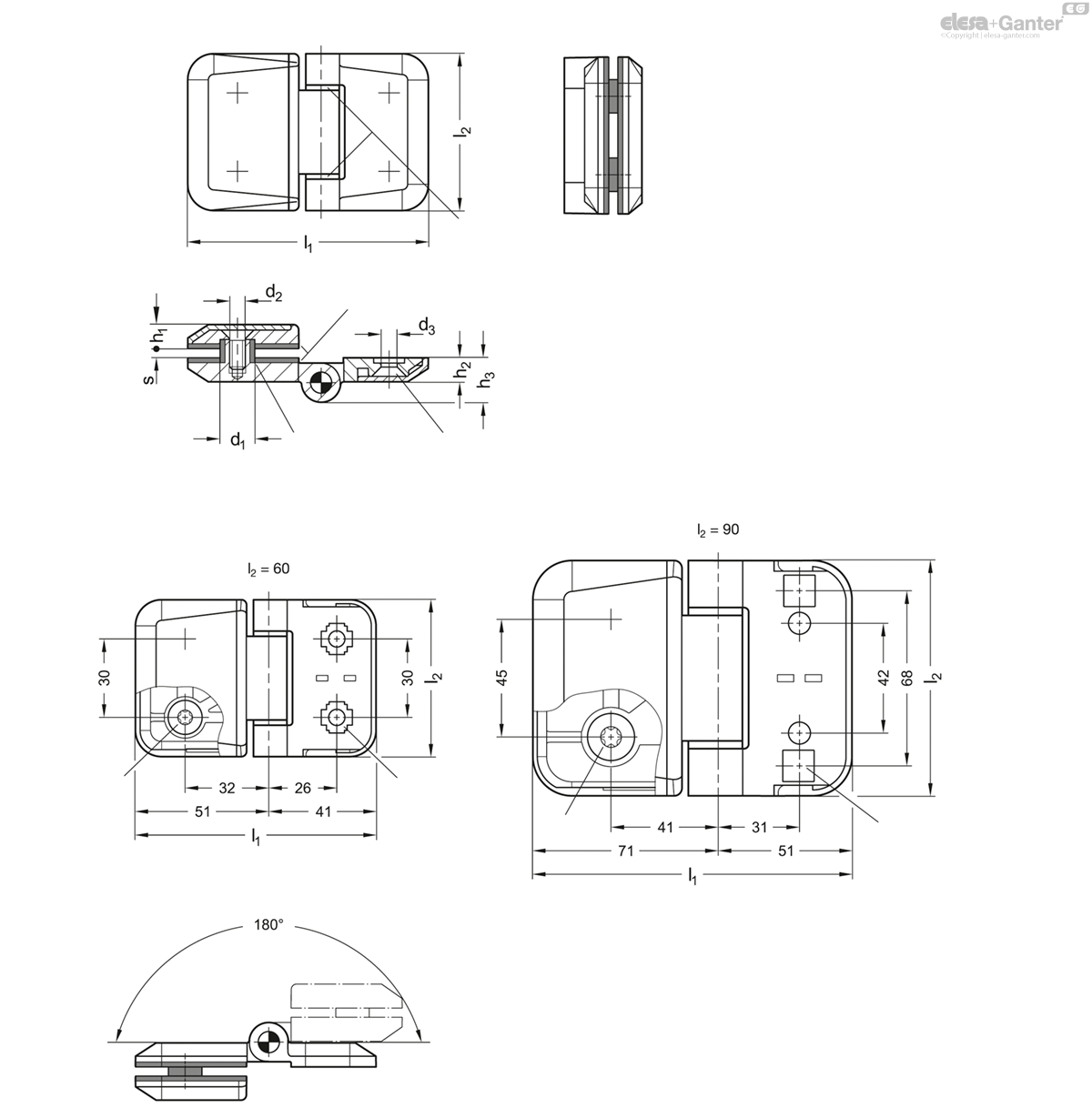

 GN 938
| Color | l1 | l2 | s Nominal size |
s Clamping range |
d1 -0.2 | d2 Clamping screw |
d3 For screw | h1 | h2 | h3 | A/F |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 938-ZD-92-60-4-SR | SR - RAL 9006 | 92 | 60 | 4 | 4…8 | 13 | M 6 | M 6 | 9.5 | 9.5 | 17 | T30 | 360 |
|
| GN 938-ZD-92-60-4-SW | SW - RAL 9005 | 92 | 60 | 4 | 4…8 | 13 | M 6 | M 6 | 9.5 | 9.5 | 17 | T30 | 360 |
|
| GN 938-ZD-122-90-8-SR | SR - RAL 9006 | 122 | 90 | 8 | 8…12 | 16 | M 8 | M 8 | 13.5 | 13.5 | 25 | T45 | 1035 |
|
| GN 938-ZD-122-90-8-SW | SW - RAL 9005 | 122 | 90 | 8 | 8…12 | 16 | M 8 | M 8 | 13.5 | 13.5 | 25 | T45 | 1035 |
|
