GN 936

Slam Latches
with and without Lock
__logo__profile__ __logo__RoHS__

Description

Specification

Types

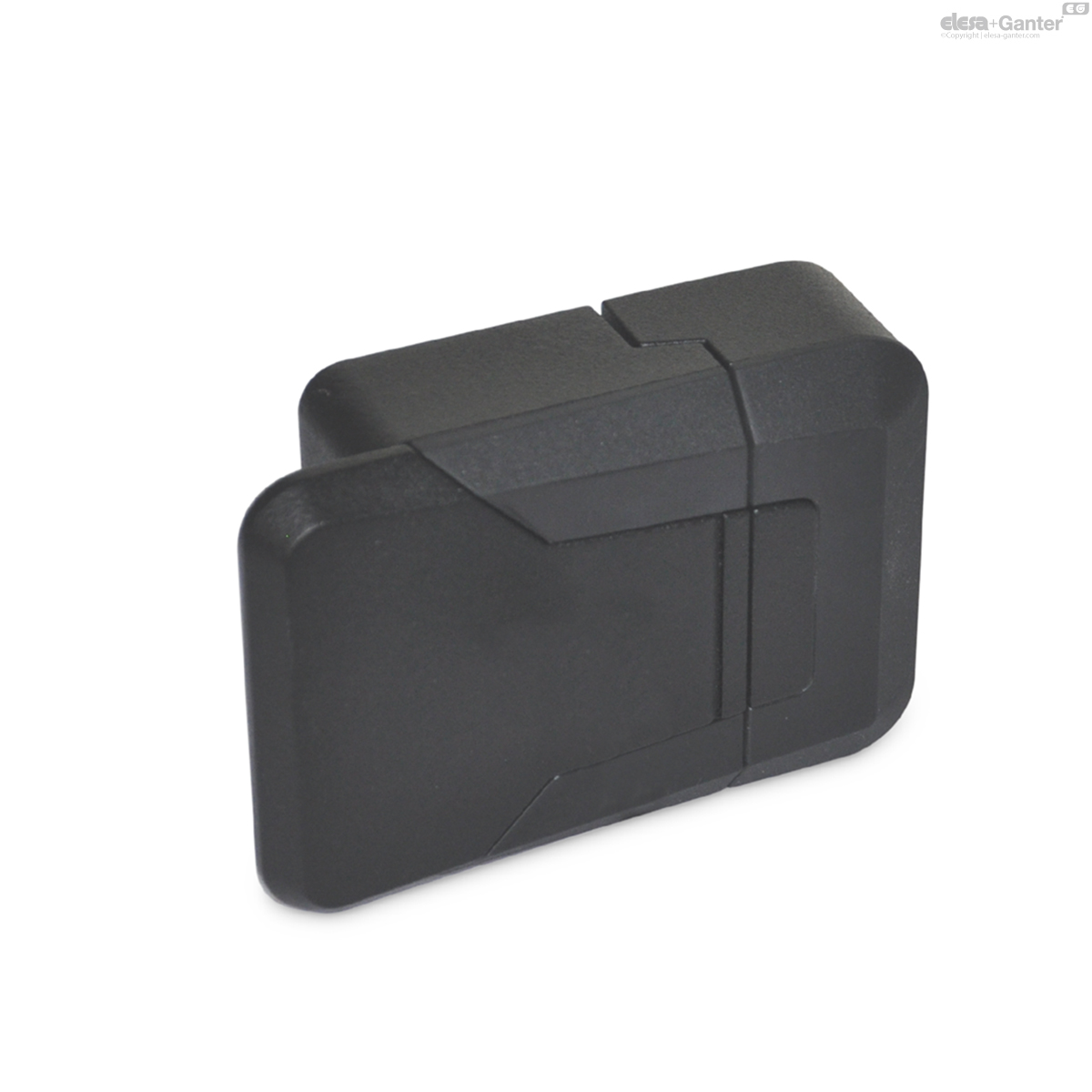

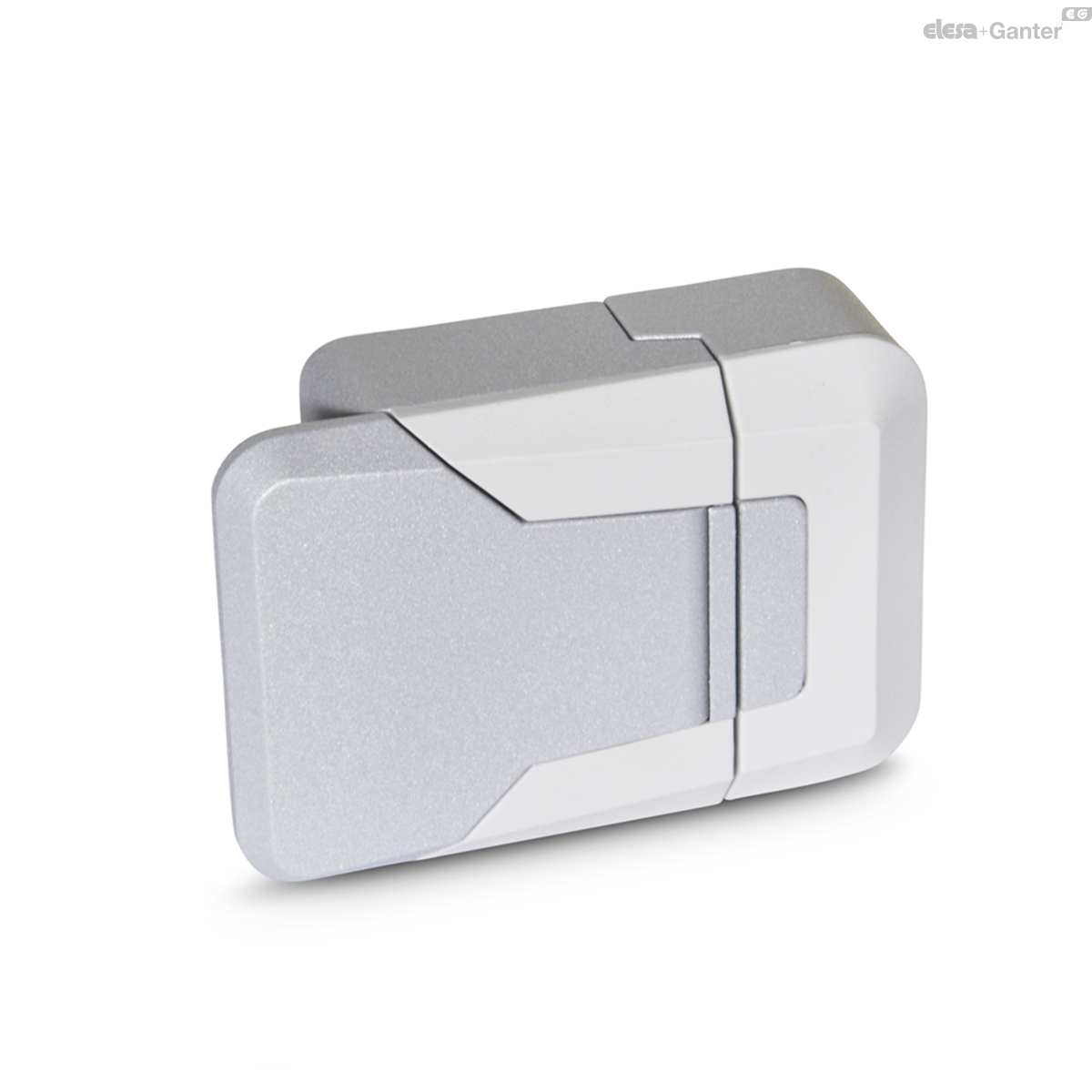

  • Type SL: Not lockable

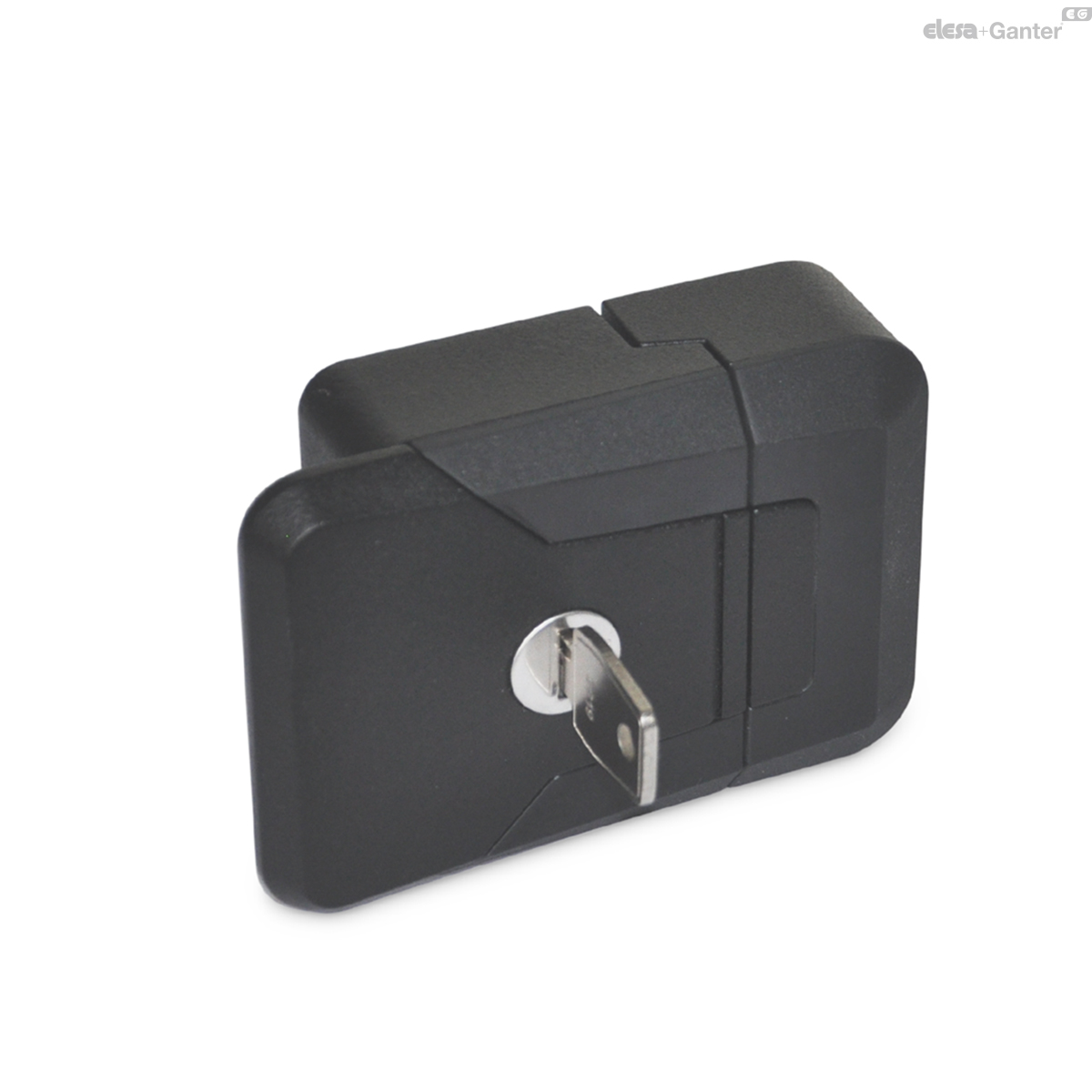

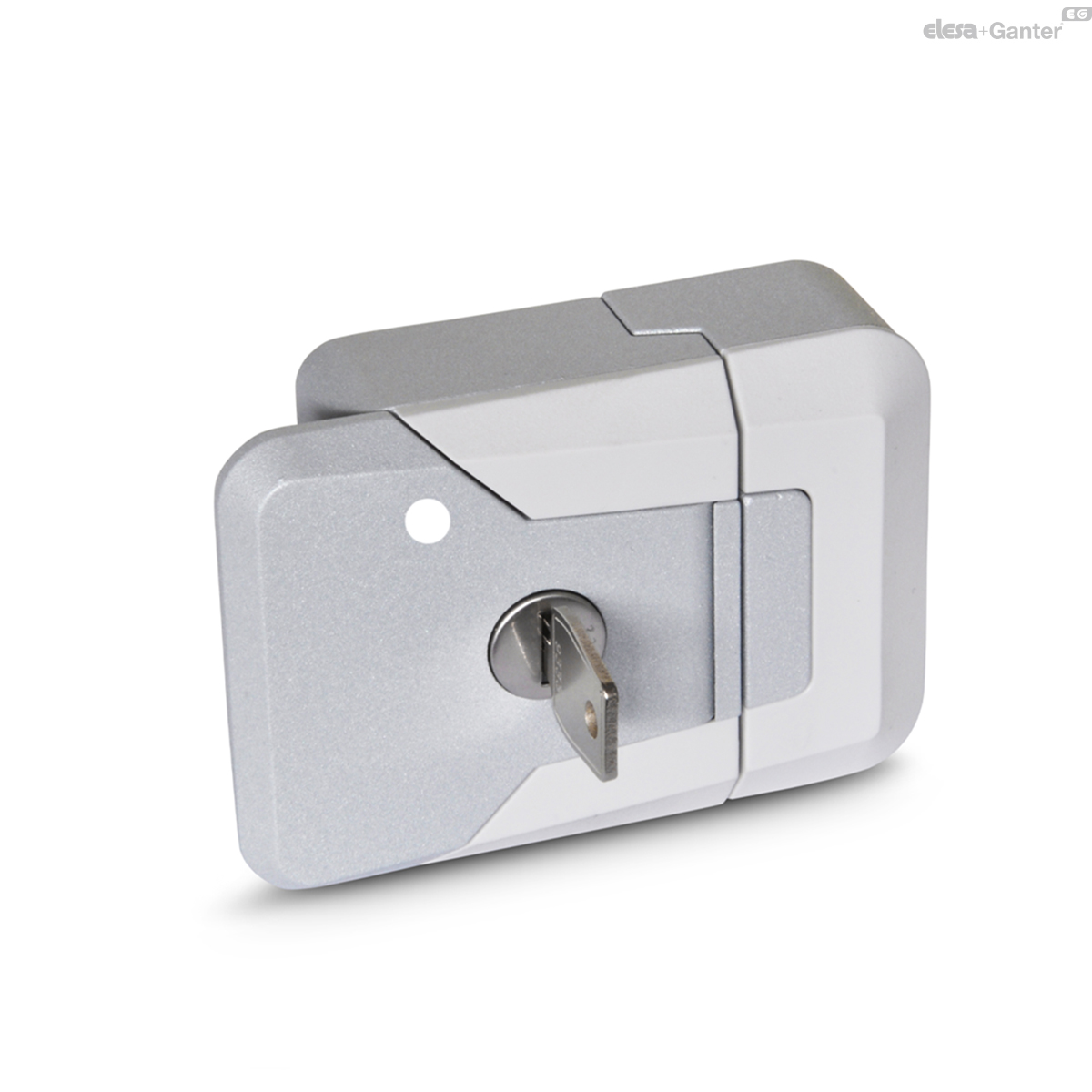

  • Type SCL: Lockable (same lock)
  • Type SUL: Lockable (different lock)

Housing

Zinc die casting

Powder coated

Black, RAL 9005, textured finish SW

Silver, RAL 9006, textured finish SR

Covers and latch

Plastic

  • Black-gray for SW
  • Light gray for SR

Lock mechanism

Zinc die casting

Key

Steel, nickel plated

Other parts

Steel zinc plated, blue passivated

Information

Slam latches GN 936 enable doors and closures to be effortlessly closed. The latch engages automatically when the door is closed preventing the door from opening unintentionally.

The slots enable the slam latch to be fitted to profile systems with different cross-sections.

Types with a standard lock allow every lock to be opened with the same key. For the types with different lock, there are more than 200 different lock variants.

The lockable versions of the slam latches (SCL and SUL types) are each supplied with 2 keys. The key can be removed in both end positions.

Assembly instructions

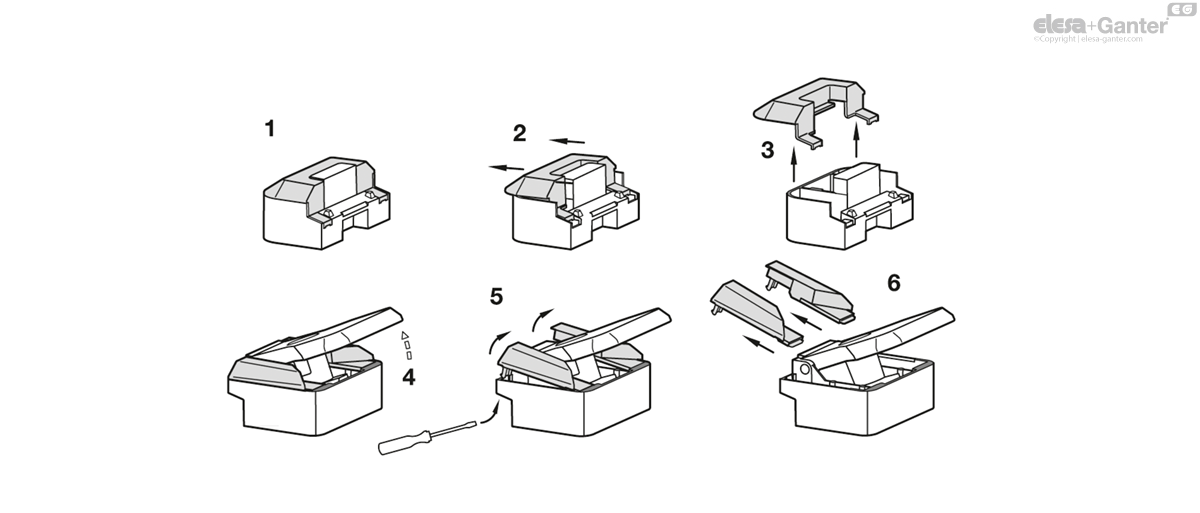

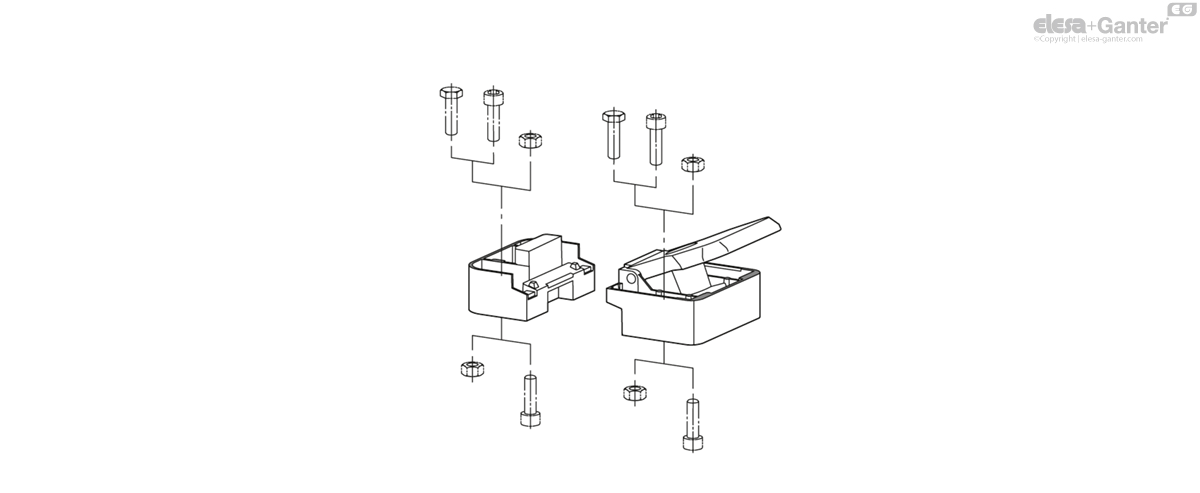

Prior to installation remove the slam latch cover as shown in the sketch. Socket head cap screws DIN 912, hex head screws DIN 933 and hex nuts ISO 4032 each with thread size M 6 can be used for mounting the slam latch.

After installation the covers are reassembled in reverse order. The covers cannot be removed when the slam latch is closed and consequently protect against vandalism.

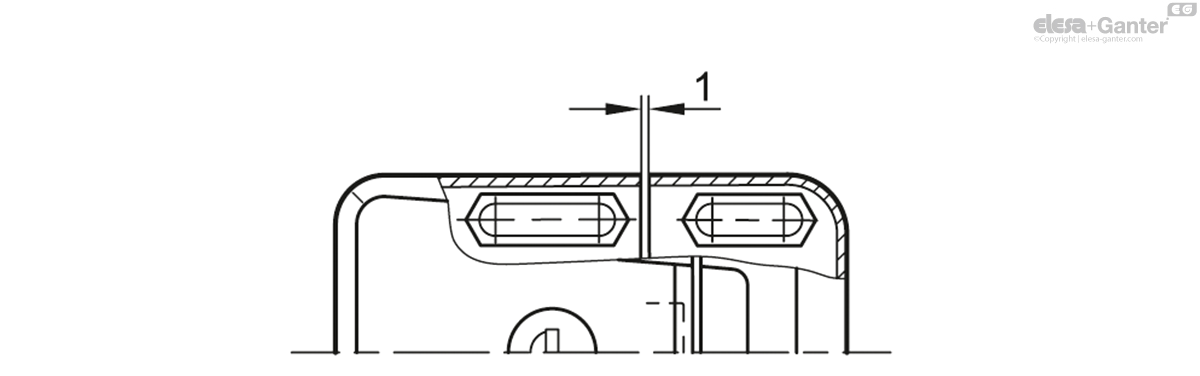

The slots allow the slam latch to be fitted to the door frame or profile systems both from the operating side and from the rear. The installation clearance of 1 mm is also easy to adjust.

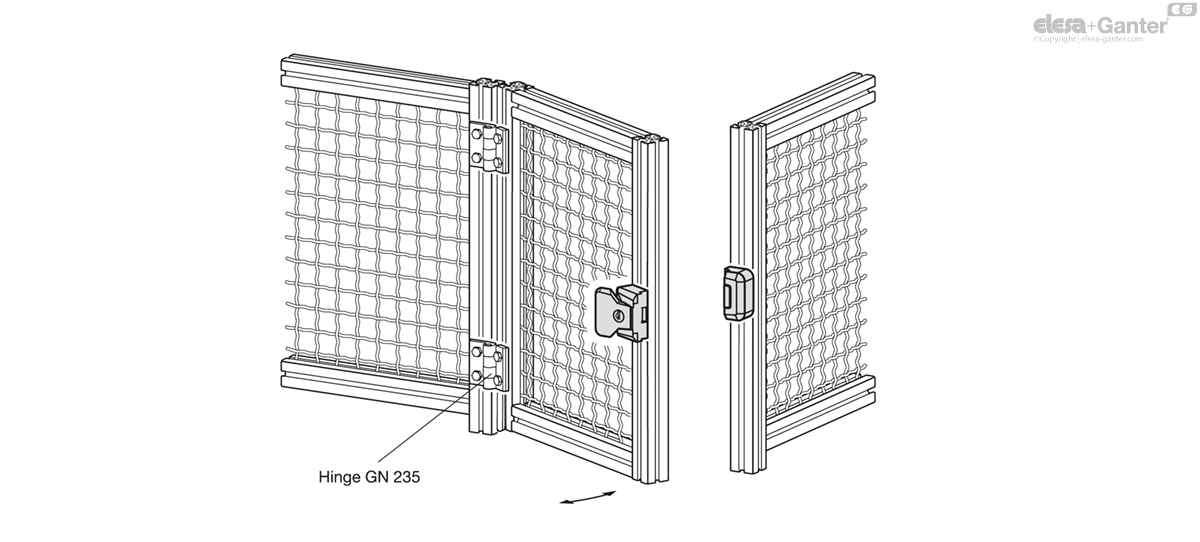

Example of application

GN 936-SL

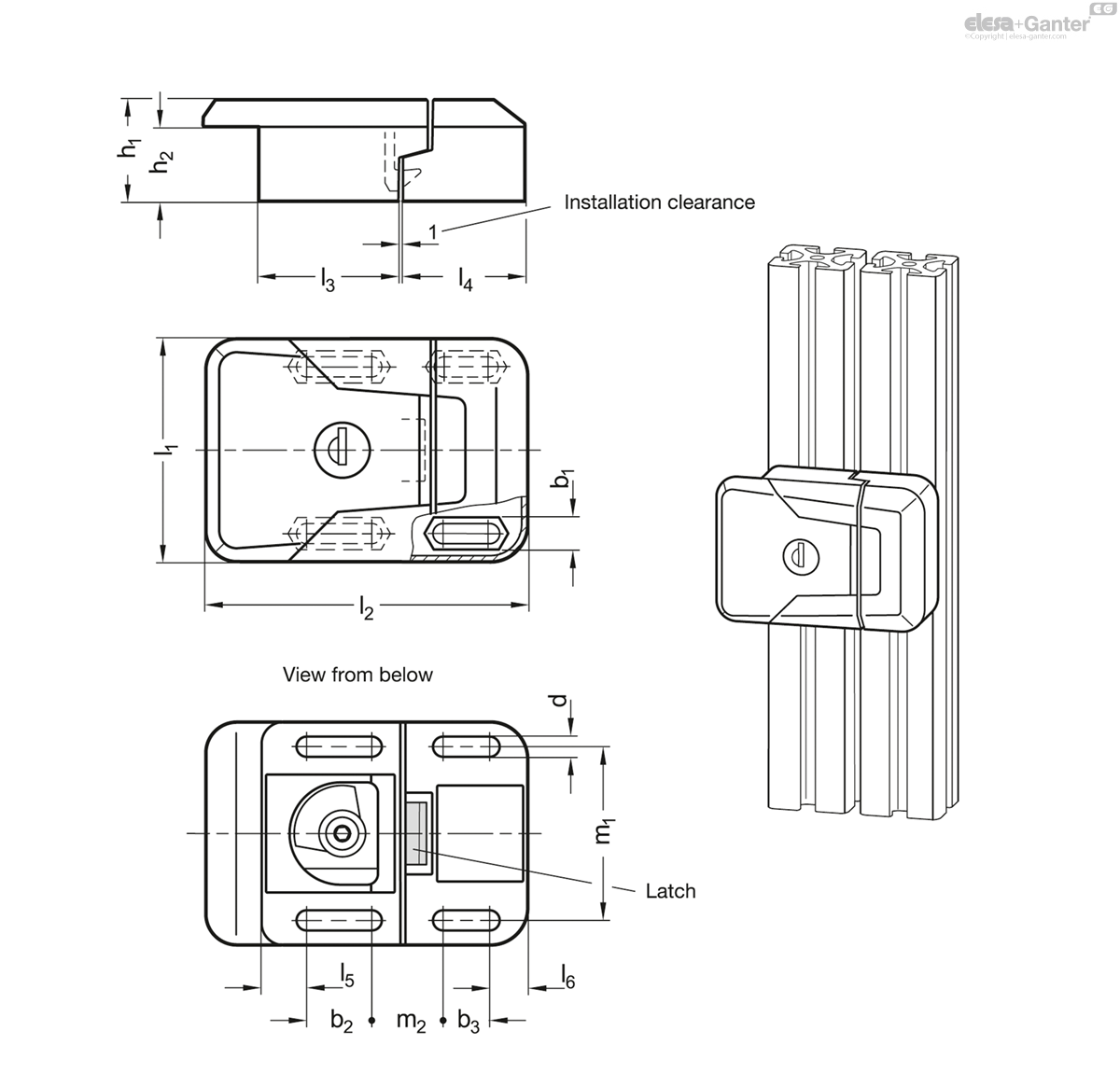

Color l1 b1 b2 b3 d h1 h2 l2 l3 l4 l5 l6 m1 m2 __logo__weight__
Code Actions
GN 936-72-SL-SR SR - RAL 9006 72 10.3 21 15 6.5 33 24 104 45 40 14.5 12.5 56 23 369 cart-icon
GN 936-72-SL-SW SW - RAL 9004 72 10.3 21 15 6.5 33 24 104 45 40 14.5 12.5 56 23 369 cart-icon
