GN 930
Handle Tubes
Aluminum, with Screw Channel
Description
Specification
Aluminum
- Powder coated

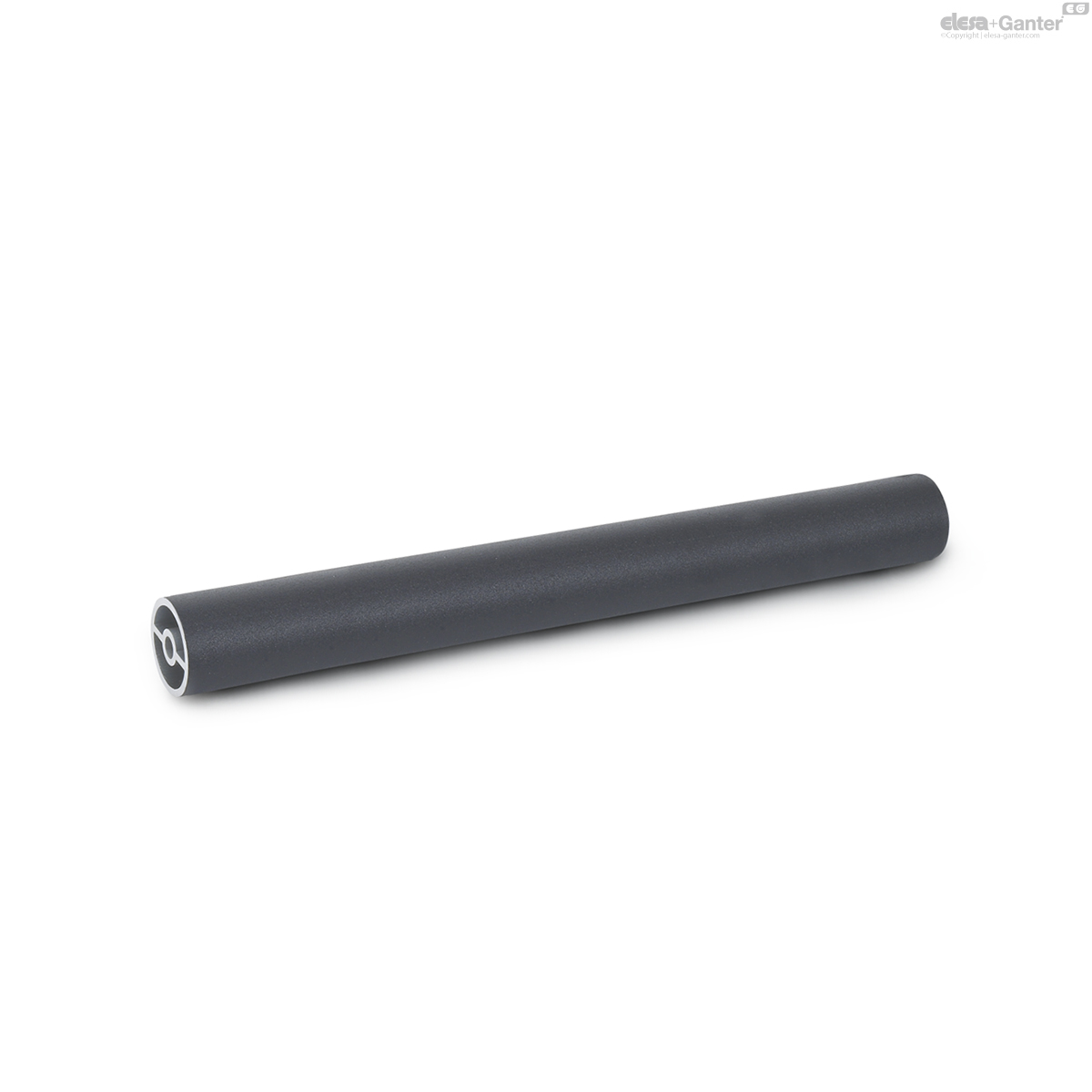

- Black, RAL 9005, textured finish SW
- (available up to 3000 mm length)

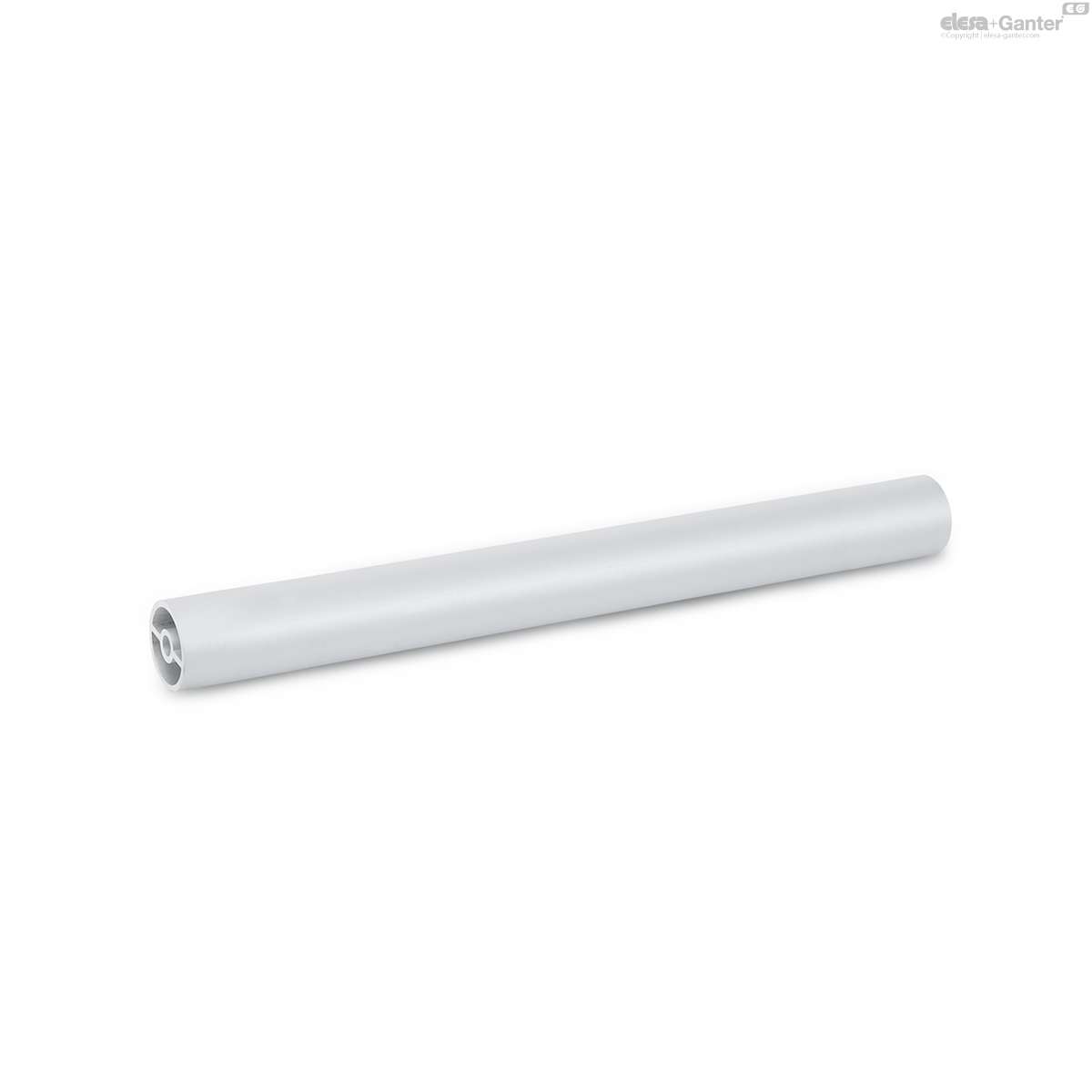

- Anodized, natural color EL
- (available up to 2600 mm length)
Information
Handle tubes GN 930 with screw channel are designed for use in a variety of different tube handles (e.g. GN 333).
For applications not requiring handle bases, the screw channel provides a very economical fixing solution with thread-tapping screws. The lengths l listed in the table are ex stock lengths. Depending to the finish, any lengths until max. 3000 mm are available.
Accessory
- GN 333.8 Handle Legs (for tubes Ø 28, angled)
- GN 333.9 Handle Legs (for tubes Ø 28, straight)
On request
- Plastic cover in black or light gray for tube Ø 28
GN 930

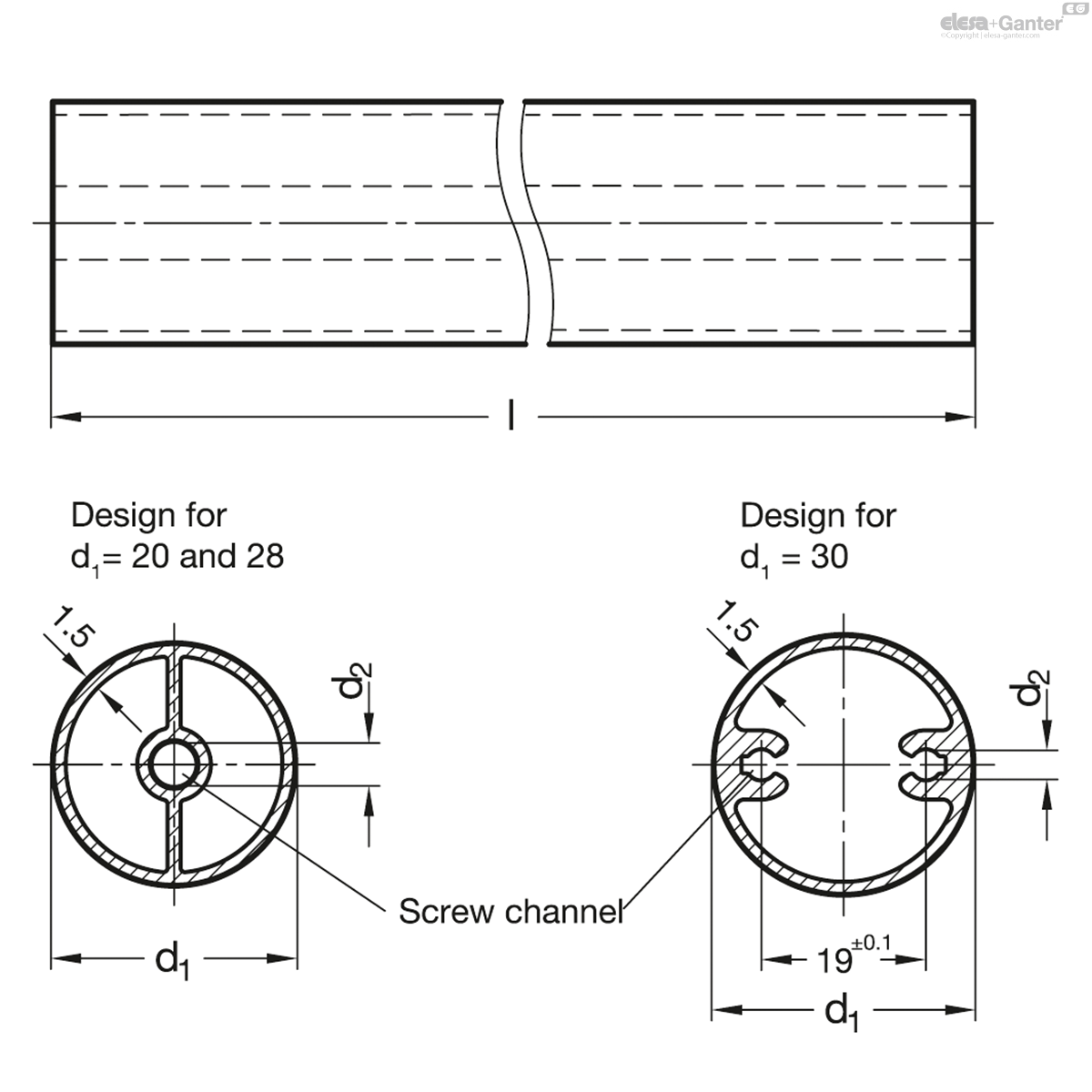

| Color | d1 ±0.2 | Length l ±0.25 | d2 | For thread tapping screws DIN 7500 |
 |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 930-20-194-EL | EL - Anodized, natural color | 20 | 194 | 4.5 | M 5 | 63 |
|
| GN 930-20-194-SW | SW - RAL 9005 | 20 | 194 | 4.5 | M 5 | 63 |
|
| GN 930-20-244-EL | EL - Anodized, natural color | 20 | 244 | 4.5 | M 5 | 80 |
|
| GN 930-20-244-SW | SW - RAL 9005 | 20 | 244 | 4.5 | M 5 | 80 |
|
| GN 930-20-294-EL | EL - Anodized, natural color | 20 | 294 | 4.5 | M 5 | 98 |
|
| GN 930-20-294-SW | SW - RAL 9005 | 20 | 294 | 4.5 | M 5 | 98 |
|
| GN 930-20-394-EL | EL - Anodized, natural color | 20 | 394 | 4.5 | M 5 | 150 |
|
| GN 930-20-394-SW | SW - RAL 9005 | 20 | 394 | 4.5 | M 5 | 150 |
|
| GN 930-28-192-EL | EL - Anodized, natural color | 28 | 192 | 5.5 | M 6 | 90 |
|
| GN 930-28-192-SW | SW - RAL 9005 | 28 | 192 | 5.5 | M 6 | 90 |
|
| GN 930-28-242-EL | EL - Anodized, natural color | 28 | 242 | 5.5 | M 6 | 120 |
|
| GN 930-28-242-SW | SW - RAL 9005 | 28 | 242 | 5.5 | M 6 | 120 |
|
| GN 930-28-292-EL | EL - Anodized, natural color | 28 | 292 | 5.5 | M 6 | 150 |
|
| GN 930-28-292-SW | SW - RAL 9005 | 28 | 292 | 5.5 | M 6 | 150 |
|
| GN 930-28-392-EL | EL - Anodized, natural color | 28 | 392 | 5.5 | M 6 | 195 |
|
| GN 930-28-392-SW | SW - RAL 9005 | 28 | 392 | 5.5 | M 6 | 195 |
|
| GN 930-28-492-EL | EL - Anodized, natural color | 28 | 492 | 5.5 | M 6 | 240 |
|
| GN 930-28-492-SW | SW - RAL 9005 | 28 | 492 | 5.5 | M 6 | 240 |
|
| GN 930-28-592-EL | EL - Anodized, natural color | 28 | 592 | 5.5 | M 6 | 280 |
|
| GN 930-28-592-SW | SW - RAL 9005 | 28 | 592 | 5.5 | M 6 | 280 |
|
| GN 930-30-189-EL | EL - Anodized, natural color | 30 | 189 | 3.6 | M 4 | 106 |
|
| GN 930-30-189-SW | SW - RAL 9005 | 30 | 189 | 3.6 | M 4 | 106 |
|
| GN 930-30-289-EL | EL - Anodized, natural color | 30 | 289 | 3.6 | M 4 | 164 |
|
| GN 930-30-289-SW | SW - RAL 9005 | 30 | 289 | 3.6 | M 4 | 164 |
|
| GN 930-30-389-EL | EL - Anodized, natural color | 30 | 389 | 3.6 | M 4 | 220 |
|
| GN 930-30-389-SW | SW - RAL 9005 | 30 | 389 | 3.6 | M 4 | 220 |
|
| GN 930-30-489-EL | EL - Anodized, natural color | 30 | 489 | 3.6 | M 4 | 280 |
|
| GN 930-30-489-SW | SW - RAL 9005 | 30 | 489 | 3.6 | M 4 | 280 |
|
| GN 930-30-589-EL | EL - Anodized, natural color | 30 | 589 | 3.6 | M 4 | 340 |
|
| GN 930-30-589-SW | SW - RAL 9005 | 30 | 589 | 3.6 | M 4 | 340 |
|
| GN 930-30-989-EL | EL - Anodized, natural color | 30 | 989 | 3.6 | M 4 | 560 |
|
| GN 930-30-989-SW | SW - RAL 9005 | 30 | 989 | 3.6 | M 4 | 560 |
|
