GN 928

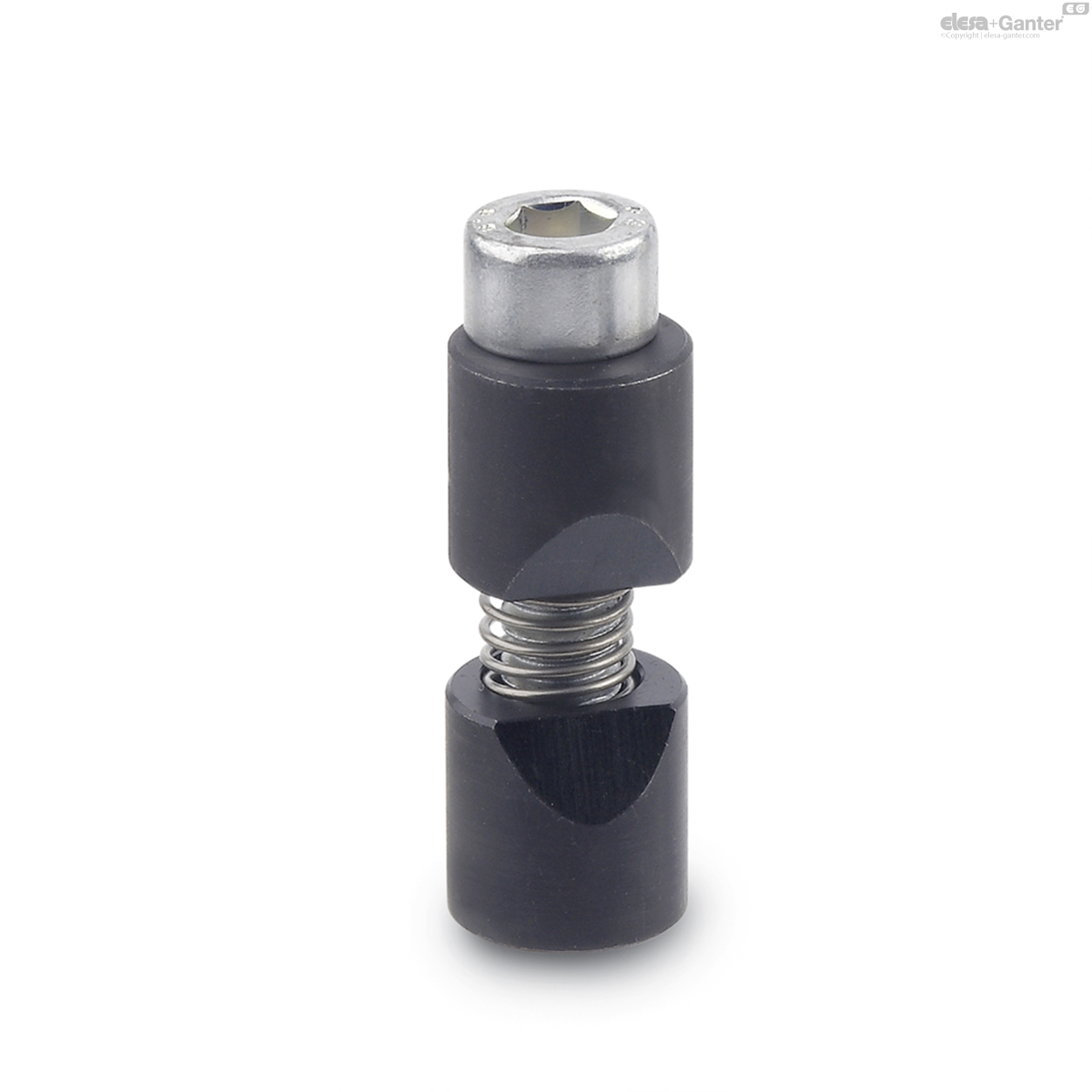

Shaft Clamping Units `Trueround´
Steel / Stainless Steel
GN 928-ST
Shaft Clamping Units `Trueround´
Steel
GN 928-NI
Shaft Clamping Units `Trueround´
Stainless steel
Description
Specification
Version in Steel
Steel
- Blackened
- Socket cap screw DIN 912
Zinc plated, blue passivated
Version in Stainless Steel
Stainless steel AISI 303 NI
Socket cap screw DIN 912
Stainless steel
Information
With the shaft clamping unit 'trueround' GN 928, round workpieces from 6 to 125 mm can be rapidly, accurately and economically clamped.

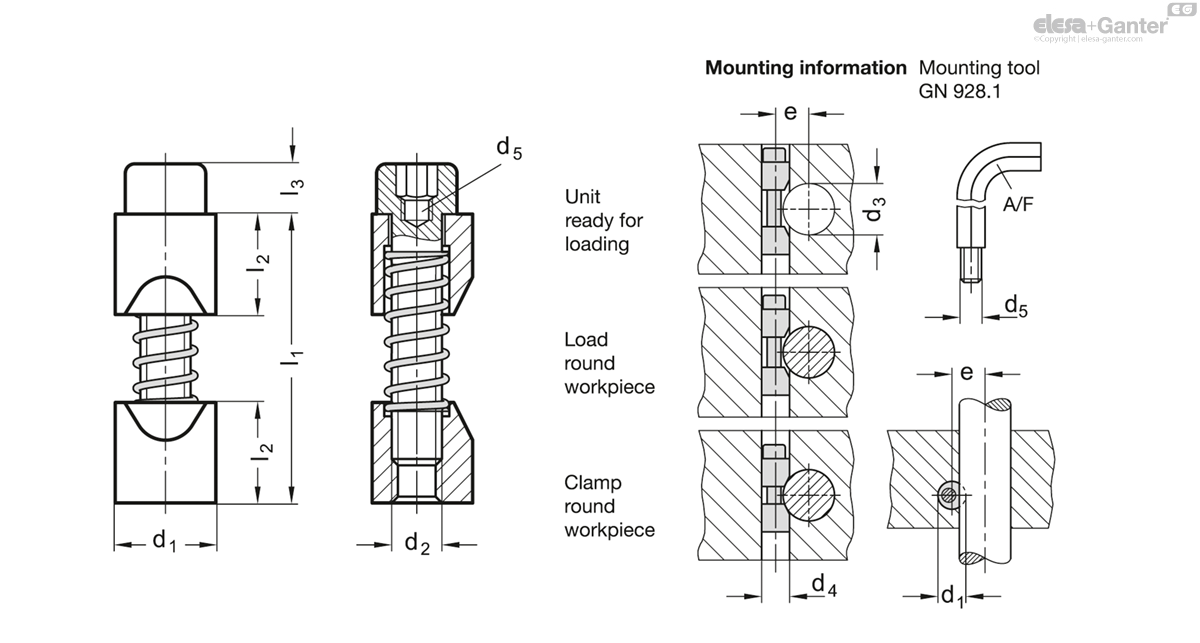

The threaded hole d5 can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation.
Accessory
- Mounting tools  GN 928.1 (Code no. see table)
Technical information
- ISO Fundamental TolerancesÂ
- Stainless Steel CharacteristicsÂ
GN 928-ST
| d1 h11 | d2 | d3 Round workpiece | d4 H7 | d5 | e +0.2 | l1 max. | l2 | l3 | A/F | Max. tightening torque in Nm |
Code no. mounting tool |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 928-8 | 8 | M 4 | 6 - 10 | 8 | M 2.5 | d3/2 + 2.8 | 22 | 8 | 4 | 3 | 2.9 | GN 928.1-3 | 7 |
|
| GN 928-10 | 10 | M 5 | 10 - 15 | 10 | M 3 | d3/2 + 3.3 | 30 | 10 | 5 | 4 | 6 | GN 928.1-4 | 13 |
|
| GN 928-12 | 12 | M 6 | 15 - 20 | 12 | M 4 | d3/2 + 3.5 | 36 | 12 | 6 | 5 | 10 | GN 928.1-5 | 22 |
|
| GN 928-16 | 16 | M 8 | 20 - 30 | 16 | M 5 | d3/2 + 4 | 48 | 16 | 8 | 6 | 25 | GN 928.1-6 | 52 |
|
| GN 928-20 | 20 | M 10 | 30 - 40 | 20 | M 6 | d3/2 + 4.8 | 60 | 20 | 10 | 8 | 46 | GN 928.1-8 | 104 |
|
| GN 928-25 | 25 | M 12 | 40 - 60 | 25 | M 8 | d3/2 + 5.6 | 72 | 25 | 12 | 10 | 82 | GN 928.1-10 | 188 |
|
| GN 928-30 | 30 | M 16 | 60 - 125 | 30 | M 10 | d3/2 + 7.9 | 85 | 30 | 16 | 14 | 206 | GN 928.1-14 | 345 |
|
