Home Operating Elements Spoked handwheels GN 924.3

GN 924.3

Handwheels with retractable handle

Aluminium, Handle locked

Enquire Now

Description

Specification

Type

Type R: with retractable handle

Bore codes

Version B: without keyway

Version K: with keyway

Aluminium pressure die casting

Hub machined

Rim turned

plastic coated

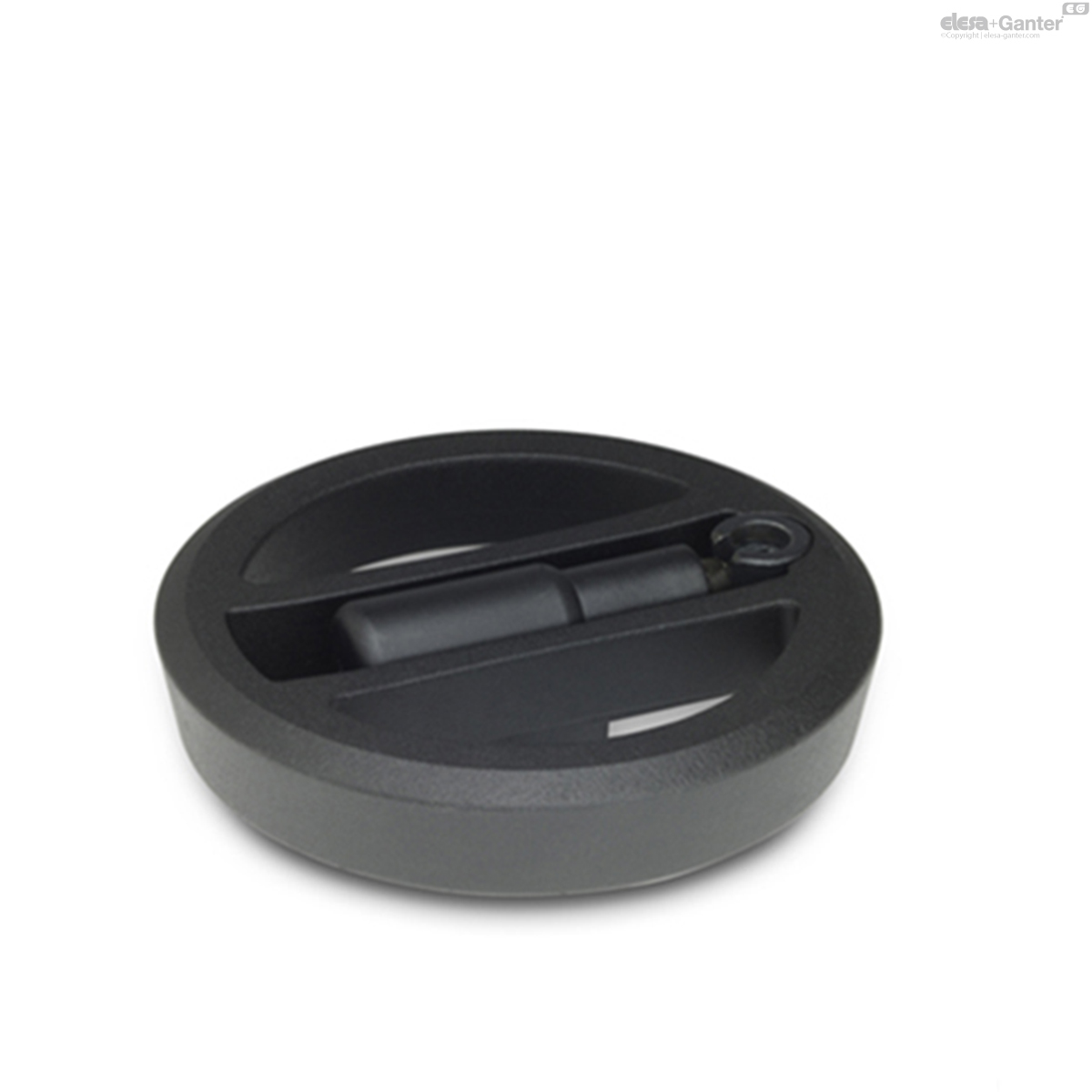

black, RAL 9005, textured finish SW

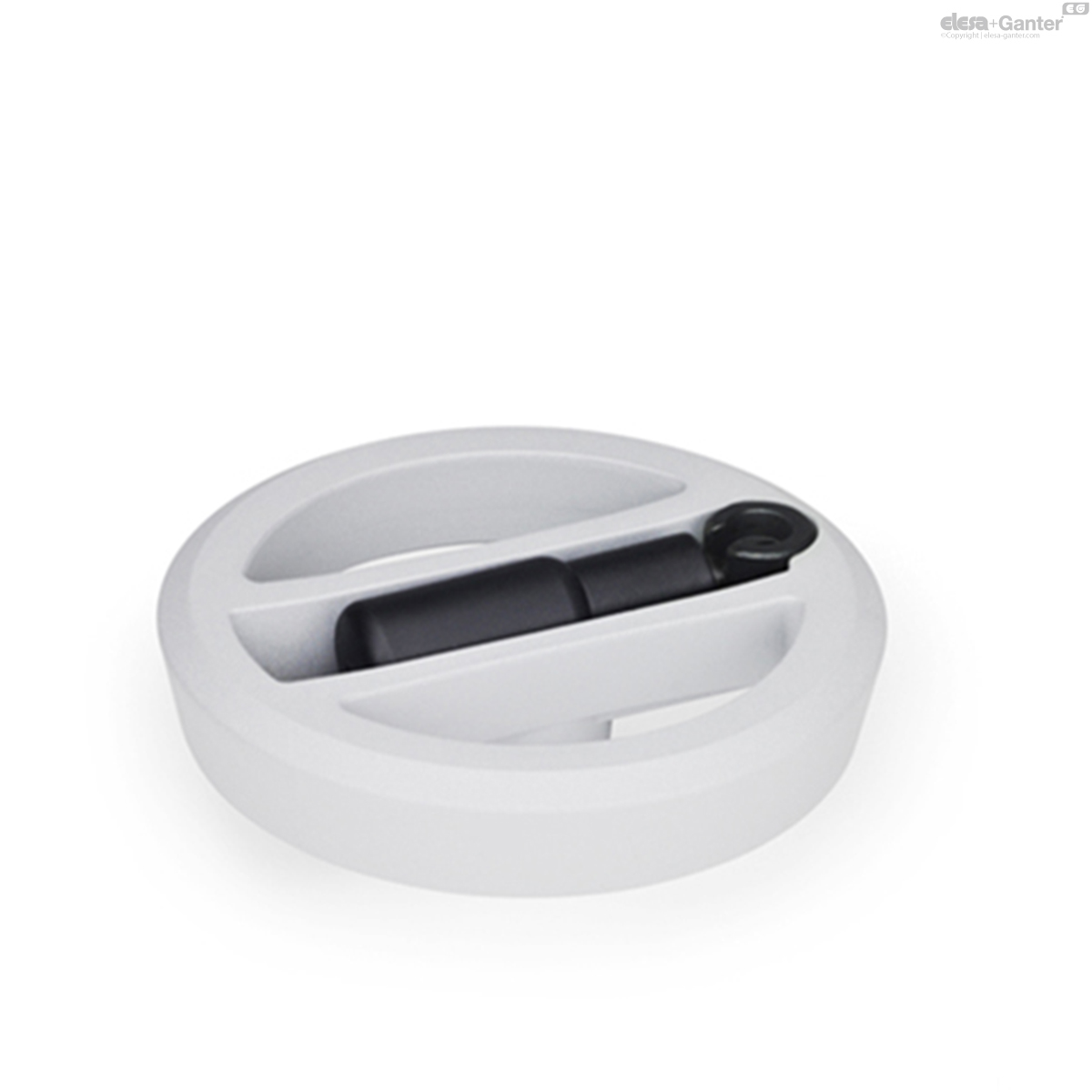

silver, RAL 9006, textured finish SR

Rim concentric and square to bore < 0.4

Retractable handles GN 798.3

Plastic, Technopolymer

black, matt

Retracting mechanism

Steel, blackened

Information

The handle in these handwheels is locked in a conical bore in the operating position.

For reversal, it must first be pulled from the cone in axial direction.

A pressure spring holds the handle in both positions. When swung out, it automatically engages again.

Accessory

Countersunk washers GN 184 are to be ordered separately

Technical information

Keyway DIN 6885
Cross holes GN 110
ISO-Fundamental Tolerances

GN 924.3

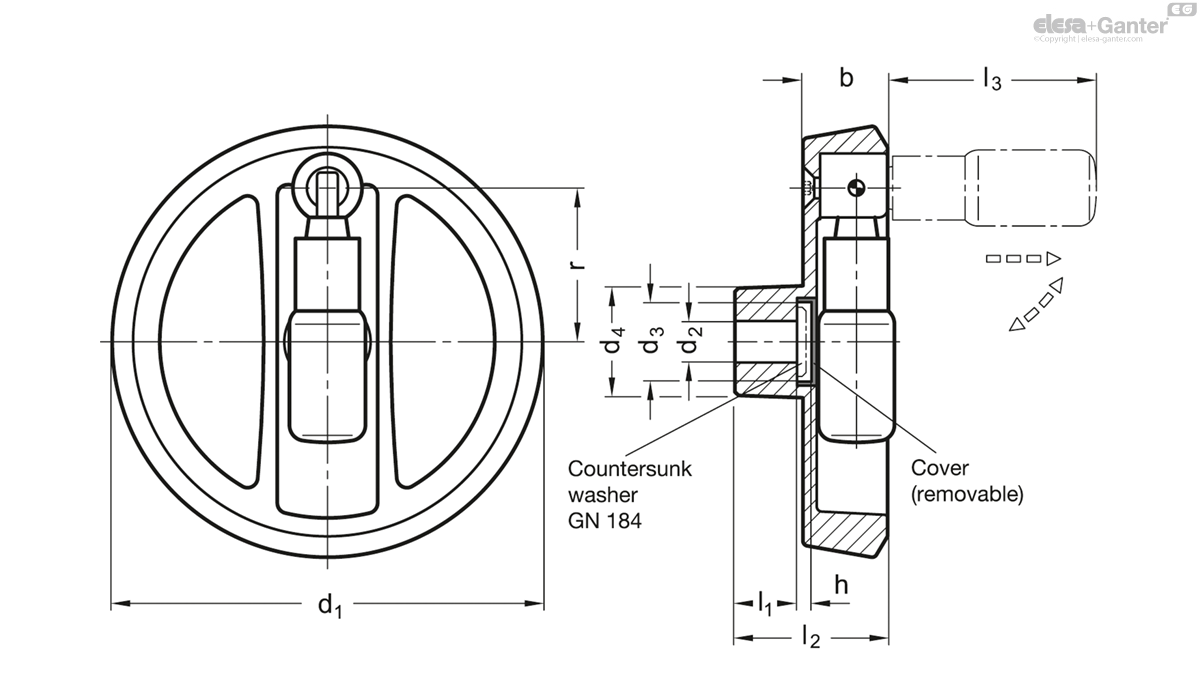

	Color	d₁	d₂ H7	d₃	d₄	b	h	l₁	l₂ ≈	l₃ ≈	r ≈	Ø Handle	Recommended washer
Code															Actions
GN 924.3-125-B12-R-SR	SR - RAL 9006	125	12	23	31	24.5	4	18	45	60.5	45.5	22	GN 184-22	465
GN 924.3-125-B12-R-SW	SW - RAL 9004	125	12	23	31	24.5	4	18	45	60.5	45.5	22	GN 184-22	465
GN 924.3-125-B14-R-SR	SR - RAL 9006	125	14	23	31	24.5	4	18	45	60.5	45.5	22	GN 184-22	460
GN 924.3-125-B14-R-SW	SW - RAL 9004	125	14	23	31	24.5	4	18	45	60.5	45.5	22	GN 184-22	460
GN 924.3-125-K12-R-SR	SR - RAL 9006	125	12	23	31	24.5	4	18	45	60.5	45.5	22	GN 184-22	465
GN 924.3-125-K12-R-SW	SW - RAL 9004	125	12	23	31	24.5	4	18	45	60.5	45.5	22	GN 184-22	465
GN 924.3-125-K14-R-SR	SR - RAL 9006	125	14	23	31	24.5	4	18	45	60.5	45.5	22	GN 184-22	460
GN 924.3-125-K14-R-SW	SW - RAL 9004	125	14	23	31	24.5	4	18	45	60.5	45.5	22	GN 184-22	460
GN 924.3-140-B14-R-SR	SR - RAL 9006	140	14	23	36	26	4	19	47	75.5	52	24	GN 184-22	600
GN 924.3-140-B14-R-SW	SW - RAL 9004	140	14	23	36	26	4	19	47	75.5	52	24	GN 184-22	600
GN 924.3-140-B16-R-SR	SR - RAL 9006	140	16	23	36	26	4	19	47	75.5	52	24	GN 184-22	600
GN 924.3-140-B16-R-SW	SW - RAL 9004	140	16	23	36	26	4	19	47	75.5	52	24	GN 184-22	600
GN 924.3-140-K14-R-SR	SR - RAL 9006	140	14	23	36	26	4	19	47	75.5	52	24	GN 184-22	580
GN 924.3-140-K14-R-SW	SW - RAL 9004	140	14	23	36	26	4	19	47	75.5	52	24	GN 184-22	580
GN 924.3-140-K16-R-SR	SR - RAL 9006	140	16	23	36	26	4	19	47	75.5	52	24	GN 184-22	500
GN 924.3-140-K16-R-SW	SW - RAL 9004	140	16	23	36	26	4	19	47	75.5	52	24	GN 184-22	500
GN 924.3-160-B14-R-SR	SR - RAL 9006	160	14	23	36	26	4	20	48	75.5	61	24	GN 184-22	700
GN 924.3-160-B14-R-SW	SW - RAL 9004	160	14	23	36	26	4	20	48	75.5	61	24	GN 184-22	700
GN 924.3-160-B16-R-SR	SR - RAL 9006	160	16	23	36	26	4	20	48	75.5	61	24	GN 184-22	700
GN 924.3-160-B16-R-SW	SW - RAL 9004	160	16	23	36	26	4	20	48	75.5	61	24	GN 184-22	700
GN 924.3-160-K14-R-SR	SR - RAL 9006	160	14	23	36	26	4	20	48	75.5	61	24	GN 184-22	700
GN 924.3-160-K14-R-SW	SW - RAL 9004	160	14	23	36	26	4	20	48	75.5	61	24	GN 184-22	700
GN 924.3-160-K16-R-SR	SR - RAL 9006	160	16	23	36	26	4	20	48	75.5	61	24	GN 184-22	700
GN 924.3-160-K16-R-SW	SW - RAL 9004	160	16	23	36	26	4	20	48	75.5	61	24	GN 184-22	700
GN 924.3-200-B18-R-SR	SR - RAL 9006	200	18	23	42	27	4	24	53	85.5	80.5	25	GN 184-22	1100
GN 924.3-200-B18-R-SW	SW - RAL 9004	200	18	23	42	27	4	24	53	85.5	80.5	25	GN 184-22	1100
GN 924.3-200-B20-R-SR	SR - RAL 9006	200	20	23	42	27	4	24	53	85.5	80.5	25	GN 184-22	1063
GN 924.3-200-B20-R-SW	SW - RAL 9004	200	20	23	42	27	4	24	53	85.5	80.5	25	GN 184-22	1063
GN 924.3-200-K18-R-SR	SR - RAL 9006	200	18	23	42	27	4	24	53	85.5	80.5	25	GN 184-22	1060
GN 924.3-200-K18-R-SW	SW - RAL 9004	200	18	23	42	27	4	24	53	85.5	80.5	25	GN 184-22	1060
GN 924.3-200-K20-R-SR	SR - RAL 9006	200	20	23	42	27	4	24	53	85.5	-	25	GN 184-22	1010
GN 924.3-200-K20-R-SW	SW - RAL 9004	200	20	23	42	27	4	24	53	85.5	80.5	25	GN 184-22	1010
