GN 9234

Handwheels

Aluminum, Powder Coated, for Linear Actuators

Enquire Now

With revolving handle

GN 9234-RU

Handwheels

With revolving retractable handle

Description

Specification

Types

Type A: Without handle

Type R: With revolving handle

Type RU: With revolving retractable handle

Aluminum die casting

Machined hub

Turned rim

Powder coated

Black, RAL 9005, textured finish SW

Concentricity and axial run-out tolerance of the rim < 0.4

Revolving Handles GN 798.2 / Retractable Handles GN 798.3 / Revolving Cylinder Handles GN 599.5

Information

Handwheels GN 9234 are intended for use with linear actuators and are designed as disk or spoked handwheels, depending on their size.

The applied torque is transmitted by means of a parallel key, and the handwheel is secured axially with the supplied grub screw. The handwheels can be ordered without handles, with revolving handles or with revolving retractable handles.

Technical information

Keyway DIN 6885

Cross Holes GN 110

ISO-Fundamental Tolerances

GN 9234-RU

	Color	d₁	d₂ Disk handwheel	d₂ Spoked handwheel	d₃ H7 Bore	l₃ ≈	l₄ ≈	Ø Handle GN 798.3
Code										Actions

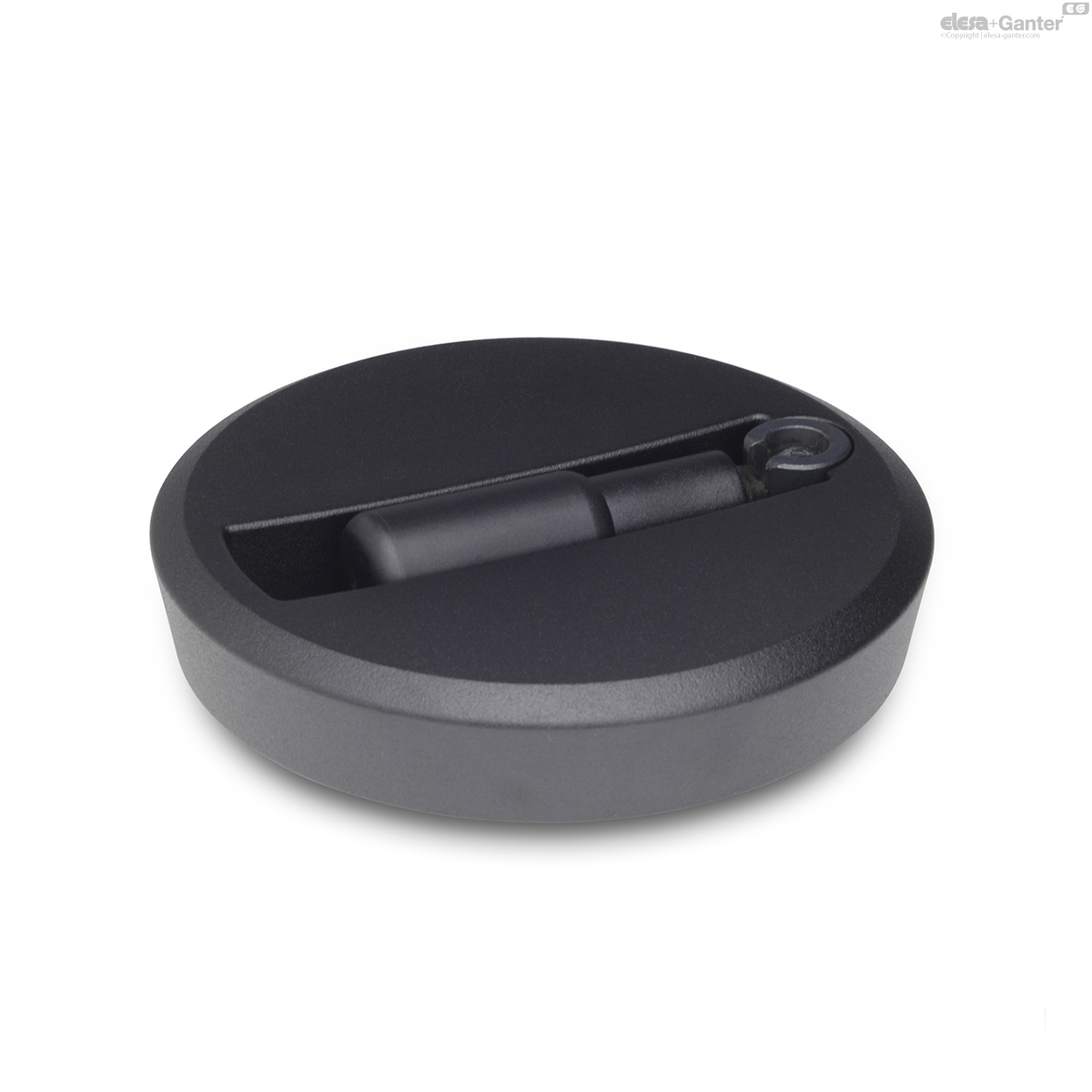

GN 9234-25-100-RU-SW	80...100 - Disk handwheel	25	100	-	8	39	56.5	18	245
GN 9234-30-100-RU-SW	80...100 - Disk handwheel	30	100	-	8	39	56.5	18	260
GN 9234-40-100-RU-SW	80...100 - Disk handwheel	40	100	-	12	39	56.5	18	305

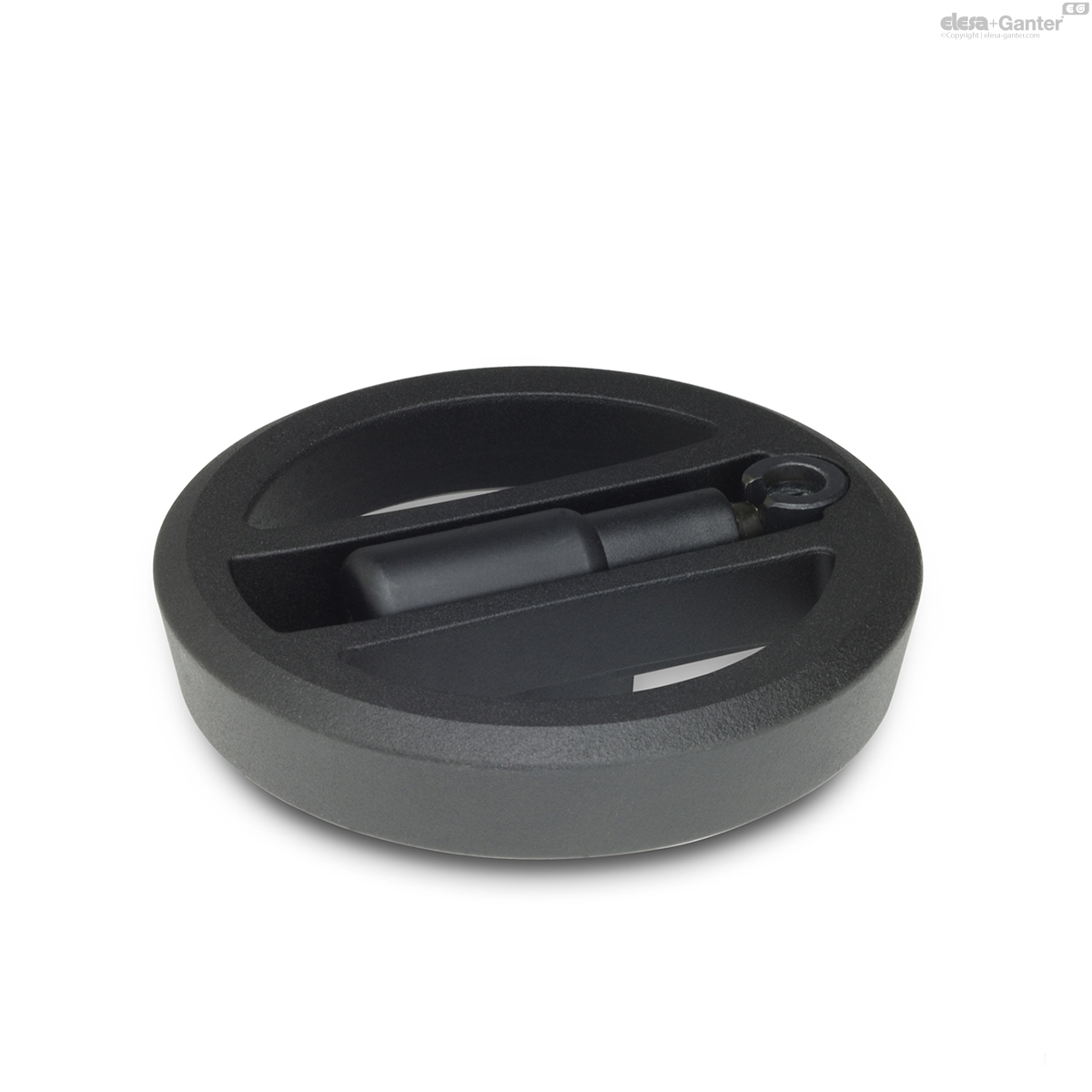

GN 9234-40-125-RU-SW	125...160 - Spoked handwheel	40	-	125	12	45	60.5	22	461
GN 9234-50-140-RU-SW	125...160 - Spoked handwheel	50	-	140	12	47	75.5	24	609
GN 9234-60-160-RU-SW	125...160 - Spoked handwheel	60	-	160	14	48	75.5	24	729
