GN 9234

Handwheels

Aluminum, Powder Coated, for Linear Actuators

Enquire Now

With revolving handle

GN 9234-RU

Handwheels

With revolving retractable handle

Description

Specification

Types

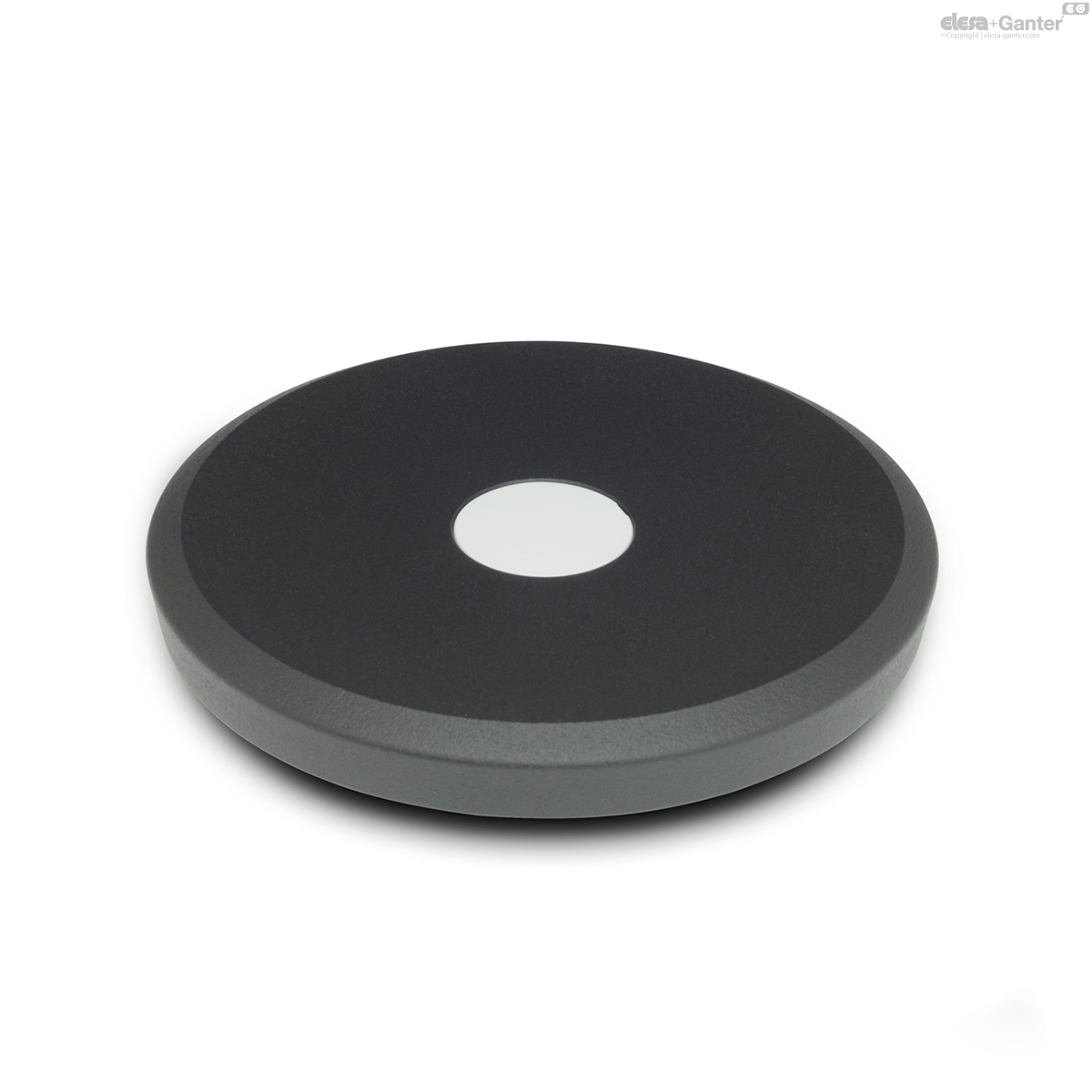

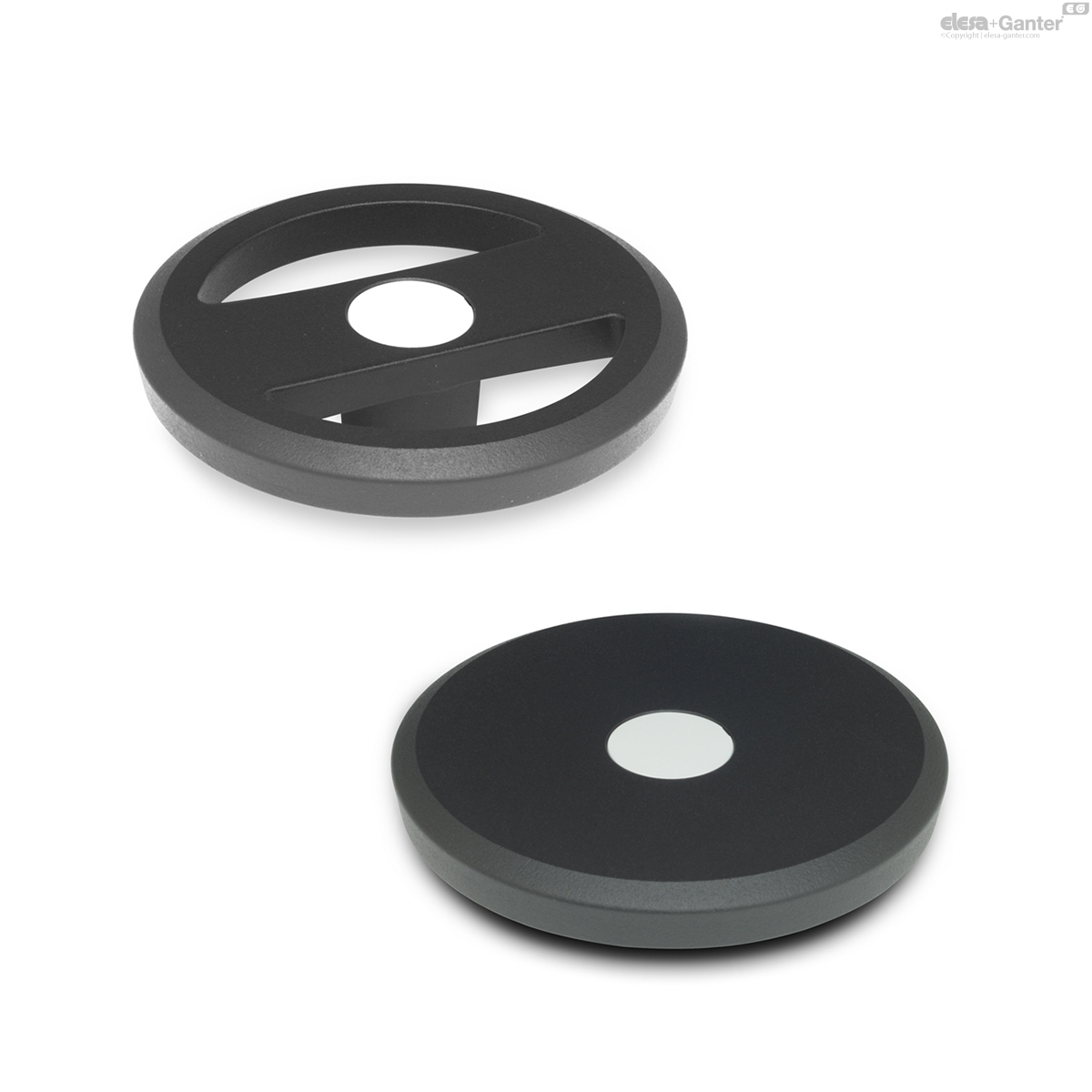

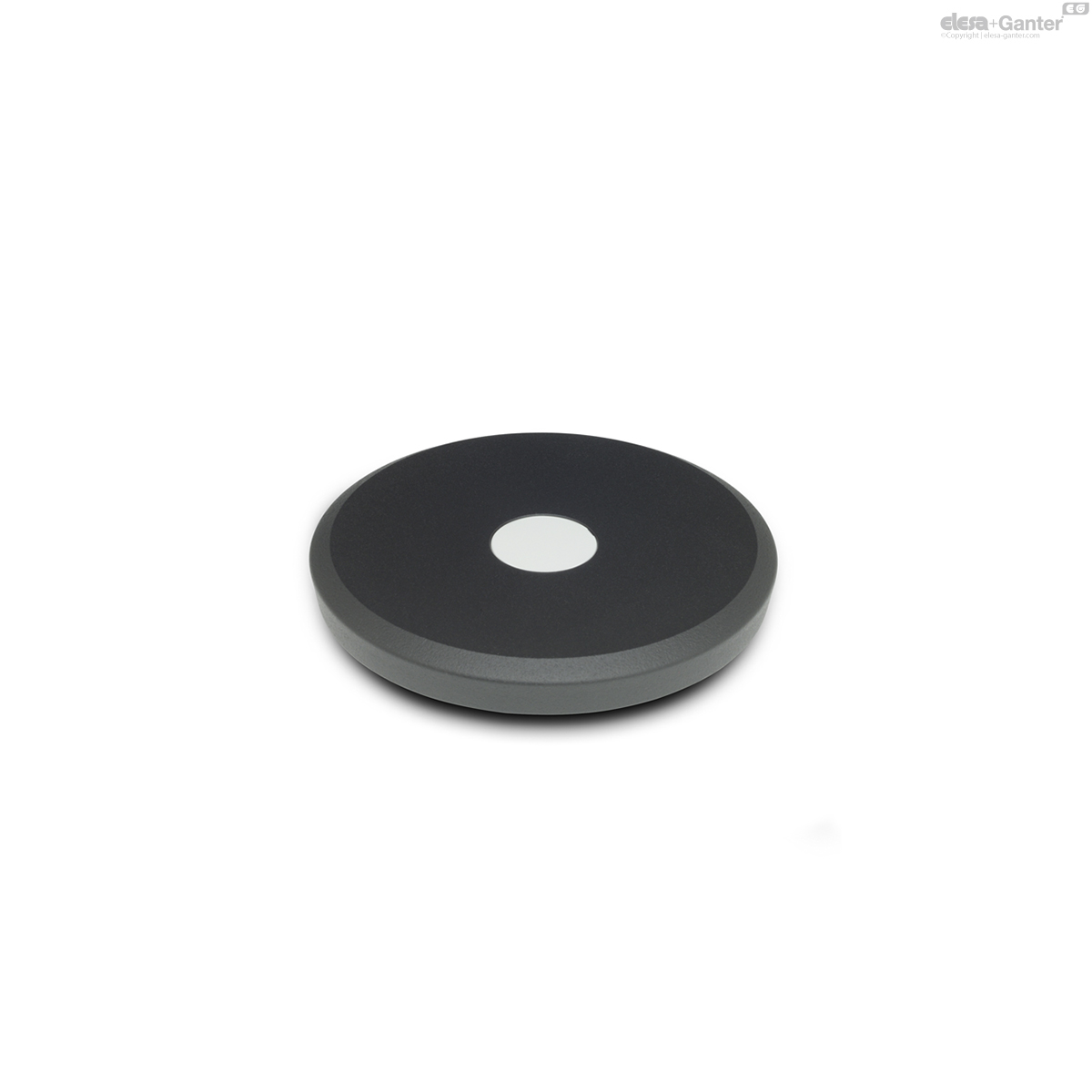

Type A: Without handle

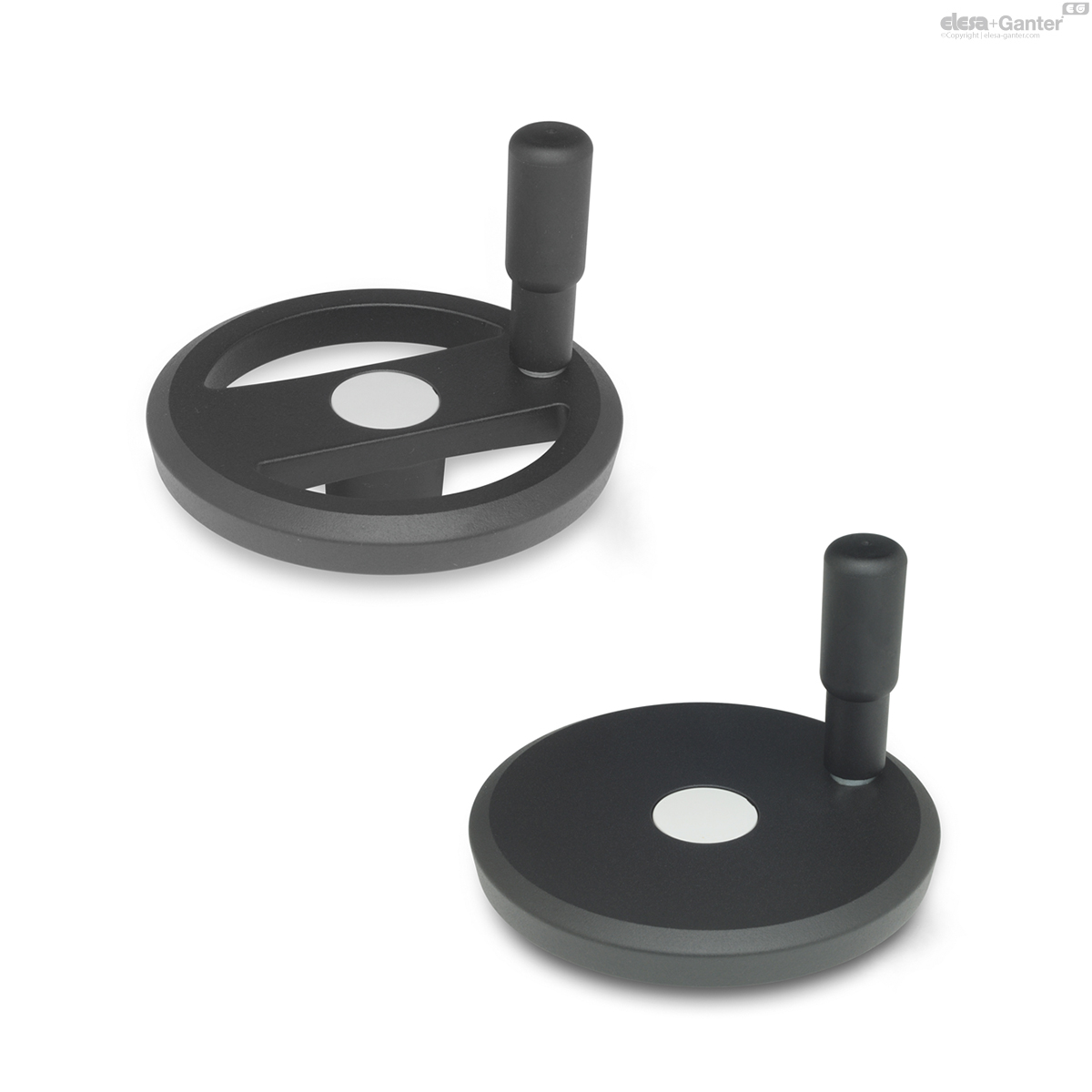

Type R: With revolving handle

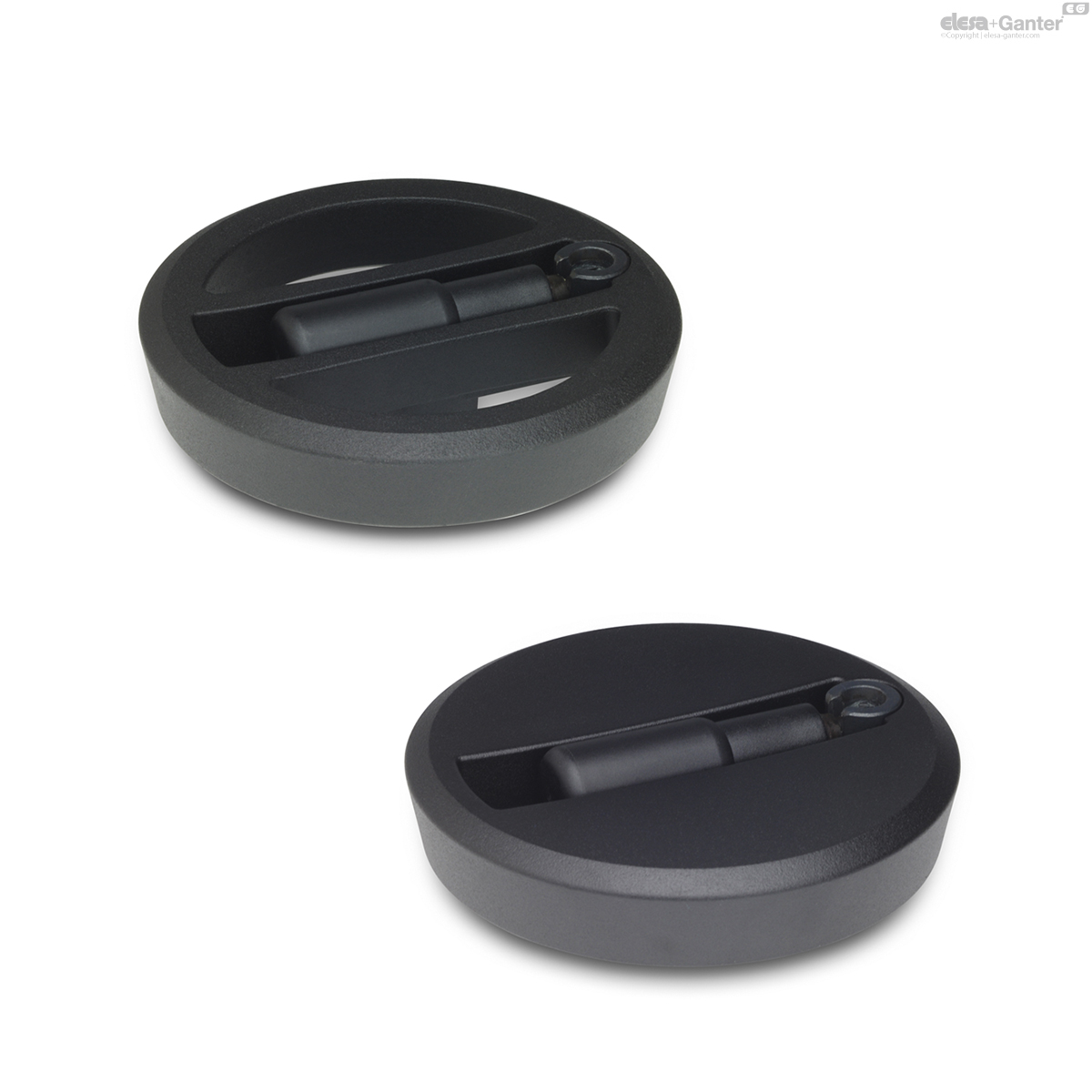

Type RU: With revolving retractable handle

Aluminum die casting

Machined hub

Turned rim

Powder coated

Black, RAL 9005, textured finish SW

Concentricity and axial run-out tolerance of the rim < 0.4

Revolving Handles GN 798.2 / Retractable Handles GN 798.3 / Revolving Cylinder Handles GN 599.5

Information

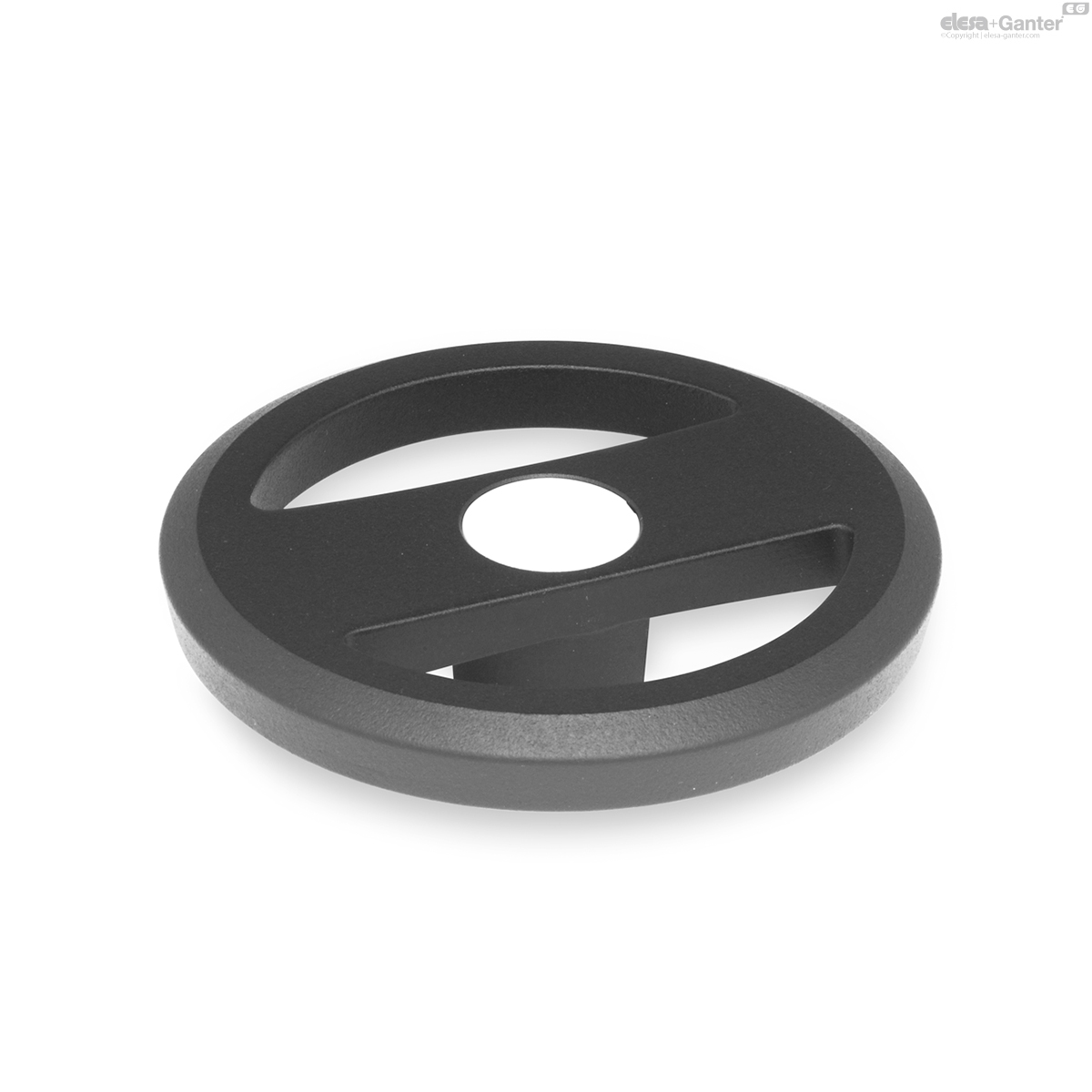

Handwheels GN 9234 are intended for use with linear actuators and are designed as disk or spoked handwheels, depending on their size.

The applied torque is transmitted by means of a parallel key, and the handwheel is secured axially with the supplied grub screw. The handwheels can be ordered without handles, with revolving handles or with revolving retractable handles.

Technical information

Keyway DIN 6885

Cross Holes GN 110

ISO-Fundamental Tolerances

GN 9234-A

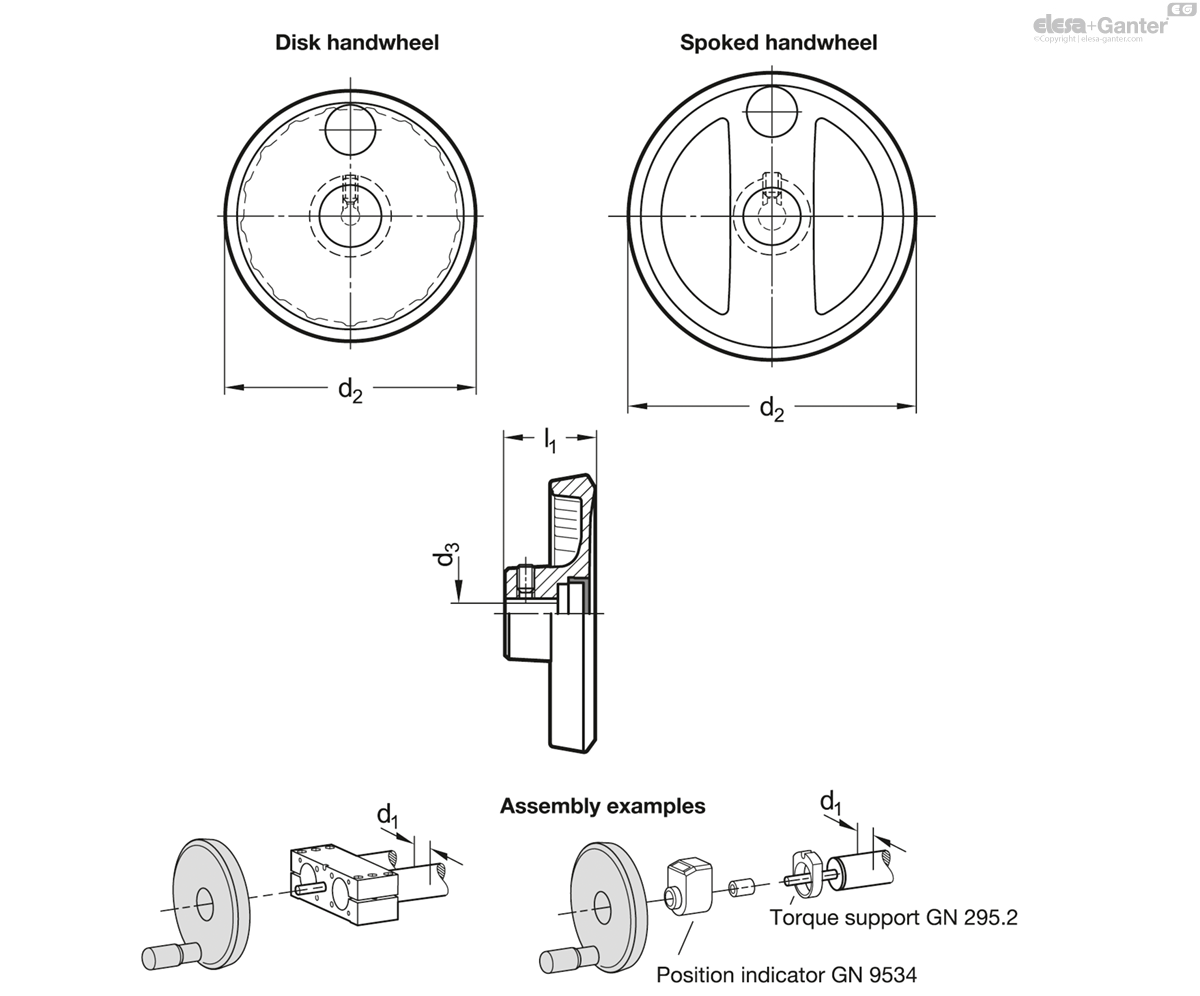

	Color	d₁	d₂ Disk handwheel	d₂ Spoked handwheel	d₃ H7 Bore	l₁ ≈
Code								Actions
GN 9234-18-50-A-SW	50...63 - Disk handwheel	18	50	-	6	26	66
GN 9234-18-80-A-SW	80...100 - Disk handwheel	18	80	-	6	26	105
GN 9234-25-63-A-SW	50...63 - Disk handwheel	25	63	-	8	27	80
GN 9234-25-100-A-SW	80...100 - Disk handwheel	25	100	-	8	30	130
GN 9234-30-63-A-SW	50...63 - Disk handwheel	30	63	-	8	27	104
GN 9234-30-100-A-SW	80...100 - Disk handwheel	30	100	-	8	30	158
GN 9234-40-100-A-SW	80...100 - Disk handwheel	40	100	-	12	30	155
GN 9234-40-125-A-SW	125...160 - Spoked handwheel	40	-	125	12	33.5	260
GN 9234-50-140-A-SW	125...160 - Spoked handwheel	50	-	140	12	36.5	351
GN 9234-60-160-A-SW	125...160 - Spoked handwheel	60	-	160	14	39.5	491
