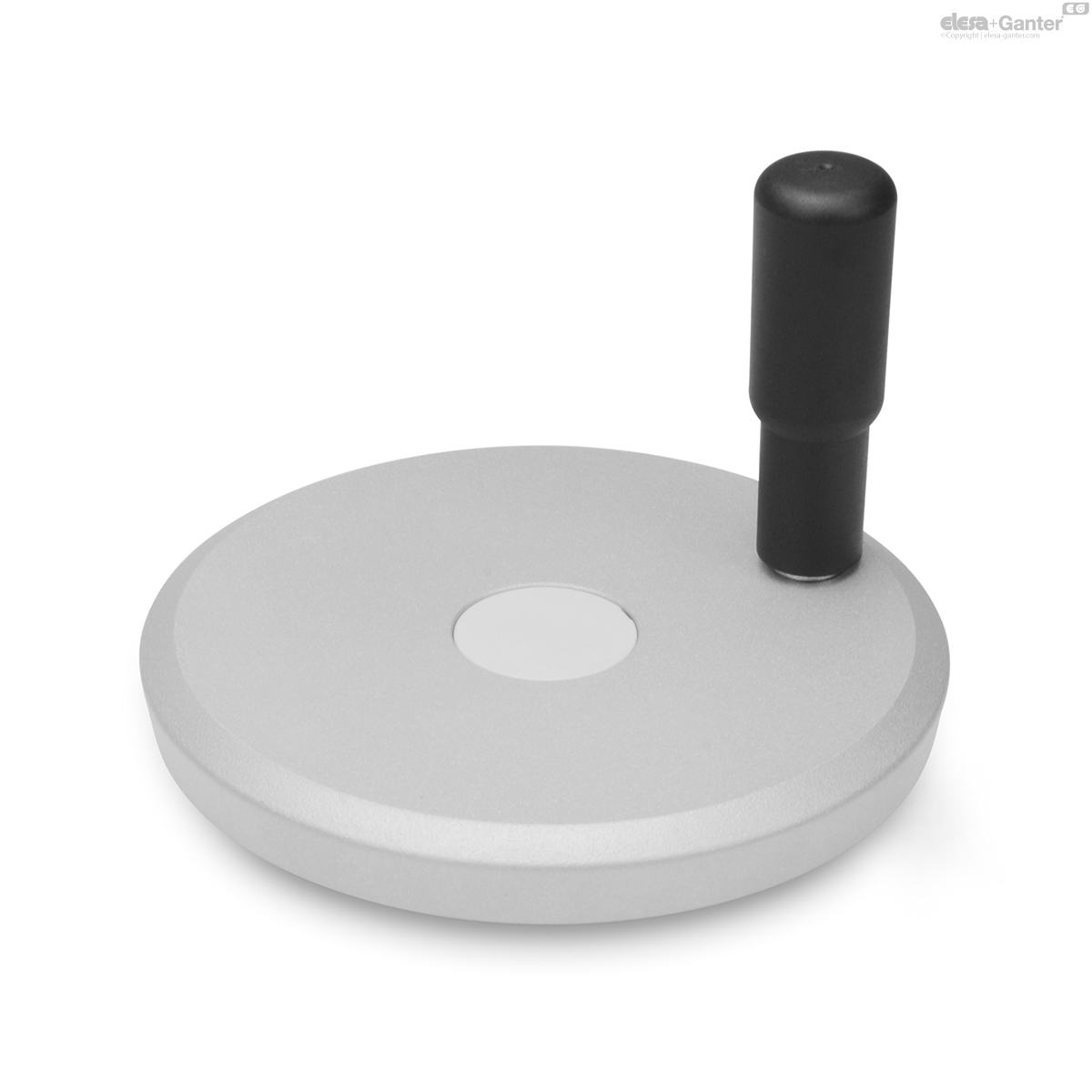

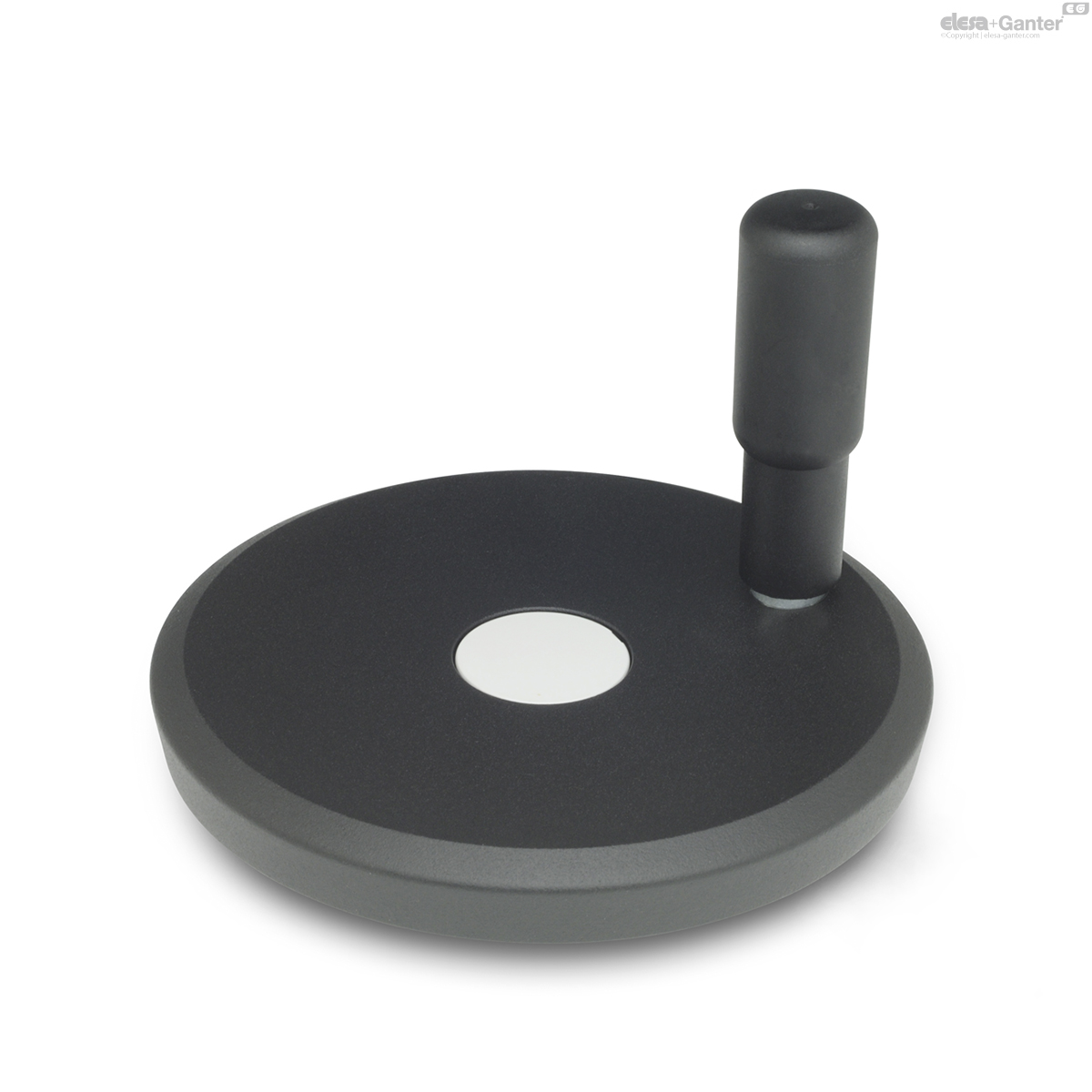

Disk Handwheels

Aluminum, Powder Coated

Enquire Now

With revolving handle

Description

Specification

Bore codes

Version B: Without keyway
Version K: With keyway DIN 6885-1 P9

Types

Type A: Without handle
Type R: With revolving handle

Wheel body

Aluminum die casting

Hub machined

Rim turned

Radial and axial runout < 0.4

Powder coated

Black, RAL 9005, textured finish SW

Silver, RAL 9006, textured finish SR

Cover

Plastic, Polyamide (PA)

Light grey

Revolving handle GN 798.2 GN-798.2 (see page )

Plastic, Polyamide (PA)

Black, matte finish

Spindle steel

Zinc plated, blue passivated

Revolving cylindrical handles GN 599.5

Plastic, Polyamide (PA)

Black, matte finish

Spindle stainless steel AISI 303

Information

Disk handwheels GN 923 are distinguished by modern design.

The removable plastic cover shrouds the fixing components such as countersunk washers and protruding or recessed shafts.

Accessory

GN 184Countersunk Washers

Technical information

Keyway DIN 6885
Cross Holes GN 110
ISO-Fundamental Tolerances

GN 923-R

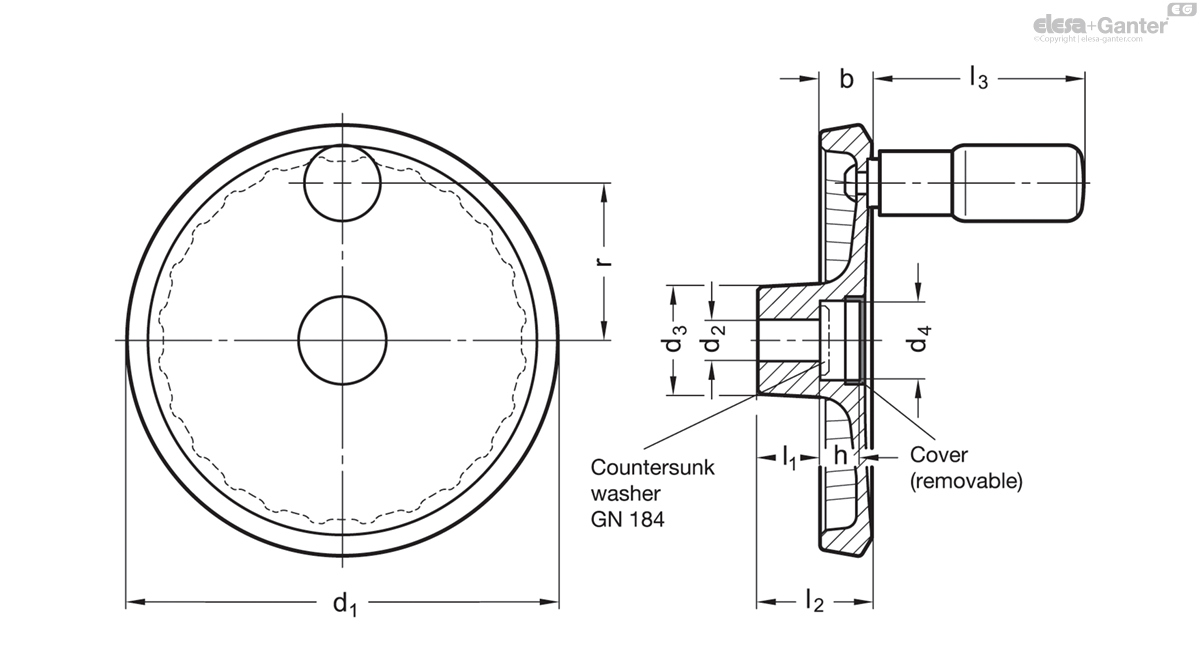

	Color	d₁	d₂ H7 Bore	d₃	d₄	b	h	l₁	l₂ ≈	l₃ ≈	r	Ø Handle GN 798.2	Ø Handle GN 599.5	Recommended washer
Code																Actions
GN 923-50-B6-R-SR	SR - RAL 9006	50	6	20	13	13	7	16	26	20	16	-	13	GN 184-12	77
GN 923-50-B6-R-SW	SW - RAL 9005	50	6	20	13	13	7	16	26	20	16	-	13	GN 184-12	77
GN 923-50-B8-R-SR	SR - RAL 9006	50	8	20	13	13	7	16	26	20	16	-	13	GN 184-12	76
GN 923-50-B8-R-SW	SW - RAL 9005	50	8	20	13	13	7	16	26	20	16	-	13	GN 184-12	76
GN 923-50-K6-R-SR	SR - RAL 9006	50	6	20	13	13	7	16	26	20	16	-	13	GN 184-12	77
GN 923-50-K6-R-SW	SW - RAL 9005	50	6	20	13	13	7	16	26	20	16	-	13	GN 184-12	77
GN 923-50-K8-R-SR	SR - RAL 9006	50	8	20	13	13	7	16	26	20	16	-	13	GN 184-12	76
GN 923-50-K8-R-SW	SW - RAL 9005	50	8	20	13	13	7	16	26	20	16	-	13	GN 184-12	76
GN 923-63-B8-R-SR	SR - RAL 9006	63	8	23	17	13	7	16	26	20	20.5	-	13	GN 184-16	115
GN 923-63-B8-R-SW	SW - RAL 9005	63	8	23	17	13	7	16	26	20	20.5	-	13	GN 184-16	115
GN 923-63-B10-R-SR	SR - RAL 9006	63	10	23	17	13	7	16	26	20	20.5	-	13	GN 184-16	113
GN 923-63-B10-R-SW	SW - RAL 9005	63	10	23	17	13	7	16	26	20	20.5	-	13	GN 184-16	113
GN 923-63-K8-R-SR	SR - RAL 9006	63	8	23	17	13	7	16	26	20	20.5	-	13	GN 184-16	114
GN 923-63-K8-R-SW	SW - RAL 9005	63	8	23	17	13	7	16	26	20	20.5	-	13	GN 184-16	114
GN 923-63-K10-R-SR	SR - RAL 9006	63	10	23	17	13	7	16	26	20	20.5	-	13	GN 184-16	113
GN 923-63-K10-R-SW	SW - RAL 9005	63	10	23	17	13	7	16	26	20	20.5	-	13	GN 184-16	113
GN 923-80-B10-R-SR	SR - RAL 9006	80	10	26	17	13	7	16	26	43.5	27.5	16	-	GN 184-16	120
GN 923-80-B10-R-SW	SW - RAL 9005	80	10	26	17	13	7	16	26	43.5	27.5	16	-	GN 184-16	120
GN 923-80-B12-R-SR	SR - RAL 9006	80	12	26	17	13	7	16	26	43.5	27.5	16	-	GN 184-16	120
GN 923-80-B12-R-SW	SW - RAL 9005	80	12	26	17	13	7	16	26	43.5	27.5	16	-	GN 184-16	120
GN 923-80-K10-R-SR	SR - RAL 9006	80	10	26	17	13	7	16	26	43.5	27.5	16	-	GN 184-16	120
GN 923-80-K10-R-SW	SW - RAL 9005	80	10	26	17	13	7	16	26	43.5	27.5	16	-	GN 184-16	120
GN 923-80-K12-R-SR	SR - RAL 9006	80	12	26	17	13	7	16	26	43.5	27.5	16	-	GN 184-16	120
GN 923-80-K12-R-SW	SW - RAL 9005	80	12	26	17	13	7	16	26	43.5	27.5	16	-	GN 184-16	120
GN 923-100-B10-R-SR	SR - RAL 9006	100	10	28	22	14	9.5	17	30	58	36	18	-	GN 184-20	189
GN 923-100-B10-R-SW	SW - RAL 9005	100	10	28	22	14	9.5	17	30	58	36	18	-	GN 184-20	189
GN 923-100-B12-R-SR	SR - RAL 9006	100	12	28	22	14	9.5	17	30	58	36	18	-	GN 184-20	180
GN 923-100-B12-R-SW	SW - RAL 9005	100	12	28	22	14	9.5	17	30	58	36	18	-	GN 184-20	180
GN 923-100-K10-R-SR	SR - RAL 9006	100	10	28	22	14	9.5	17	30	58	36	18	-	GN 184-20	180
GN 923-100-K10-R-SW	SW - RAL 9005	100	10	28	22	14	9.5	17	30	58	36	18	-	GN 184-20	180
GN 923-100-K12-R-SR	SR - RAL 9006	100	12	28	22	14	9.5	17	30	58	36	18	-	GN 184-20	180
GN 923-100-K12-R-SW	SW - RAL 9005	100	12	28	22	14	9.5	17	30	58	36	18	-	GN 184-20	180
GN 923-125-B12-R-SR	SR - RAL 9006	125	12	31	22	15	11	18	33	61	45.5	22	-	GN 184-20	340
GN 923-125-B12-R-SW	SW - RAL 9005	125	12	31	22	15	11	18	33	61	45.5	22	-	GN 184-20	340
GN 923-125-B14-R-SR	SR - RAL 9006	125	14	31	22	15	11	18	33	61	45.5	22	-	GN 184-20	320
GN 923-125-B14-R-SW	SW - RAL 9005	125	14	31	22	15	11	18	33	61	45.5	22	-	GN 184-20	320
GN 923-125-K12-R-SR	SR - RAL 9006	125	12	31	22	15	11	18	33	61	45.5	22	-	GN 184-20	340
GN 923-125-K12-R-SW	SW - RAL 9005	125	12	31	22	15	11	18	33	61	45.5	22	-	GN 184-20	340
GN 923-125-K14-R-SR	SR - RAL 9006	125	14	31	22	15	11	18	33	61	45.5	22	-	GN 184-20	340
GN 923-125-K14-R-SW	SW - RAL 9005	125	14	31	22	15	11	18	33	61	45.5	22	-	GN 184-20	340
GN 923-140-B14-R-SR	SR - RAL 9006	140	14	36	28.5	16.5	13	19	36	76	52	24	-	GN 184-25	420
GN 923-140-B14-R-SW	SW - RAL 9005	140	14	36	28.5	16.5	13	19	36	76	52	24	-	GN 184-25	420
GN 923-140-B16-R-SR	SR - RAL 9006	140	16	36	28.5	16.5	13	19	36	76	52	24	-	GN 184-25	420
GN 923-140-B16-R-SW	SW - RAL 9005	140	16	36	28.5	16.5	13	19	36	76	52	24	-	GN 184-25	420
GN 923-140-K14-R-SR	SR - RAL 9006	140	14	36	28.5	16.5	13	19	36	76	52	24	-	GN 184-25	400
GN 923-140-K14-R-SW	SW - RAL 9005	140	14	36	28.5	16.5	13	19	36	76	52	24	-	GN 184-25	400
GN 923-140-K16-R-SR	SR - RAL 9006	140	16	36	28.5	16.5	13	19	36	76	52	24	-	GN 184-25	382
GN 923-140-K16-R-SW	SW - RAL 9005	140	16	36	28.5	16.5	13	19	36	76	52	24	-	GN 184-25	382
GN 923-160-B14-R-SR	SR - RAL 9006	160	14	36	28.5	18	14.5	20	39	76	61	24	-	GN 184-25	543
GN 923-160-B14-R-SW	SW - RAL 9005	160	14	36	28.5	18	14.5	20	39	76	61	24	-	GN 184-25	543
GN 923-160-B16-R-SR	SR - RAL 9006	160	16	36	28.5	18	14.5	20	39	76	61	24	-	GN 184-25	541
GN 923-160-B16-R-SW	SW - RAL 9005	160	16	36	28.5	18	14.5	20	39	76	61	24	-	GN 184-25	541
GN 923-160-K14-R-SR	SR - RAL 9006	160	14	36	28.5	18	14.5	20	39	76	61	24	-	GN 184-25	521
GN 923-160-K14-R-SW	SW - RAL 9005	160	14	36	28.5	18	14.5	20	39	76	61	24	-	GN 184-25	521
GN 923-160-K16-R-SR	SR - RAL 9006	160	16	36	28.5	18	14.5	20	39	76	61	24	-	GN 184-25	540
GN 923-160-K16-R-SW	SW - RAL 9005	160	16	36	28.5	18	14.5	20	39	76	61	24	-	GN 184-25	540
GN 923-200-B18-R-SR	SR - RAL 9006	200	18	42	36	20.5	16	24	45	85	77.5	25	-	GN 184-32	880
GN 923-200-B18-R-SW	SW - RAL 9005	200	18	42	36	20.5	16	24	45	85	77.5	25	-	GN 184-32	880
GN 923-200-B20-R-SR	SR - RAL 9006	200	20	42	36	20.5	16	24	45	85	77.5	25	-	GN 184-32	889
GN 923-200-B20-R-SW	SW - RAL 9005	200	20	42	36	20.5	16	24	45	85	77.5	25	-	GN 184-32	889
GN 923-200-K18-R-SR	SR - RAL 9006	200	18	42	36	20.5	16	24	45	85	77.5	25	-	GN 184-32	860
GN 923-200-K18-R-SW	SW - RAL 9005	200	18	42	36	20.5	16	24	45	85	77.5	25	-	GN 184-32	860
GN 923-200-K20-R-SR	SR - RAL 9006	200	20	42	36	20.5	16	24	45	85	77.5	25	-	GN 184-32	840
GN 923-200-K20-R-SW	SW - RAL 9005	200	20	42	36	20.5	16	24	45	85	77.5	25	-	GN 184-32	840
