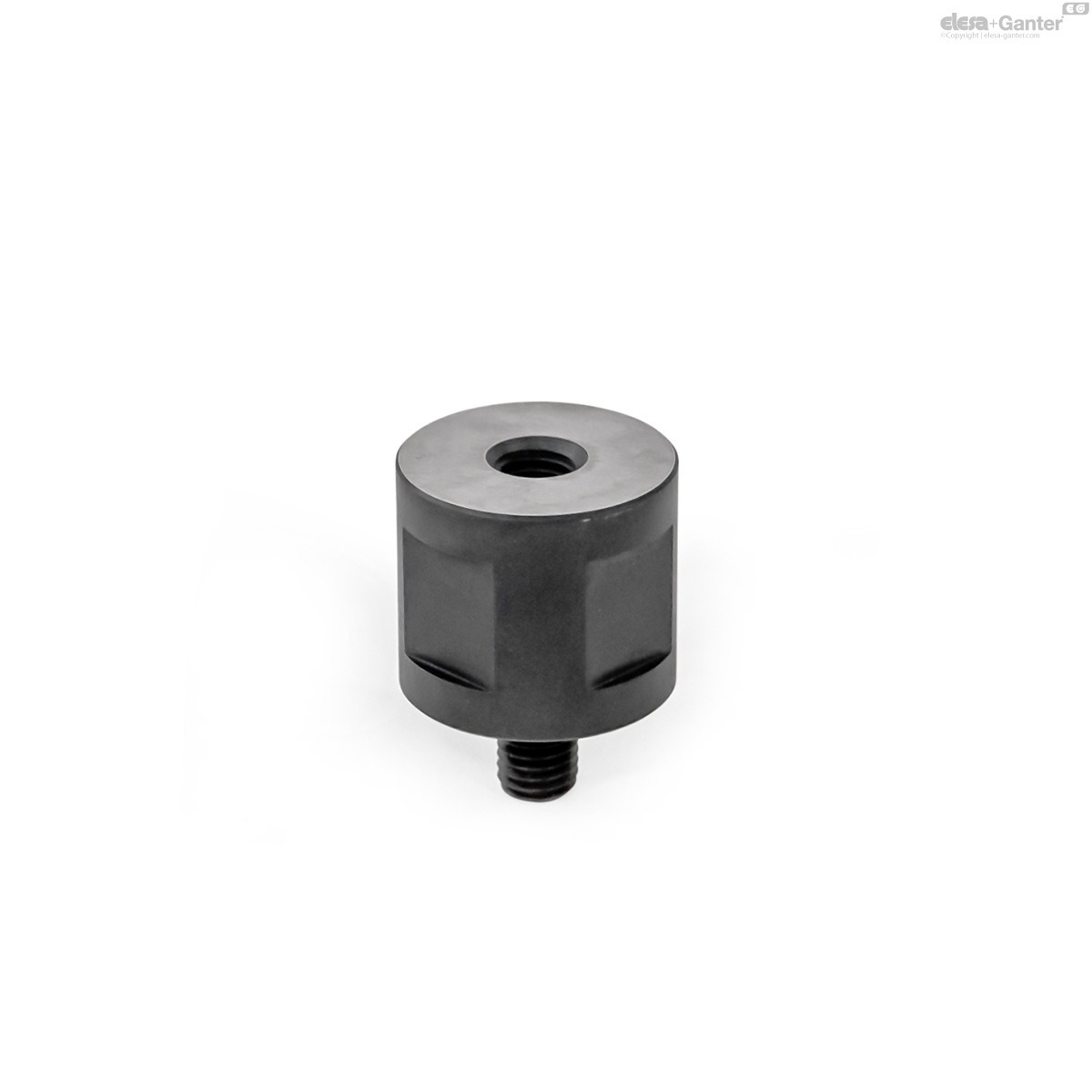

GN 9192.3
Height Adjusting Cylinders
Description
Specification
Steel
- Case-hardened
- Blackened
Grub screw DIN 913
Steel, blackened
Information

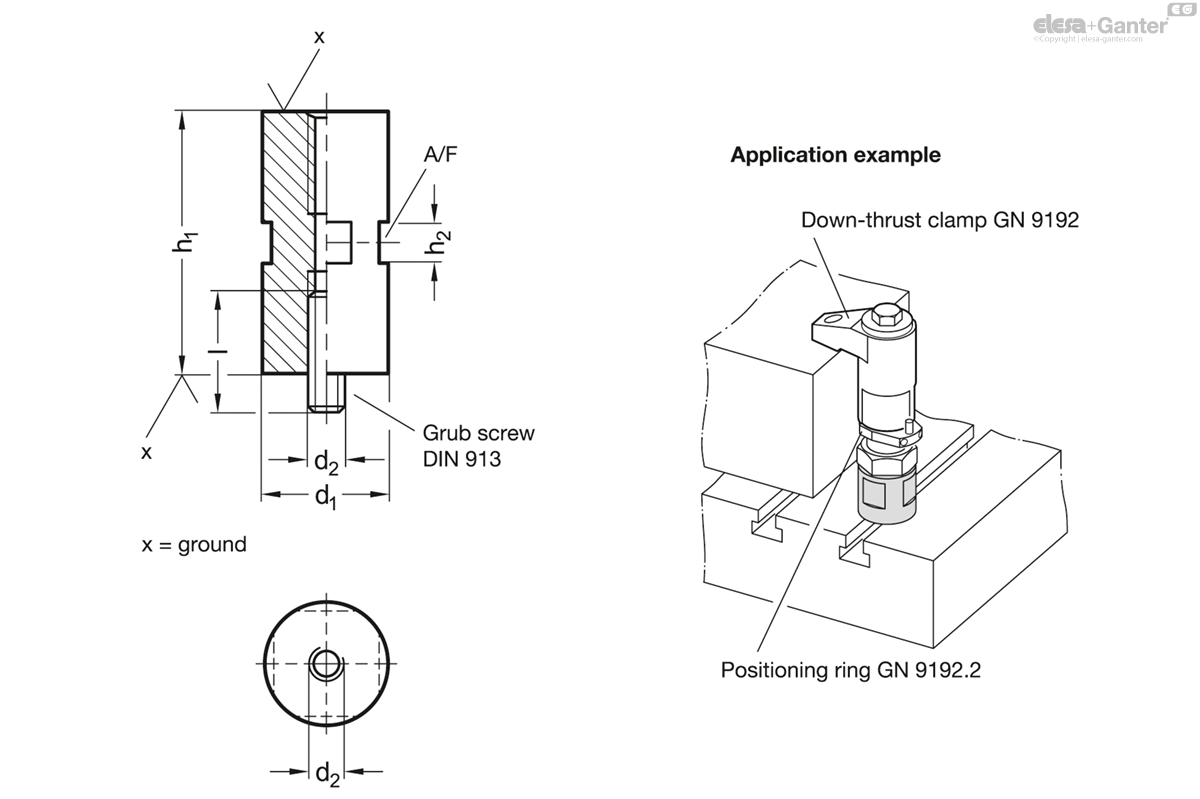

Height adjusting cylinders GN 9192.3 are used to increase the clamping height of down-thrust clamps GN 9192.
Height adjusting cylinders can also be used in combination with positioning elements and clamping pads to position contact points at a greater distance from the reference surface.
GN 9192.3
| d1 -0.1 | h1 ±0.01 | d2 | h2 | l | A/F |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 9192.3-25-M8-20 | 25 | 20 | M 8 | 10 | 20 | 22 | 71 |
|
| GN 9192.3-25-M8-40 | 25 | 40 | M 8 | 20 | 25 | 22 | 139 |
|
| GN 9192.3-40-M12-35 | 40 | 35 | M 12 | 20 | 30 | 36 | 319 |
|
| GN 9192.3-40-M12-70 | 40 | 70 | M 12 | 20 | 35 | 36 | 644 |
|
