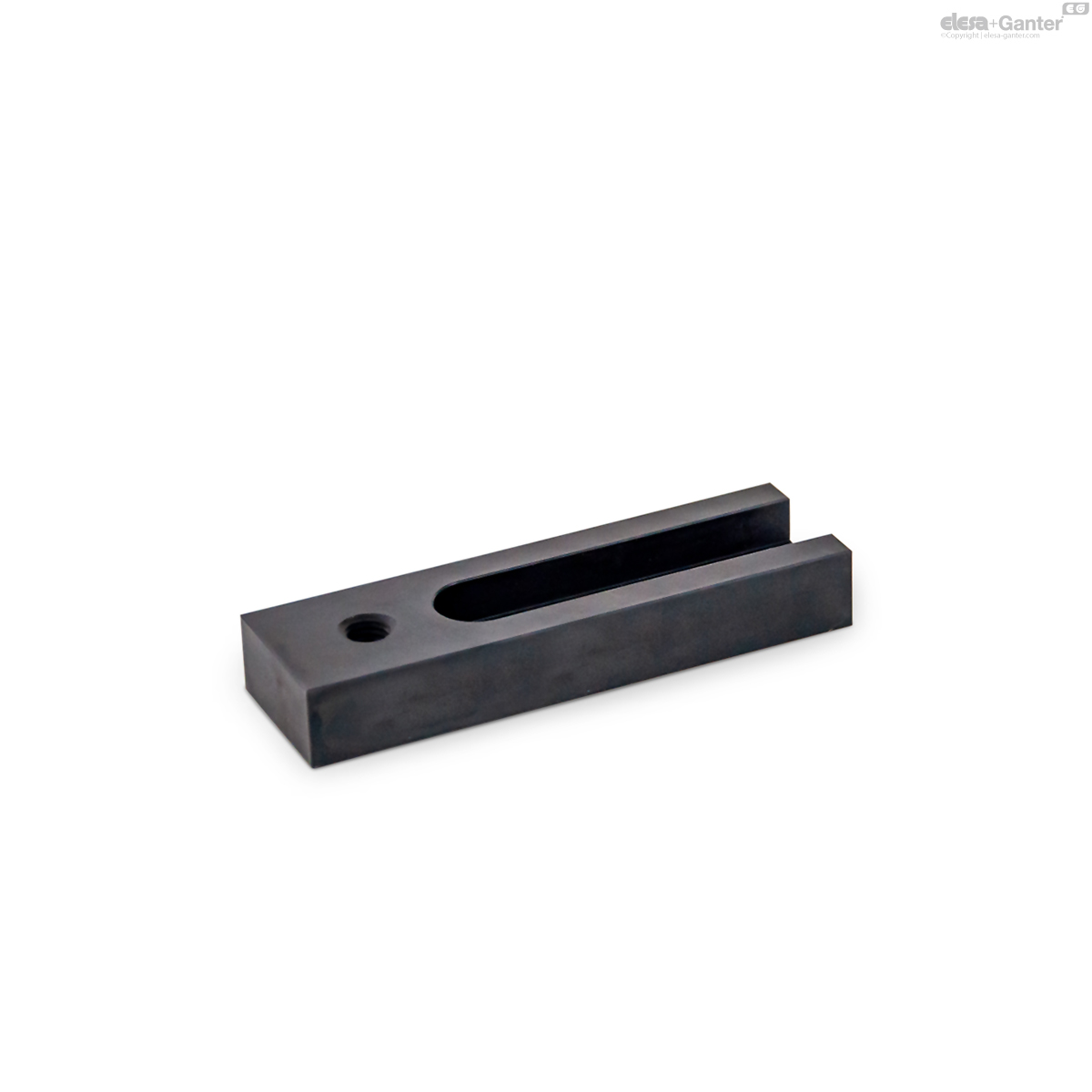

GN 9190.3
Slotted Support Blocks
for Side Clamps GN 9190 / GN 9190.1 / GN 9190.2
Description
Specification
Steel
- Tempered
- Blackened
Information
Slotted support blocks GN 9190.3 are provided as accessory for side clamps GN 9190 / GN 9190.1 / GN 9190.2.
They can also be used to fasten side clamps across the T-slot in any position.

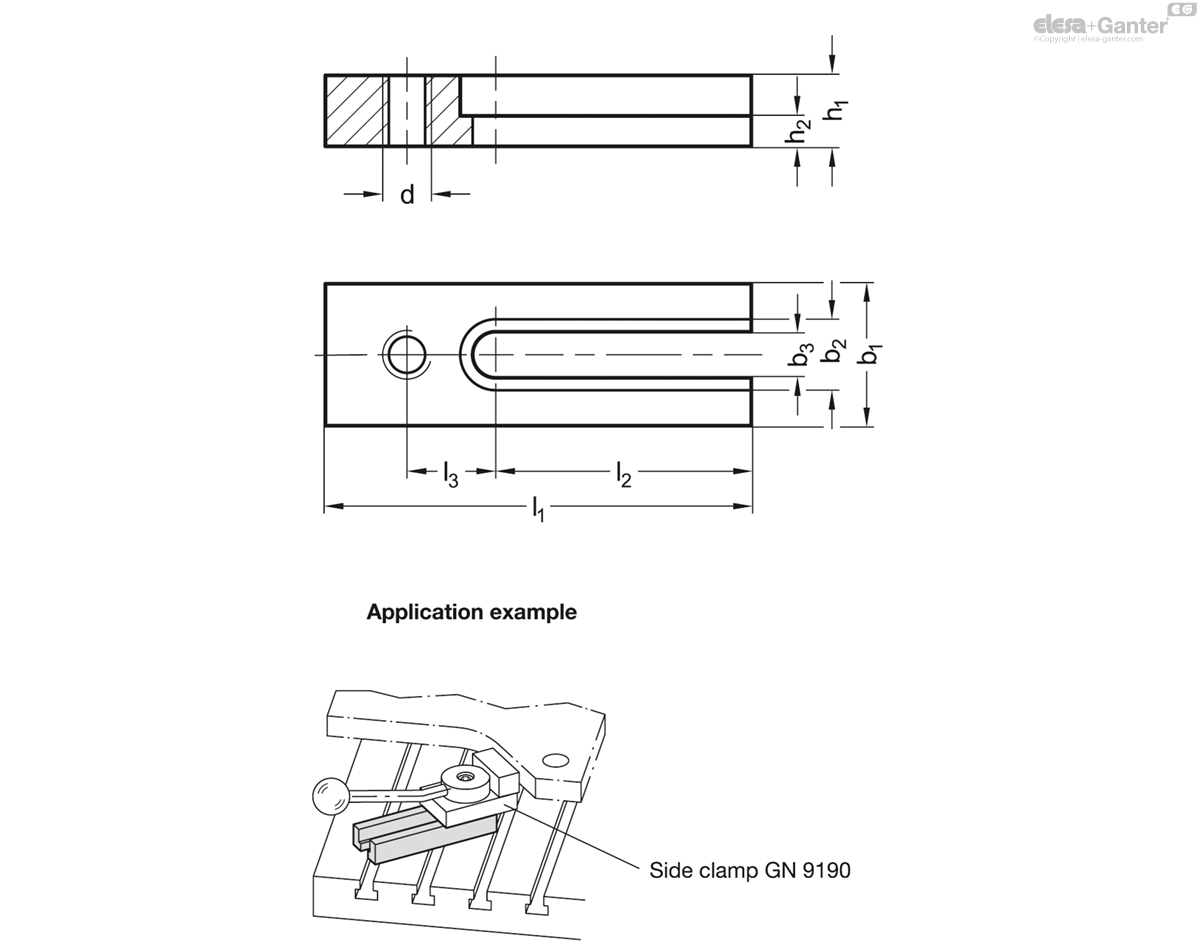

GN 9190.3
| b1 | l1 | d | b2 | b3 | h1 | h2 | l2 | l3 | For side clamp slot width a GN 9190 |
For side clamp slot width a GN 9190.1 |
For side clamp slot width a GN 9190.2 |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 9190.3-30-100-M8 | 30 | 100 | M 8 | 15 | 9 | 15 | 6.5 | 63 | 20 | 10 | 10 | 10 | 246 |
|
| GN 9190.3-40-120-M12 | 40 | 120 | M 12 | 20 | 13 | 20 | 7.5 | 72 | 25 | 12 | 14 | 14 | 515 |
|
| GN 9190.3-60-140-M16 | 60 | 140 | M 16 | 26 | 17 | 30 | 13 | 80 | 30 | - | 18 | 18 | 1456 |
|
