GN 919

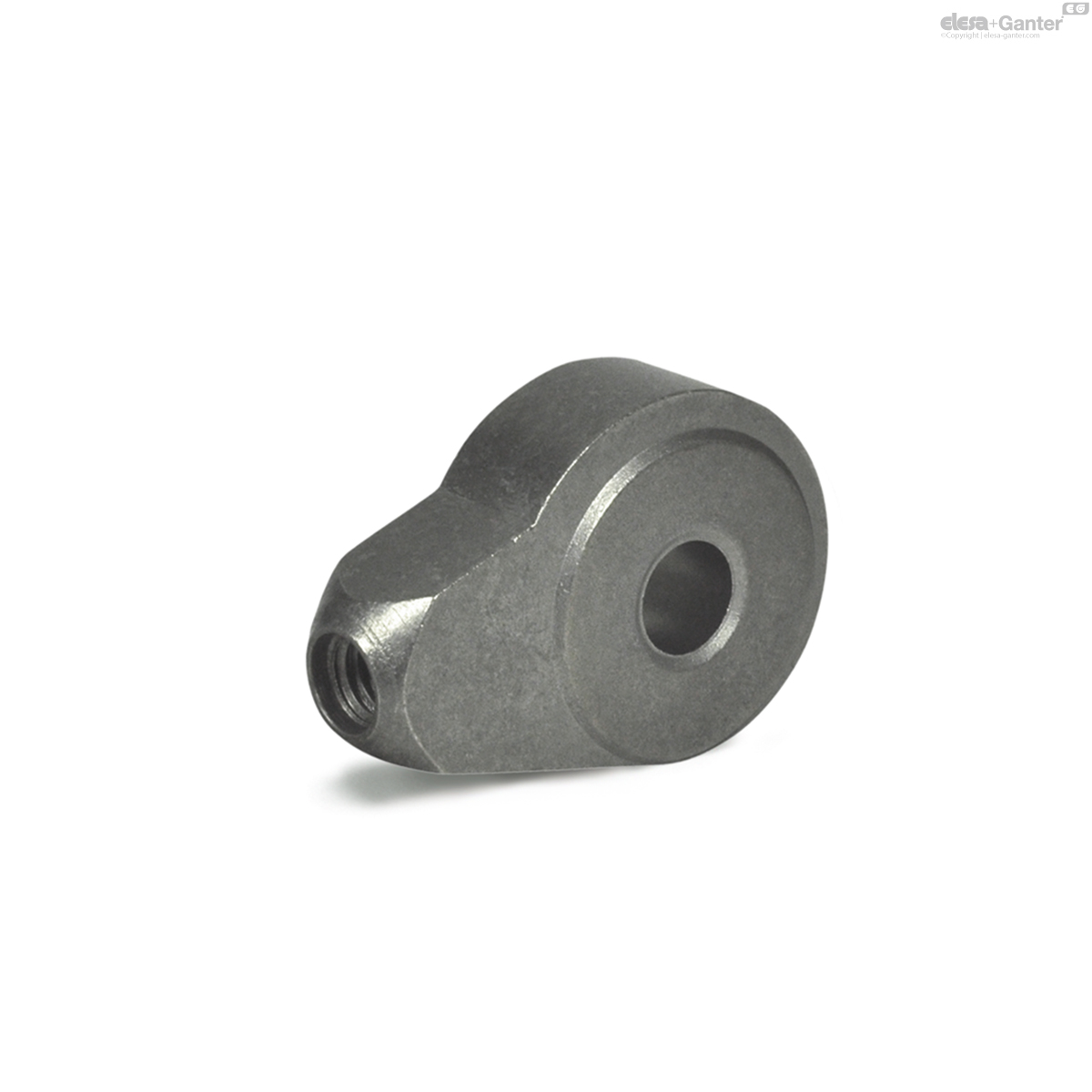

Hubs with eccentrical cam
Description
Specification
Sintered Steel
- case hardened, EHT 0.2 to 0.4 mm
- blank
Information
Hubs with eccentrical cam GN 919 are used for adjusting and clamping operations. As a rule these are fitted with a gear lever handle  GN 310 .
The cam offers the advantage that the clamping force remains constant in every position of its travel. In addition the cam is self locking.
Cylinder head shoulder bolts GN 732.1  can be used as bearing pins.
Accessory
- Gear lever handles GN 310 (are to be ordered seperately)
Technical information
- ISO-Fundamental TolerancesÂ

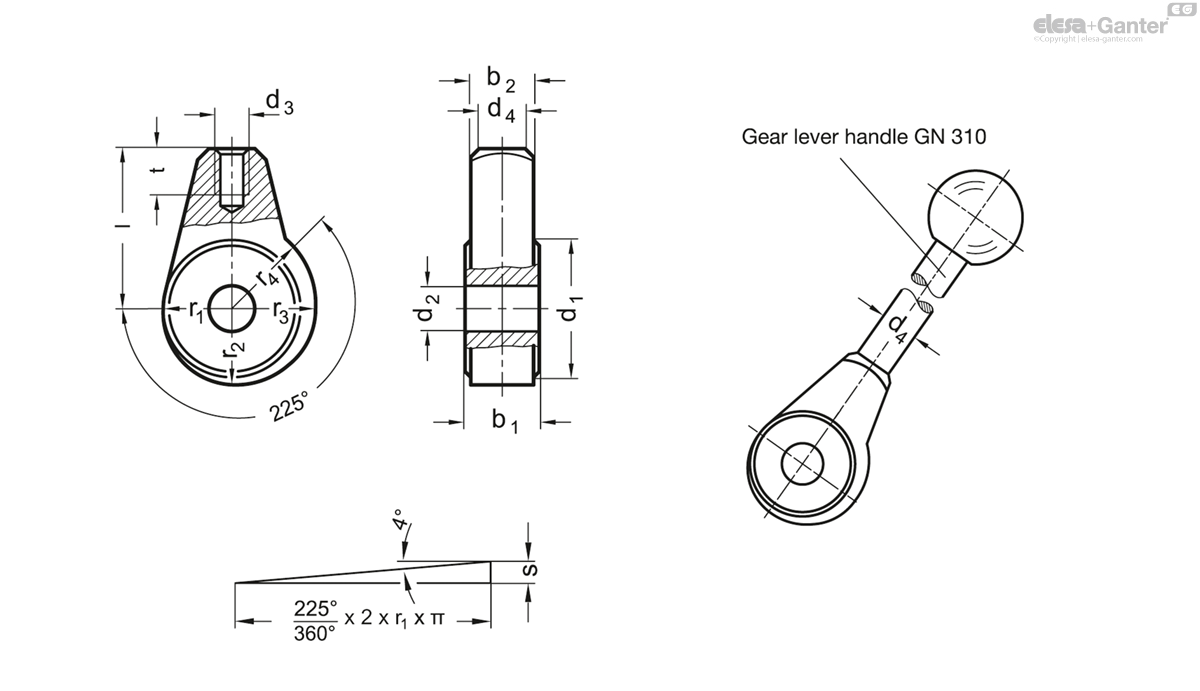

GN 919
| d1 | d2 H9 | b1 -0.05/-0.15 | b2 | d3 | d4 | l | r1 | r2 | r3 | r4 | s | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||
| GN 919-24-B8 | 24 | B 8 | 13 | 11 | M 6 | 8 | 28 | 12 | 13.32 | 14.64 | 15.3 | 3.3 | 9 | 59 |
|
| GN 919-30-B10 | 30 | B 10 | 15 | 13 | M 8 | 10 | 32 | 15 | 16.65 | 18.3 | 19.12 | 4.1 | 12 | 100 |
|
| GN 919-35-B12 | 35 | B 12 | 17 | 15 | M 10 | 12 | 36 | 17.5 | 19.42 | 21.34 | 22.31 | 4.8 | 15 | 150 |
|
