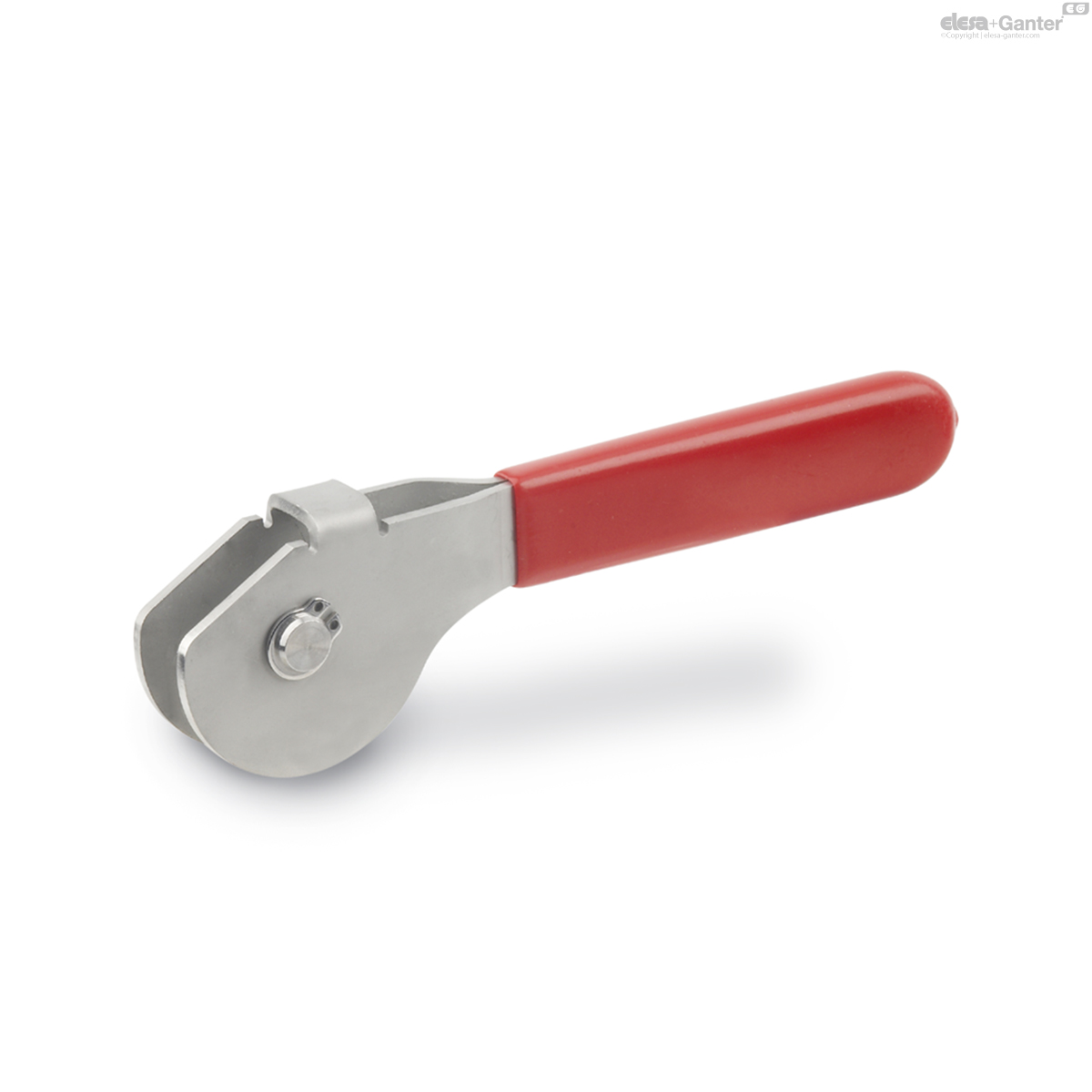

GN 917.1
Stainless Steel-Double cam levers
Description
Specification
Stainless Steel AISI 304
shot-blasted
King pin
Stainless Steel AISI 420
tempered
Circlip
Stainless Steel AISI 301
Plastic cover
- red, oil resistant
- temperature resistant up to 60 °C
Information
Double cam levers GN 917.1 are used for repositioning and clamping. The eccentrical cam has the advantage that the clamping force remains constant in every position of its travel and in addition is self arresting.
The dimension b2 is made to match the head size of swing bolts DIN 444  and swing nuts GN 444.2  respectively.
Technical information
- Stainless Steel characteristics -
GN 917.1

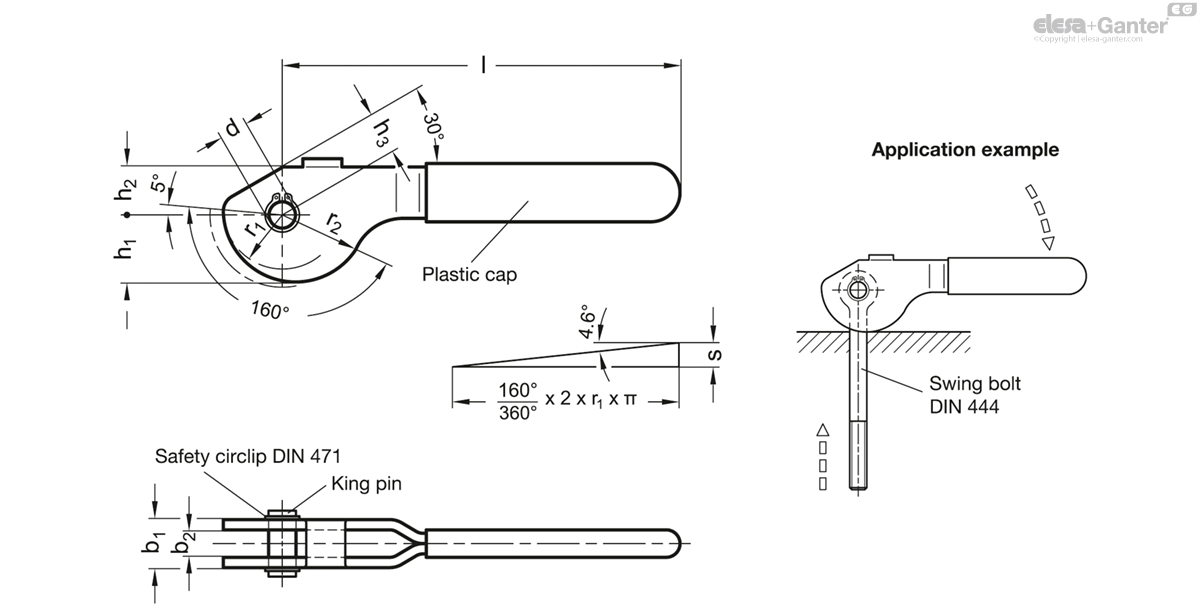

| d | b1 | b2 | h1 | h2 | h3 | l | r1 | r2 | s | r2-h3 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 917.1-8-13 | 8 | 13 | 9 | 19.54 | 14 | 12 | 114 | 17.2 | 21.07 | 3.87 | 9.07 | 86 |
|
| GN 917.1-10-17 | 10 | 17 | 12 | 24.54 | 17 | 15 | 138 | 21.6 | 26.45 | 4.85 | 11.45 | 165 |
|
| GN 917.1-12-20 | 12 | 20 | 14 | 31.81 | 21 | 18 | 157 | 28 | 34.29 | 6.29 | 16.29 | 280 |
|
