GN 913.2
Grub Screws
with Hardened Pivot
Description
Specification
Types
- Type A: Semi-spherical pivot
- Type B: Pointed pivot
Steel
- Property class 5.8
- Blackened
Thrust pivot
Hardened
Information

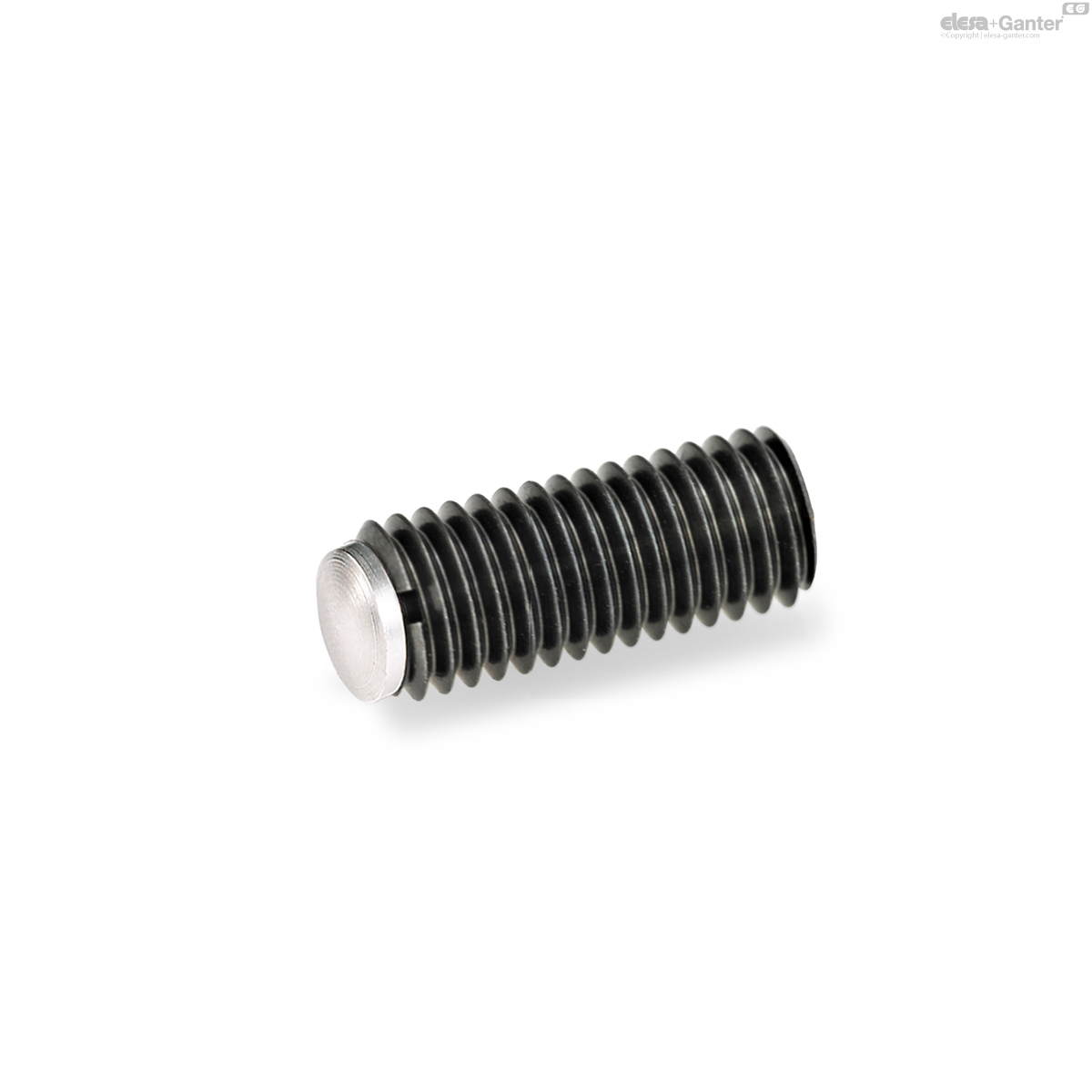

Grub screws GN 913.2 with hardened spherical pivot (Type A) are used in such cases where point contact is required. They are a lower cost alternative to ball point screws GN 605.
Grub screws with hardened pointed pivot (Type B) offer an alternative form of finish.
Technical information
- Strength values of screws / nutsÂ
GN 913.2
| Color | d1 | l1 | d2 | l2 | l3 | r | A/F |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 913.2-M5-8-A | A | M 5 | 8 | 3 | 1 | 0.5 | 2.5 | 2.5 | 1 |
|
| GN 913.2-M5-8-B | B | M 5 | 8 | 3 | 1 | 0.5 | 2.5 | 2.5 | 1 |
|
| GN 913.2-M5-12-A | A | M 5 | 12 | 3 | 1 | 0.5 | 2.5 | 2.5 | 1 |
|
| GN 913.2-M5-12-B | B | M 5 | 12 | 3 | 1 | 0.5 | 2.5 | 2.5 | 1 |
|
| GN 913.2-M5-16-A | A | M 5 | 16 | 3 | 1 | 0.5 | 2.5 | 2.5 | 1 |
|
| GN 913.2-M5-16-B | B | M 5 | 16 | 3 | 1 | 0.5 | 2.5 | 2.5 | 1 |
|
| GN 913.2-M5-20-A | A | M 5 | 20 | 3 | 1 | 0.5 | 2.5 | 2.5 | 2 |
|
| GN 913.2-M5-20-B | B | M 5 | 20 | 3 | 1 | 0.5 | 2.5 | 2.5 | 2 |
|
| GN 913.2-M6-12-A | A | M 6 | 12 | 4 | 1.8 | 0.8 | 3 | 3 | 2 |
|
| GN 913.2-M6-12-B | B | M 6 | 12 | 4 | 1.8 | 0.8 | 3 | 3 | 2 |
|
| GN 913.2-M6-16-A | A | M 6 | 16 | 4 | 1.8 | 0.8 | 3 | 3 | 3 |
|
| GN 913.2-M6-16-B | B | M 6 | 16 | 4 | 1.8 | 0.8 | 3 | 3 | 3 |
|
| GN 913.2-M6-20-A | A | M 6 | 20 | 4 | 1.8 | 0.8 | 3 | 3 | 3 |
|
| GN 913.2-M6-20-B | B | M 6 | 20 | 4 | 1.8 | 0.8 | 3 | 3 | 3 |
|
| GN 913.2-M6-25-A | A | M 6 | 25 | 4 | 1.8 | 0.8 | 3 | 3 | 4 |
|
| GN 913.2-M6-25-B | B | M 6 | 25 | 4 | 1.8 | 0.8 | 3 | 3 | 4 |
|
| GN 913.2-M8-12-A | A | M 8 | 12 | 6 | 2.5 | 1 | 5 | 4 | 3 |
|
| GN 913.2-M8-12-B | B | M 8 | 12 | 6 | 2.5 | 1 | 5 | 4 | 3 |
|
| GN 913.2-M8-16-A | A | M 8 | 16 | 6 | 2.5 | 1 | 5 | 4 | 5 |
|
| GN 913.2-M8-16-B | B | M 8 | 16 | 6 | 2.5 | 1 | 5 | 4 | 5 |
|
| GN 913.2-M8-20-A | A | M 8 | 20 | 6 | 2.5 | 1 | 5 | 4 | 6 |
|
| GN 913.2-M8-20-B | B | M 8 | 20 | 6 | 2.5 | 1 | 5 | 4 | 6 |
|
| GN 913.2-M8-25-A | A | M 8 | 25 | 6 | 2.5 | 1 | 5 | 4 | 7 |
|
| GN 913.2-M8-25-B | B | M 8 | 25 | 6 | 2.5 | 1 | 5 | 4 | 7 |
|
| GN 913.2-M8-32-A | A | M 8 | 32 | 6 | 2.5 | 1 | 5 | 4 | 9 |
|
| GN 913.2-M8-32-B | B | M 8 | 32 | 6 | 2.5 | 1 | 5 | 4 | 9 |
|
| GN 913.2-M10-16-A | A | M 10 | 16 | 8 | 3.5 | 1.5 | 6 | 5 | 7 |
|
| GN 913.2-M10-16-B | B | M 10 | 16 | 8 | 3.5 | 1.5 | 6 | 5 | 7 |
|
| GN 913.2-M10-20-A | A | M 10 | 20 | 8 | 3.5 | 1.5 | 6 | 5 | 9 |
|
| GN 913.2-M10-20-B | B | M 10 | 20 | 8 | 3.5 | 1.5 | 6 | 5 | 9 |
|
| GN 913.2-M10-25-A | A | M 10 | 25 | 8 | 3.5 | 1.5 | 6 | 5 | 11 |
|
| GN 913.2-M10-25-B | B | M 10 | 25 | 8 | 3.5 | 1.5 | 6 | 5 | 11 |
|
| GN 913.2-M10-32-A | A | M 10 | 32 | 8 | 3.5 | 1.5 | 6 | 5 | 15 |
|
| GN 913.2-M10-32-B | B | M 10 | 32 | 8 | 3.5 | 1.5 | 6 | 5 | 15 |
|
| GN 913.2-M10-40-A | A | M 10 | 40 | 8 | 3.5 | 1.5 | 6 | 5 | 18 |
|
| GN 913.2-M10-40-B | B | M 10 | 40 | 8 | 3.5 | 1.5 | 6 | 5 | 18 |
|
