GN 911.3
Adjustable Stainless Steel Hand Levers
with Threaded Bushing / Threaded stud, for Tube Clamp Connectors / Linear actuator connectors
GN 911.3
Adjustable Stainless Steel Hand Levers
with Threaded Bushing

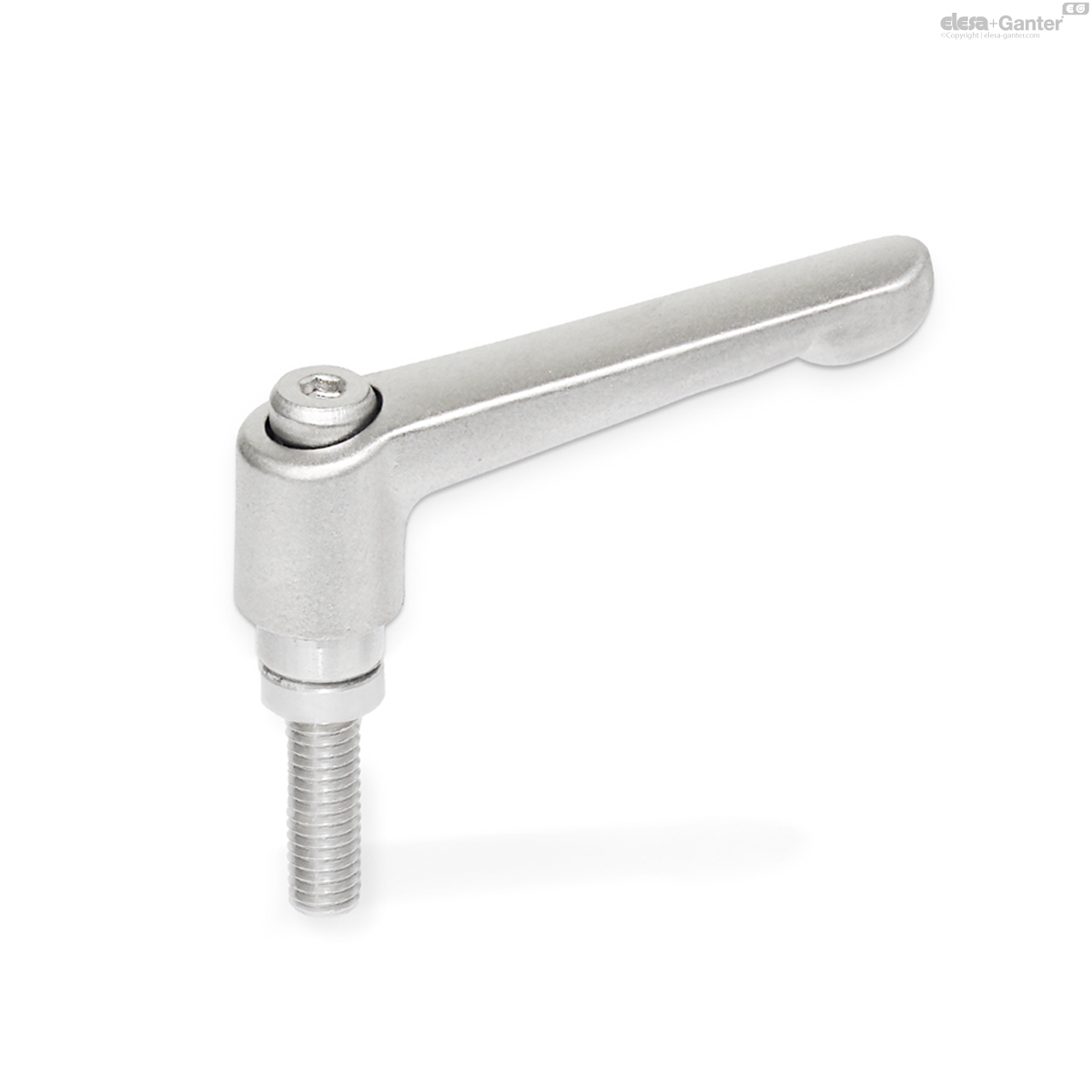

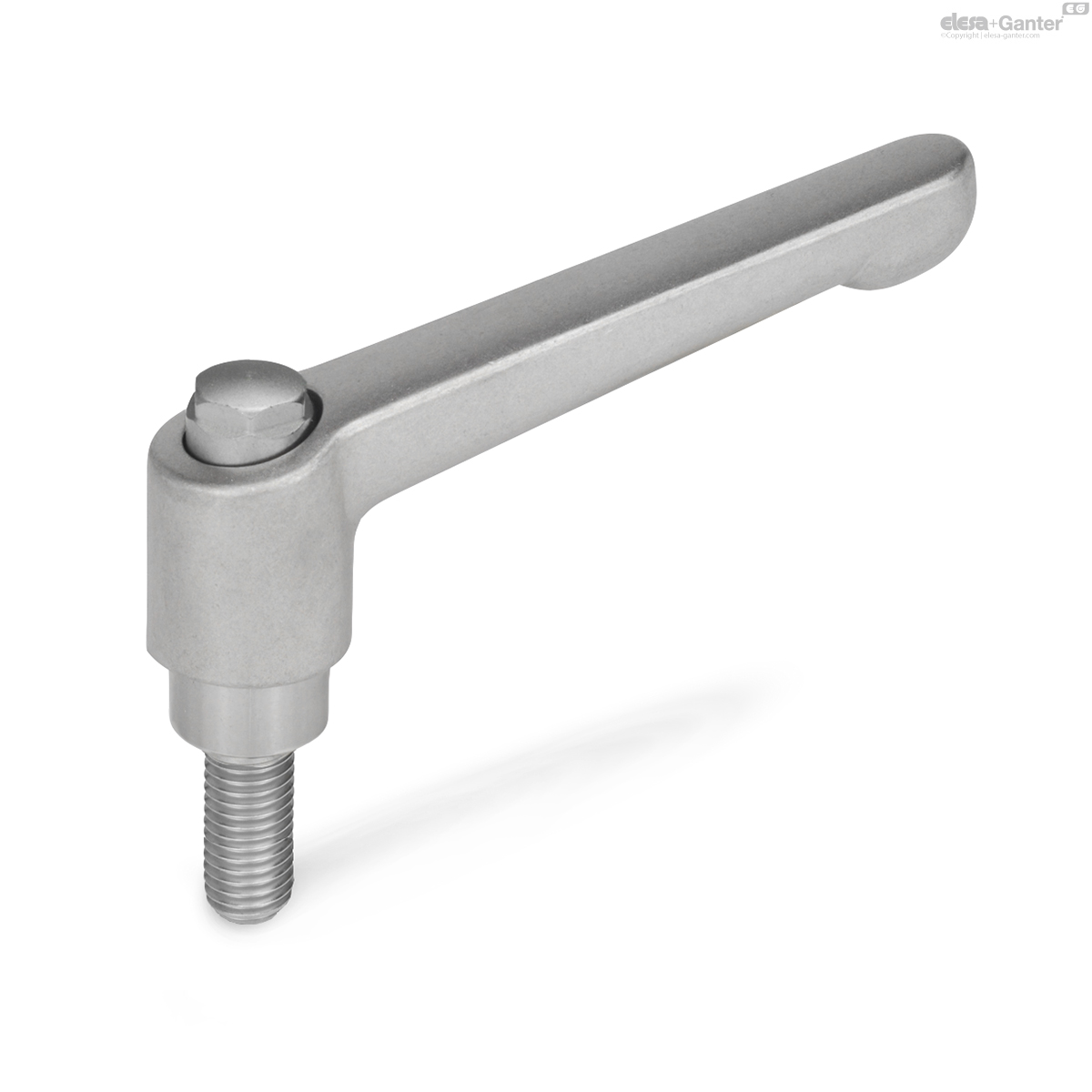

GN-911.3
Adjustable Stainless Steel Hand Levers
with Threaded Stud
Description
Specification
Handle
Stainless steel precision casting AISI CF-8
Matte shot-blasted
Threaded insert and retaining screw
Stainless steel AISI 303
Information
Adjustable stainless steel hand levers GN 911.3 replace the socket cap screws DIN 912 or the cap nuts DIN 917 of the tube clamp connectors and linear actuator connectors in stainless steel.
The table of dimensions of the tube clamp connectors and linear actuator connectors shows the matching hand lever for each screw location.
Technical information
- Stainless Steel characteristicsÂ
GN 911.3

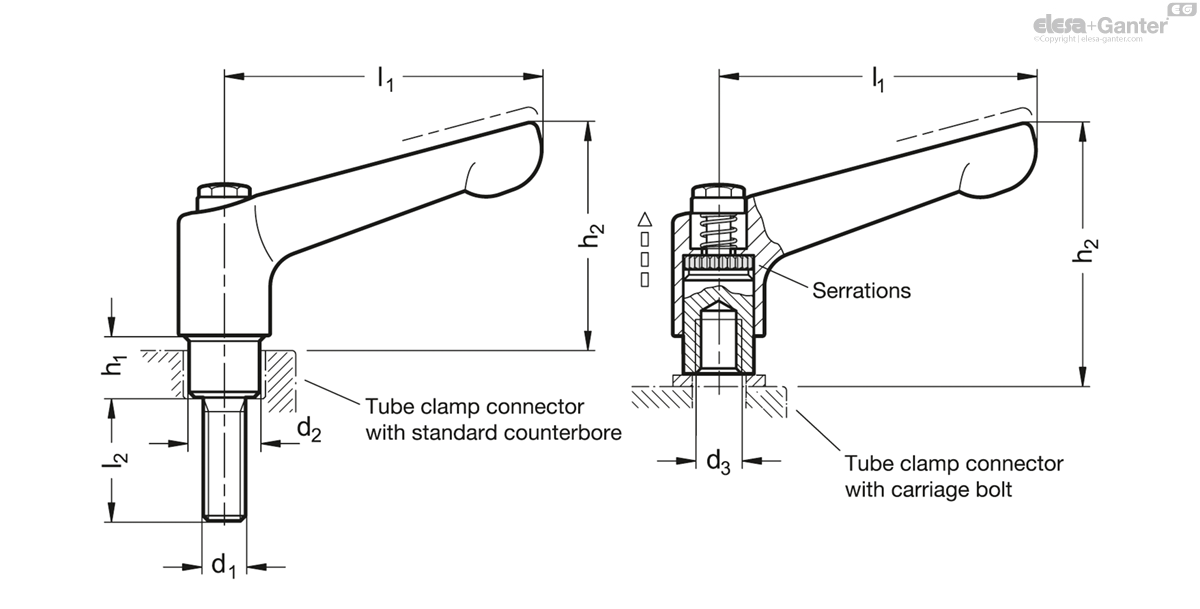

| l1 | d3 | h2 ≈ |  |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| GN 911.3-63-M8-GS | 63 | M 8 | 45 | 88 |
|
| GN 911.3-78-M8-GS | 78 | M 8 | 54 | 145 |
|
| GN 911.3-78-M10-GS | 78 | M 10 | 54 | 142 |
|
| GN 911.3-92-M10-GS | 92 | M 10 | 64 | 226 |
|
