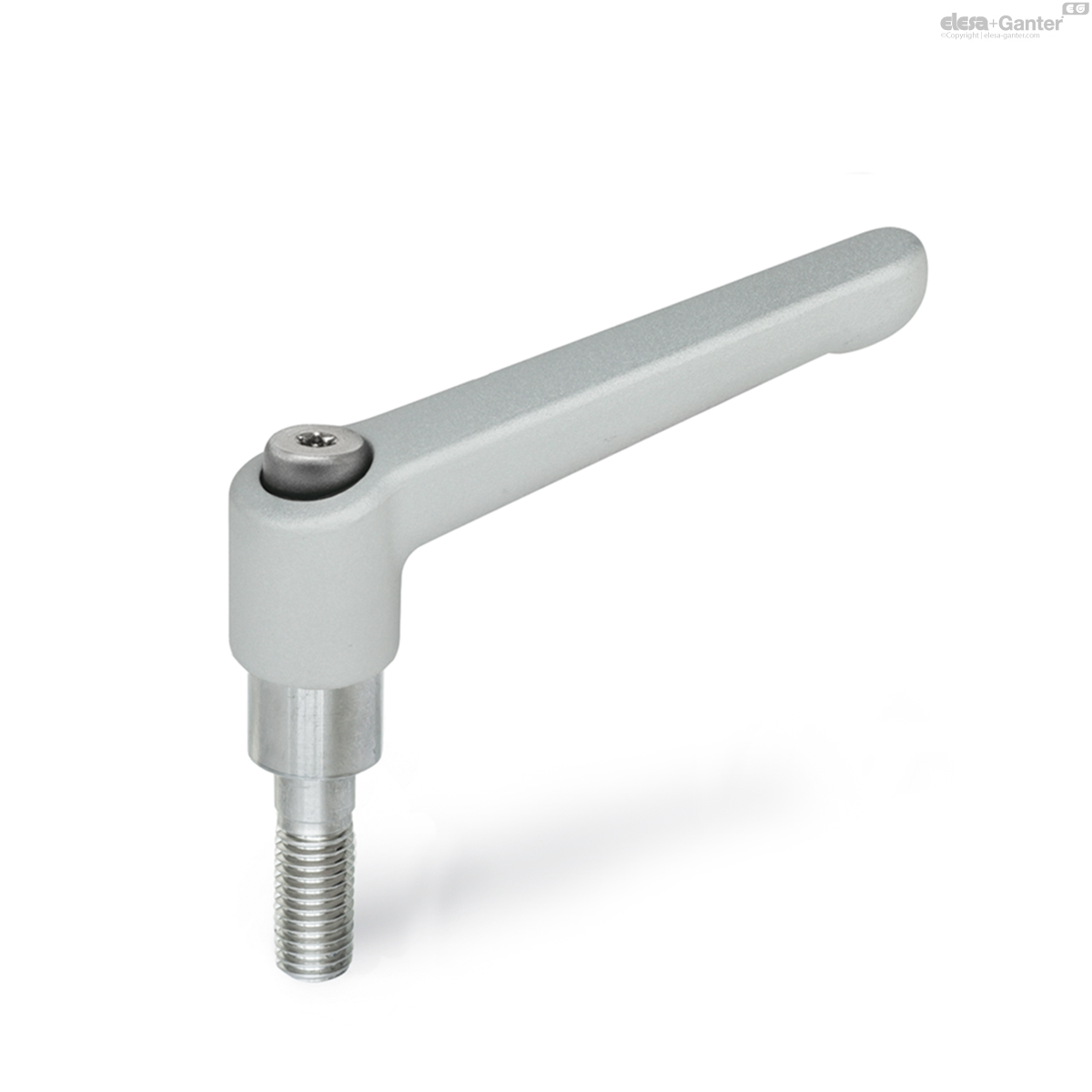

GN 911
Adjustable Hand Levers
for Tube Clamp Connectors / Linear Actuator Connectors
Description
Specification
Handle
Zinc die casting
Powder coated
Silver, RAL 9006, textured finish SR
Threaded insert and retaining screw
Stainless steel AISI 303
Information
Adjustable hand levers GN 911 replace the socket cap screws DIN 912 of the tube clamp connectors and linear actuator connectors.
The table of dimensions of the tube clamp connectors and linear actuator connectors shows the matching hand lever for each screw location.
Technical information
- Stainless Steel CharacteristicsÂ
GN 911

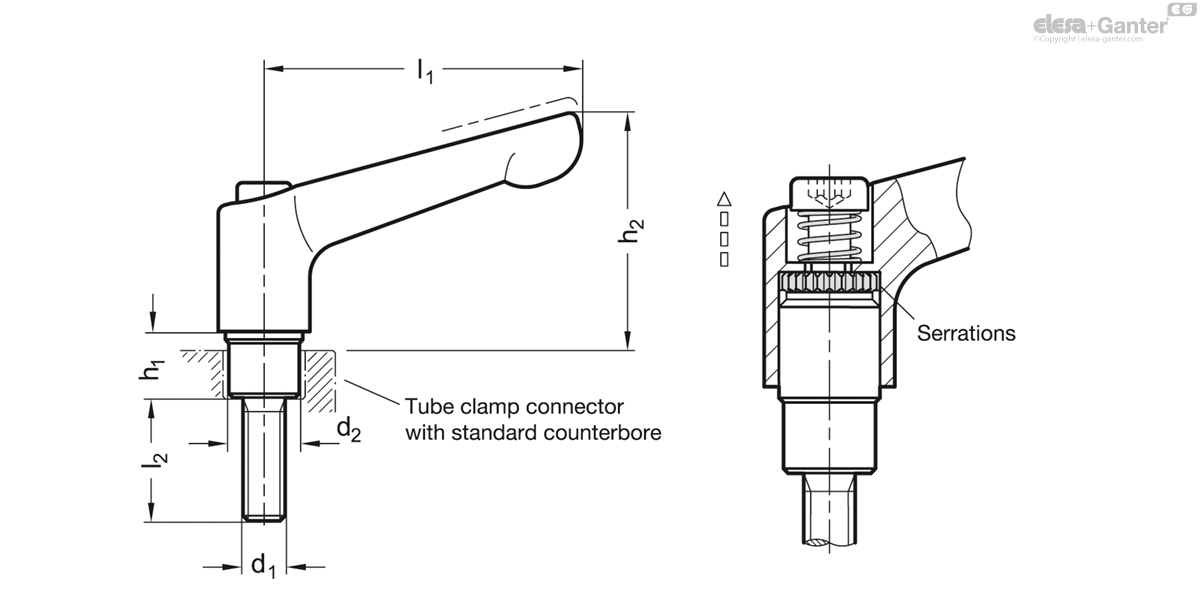

| l1 | d1 | l2 | d2 | h1 | h2 ≈ |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 911-45-M6-20-SR | 45 | M 6 | 20 | 10 | 9 | 34 | 41 |
|
| GN 911-63-M6-20-SR | 63 | M 6 | 20 | 10 | 12 | 44 | 84 |
|
| GN 911-63-M8-25-SR | 63 | M 8 | 25 | 13 | 12.5 | 42 | 93 |
|
| GN 911-63-M8-30-SR | 63 | M 8 | 30 | 13 | 12.5 | 42 | 96 |
|
| GN 911-63-M8-35-SR | 63 | M 8 | 35 | 13 | 12.5 | 42 | 97 |
|
| GN 911-63-M8-40-SR | 63 | M 8 | 40 | 13 | 12.5 | 42 | 102 |
|
| GN 911-63-M8-50-SR | 63 | M 8 | 50 | 13 | 12.5 | 42 | 103 |
|
| GN 911-78-M8-25-SR | 78 | M 8 | 25 | 13 | 15 | 52 | 149 |
|
| GN 911-78-M8-30-SR | 78 | M 8 | 30 | 13 | 15 | 52 | 151 |
|
| GN 911-78-M8-35-SR | 78 | M 8 | 35 | 13 | 15 | 52 | 147 |
|
| GN 911-78-M8-40-SR | 78 | M 8 | 40 | 13 | 15 | 52 | 153 |
|
| GN 911-78-M8-50-SR | 78 | M 8 | 50 | 13 | 15 | 52 | 151 |
|
| GN 911-78-M10-35-SR | 78 | M 10 | 35 | 16 | 16 | 50 | 166 |
|
| GN 911-78-M10-50-SR | 78 | M 10 | 50 | 16 | 16 | 50 | 176 |
|
| GN 911-78-M10-55-SR | 78 | M 10 | 55 | 16 | 16 | 50 | 179 |
|
| GN 911-78-M10-60-SR | 78 | M 10 | 60 | 16 | 16 | 50 | 182 |
|
| GN 911-78-M10-65-SR | 78 | M 10 | 65 | 16 | 16 | 50 | 185 |
|
| GN 911-92-M10-35-SR | 92 | M 10 | 35 | 16 | 16 | 60 | 221 |
|
| GN 911-92-M10-50-SR | 92 | M 10 | 50 | 16 | 16 | 60 | 230 |
|
| GN 911-92-M10-55-SR | 92 | M 10 | 55 | 16 | 16 | 60 | 233 |
|
| GN 911-92-M10-60-SR | 92 | M 10 | 60 | 16 | 16 | 60 | 236 |
|
| GN 911-92-M10-65-SR | 92 | M 10 | 65 | 16 | 16 | 60 | 236 |
|
