GN 909.5

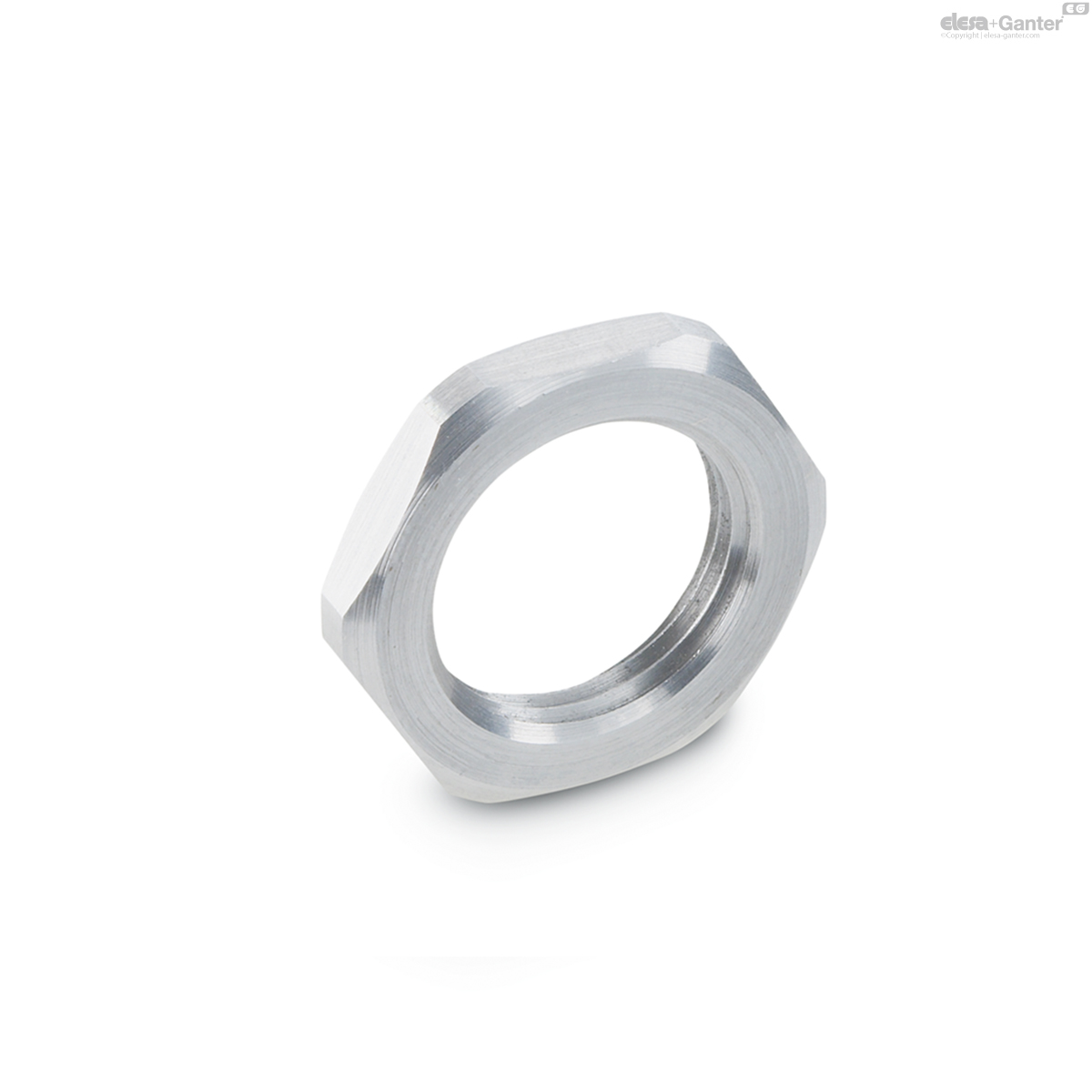

Thin Hex Nuts
Stainless Steel, for Indexing Plungers / Cam Action Indexing Plungers
Description
Specification
Stainless Steel AISI 303
Information
With their smaller dimensions, thin stainless steel hex nuts GN 909.5 expand the mounting options of indexing plungers and cam action indexing plungers.
Technical information
- Stainless Steel CharacteristicsÂ
GN 909.5

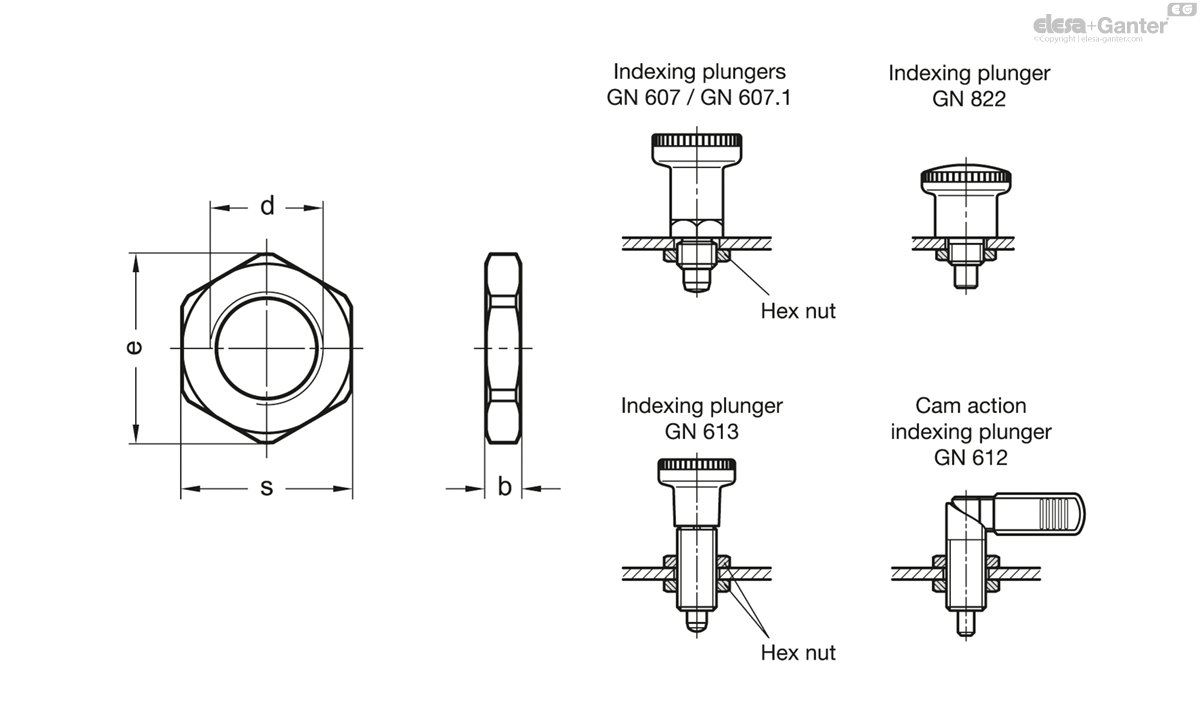

| d | b | e | s |  |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| GN 909.5-M8x1 | M 8 x 1 | 3.5 | 14.3 | 13 | 3 |
|
| GN 909.5-M10x1 | M 10 x 1 | 3.5 | 16.6 | 15 | 3 |
|
| GN 909.5-M12x1,5 | M 12 x 1.5 | 4 | 18.9 | 17 | 5 |
|
| GN 909.5-M16x1,5 | M 16 x 1.5 | 4.5 | 24.5 | 22 | 8 |
|
| GN 909.5-M20x1,5 | M 20 x 1.5 | 4.5 | 29.5 | 27 | 11 |
|
