GN 909

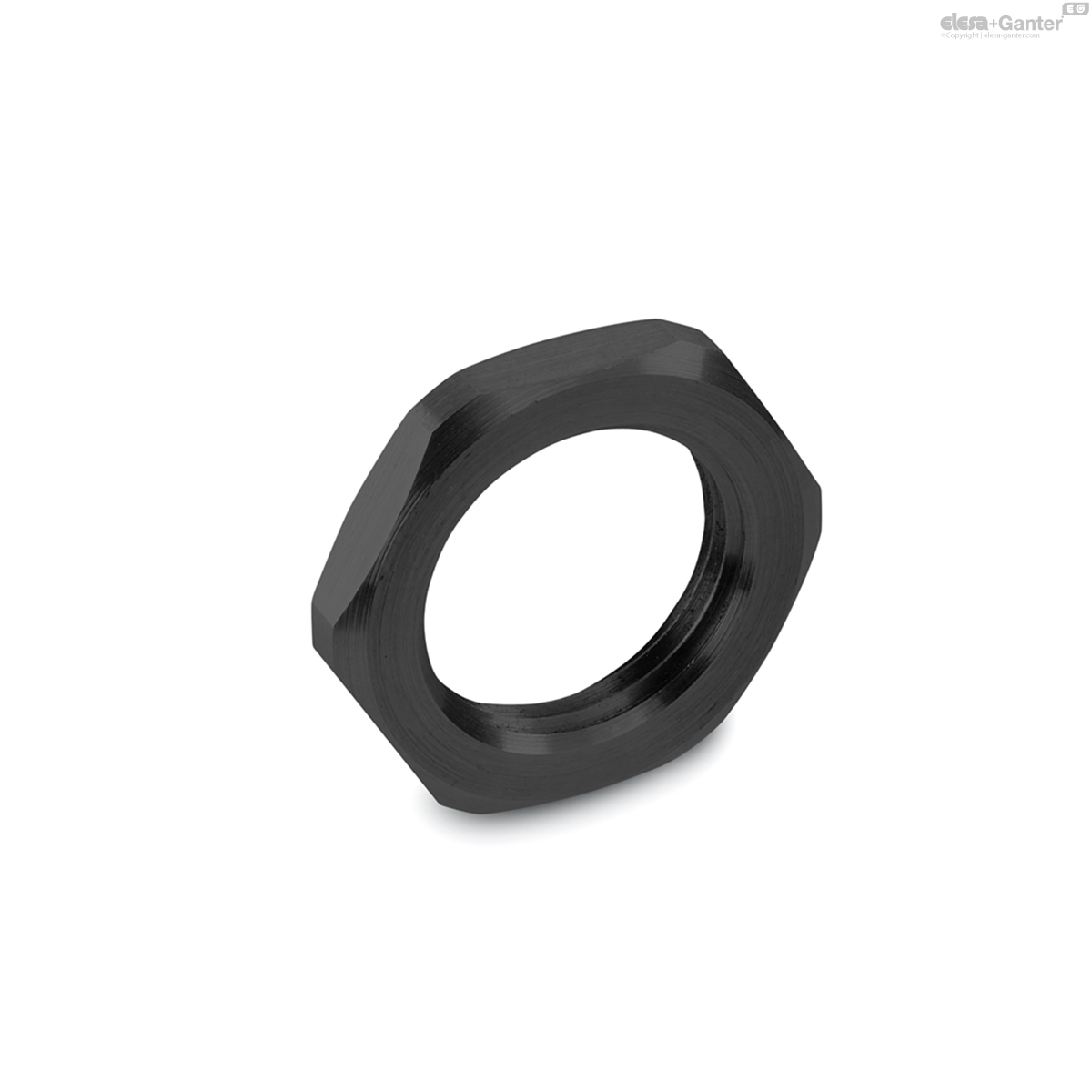

Thin Hex Nuts
Steel, for Indexing Plungers / Cam Action Indexing Plungers
Description
Specification
Steel
Blackened BT
Information
With their smaller dimensions, thin hex nuts GN 909 expand the mounting options of indexing plungers and cam action indexing plungers.
GN 909
| d | b | e | s |  |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| GN 909-M8x1-BT | M 8 x 1 | 3.5 | 14.3 | 13 | 3 |
|
| GN 909-M10x1-BT | M 10 x 1 | 3.5 | 16.6 | 15 | 4 |
|
| GN 909-M12x1,5-BT | M 12 x 1.5 | 4 | 18.9 | 17 | 5 |
|
| GN 909-M16x1,5-BT | M 16 x 1.5 | 4.5 | 24.5 | 22 | 8 |
|
| GN 909-M20x1,5-BT | M 20 x 1.5 | 4.5 | 29.5 | 27 | 11 |
|
