GN 9080
Universal Joints
Steel, for Ordinary Applications

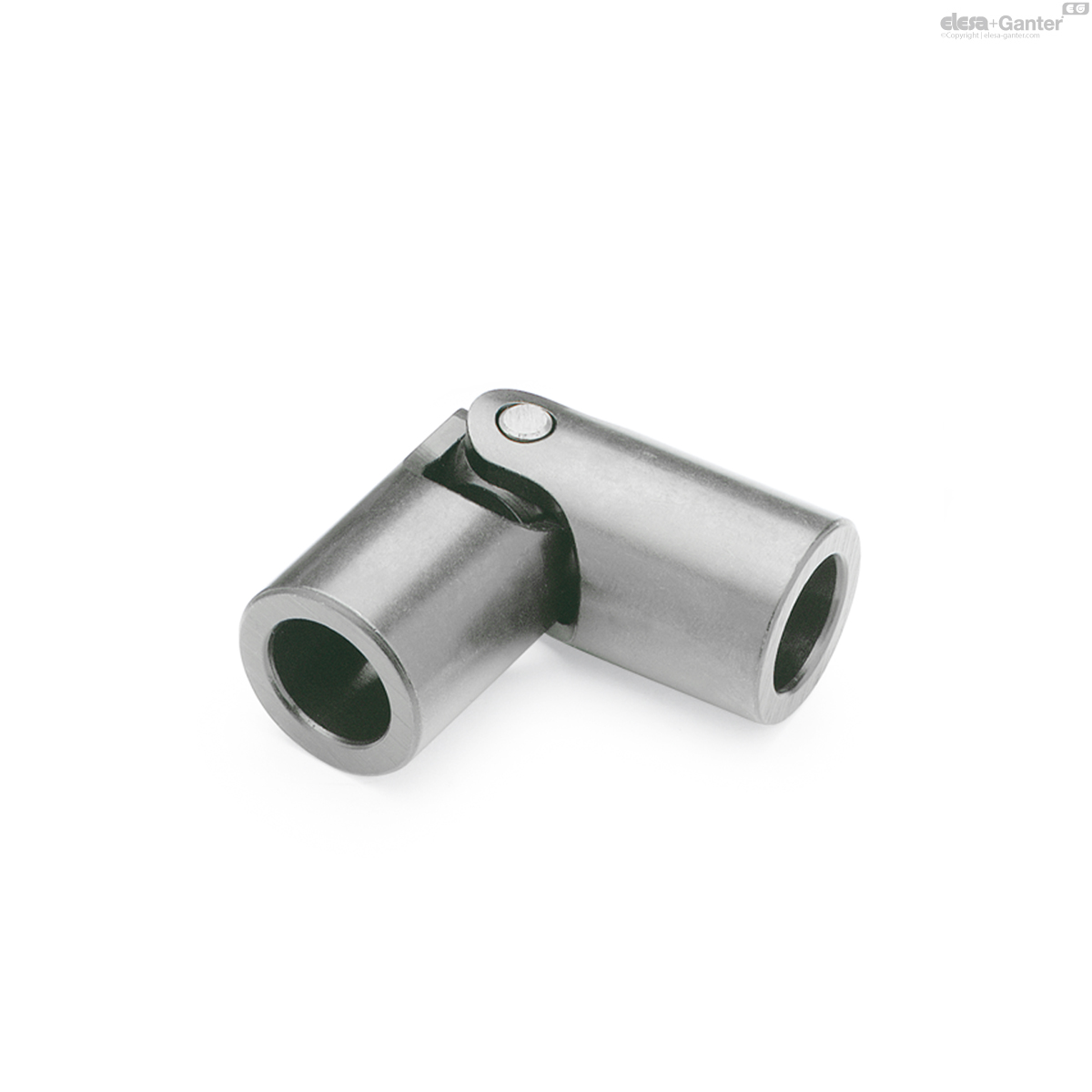

GN 9080-EG
Universal Joints
Single, friction bearing

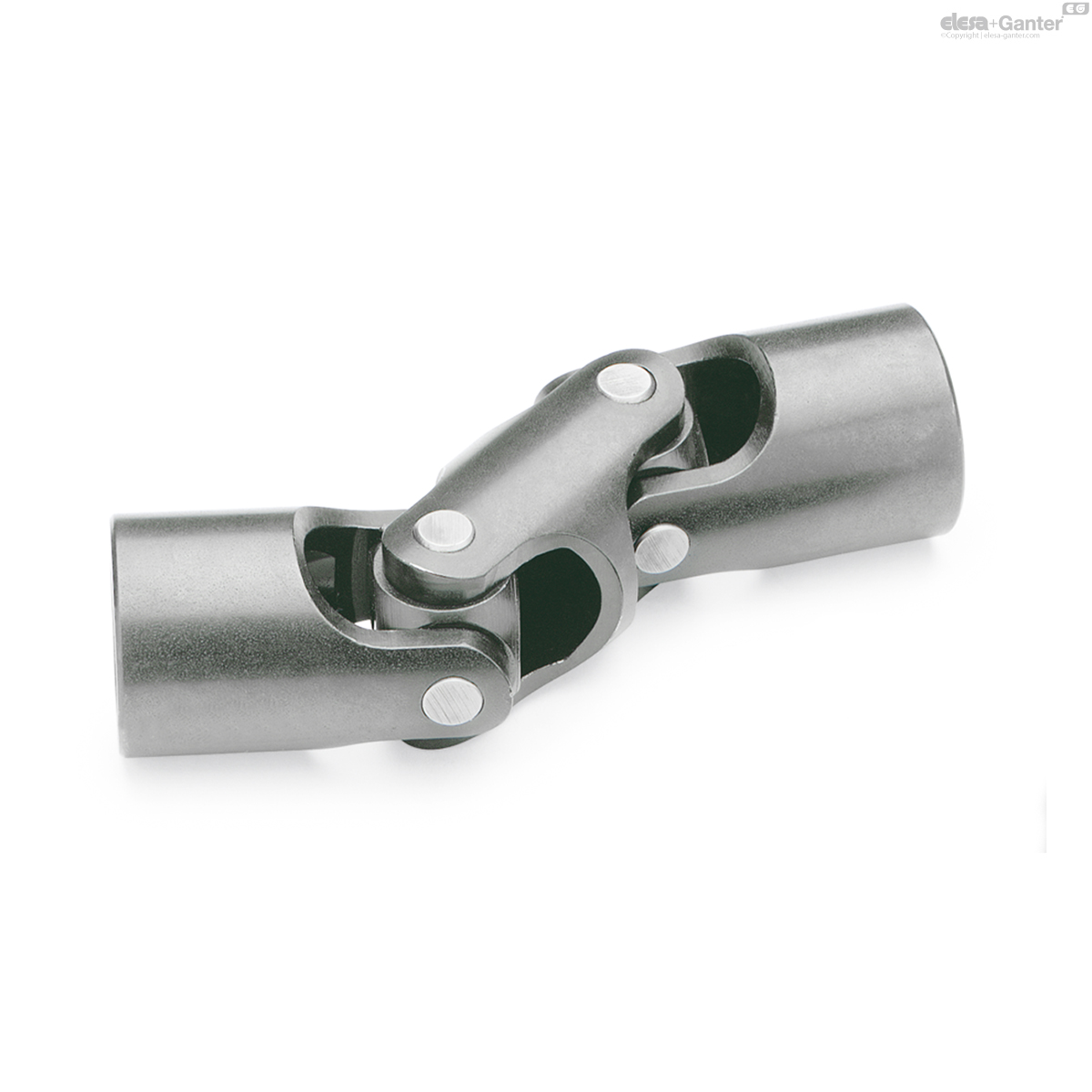

GN 9080-DG
Universal Joints
Double, friction bearing
Description
Specification
Types
- Type EG: Single, friction bearing
- Type DG: Double, friction bearing
Steel
- Not hardened
- Blackened
Information
Universal joints GN 9080 are a simple and very competitively priced variant.
They can only be used for applications with low revolutions. Typical applications are all types of manual operations such as the adjustment of louvers.
Technical information
- Cross holes GN 110.1
- ISO-Fundamental TolerancesÂ

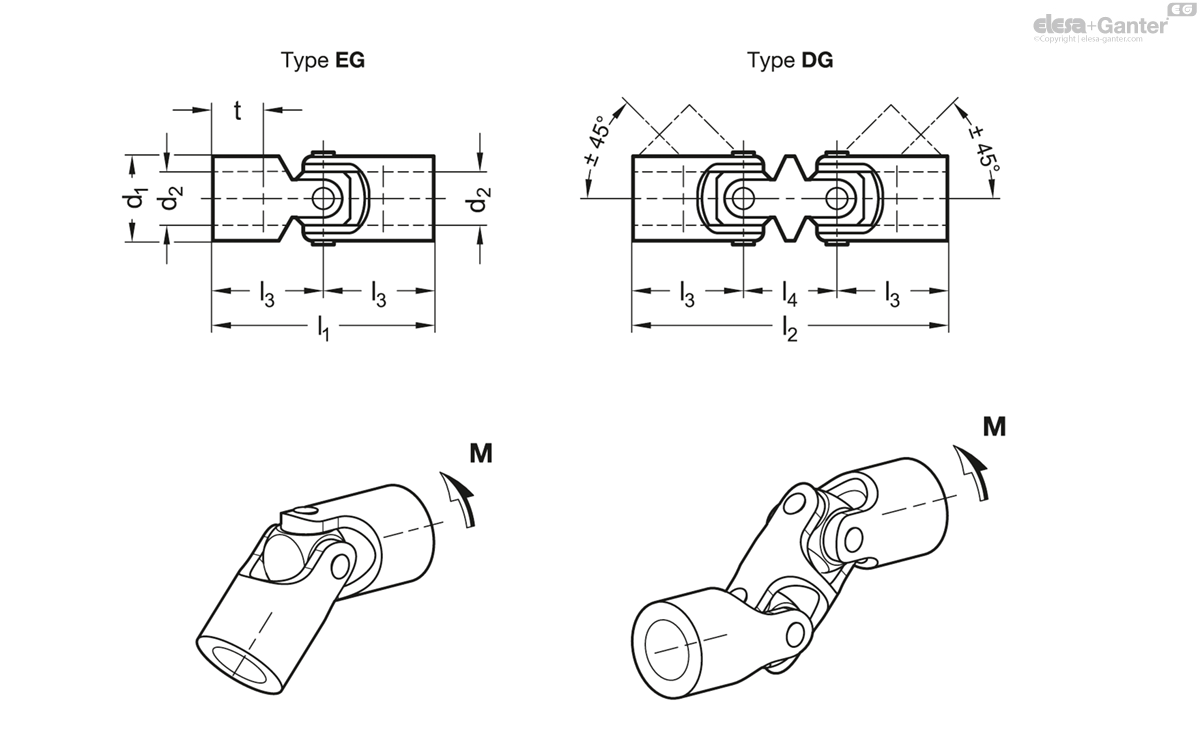

GN 9080-EG
| d1 | d2 H8 Bore |
l1 | l3 | t+1 Assembly length of the shaft | M Max. torque in Nm |
 |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 9080-13-B8-EG | 13 | B 8 | 42 | 21 | 12 | 2 | 25 |
|
| GN 9080-16-B10-EG | 16 | B 10 | 52 | 26 | 15 | 3 | 47 |
|
| GN 9080-20-B12-EG | 20 | B 12 | 62 | 31 | 18 | 6 | 86 |
|
| GN 9080-25-B16-EG | 25 | B 16 | 74 | 37 | 22 | 12 | 140 |
|
| GN 9080-32-B20-EG | 32 | B 20 | 86 | 43 | 25 | 24 | 280 |
|
