GN 900

Adjustable Slide Units
__logo__RoHS__
Enquire Now
product image
GN 900-D
Adjustable Slide Units
with Control knob
product image
GN 900-H
Adjustable Slide Units
with handwheel
product image
GN 900-DN/DR
Adjustable Slide Units
with control knob and digital position indicator
product image

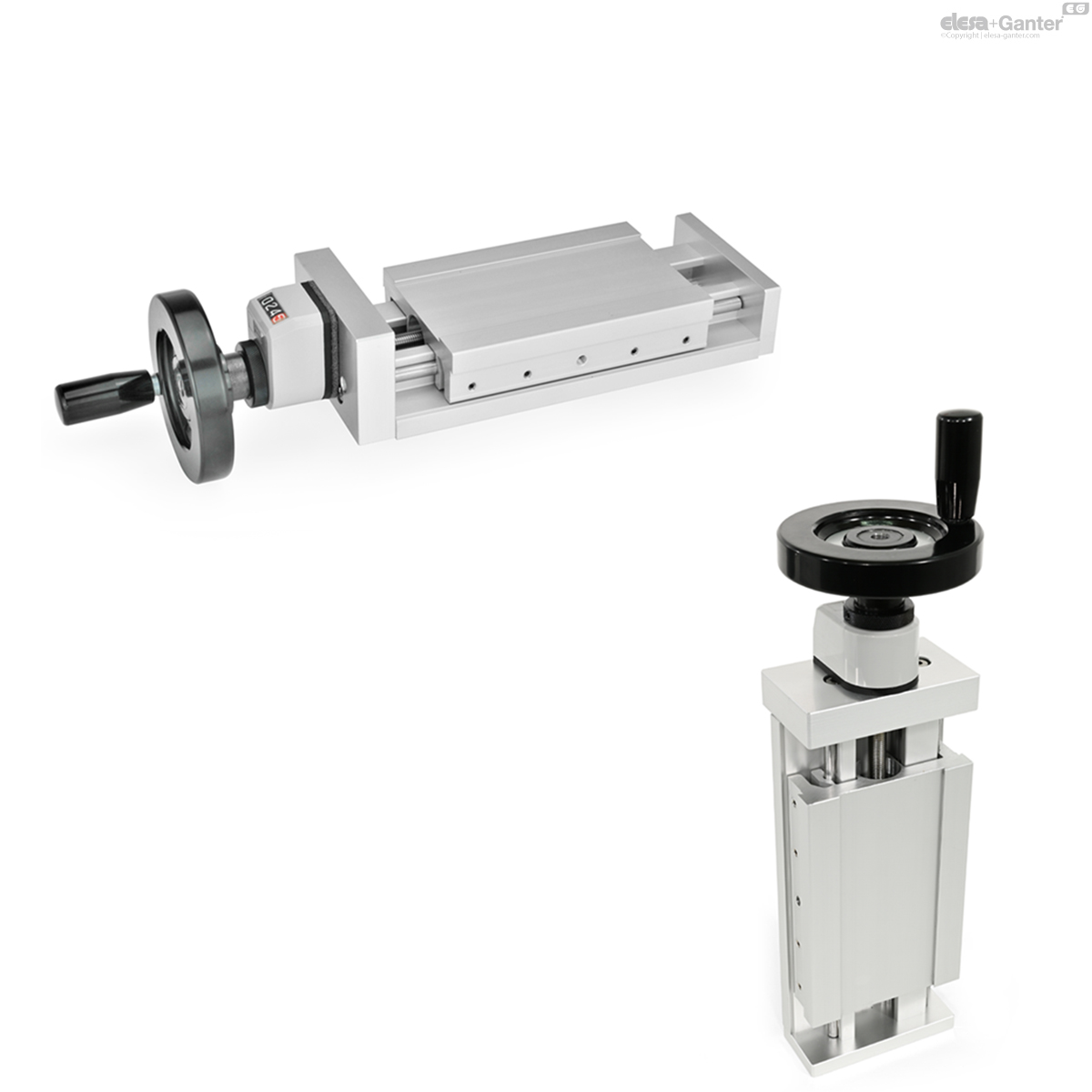

GN 900-HN/HR
Adjustable Slide Units
with handwheel and digital position indicator
product image
GN 900-S
Adjustable Slide Units
without adjustable spindle and operating element
  • product-image
  • product-image
  • product-image

Description

Specification

Types

  • Type D: with control knob
  • Type H: with handwheel (from size 50 upwards)
  • Type DN: with control knob and digital position indicator  DD51 (from size 50 upwards)
  • Type DR: with control knob and digital position indicator DD51 (from size 50 upwards)
  • Type HN: with handwheel and digital position indicator DD51 (from size 50 upwards)
  • Type HR: with handwheel and digital position indicator DD51 (from size 50 upwards)
  • Type S: without adjustable spindle and operating element (i. e. for mounting a pneumatic cylinder)

Identification No.

  • No. 1: Without adjustable hand lever

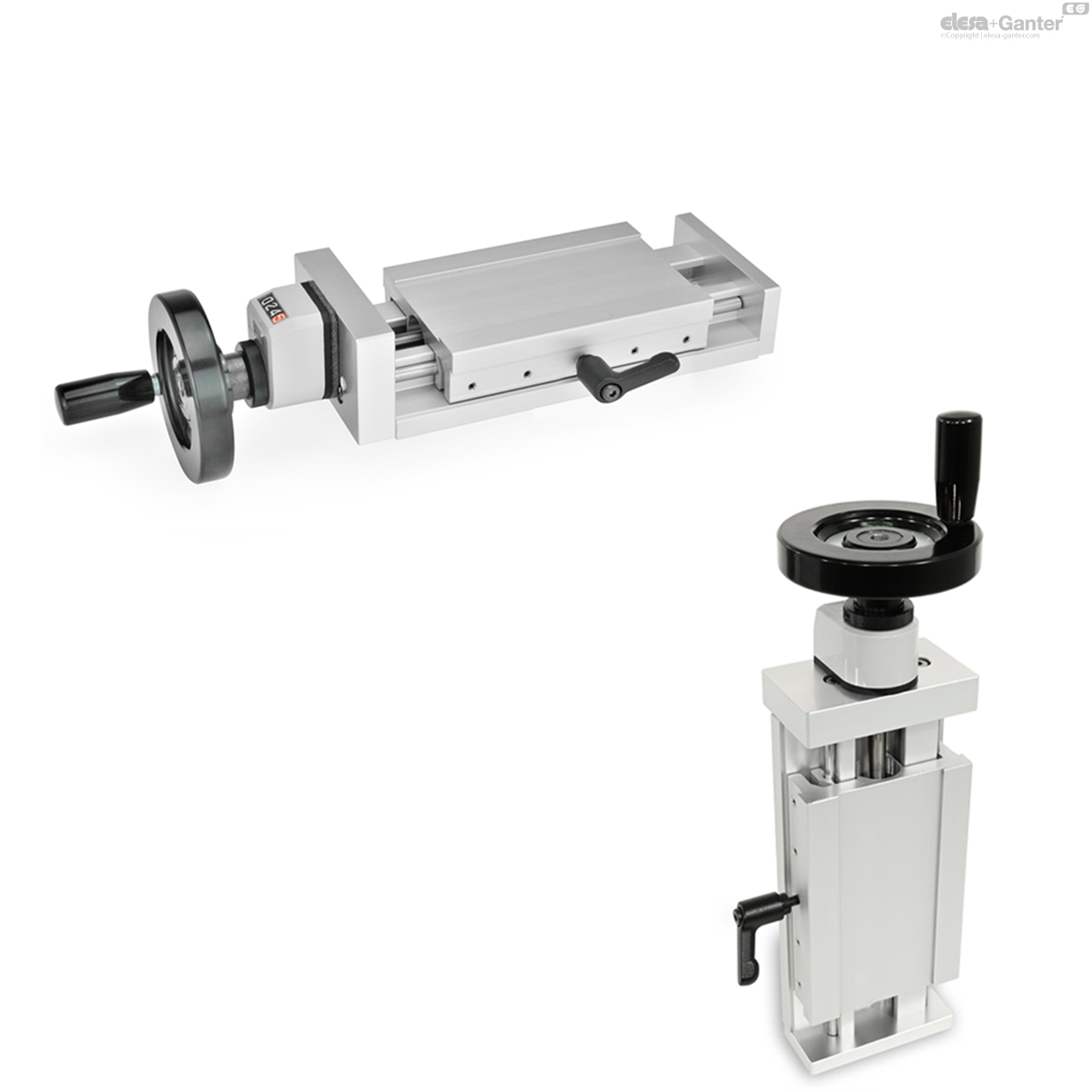

  • No. 2: With adjustable hand lever

Slides / End plates

Aluminum press formed

Anodized extrusion, natural color

Guide shafts

Stainless steel

Drive

  • Lead spindel / Ball bearing
  • Stainless steel
  • Lead nut
  • Plastic

Fixing screws

Stainless steel

Control knob / Scale ring

Aluminum, black anodized

Information

Adjustable slide units GN 900 can be combined with a range of adaptors to give various axis configurations.

These fastening units and connecting sets (GN 900.1, GN 900.2, GN 900.3) can be clamped to the adjustable slide units in a rapid and simple way.

For fine adjustment there is a scale ring graduated in increments of 0.05 mm, with digital position indicator 0.02 mm.

Furthermore this adustable slide units (Type D, with control knob) is rust proof.

  • Adjustable Slide Units
Accessory
  • Disc handwheels VDN.FP
  • Position Indicators BSA-N51

GN 900-HN/HR

Color b l1 - l2 d1 d2 d3 d4 d5 h1 h2 h3 h4 h5 h6 h7 h8 l3 l4 l5 l6 l7 l8 l9 l10 l11 l12 l13 s t __logo__weight__
Code Actions
GN 900-50-95-25-HN-1 Identification No. 1 50 95-25 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 480 cart-icon
GN 900-50-95-25-HN-2 Identification No. 2 50 95-25 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 510 cart-icon
GN 900-50-95-25-HR-1 Identification No. 1 50 95-25 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 480 cart-icon
GN 900-50-95-25-HR-2 Identification No. 2 50 95-25 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 510 cart-icon
GN 900-50-120-50-HN-1 Identification No. 1 50 120-50 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 540 cart-icon
GN 900-50-120-50-HN-2 Identification No. 2 50 120-50 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 560 cart-icon
GN 900-50-120-50-HR-1 Identification No. 1 50 120-50 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 540 cart-icon
GN 900-50-120-50-HR-2 Identification No. 2 50 120-50 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 560 cart-icon
GN 900-50-145-75-HN-1 Identification No. 1 50 145-75 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 550 cart-icon
GN 900-50-145-75-HN-2 Identification No. 2 50 145-75 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 580 cart-icon
GN 900-50-145-75-HR-1 Identification No. 1 50 145-75 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 550 cart-icon
GN 900-50-145-75-HR-2 Identification No. 2 50 145-75 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 580 cart-icon
GN 900-50-170-100-HN-1 Identification No. 1 50 170-100 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 580 cart-icon
GN 900-50-170-100-HN-2 Identification No. 2 50 170-100 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 620 cart-icon
GN 900-50-170-100-HR-1 Identification No. 1 50 170-100 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 580 cart-icon
GN 900-50-170-100-HR-2 Identification No. 2 50 170-100 M6 x 1 M 4 17 50 22 13 22.5 23 7 4.5 47 29 18 70 6 12 20 22 52 24 33 57 36 30 30 1.5 620 cart-icon
GN 900-80-145-25-HN-1 Identification No. 1 80 145-25 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1344 cart-icon
GN 900-80-145-25-HN-2 Identification No. 2 80 145-25 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1373 cart-icon
GN 900-80-145-25-HR-1 Identification No. 1 80 145-25 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1344 cart-icon
GN 900-80-145-25-HR-2 Identification No. 2 80 145-25 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1373 cart-icon
GN 900-80-170-50-HN-1 Identification No. 1 80 170-50 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1400 cart-icon
GN 900-80-170-50-HN-2 Identification No. 2 80 170-50 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1460 cart-icon
GN 900-80-170-50-HR-1 Identification No. 1 80 170-50 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1400 cart-icon
GN 900-80-170-50-HR-2 Identification No. 2 80 170-50 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1460 cart-icon
GN 900-80-195-75-HN-1 Identification No. 1 80 195-75 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1489 cart-icon
GN 900-80-195-75-HN-2 Identification No. 2 80 195-75 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1518 cart-icon
GN 900-80-195-75-HR-1 Identification No. 1 80 195-75 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1489 cart-icon
GN 900-80-195-75-HR-2 Identification No. 2 80 195-75 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1518 cart-icon
GN 900-80-220-100-HN-1 Identification No. 1 80 220-100 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1560 cart-icon
GN 900-80-220-100-HN-2 Identification No. 2 80 220-100 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1600 cart-icon
GN 900-80-220-100-HR-1 Identification No. 1 80 220-100 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1560 cart-icon
GN 900-80-220-100-HR-2 Identification No. 2 80 220-100 M8 x 1 M 5 22 80 22 20.5 35.5 36 10 10 51 37 10 120 8 16 24 31 55 27 33 66 25 30 50 2 1600 cart-icon
GN 900-120-185-25-HN-1 Identification No. 1 120 185-25 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3135 cart-icon
GN 900-120-185-25-HN-2 Identification No. 2 120 185-25 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3150 cart-icon
GN 900-120-185-25-HR-1 Identification No. 1 120 185-25 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3135 cart-icon
GN 900-120-185-25-HR-2 Identification No. 2 120 185-25 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3150 cart-icon
GN 900-120-210-50-HN-1 Identification No. 1 120 210-50 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3335 cart-icon
GN 900-120-210-50-HN-2 Identification No. 2 120 210-50 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3364 cart-icon
GN 900-120-210-50-HR-1 Identification No. 1 120 210-50 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3335 cart-icon
GN 900-120-210-50-HR-2 Identification No. 2 120 210-50 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3364 cart-icon
GN 900-120-235-75-HN-1 Identification No. 1 120 235-75 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3627 cart-icon
GN 900-120-235-75-HN-2 Identification No. 2 120 235-75 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3656 cart-icon
GN 900-120-235-75-HR-1 Identification No. 1 120 235-75 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3627 cart-icon
GN 900-120-235-75-HR-2 Identification No. 2 120 235-75 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3656 cart-icon
GN 900-120-260-100-HN-1 Identification No. 1 120 260-100 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3677 cart-icon
GN 900-120-260-100-HN-2 Identification No. 2 120 260-100 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3706 cart-icon
GN 900-120-260-100-HR-1 Identification No. 1 120 260-100 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3677 cart-icon
GN 900-120-260-100-HR-2 Identification No. 2 120 260-100 M10 x 1 M 5 34 100 34 26.3 45 46 13.8 10 57 45 5 160 10 18 34 46 69 41 33 81 25 30 80 2 3706 cart-icon
