Home Linear motion components Adjustable slide units GN 900

GN 900

Adjustable Slide Units

Enquire Now

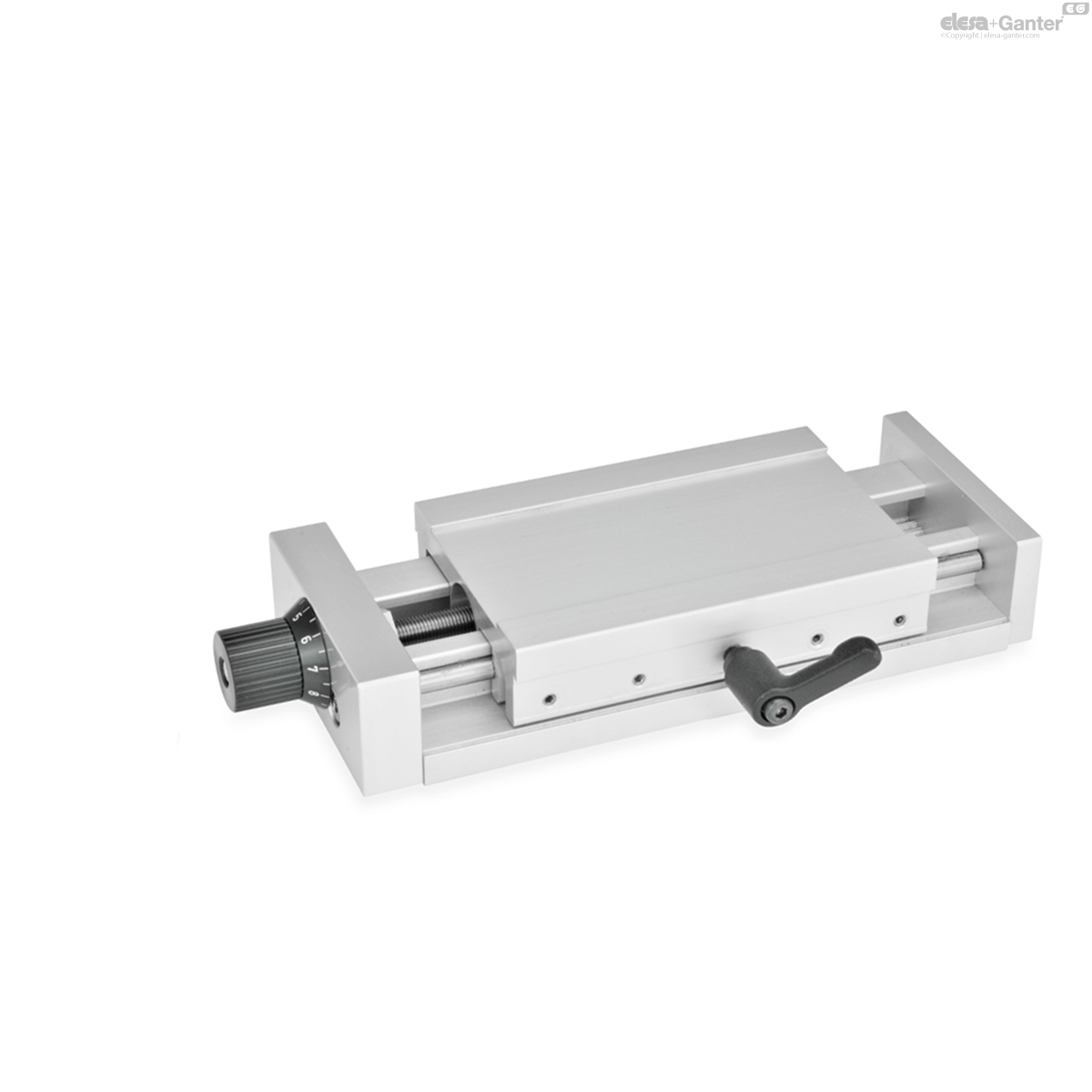

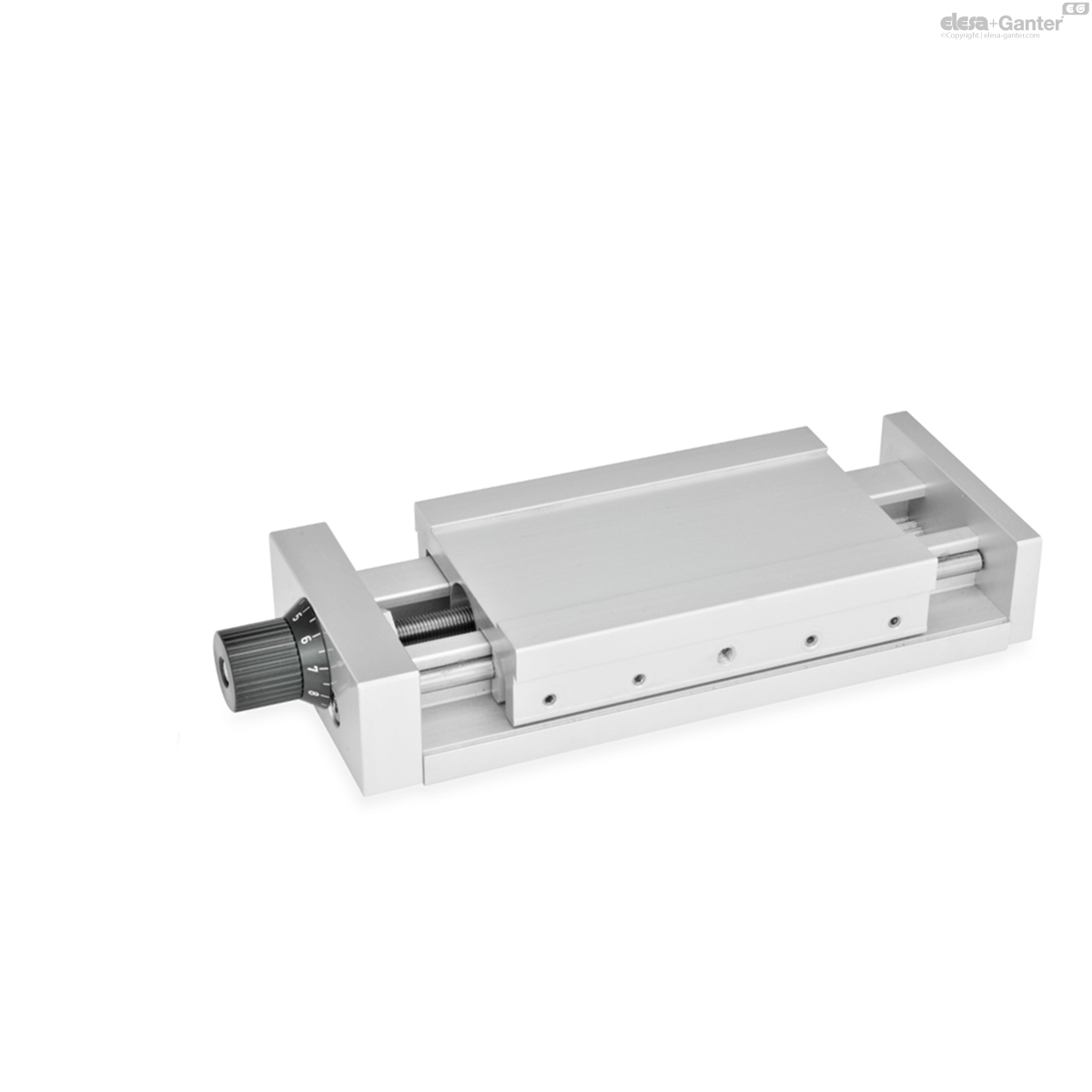

GN 900-D

Adjustable Slide Units

with Control knob

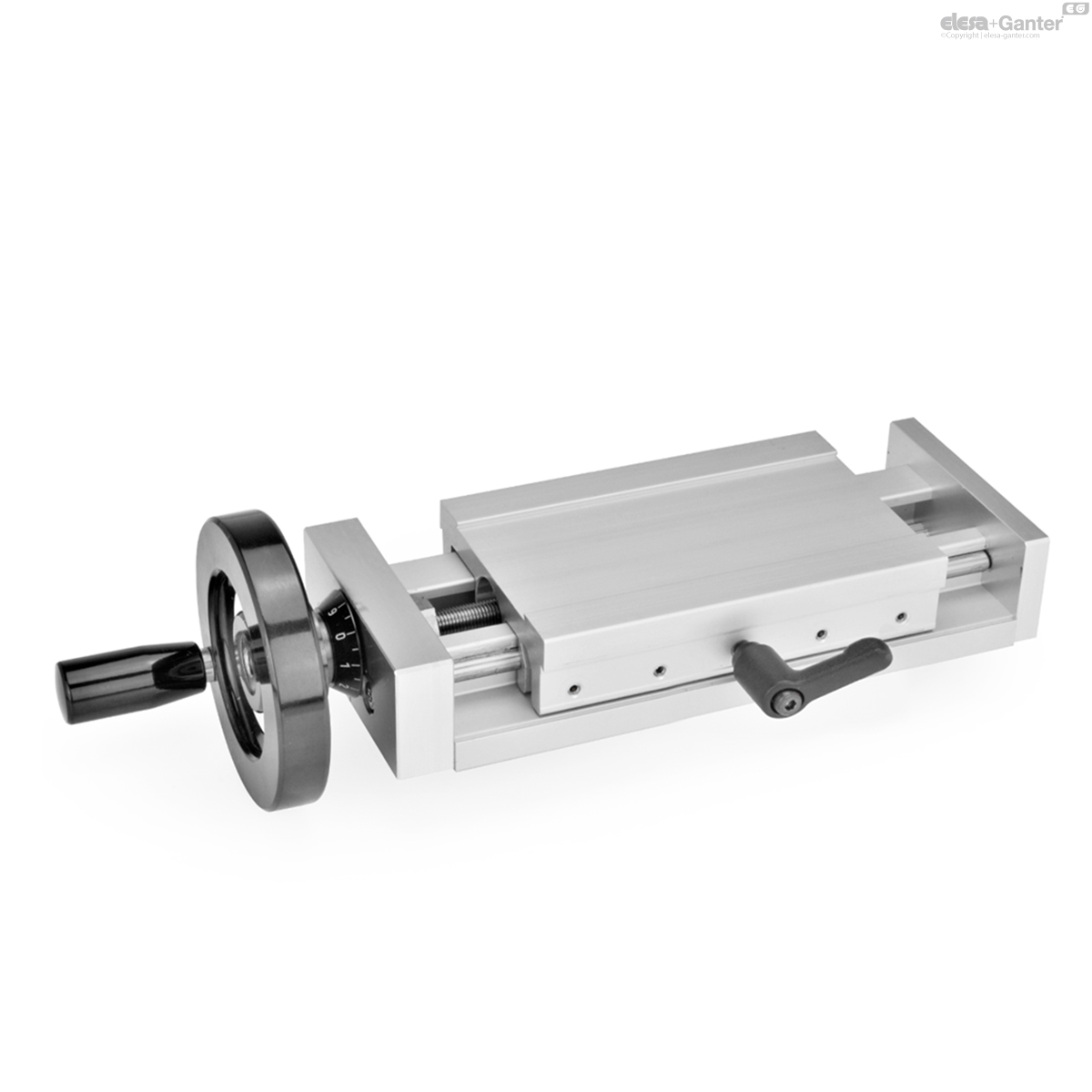

GN 900-H

Adjustable Slide Units

with handwheel

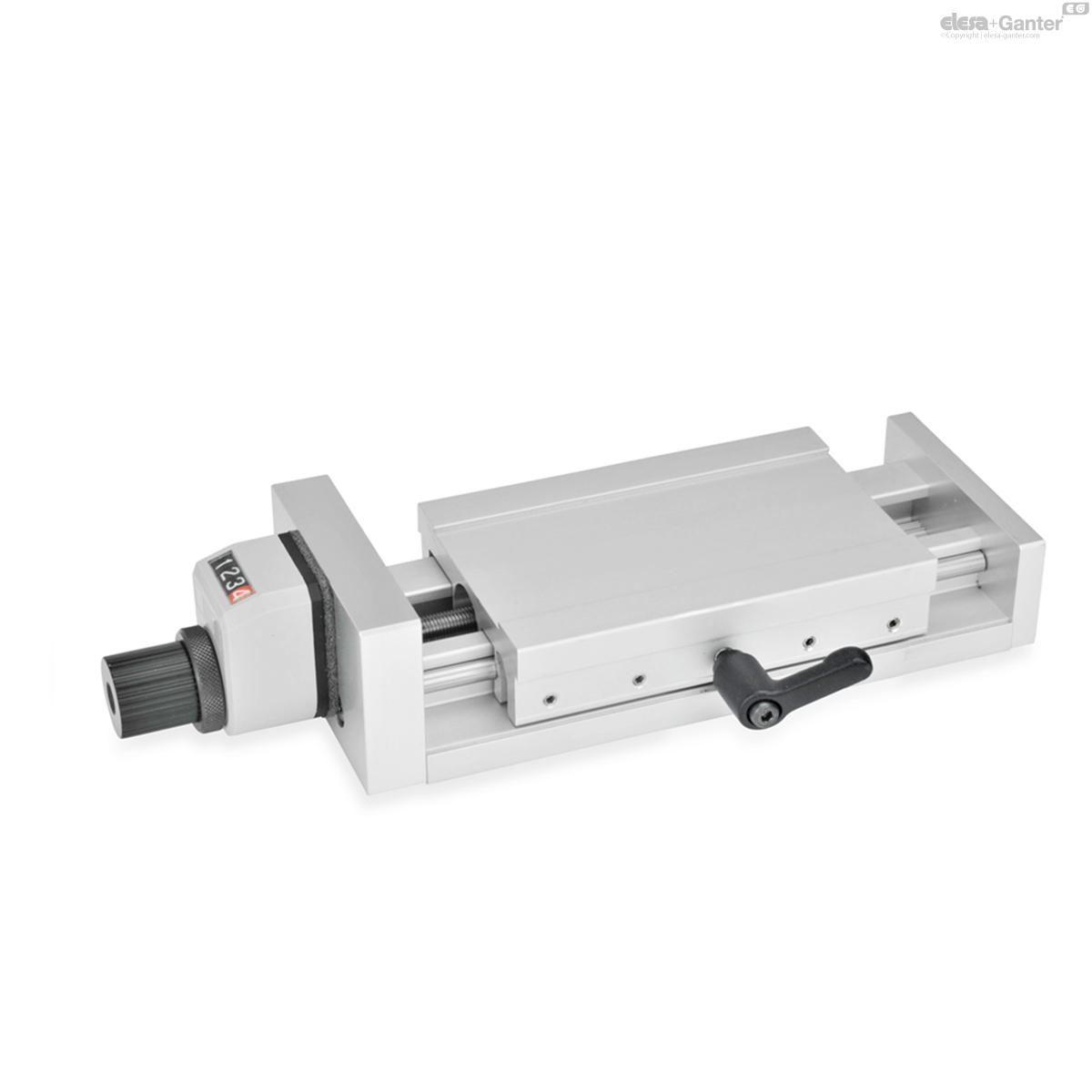

GN 900-DN/DR

Adjustable Slide Units

with control knob and digital position indicator

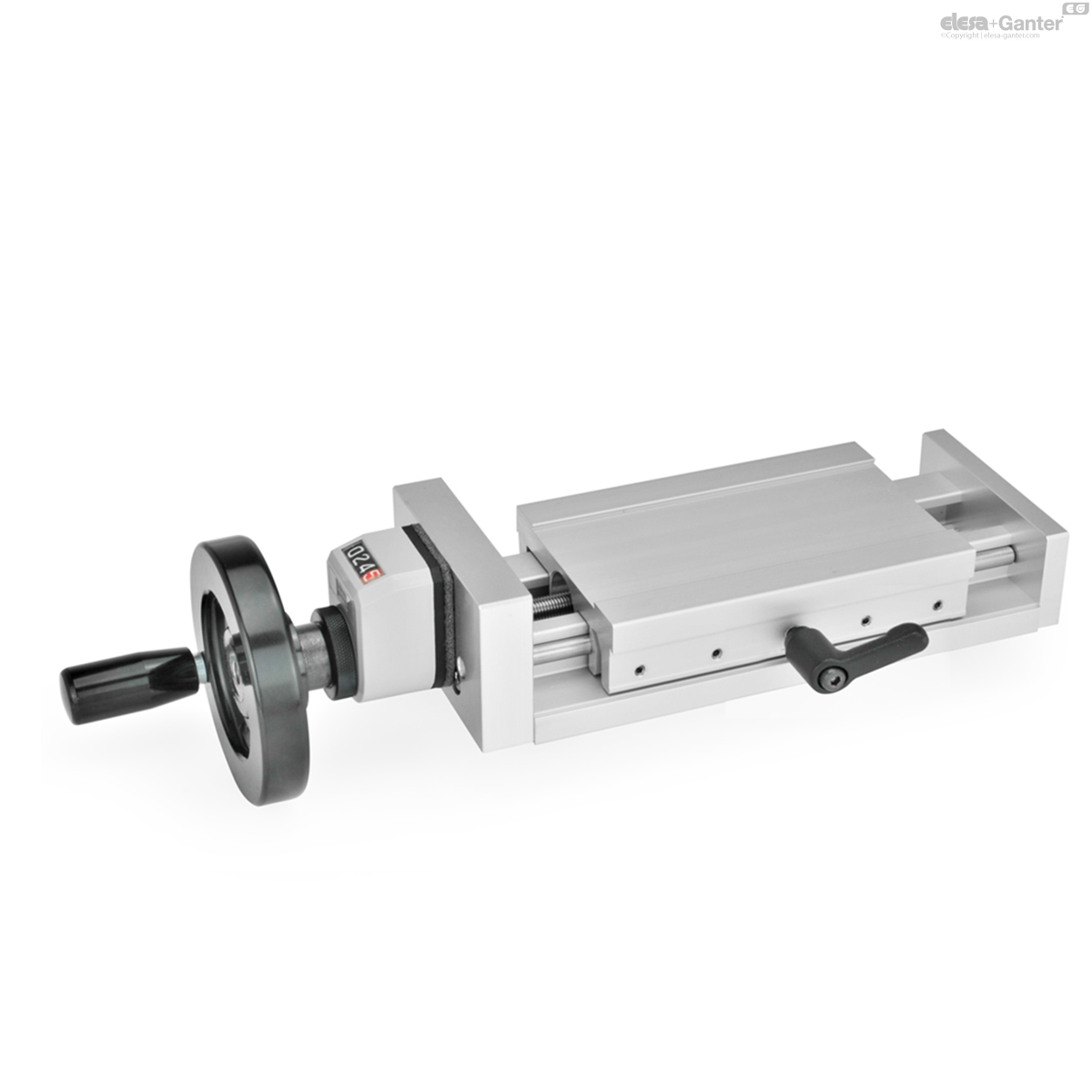

GN 900-HN/HR

Adjustable Slide Units

with handwheel and digital position indicator

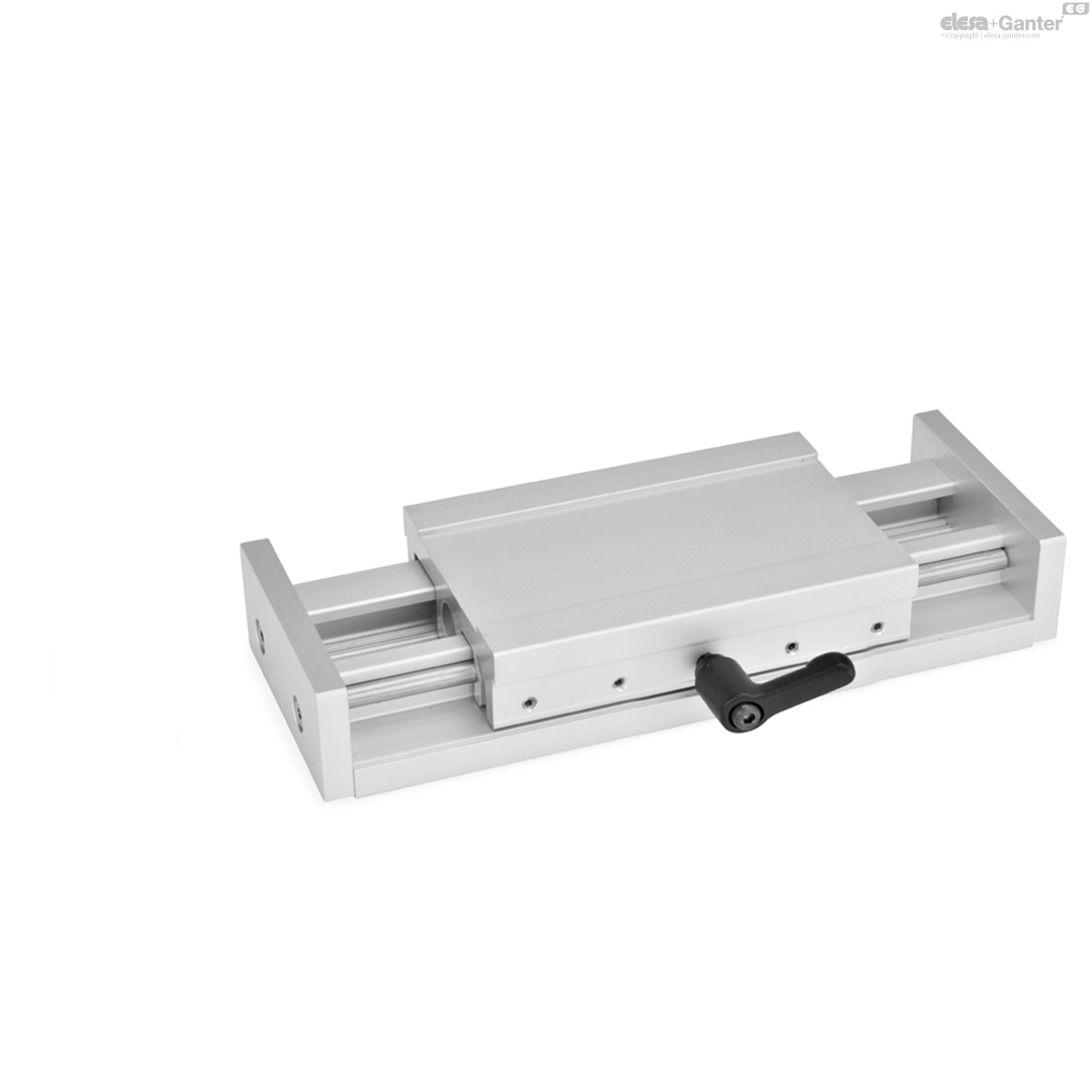

GN 900-S

Adjustable Slide Units

without adjustable spindle and operating element

Description

Specification

Types

Type D: with control knob

Type H: with handwheel (from size 50 upwards)

Type DN: with control knob and digital position indicator DD51 (from size 50 upwards)

Type DR: with control knob and digital position indicator DD51 (from size 50 upwards)

Type HN: with handwheel and digital position indicator DD51 (from size 50 upwards)

Type HR: with handwheel and digital position indicator DD51 (from size 50 upwards)

Type S: without adjustable spindle and operating element (i. e. for mounting a pneumatic cylinder)

Identification No.

No. 1: Without adjustable hand lever

No. 2: With adjustable hand lever

Slides / End plates

Aluminum press formed

Anodized extrusion, natural color

Guide shafts

Stainless steel

Drive

Lead spindel / Ball bearing

Stainless steel

Lead nut

Plastic

Fixing screws

Stainless steel

Control knob / Scale ring

Aluminum, black anodized

Information

Adjustable slide units GN 900 can be combined with a range of adaptors to give various axis configurations.

These fastening units and connecting sets (GN 900.1, GN 900.2, GN 900.3) can be clamped to the adjustable slide units in a rapid and simple way.

For fine adjustment there is a scale ring graduated in increments of 0.05 mm, with digital position indicator 0.02 mm.

Furthermore this adustable slide units (Type D, with control knob) is rust proof.

Adjustable Slide Units

Accessory

Disc handwheels VDN.FP

Position Indicators BSA-N51

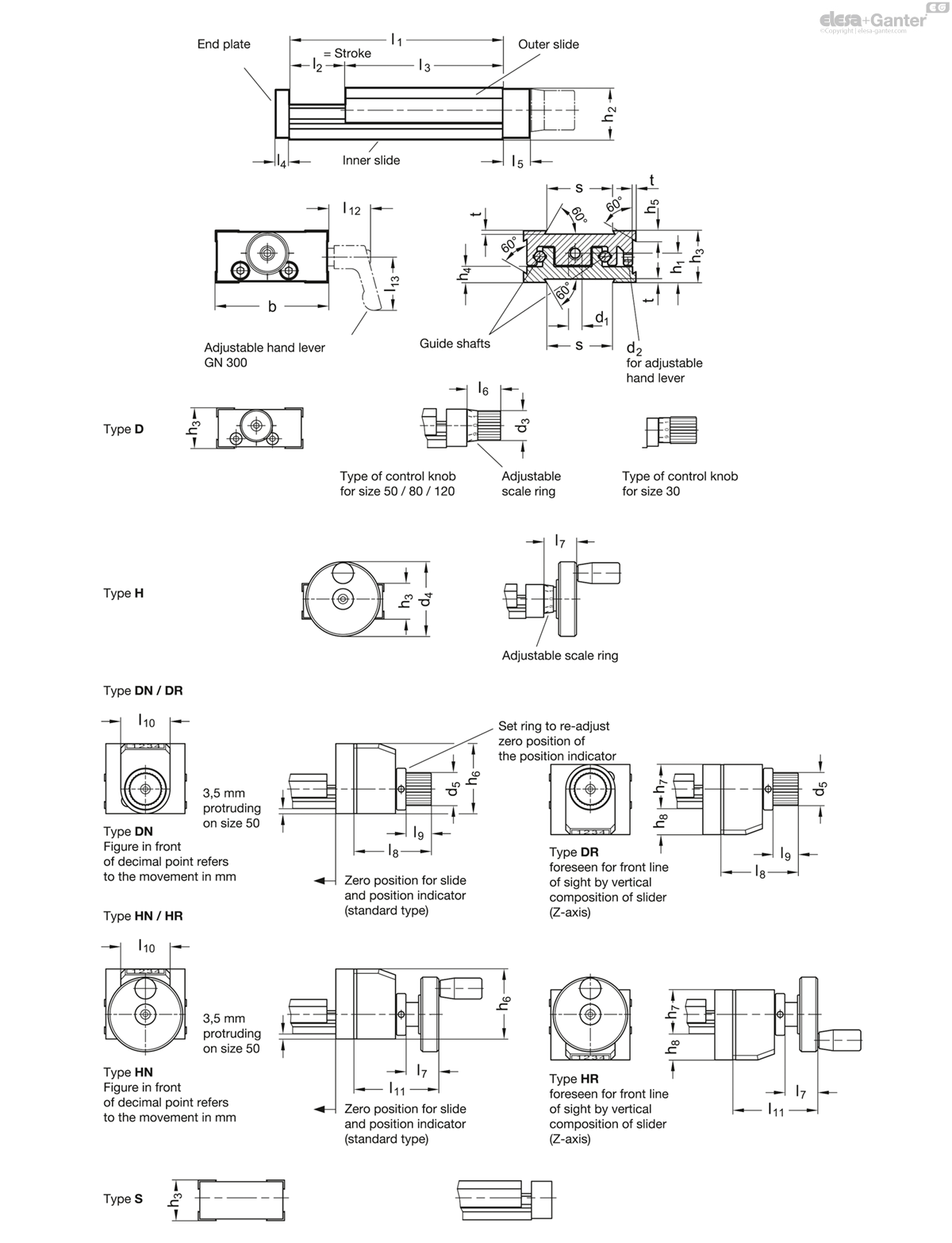

GN 900-D

	Color	b	l₁ - l₂	d₁	d₂	d₃	d₄	d₅	h₁	h₂	h₃	h₄	h₅	h₆	h₇	h₈	l₃	l₄	l₅	l₆	l₇	l₈	l₉	l₁₀	l₁₁	l₁₂	l₁₃	s	t
Code																															Actions
GN 900-30-50-5-D-1	Identification No. 1	30	50-5	M4 x 0.5	M 3	14	-	-	9.3	16	17	4	3	33	-	-	45	4	6	20	-	-	-	-	-	28	22	16	1	90
GN 900-30-50-5-D-2	Identification No. 2	30	50-5	M4 x 0.5	M 3	14	-	-	9.3	16	17	4	3	33	-	-	45	4	6	20	-	-	-	-	-	28	22	16	1	106
GN 900-30-55-10-D-1	Identification No. 1	30	55-10	M4 x 0.5	M 3	14	-	-	9.3	16	17	4	3	33	-	-	45	4	6	20	-	-	-	-	-	28	22	16	1	80
GN 900-30-55-10-D-2	Identification No. 2	30	55-10	M4 x 0.5	M 3	14	-	-	9.3	16	17	4	3	33	-	-	45	4	6	20	-	-	-	-	-	28	22	16	1	109
GN 900-30-60-15-D-1	Identification No. 1	30	60-15	M4 x 0.5	M 3	14	-	-	9.3	16	17	4	3	33	-	-	45	4	6	20	-	-	-	-	-	28	22	16	1	85
GN 900-30-60-15-D-2	Identification No. 2	30	60-15	M4 x 0.5	M 3	14	-	-	9.3	16	17	4	3	33	-	-	45	4	6	20	-	-	-	-	-	28	22	16	1	200
GN 900-30-65-20-D-1	Identification No. 1	30	65-20	M4 x 0.5	M 3	14	-	-	9.3	16	17	4	3	33	-	-	45	4	6	20	-	-	-	-	-	28	22	16	1	97
GN 900-30-65-20-D-2	Identification No. 2	30	65-20	M4 x 0.5	M 3	14	-	-	9.3	16	17	4	3	33	-	-	45	4	6	20	-	-	-	-	-	28	22	16	1	116
GN 900-50-95-25-D-1	Identification No. 1	50	95-25	M6 x 1	M 4	17	50	22	13	22.5	23	7	4.5	47	29	18	70	6	12	20	22	52	24	33	57	36	30	30	1.5	293
GN 900-50-95-25-D-2	Identification No. 2	50	95-25	M6 x 1	M 4	17	50	22	13	22.5	23	7	4.5	47	29	18	70	6	12	20	22	52	24	33	57	36	30	30	1.5	322
GN 900-50-120-50-D-1	Identification No. 1	50	120-50	M6 x 1	M 4	17	50	22	13	22.5	23	7	4.5	47	29	18	70	6	12	20	22	52	24	33	57	36	30	30	1.5	340
GN 900-50-120-50-D-2	Identification No. 2	50	120-50	M6 x 1	M 4	17	50	22	13	22.5	23	7	4.5	47	29	18	70	6	12	20	22	52	24	33	57	36	30	30	1.5	360
GN 900-50-145-75-D-1	Identification No. 1	50	145-75	M6 x 1	M 4	17	50	22	13	22.5	23	7	4.5	47	29	18	70	6	12	20	22	52	24	33	57	36	30	30	1.5	366
GN 900-50-145-75-D-2	Identification No. 2	50	145-75	M6 x 1	M 4	17	50	22	13	22.5	23	7	4.5	47	29	18	70	6	12	20	22	52	24	33	57	36	30	30	1.5	400
GN 900-50-170-100-D-1	Identification No. 1	50	170-100	M6 x 1	M 4	17	50	22	13	22.5	23	7	4.5	47	29	18	70	6	12	20	22	52	24	33	57	36	30	30	1.5	400
GN 900-50-170-100-D-2	Identification No. 2	50	170-100	M6 x 1	M 4	17	50	22	13	22.5	23	7	4.5	47	29	18	70	6	12	20	22	52	24	33	57	36	30	30	1.5	430
GN 900-80-145-25-D-1	Identification No. 1	80	145-25	M8 x 1	M 5	22	80	22	20.5	35.5	36	10	10	51	37	10	120	8	16	24	31	55	27	33	66	25	30	50	2	1060
GN 900-80-145-25-D-2	Identification No. 2	80	145-25	M8 x 1	M 5	22	80	22	20.5	35.5	36	10	10	51	37	10	120	8	16	24	31	55	27	33	66	25	30	50	2	1080
GN 900-80-170-50-D-1	Identification No. 1	80	170-50	M8 x 1	M 5	22	80	22	20.5	35.5	36	10	10	51	37	10	120	8	16	24	31	55	27	33	66	25	30	50	2	1100
GN 900-80-170-50-D-2	Identification No. 2	80	170-50	M8 x 1	M 5	22	80	22	20.5	35.5	36	10	10	51	37	10	120	8	16	24	31	55	27	33	66	25	30	50	2	1160
GN 900-80-195-75-D-1	Identification No. 1	80	195-75	M8 x 1	M 5	22	80	22	20.5	35.5	36	10	10	51	37	10	120	8	16	24	31	55	27	33	66	25	30	50	2	1220
GN 900-80-195-75-D-2	Identification No. 2	80	195-75	M8 x 1	M 5	22	80	22	20.5	35.5	36	10	10	51	37	10	120	8	16	24	31	55	27	33	66	25	30	50	2	1250
GN 900-80-220-100-D-1	Identification No. 1	80	220-100	M8 x 1	M 5	22	80	22	20.5	35.5	36	10	10	51	37	10	120	8	16	24	31	55	27	33	66	25	30	50	2	1302
GN 900-80-220-100-D-2	Identification No. 2	80	220-100	M8 x 1	M 5	22	80	22	20.5	35.5	36	10	10	51	37	10	120	8	16	24	31	55	27	33	66	25	30	50	2	1331
GN 900-120-185-25-D-1	Identification No. 1	120	185-25	M10 x 1	M 5	34	100	34	26.3	45	46	13.8	10	57	45	5	160	10	18	34	46	69	41	33	81	25	30	80	2	2768
GN 900-120-185-25-D-2	Identification No. 2	120	185-25	M10 x 1	M 5	34	100	34	26.3	45	46	13.8	10	57	45	5	160	10	18	34	46	69	41	33	81	25	30	80	2	2797
GN 900-120-210-50-D-1	Identification No. 1	120	210-50	M10 x 1	M 5	34	100	34	26.3	45	46	13.8	10	57	45	5	160	10	18	34	46	69	41	33	81	25	30	80	2	2950
GN 900-120-210-50-D-2	Identification No. 2	120	210-50	M10 x 1	M 5	34	100	34	26.3	45	46	13.8	10	57	45	5	160	10	18	34	46	69	41	33	81	25	30	80	2	3070
GN 900-120-235-75-D-1	Identification No. 1	120	235-75	M10 x 1	M 5	34	100	34	26.3	45	46	13.8	10	57	45	5	160	10	18	34	46	69	41	33	81	25	30	80	2	3119
GN 900-120-235-75-D-2	Identification No. 2	120	235-75	M10 x 1	M 5	34	100	34	26.3	45	46	13.8	10	57	45	5	160	10	18	34	46	69	41	33	81	25	30	80	2	3148
GN 900-120-260-100-D-1	Identification No. 1	120	260-100	M10 x 1	M 5	34	100	34	26.3	45	46	13.8	10	57	45	5	160	10	18	34	46	69	41	33	81	25	30	80	2	3288
GN 900-120-260-100-D-2	Identification No. 2	120	260-100	M10 x 1	M 5	34	100	34	26.3	45	46	13.8	10	57	45	5	160	10	18	34	46	69	41	33	81	25	30	80	2	3317
