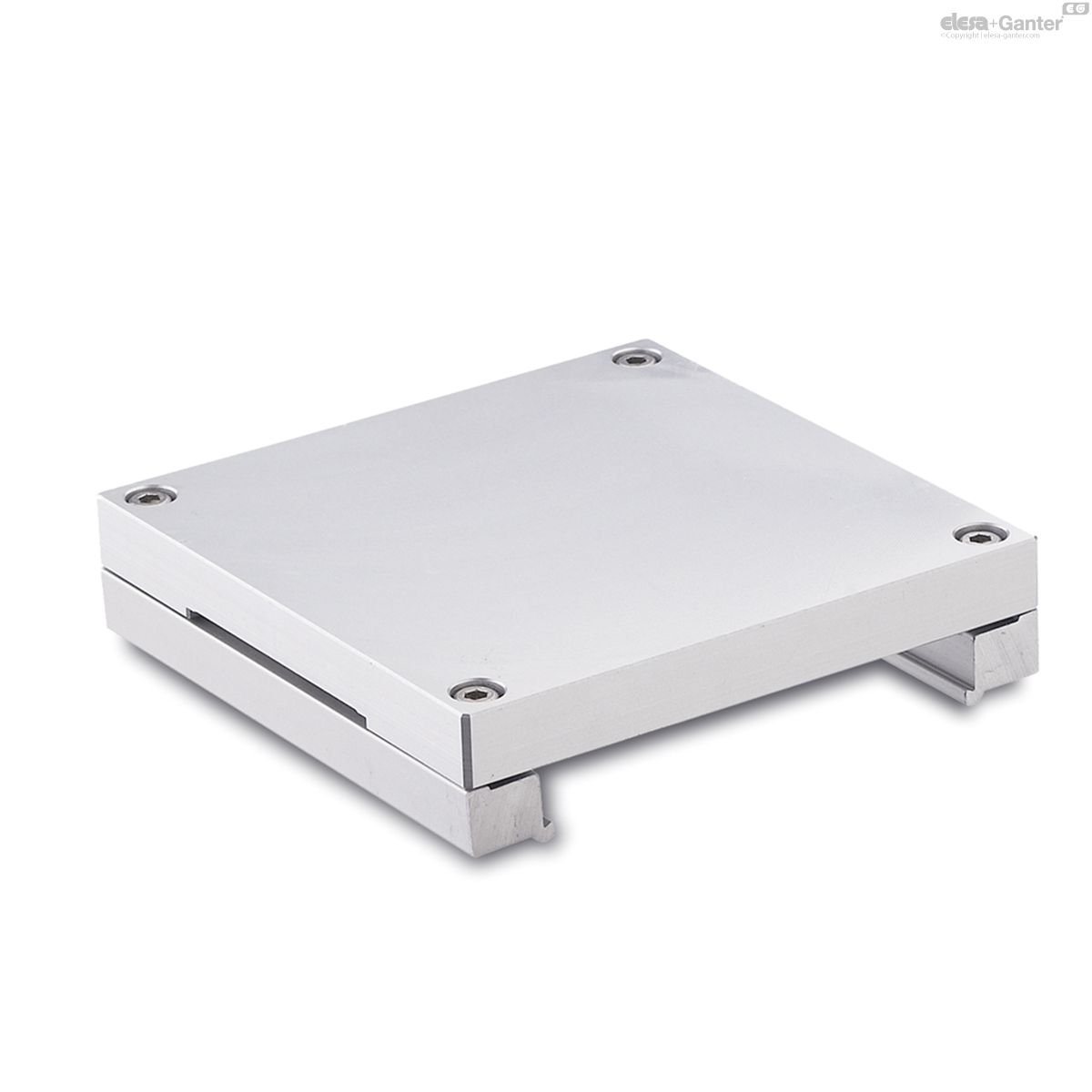

GN 900.4

Mounting Plates

for Adjustable Slide Units GN 900, Aluminum

Enquire Now

Description

Specification

Aluminium

Anodized, natural color

Socket cap screws DIN 912

Stainless steel

Information

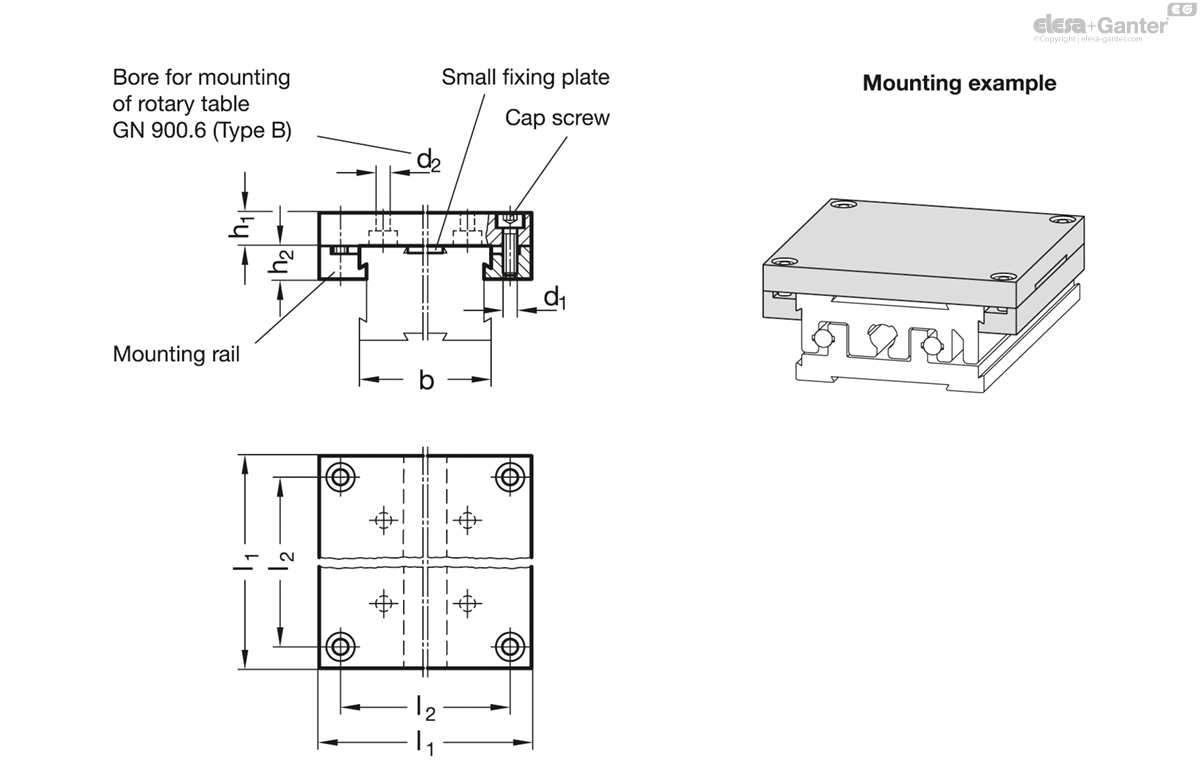

Mounting plates GN 900.4 type A are used for installing fixtures on the operator’s side. Type B is used for installing a rotary table GN 900.6 .

The mounting plate can be simply clamped on to the slide and no additional drilled holes are required.

The small fixing plates serves as an additional fine adjustment of the mounting plate with the adjustable slide unit.

All parts required to make up a set are included.

	b Size of the slide	l₁	d₁	d₂	h₁	h₂	l₂	For rotary tables
Code										Actions
GN 900.4-30-41-A	30	41	M 2.5	-	5	4.2	35.4	-	29
GN 900.4-50-67-A	50	67	M 3	-	8	7	58	-	120
GN 900.4-50-67-B	50	67	M 3	5.5	8	7	58	GN 900.6-55	125
GN 900.4-80-105-A	80	105	M 4	-	12	12.5	92	-	440
GN 900.4-80-105-B	80	105	M 4	5.5	12	12.5	92	GN 900.6-80	430
GN 900.4-120-145-A	120	145	M 5	-	16	13.8	131.8	-	1100
GN 900.4-120-145-B	120	145	M 5	5.5	16	13.8	131.8	GN 900.6-80	1055
