GN 898

Flanged Washers

Steel / Stainless Steel, for Toggle Clamps

Enquire Now

Stainless steel AISI 304

Description

Specification

Steel ST

Zinc plated, blue passivated

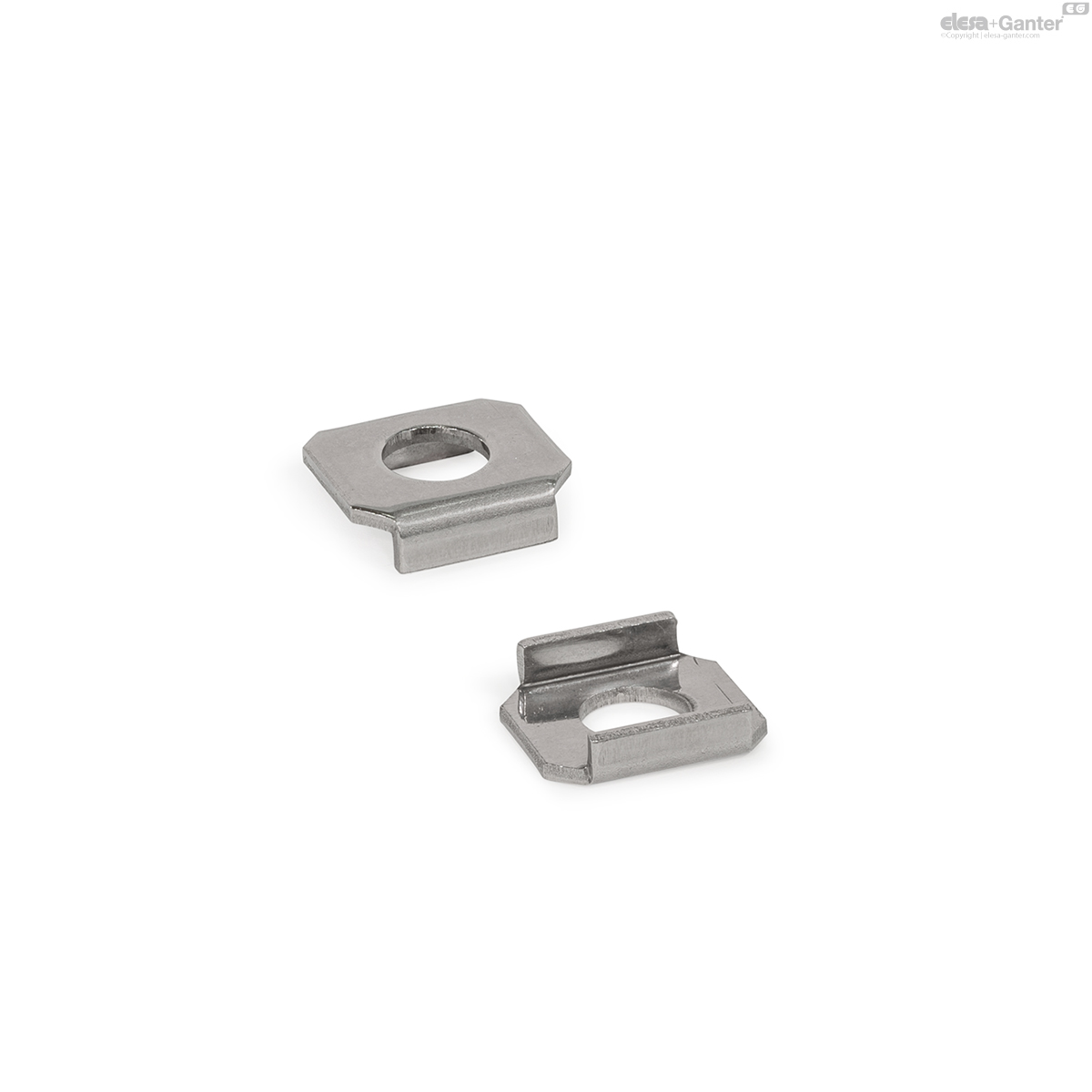

Stainless steel AISI 304 NI

Information

Flanged washers GN 898 are used to attach and position pressure elements on toggle clamps with open clamping arm. The corresponding toggle clamps are listed in the table.

Technical information

Stainless Steel Characteristics

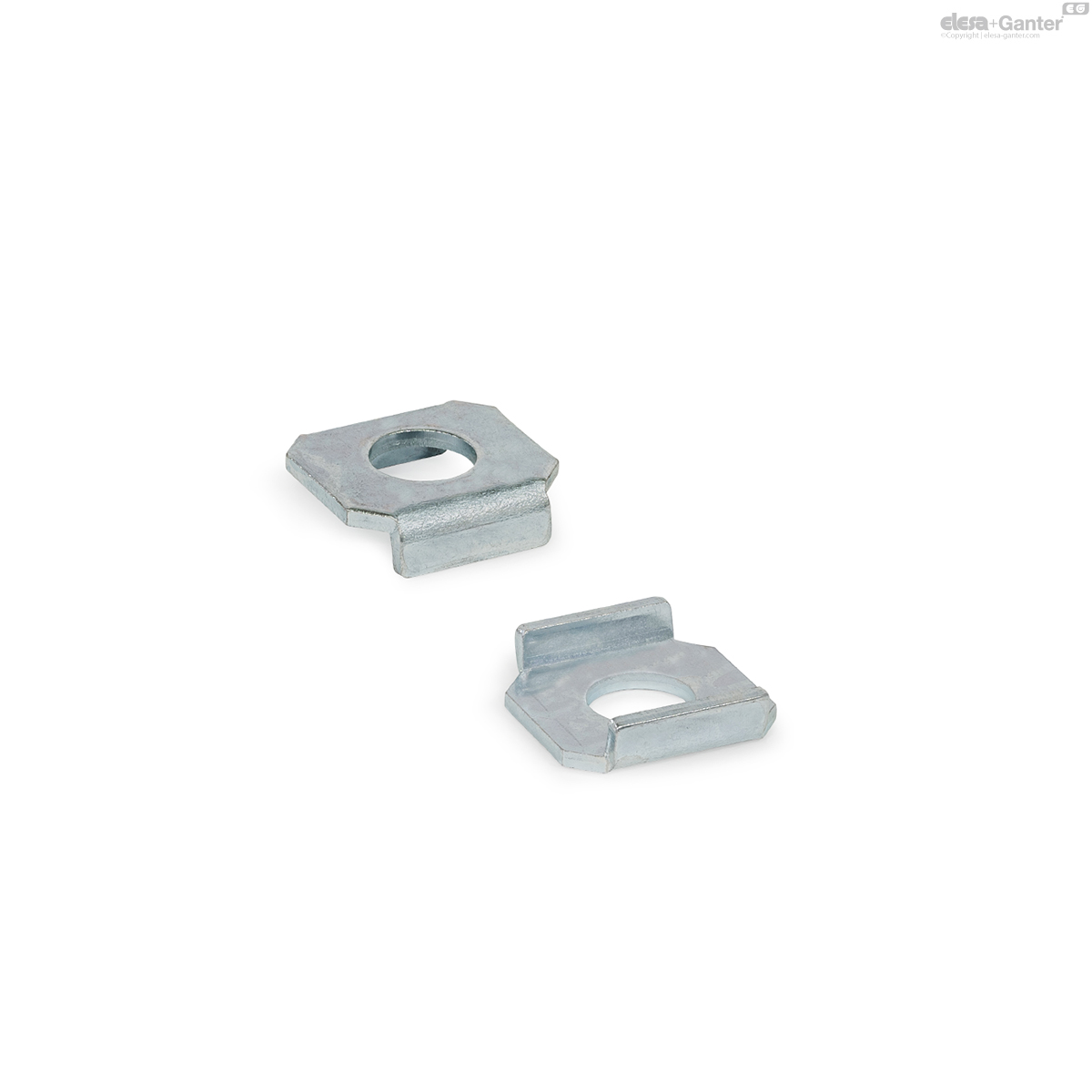

GN 898-ST

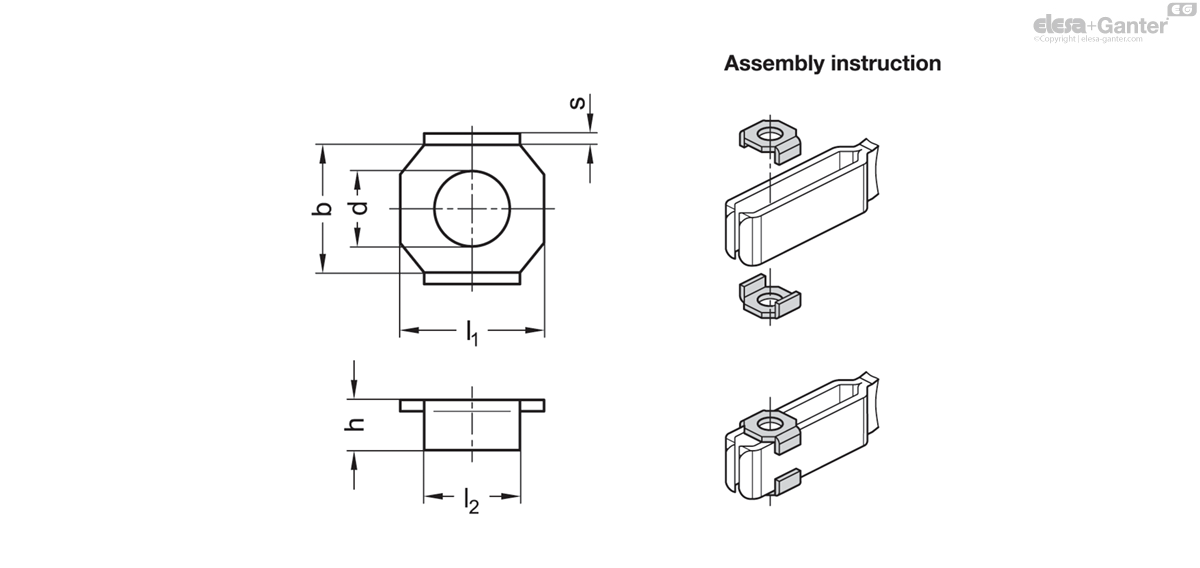

	d Nominal size	d Actual dimension	b	h	l₁	l₂	s	For toggle clamps GN 810 GN 810.1 GN 810.3 GN 810.4 GN 812.1	For toggle clamps GN 812	For toggle clamps GN 820 GN 820.1 GN 820.3 GN 820.4	For toggle clamps GN 820.6
Code													Actions
GN 898-4-ST	4	4.3	7.2	2.5	9	5	0.8	-	-	25	-	1
GN 898-5-ST	5	5.5	9.8	3.5	12	7.5	1	75	-	75	80	2
GN 898-6-ST	6	6.5	11.8	4.5	15	9	1.2	13	-	130	-	3
GN 898-8-ST	8	8.5	15	5.5	18	12.5	1.5	23	200	230	140	4
GN 898-10-ST	10	10.5	18	6	23	16.5	2	330	300	355	250	7
GN 898-12-ST	12	13	24	7	30	18	2.5	430 \| 530	-	455	-	14
