GN 898.1
Flanged Washers
Steel, for Toggle Clamps
Description
Specification
Steel ST
Zinc plated, blue passivated
Information

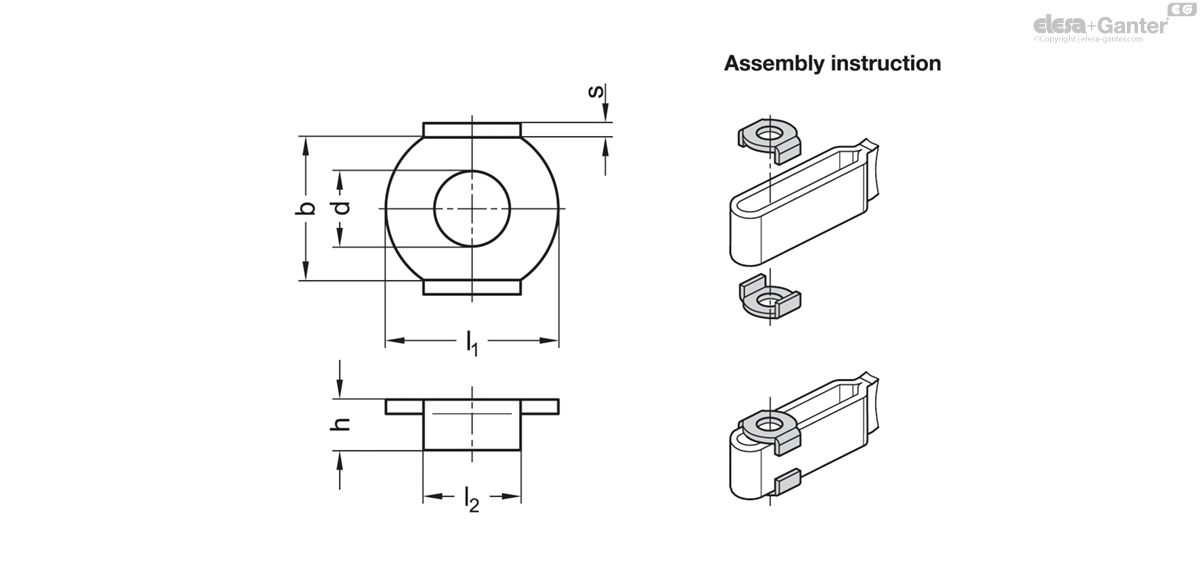

Flanged washers GN 898.1 are used to attach and position pressure elements on toggle clamps with open clamping arm. The corresponding toggle clamps are listed in the table.
GN 898.1
| d Nominal size |
d Actual dimension |
b | h | l1 | l2 | s | For toggle clamps GN 810.10 GN 810.11 |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 898.1-6-ST | 6 | 6.5 | 12.5 | 4.5 | 13.5 | 8.5 | 1.5 | 220 | 4 |
|
| GN 898.1-10-ST | 10 | 10.5 | 20.5 | 6.9 | 22 | 14 | 2 | 440 | 8 |
|
