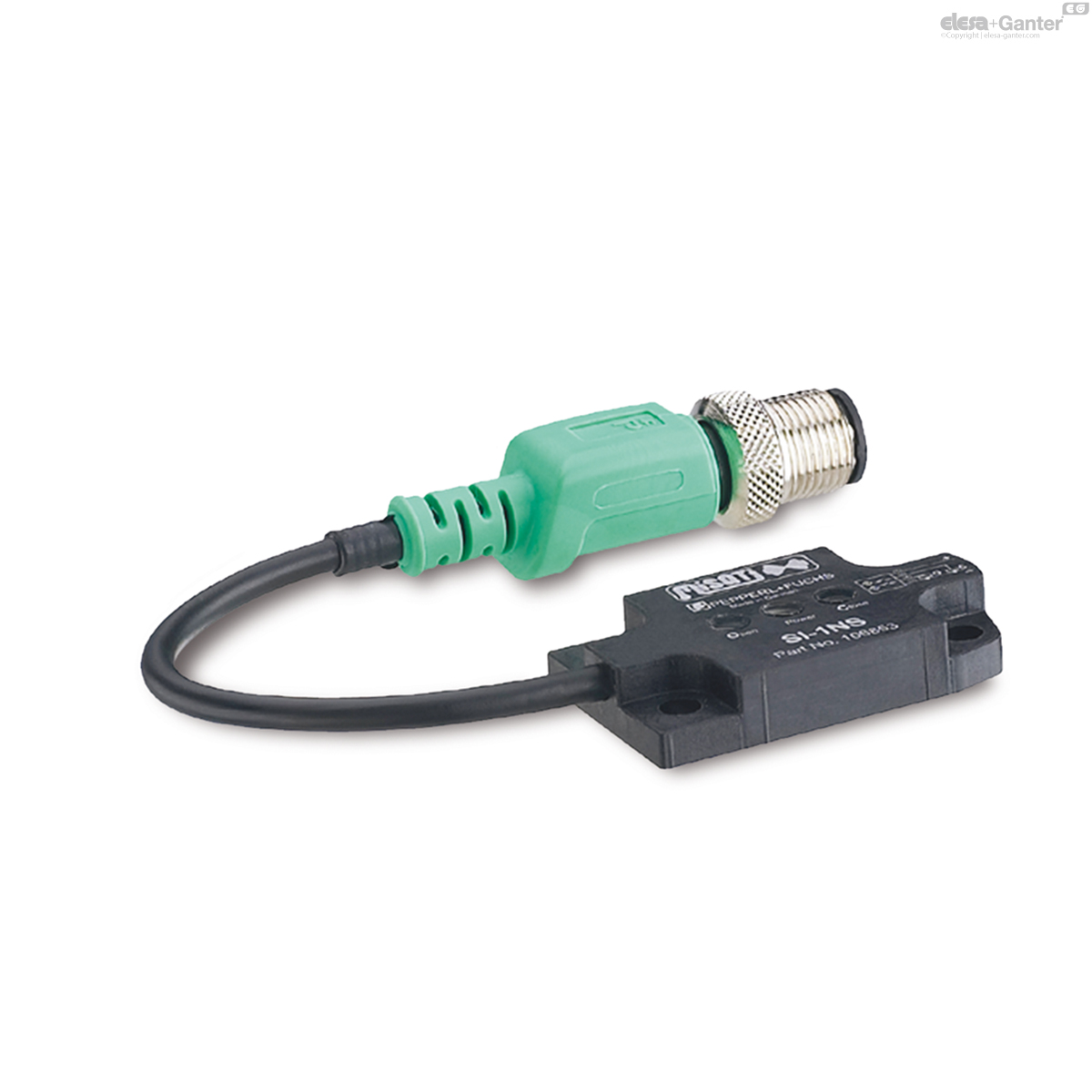

GN 893.1
Proximity switch
for pneumatic fastening clamps, inductive sensor
Description
Specification
Voltage range: 10 to 30 VDC
Switch load: 0 to 100 mA
Voltage drop: ≤ 2 V
Temperature range: 0 °C to 50 °C
Protection class: IP 65
LED-Indication:
- green: operating voltage
- red: switch position closed
- yellow: switch position open
Information
With this GN 893.1 proximity switch pneumatic fastening clamps can induce controlled signals whereby the LEDs indicate the operating and switch positions.
The proximity switches can be screwed directly on to the pneumatic fastening clamps. The position of the switches can be on either side.
A plastic intermediate plate and two cap screws M4 are included.
Accessory
Cable with connector
4-pole, 5 or 10 meters long:
- GN 330-M12x1-4-G-5Â
- GN 330-M12x1-4-G-10Â

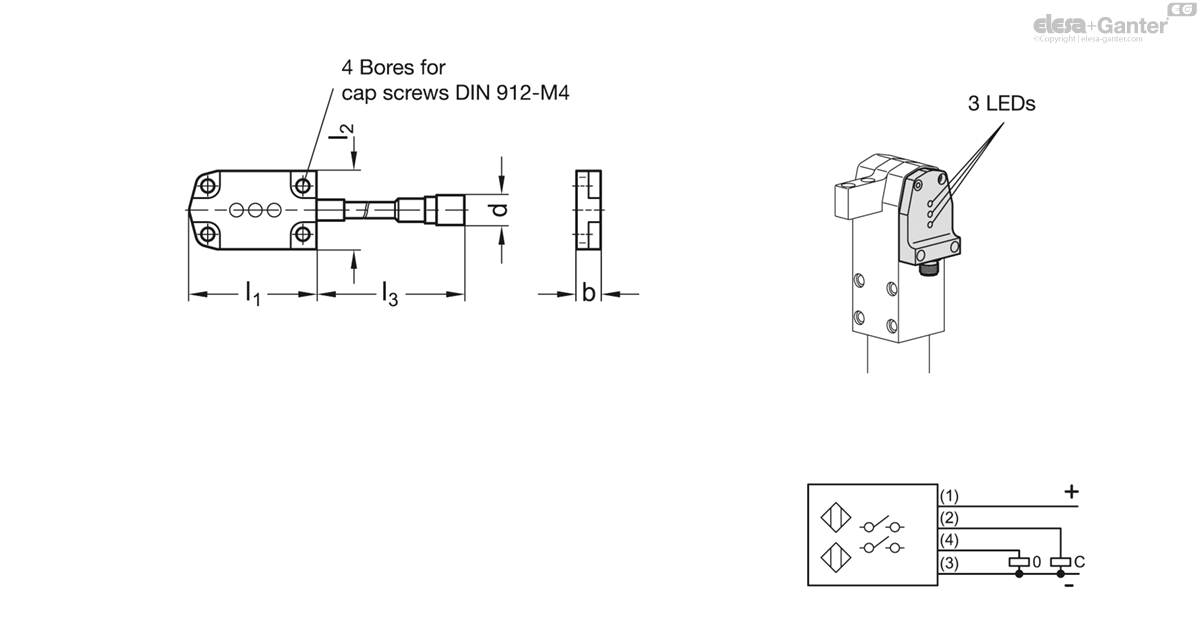

GN-893.1
| l3 | Pneumatic fastening clamps | Proximity switch | b | d Connector 4-pole |
l1 -0.2 | l2 |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 893.1 | 150 (PVC-Cable) | GN 864-20-BL | GN 865-20-BI | GN 866-20-BC | GN 893.1 | 8 | M 12 x 1 | 42 | 26 | 28 |
|
