GN 880.1

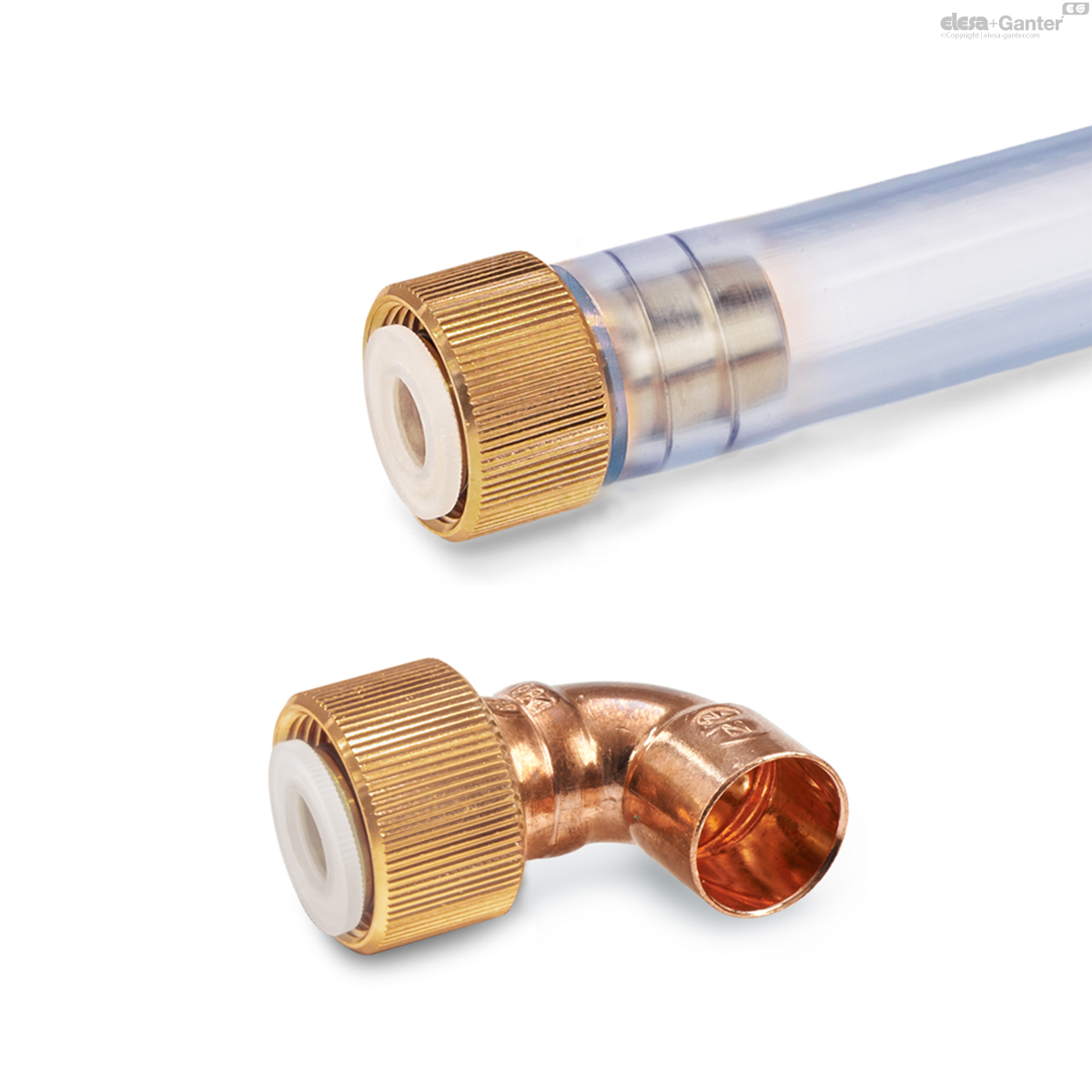

Connector pieces
for oil drain valves GN 880 / with or without drain hose
Description
Specification
Types

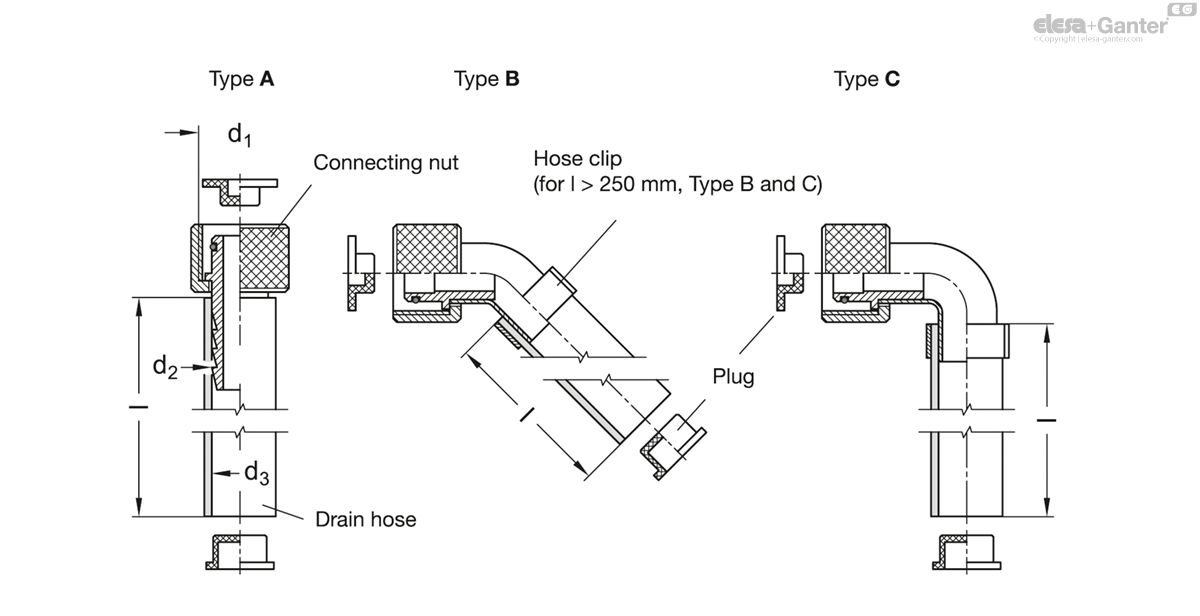

- Type A: Connector straight
- Type B: Connector 45°
- Type C: Connector 90°
Connecting nut
with hose liner
Brass
L bend 45° / 90 °
Copper
O-Ring
Rubber NBR (Perbunan)
Drain hose
PVC, transparent T
Hose clip
Steel, zinc plated
Plug
Plastic, LD-PE
Information
Connector pieces GN 880.1 are needed when using oil drain valves GN 880
Screwing on the connector piece will activate the valve plate of the oil drain valve, allowing the oil to flow through the hose into a pan held ready.
The plug prevents remaining oil from dripping out after discharging.
On request
- other hose length
- Drain hose with inside webbing (Nylon)
GN 880.1
| Size | d1 | l | d2 | d3 |  |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 880.1-22-A | 22 | M 22 x 1.5 | - | 15 | - | 58 |
|
| GN 880.1-22-A-250-T | 22 | M 22 x 1.5 | 250 | 15 | 14 | 97 |
|
| GN 880.1-22-A-500-T | 22 | M 22 x 1.5 | 500 | 15 | 14 | 129 |
|
| GN 880.1-22-A-1000-T | 22 | M 22 x 1.5 | 1000 | 15 | 14 | 221 |
|
| GN 880.1-22-B | 22 | M 22 x 1.5 | - | 15 | - | 59 |
|
| GN 880.1-22-B-250-T | 22 | M 22 x 1.5 | 250 | 15 | 14 | 94 |
|
| GN 880.1-22-B-500-T | 22 | M 22 x 1.5 | 500 | 15 | 14 | 141 |
|
| GN 880.1-22-B-1000-T | 22 | M 22 x 1.5 | 1000 | 15 | 14 | 223 |
|
| GN 880.1-22-C | 22 | M 22 x 1.5 | - | 15 | - | 62 |
|
| GN 880.1-22-C-250-T | 22 | M 22 x 1.5 | 250 | 15 | 14 | 97 |
|
| GN 880.1-22-C-500-T | 22 | M 22 x 1.5 | 500 | 15 | 14 | 140 |
|
| GN 880.1-22-C-1000-T | 22 | M 22 x 1.5 | 1000 | 15 | 14 | 220 |
|
| GN 880.1-26-A | 26 | M 26 x 1.5 | - | 20 | - | 89 |
|
| GN 880.1-26-A-250-T | 26 | M 26 x 1.5 | 250 | 20 | 19 | 162 |
|
| GN 880.1-26-A-500-T | 26 | M 26 x 1.5 | 500 | 20 | 19 | 237 |
|
| GN 880.1-26-A-1000-T | 26 | M 26 x 1.5 | 1000 | 20 | 19 | 387 |
|
| GN 880.1-26-B | 26 | M 26 x 1.5 | - | 20 | - | 86 |
|
| GN 880.1-26-B-250-T | 26 | M 26 x 1.5 | 250 | 20 | 19 | 152 |
|
| GN 880.1-26-B-500-T | 26 | M 26 x 1.5 | 500 | 20 | 19 | 234 |
|
| GN 880.1-26-B-1000-T | 26 | M 26 x 1.5 | 1000 | 20 | 19 | 386 |
|
| GN 880.1-26-C | 26 | M 26 x 1.5 | - | 20 | - | 89 |
|
| GN 880.1-26-C-250-T | 26 | M 26 x 1.5 | 250 | 20 | 19 | 153 |
|
| GN 880.1-26-C-500-T | 26 | M 26 x 1.5 | 500 | 20 | 19 | 233 |
|
| GN 880.1-26-C-1000-T | 26 | M 26 x 1.5 | 1000 | 20 | 19 | 390 |
|
